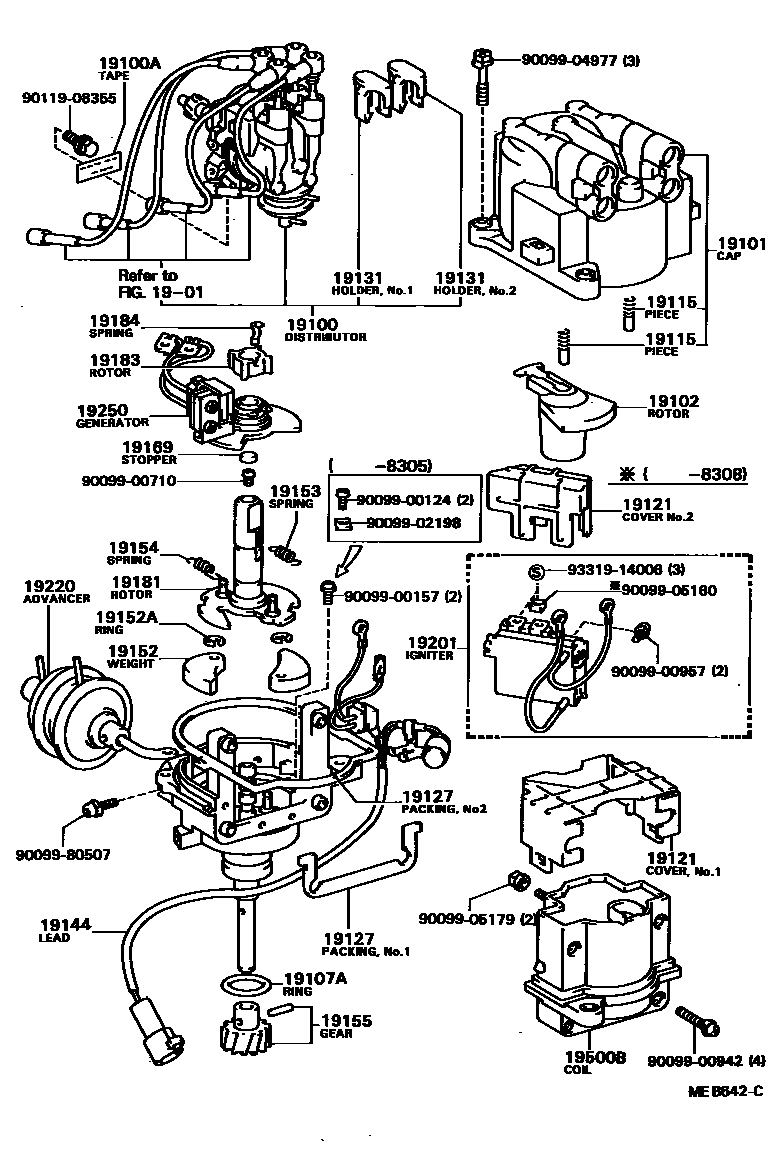

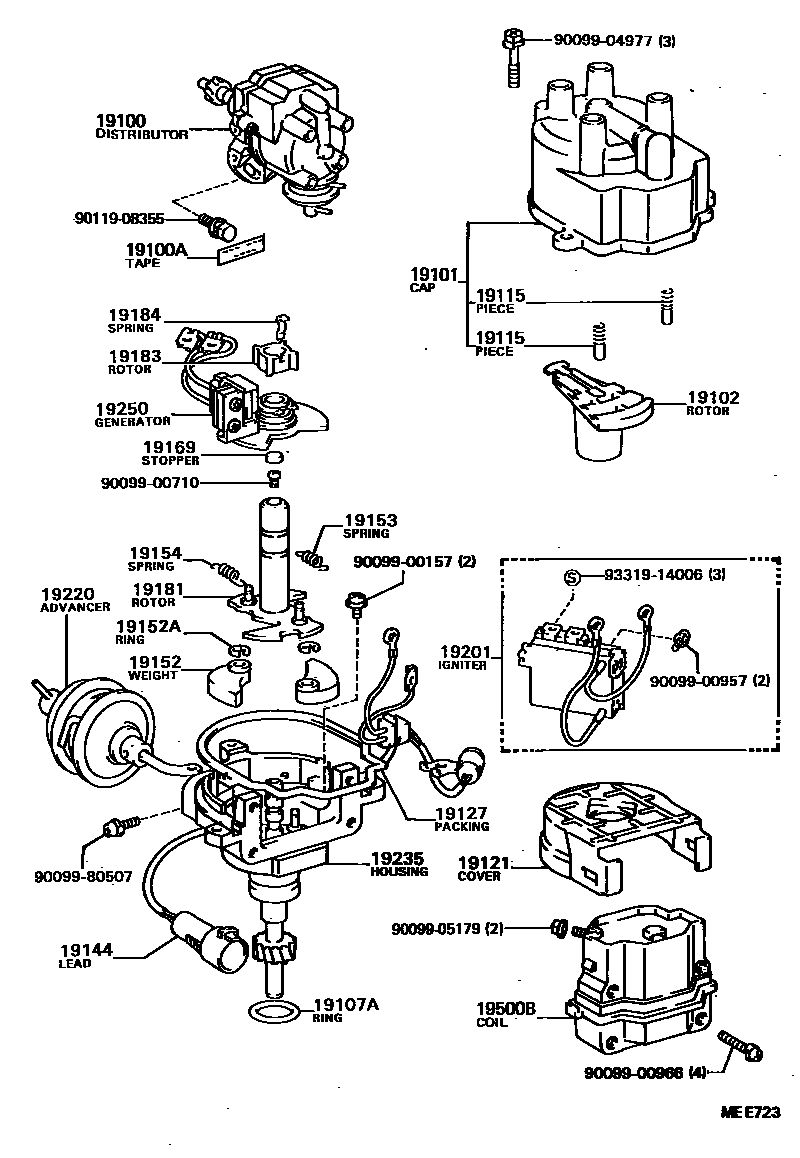

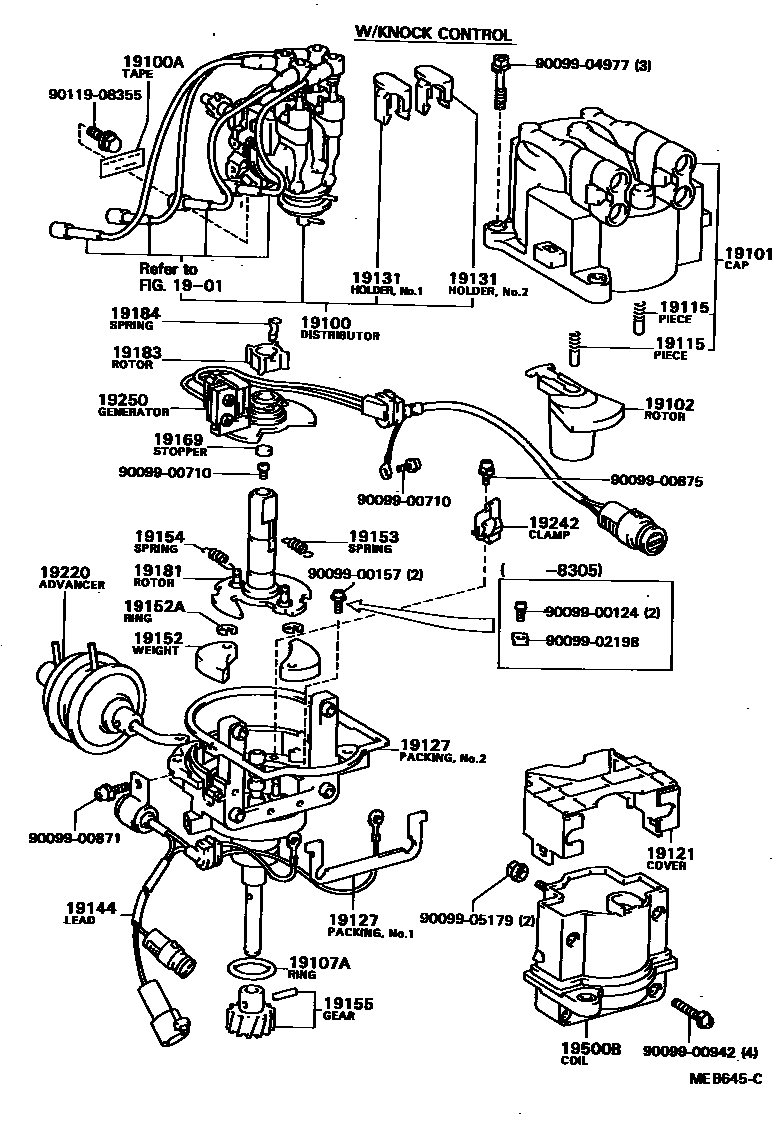

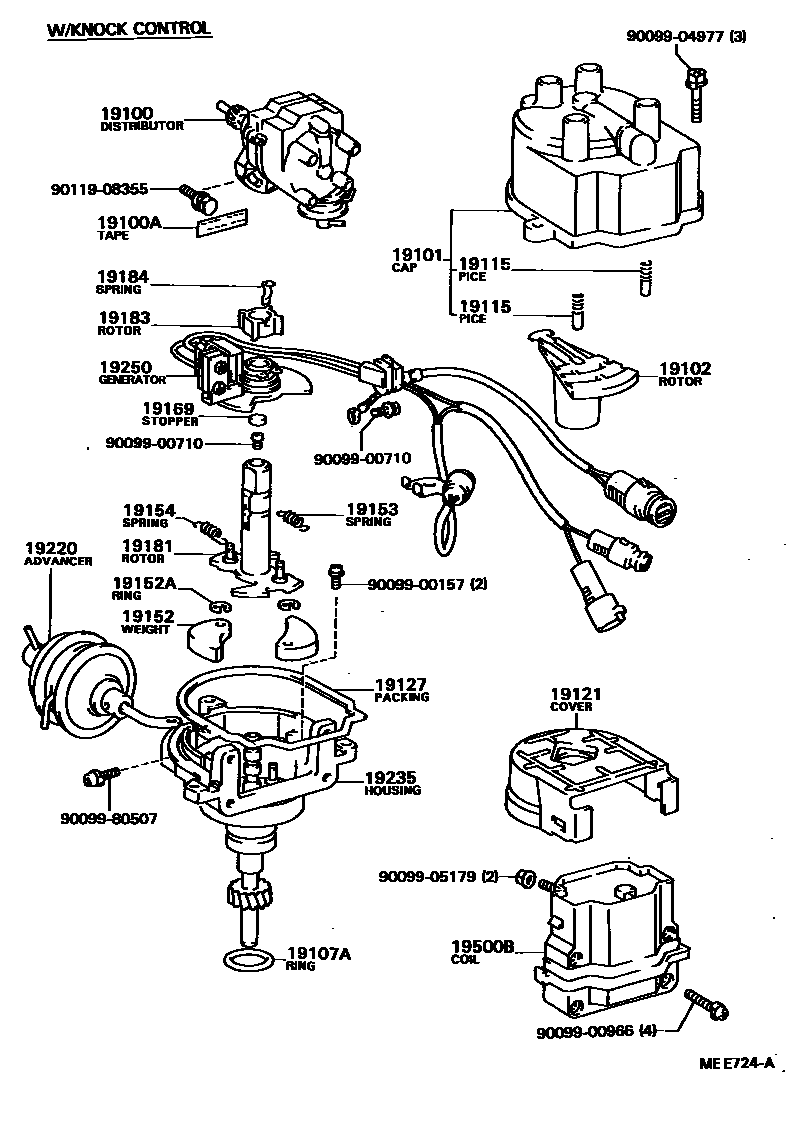

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19020-15050 · 19020-15070 · 19030-14010 · 19030-15010 · 19040-14010 · 19040-15010 · 19050-14010 |
| 19100A | sealing tape | 90919-24004 |
| 19101 | Distributor cover sub-assembly | 19101-11010 · 19101-15090 |
| 19102 | Distributor flame head sub-assembly | 19102-11010 · 19102-63010 |
| 19107A | Distributor housing O-ring | 96710-04030 · 96711-35030 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 |
| 19121 | dust cover | 19121-11010 · 19121-11080 · 19121-15090 · 19121-63020 · 19121-63040 |
| 19127 | Dust seal | 19127-11010 · 19127-15090 · 19127-63020 |
| 19131 | Wire fasteners | 19131-15010 · 19131-15020 |
| 19144 | Distributor breaker lead | 19144-15080 · 19144-15090 · 19144-15100 · 19144-15160 · 19144-15161 |
| 19152 | Speed regulator weight | 19152-15160 · 19152-44170 |
| 19152A | Snap ring (for governor weight) | 90099-07109 · 90099-07122 |
| 19153 | A governor spring | 19153-14090 · 19153-14100 · 19153-14130 · 19153-14140 · 19153-14160 · 19153-14170 · 19153-15070 · 19153-15090 · 19153-15100 · 19153-15210 · 19153-15230 |
| 19154 | B governor spring | 19154-14090 · 19154-14100 · 19154-14130 · 19154-14140 · 19154-14160 · 19154-14170 · 19154-15070 · 19154-15090 · 19154-15100 · 19154-15210 · 19154-15230 |
| 19155 | Distributor spiral gear | 19195-15021 |
| 19169 | Cam grease stop | 19169-32010 · 19169-63011 |
| 19181 | Distributor signal distributor | 19181-14090 · 19181-14100 · 19181-14170 · 19181-15050 · 19181-15070 · 19181-15090 · 19181-15100 |
| 19183 | Signal splitter | 19183-15010 · 19183-63010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19201 | igniter | 89620-10120 · 89620-16070 |
| 19220 | Distributor vacuum advance device assembly | 19220-14090 · 19220-14110 · 19220-14120 · 19220-15090 · 19220-15100 · 19220-15230 |
| 19235 | Distributor housing | 19235-14010 · 19235-14040 |
| 19242 | Cable clip | 19242-15100 |
| 19250 | Signal generator assembly | 19251-14010 · 19251-15090 · 19251-15091 · 19251-15100 |
| 19500B | Ignition coil assembly | 90919-02135 · 90919-02139 · 90919-02163 · 90919-02164 |
