Toyota COROLLA 点火线圈和火花塞 — Figure 1901

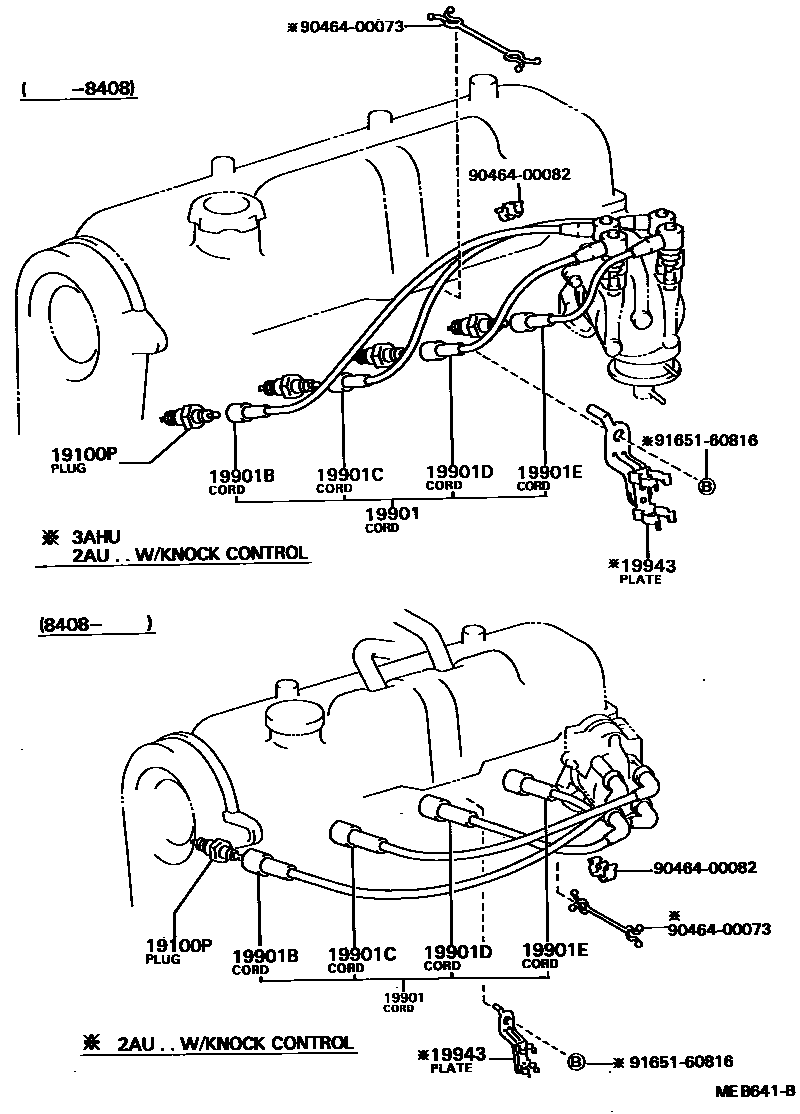

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01085 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-22105 · 90919-22121 |
| 19901B | No. 1 spark plug damper wire | 90919-12356 · 90919-12425 |
| 19901C | No. 2 spark plug damper wire | 90919-12357 · 90919-12426 |
| 19901D | No. 3 spark plug damper wire | 90919-12358 · 90919-12427 |
| 19901E | No. 4 spark plug damper wire | 90919-12359 · 90919-12428 |
| 19943 | No. 1 damping wire clip support plate | 19943-15020 |
