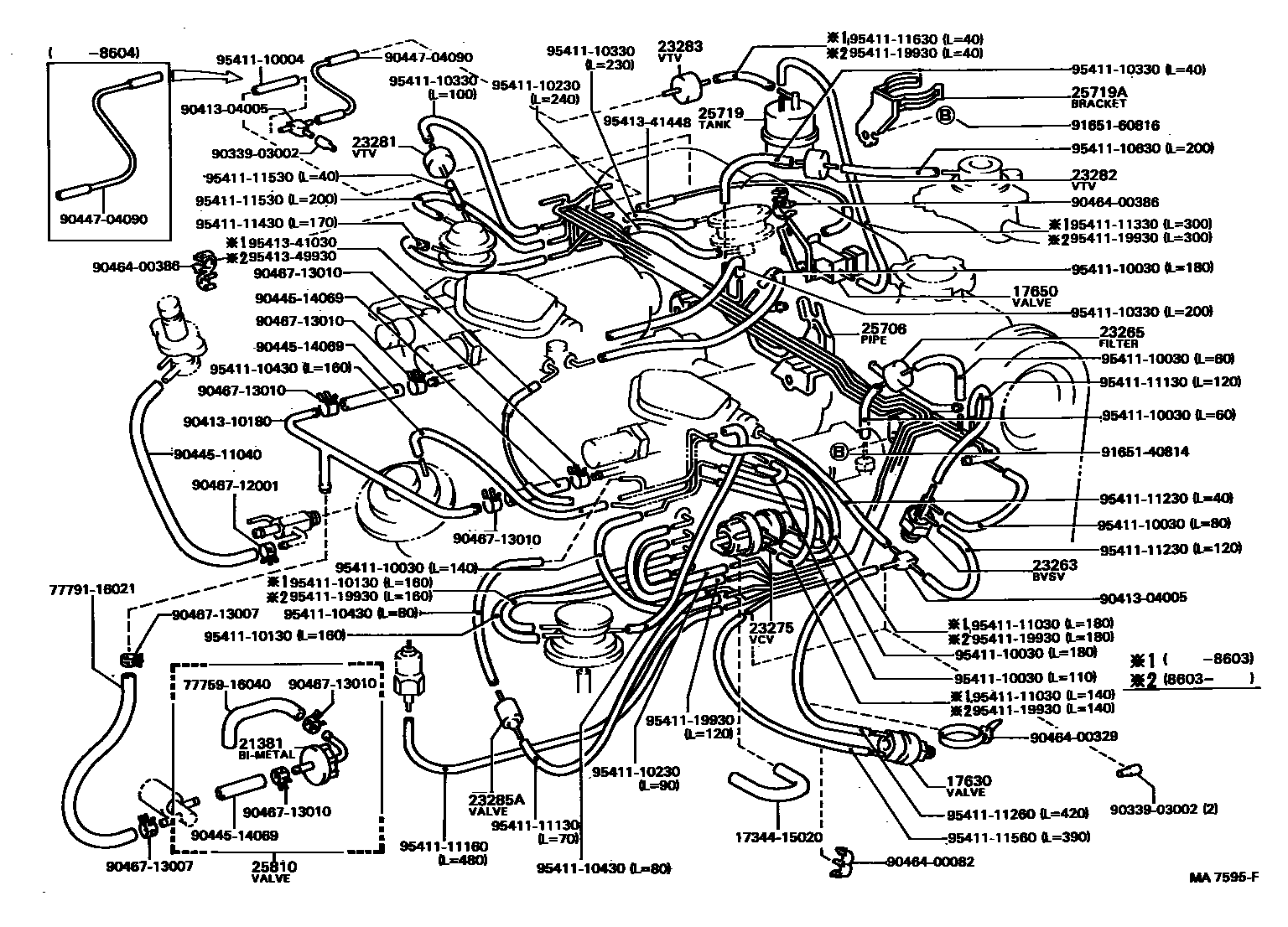

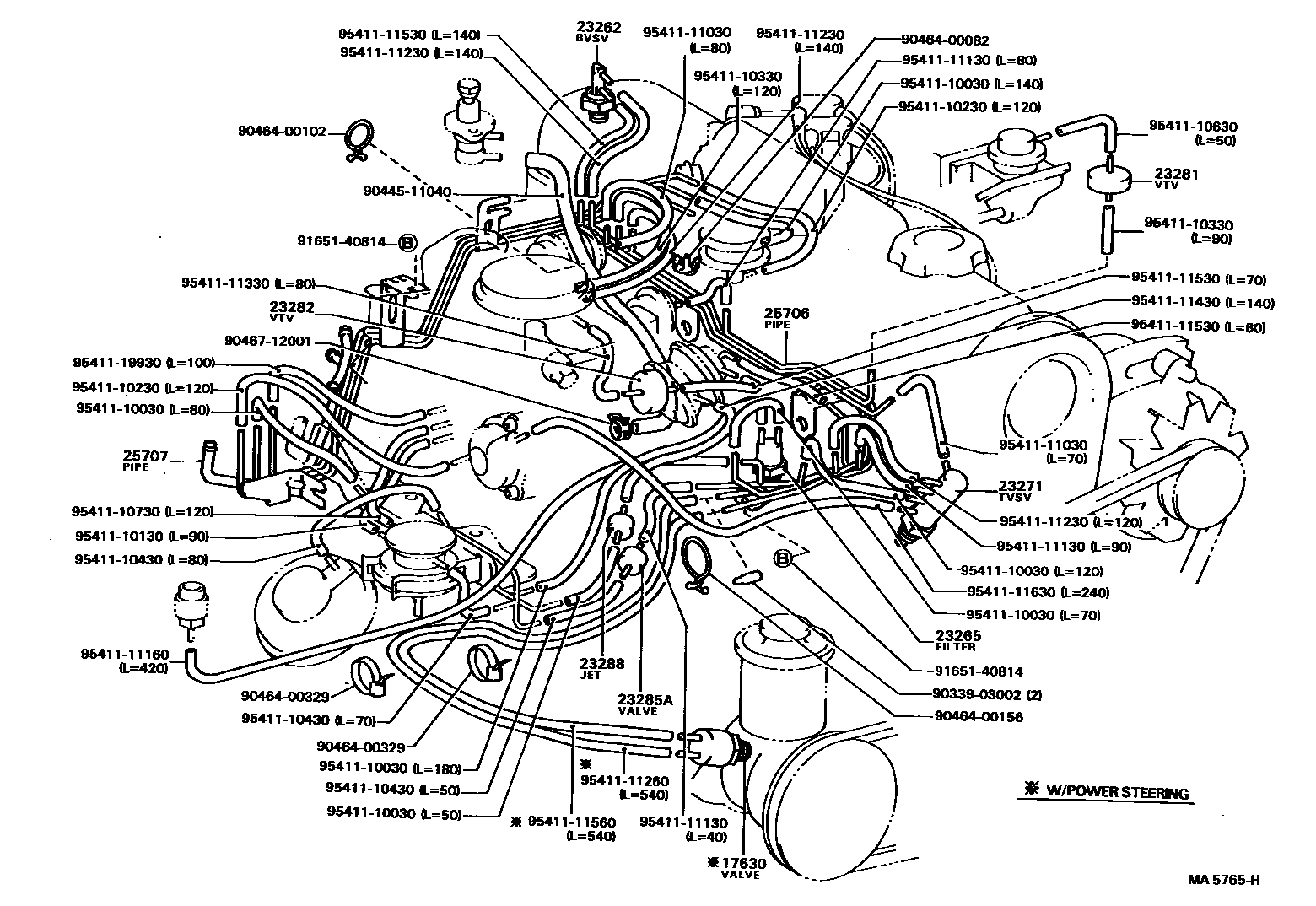

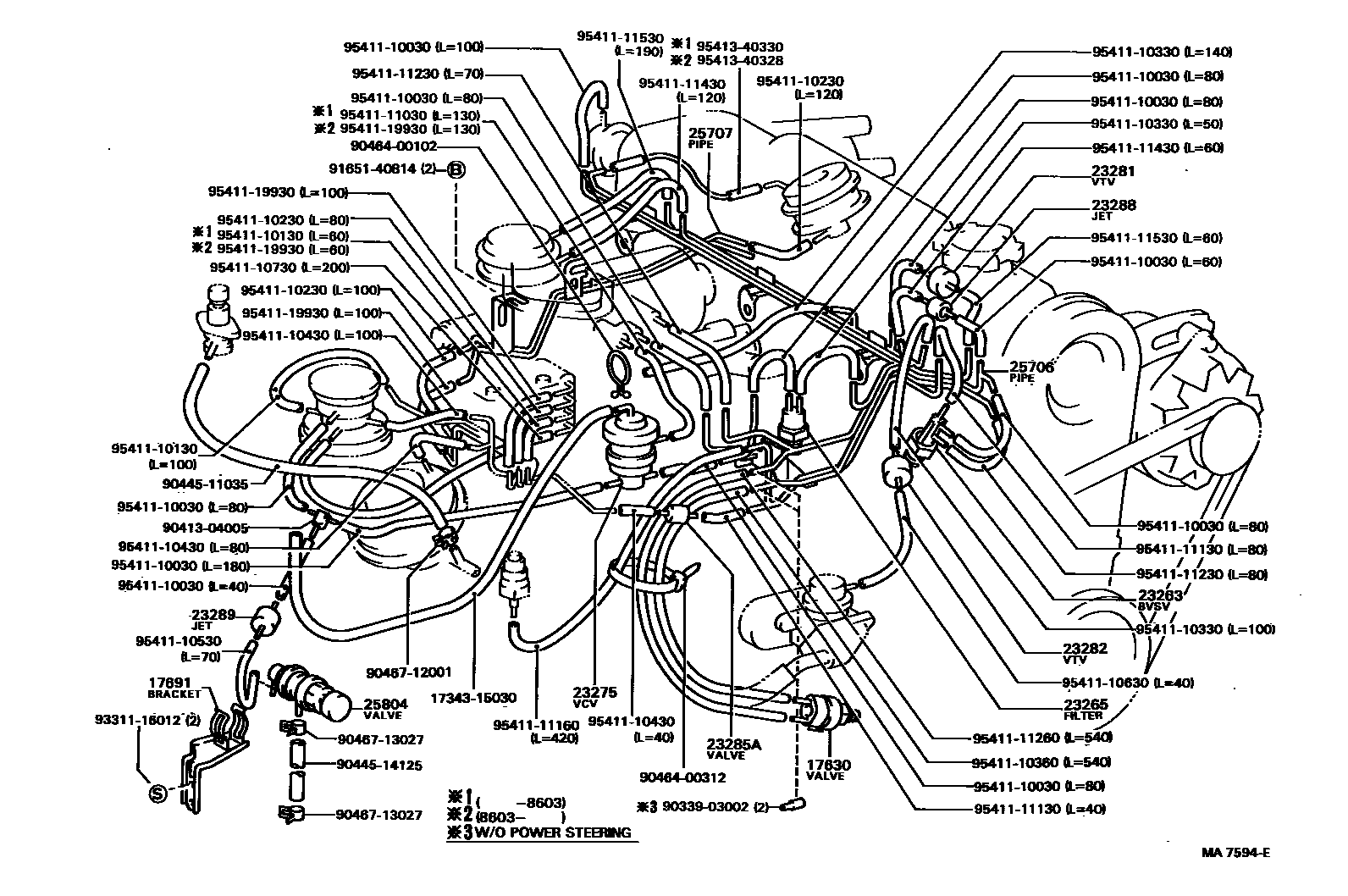

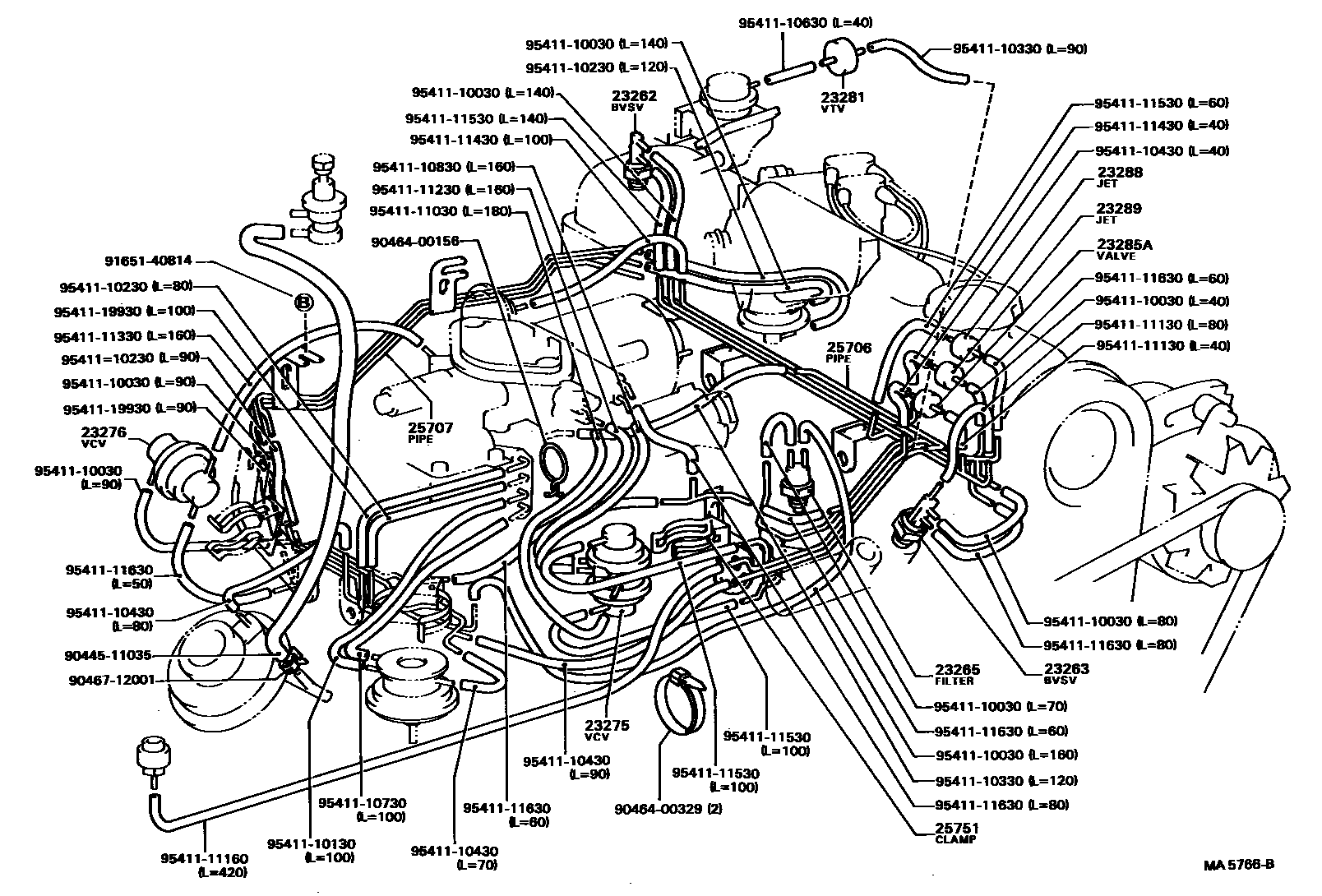

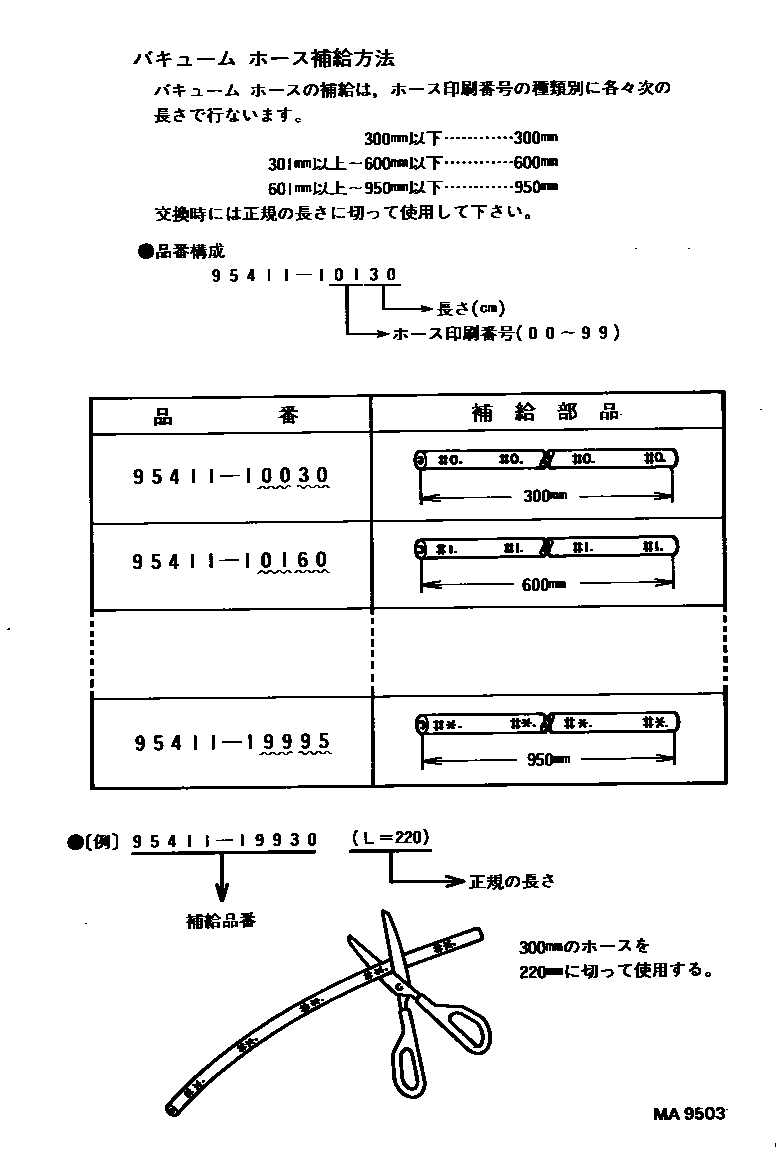

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17630 | Air control valve assembly | 17630-15010 · 17630-15020 · 17630-15021 |
| 17650 | Vacuum switch valve assembly | 89570-16090 |
| 17691 | No. 1 vacuum control valve bracket | 17691-15030 |
| 21381 | thermostat bimetal | 21381-15010 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05046 · 90925-05052 · 90925-05069 · 90925-05070 |
| 23263 | No. 2 bimetallic vacuum switch valve | 25810-13010 · 25810-15010 |
| 23265 | No. 1 gas filter | 90917-11021 · 90917-11023 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23275 | Vacuum control valve No. 1 | 90925-03133 · 90925-03158 · 90925-03159 |
| 23276 | Vacuum control valve No. 2 | 90925-03134 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01084 · 90925-01091 · 90925-01095 |
| 23282 | Vacuum Transfer Valve No. 2 | 90925-01091 · 90925-01095 |
| 23283 | Vacuum Transfer Valve No. 3 | 90925-01097 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-04004 · 90925-04013 |
| 23289 | Nozzle No. 2 | 90925-04012 · 90925-04013 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-15110 · 25706-15111 · 25706-15120 · 25706-15170 · 25706-15180 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-15090 · 25707-15100 · 25707-15101 · 25707-15130 · 25707-15160 |
| 25719 | Vacuum pressure tank | 25719-15010 |
| 25719A | Vacuum tank clip holder | 44756-16010 |
| 25751 | No. 1 vacuum control valve clamp | 25751-15010 |
| 25804 | Vacuum control valve assembly | 25804-15030 |
| 25810 | Bimetal valve assembly | 25820-15021 |
