Toyota COROLLA 歧管喷气系统 — Figure 1706

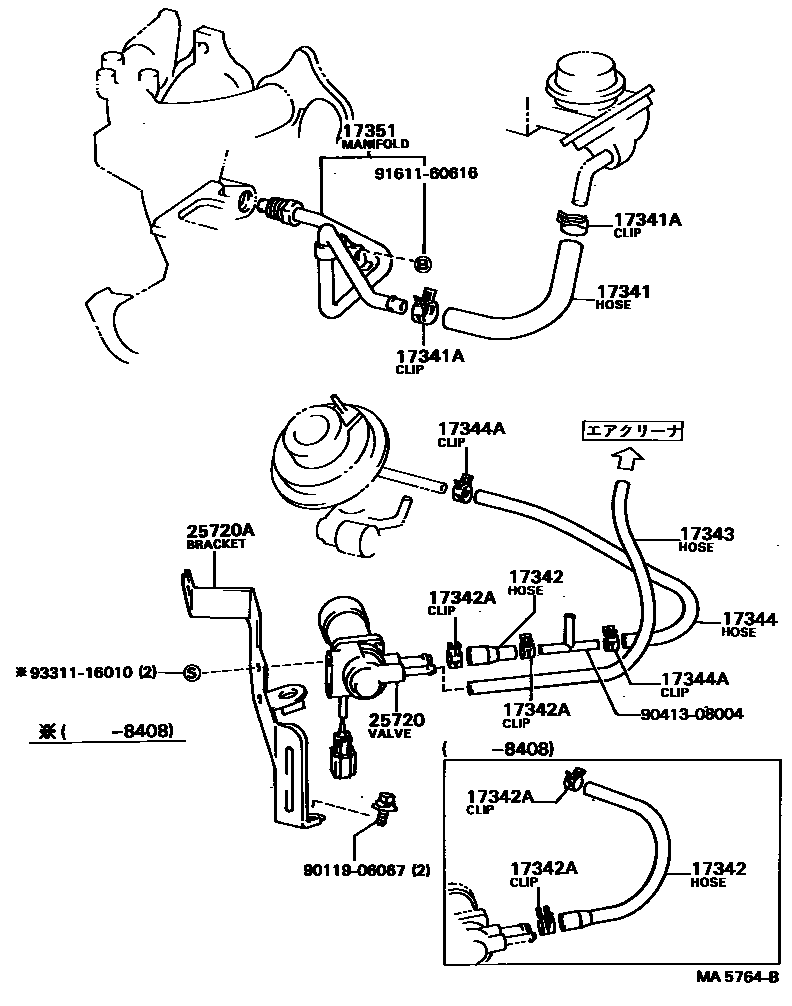

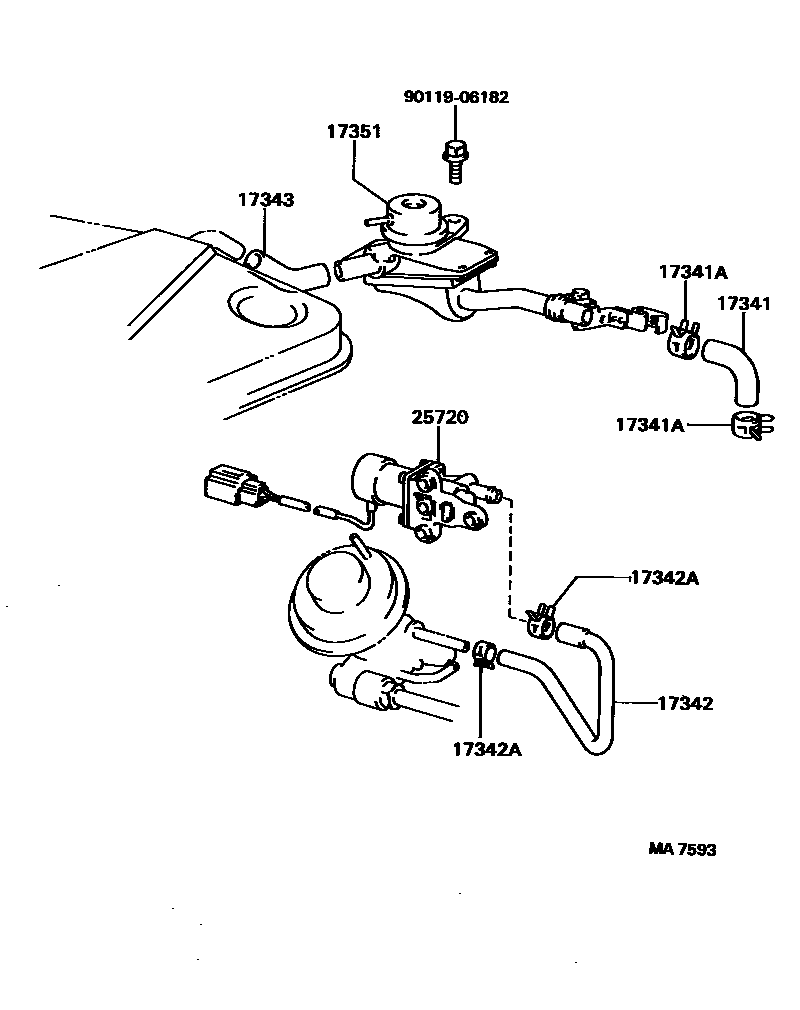

Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341 | Hoses No. 1 (for air injection systems) | 17341-15060 · 17341-15061 · 17341-15110 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-23003 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-15030 · 17342-15050 · 17345-15020 |
| 17342A | No. 2 clip or clip (for No. 2 air injection system hose) | 90467-13007 · 90467-13027 · 96132-31000 |
| 17343 | No. 3 hose (for air injection system) | 17343-15020 · 17344-15030 · 90445-14045 |
| 17344 | No. 4 hose (for air injection system) | 90445-14045 · 90445-14135 |
| 17344A | No. 4 clamp or clip (for No. 4 air injection system hose) | 90467-13027 |
| 17351 | jet manifold | 17306-15030 · 17350-15080 |
| 25720 | Electronic air control valve assembly | 25704-15020 · 25704-15040 · 25704-15050 |
| 25720A | Electronic air control valve bracket | 25724-15030 · 25724-15040 |
