Toyota COROLLA Air Cleaner — Figure 1703

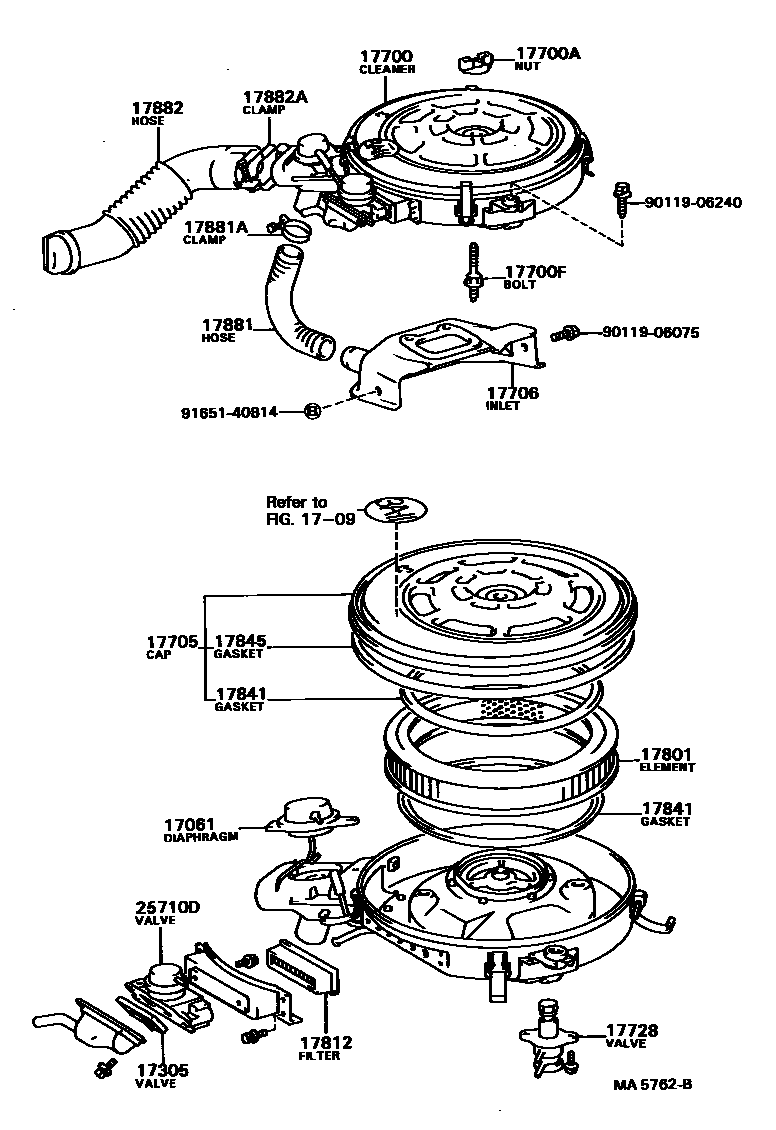

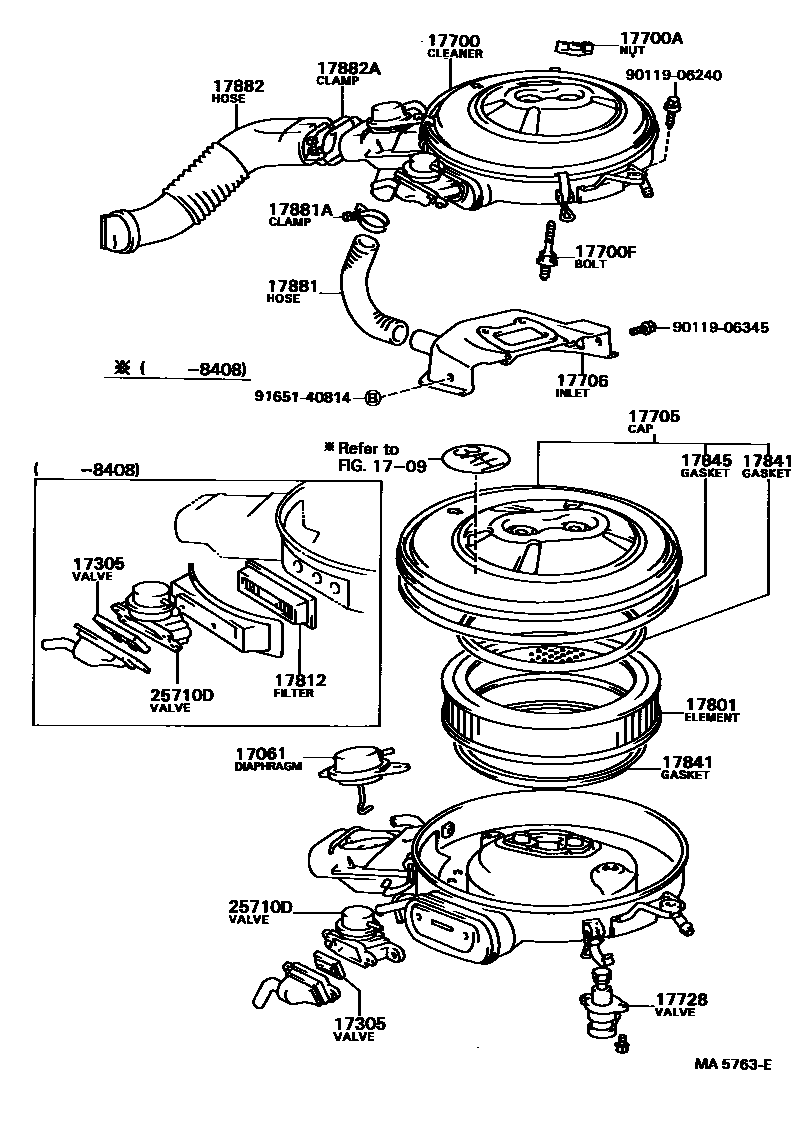

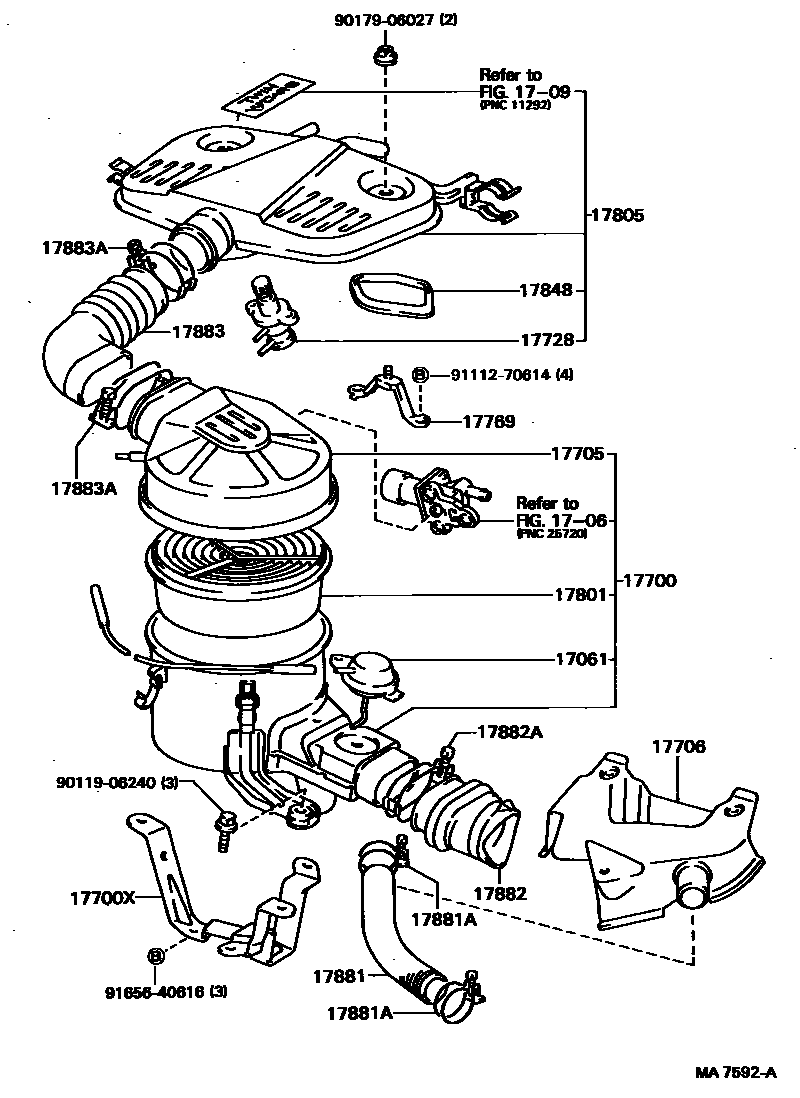

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-15020 · 17061-15030 · 17061-15040 |
| 17305 | Reed valve sub-assembly | 17305-15010 · 17305-15030 |
| 17700 | air filter assembly | 17700-14050 · 17700-15090 · 17700-15100 · 17700-15170 · 17700-15180 |
| 17700A | Wing nut (for air cleaner) | 90175-06010 |
| 17700F | Stud bolt (for securing air filter) | 90116-06019 · 90116-06036 · 90116-06280 |
| 17700X | air filter bracket | 17771-15010 |
| 17705 | Air filter cover sub-assembly | 17705-15040 · 17705-15050 · 17705-15080 · 17705-15090 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17902-15060 · 17902-15090 |
| 17728 | thermostat valve | 17728-13030 · 17728-15040 · 17728-15050 |
| 17769 | air filter bracket | 17769-15010 |
| 17801 | Air filter element sub-assembly | 17801-15010 · 17801-63010 |
| 17805 | Intake connecting pipe sub-assembly | 17860-15010 |
| 17812 | No. 2 air filter element | 17812-15010 · 17812-31010 |
| 17841 | filter liner | 17841-15010 |
| 17845 | air cleaner cover gasket | 17845-15030 · 17845-37020 · 17845-61011 |
| 17848 | Gasket from air cleaner to carburetor | 17848-15010 |
| 17881 | No. 1 air cleaner hose | 17881-16110 · 17881-34110 · 17881-63010 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10460 |
| 17882 | No. 2 air cleaner hose | 17881-15050 · 17881-16070 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01005 |
| 17883 | No. 3 air cleaner hose | 17881-15080 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-01033 · 96111-10710 |
| 25710D | Air switch valve assembly | 25710-15050 · 25710-15070 · 25710-63010 |
