Toyota COROLLA Exhaust Pipe — Figure 1702

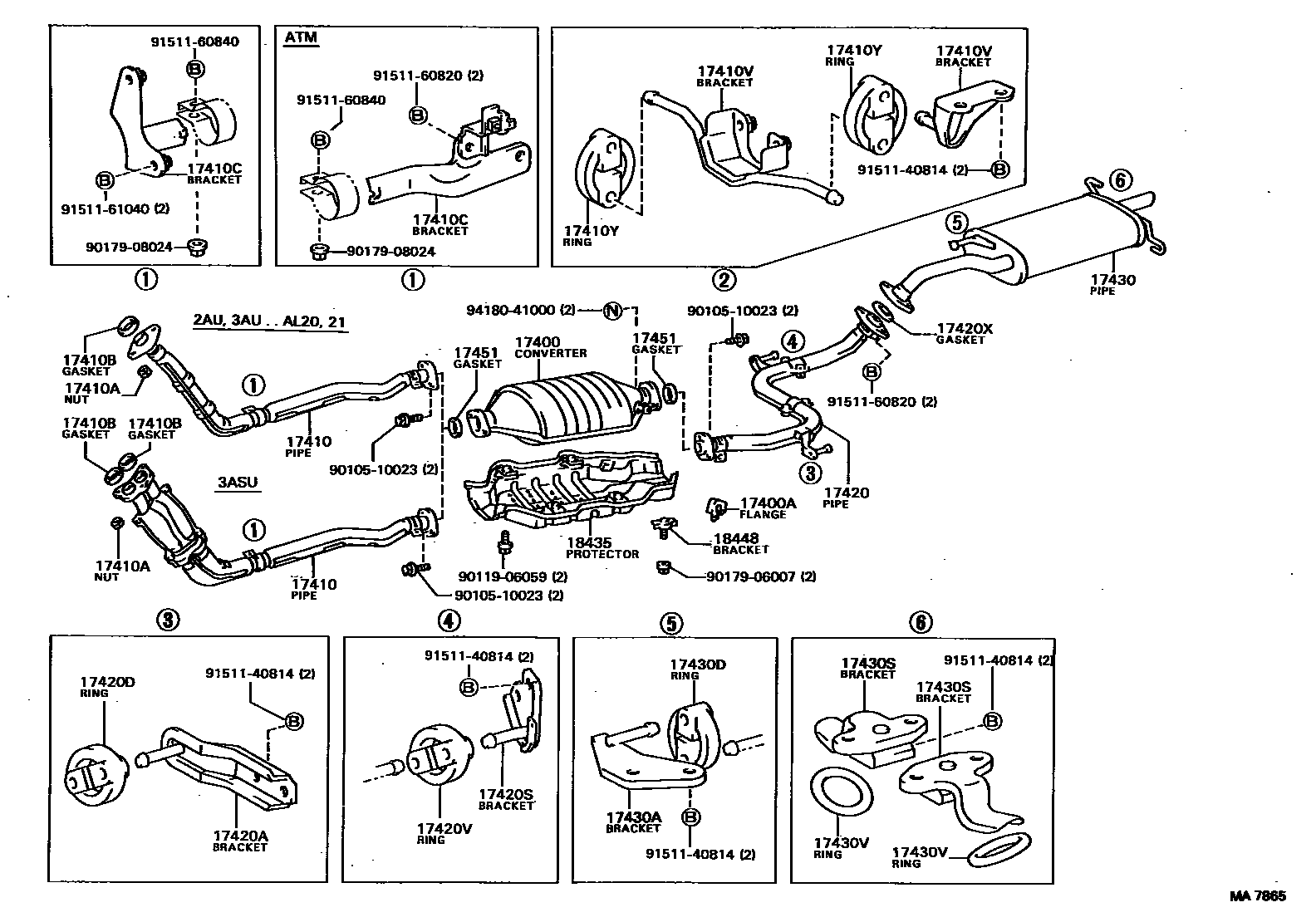

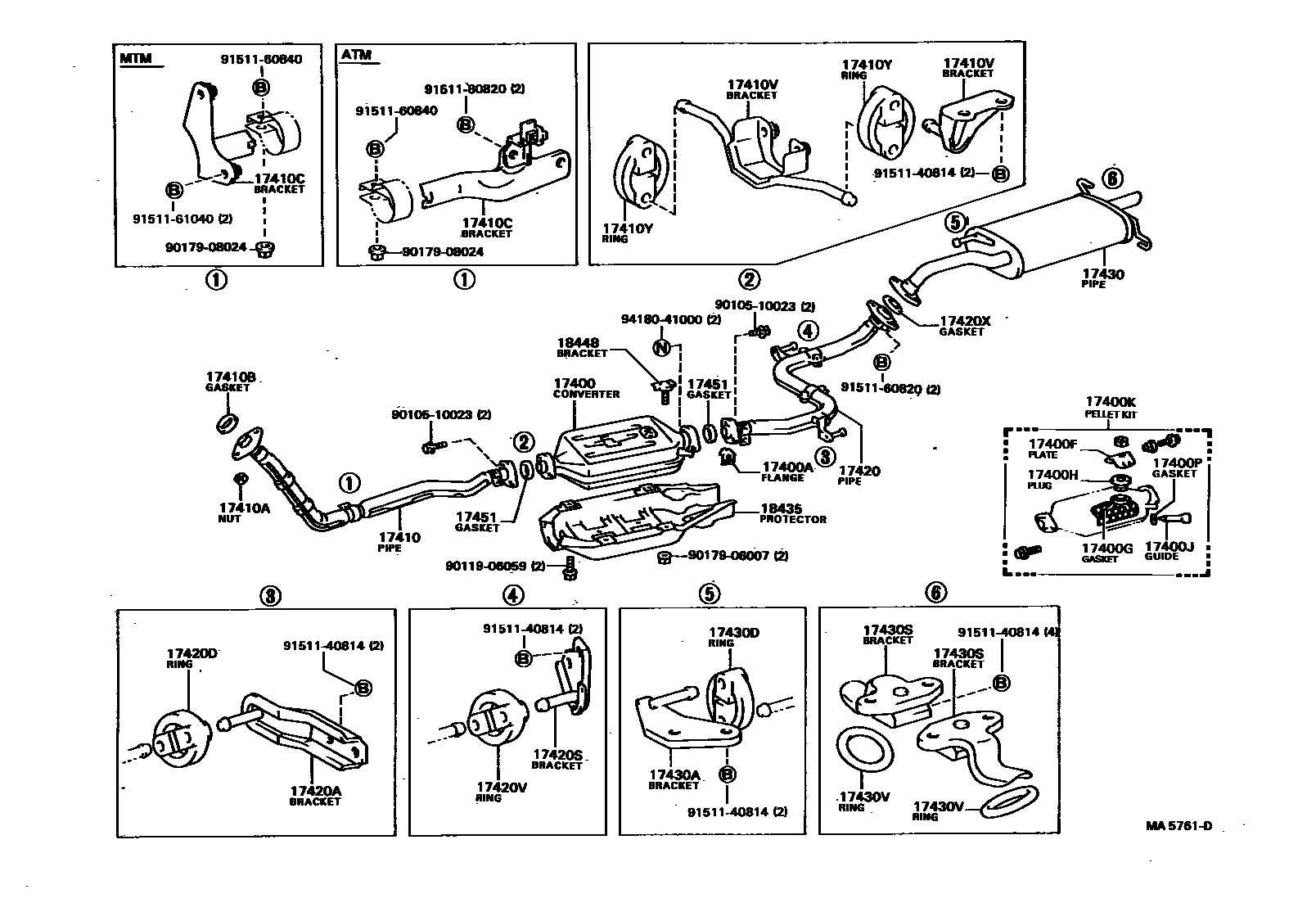

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 17400-13050 · 18450-15060 |
| 17400A | Thermal sensor air inlet flange | 18491-28010 · 18491-38040 |
| 17400F | Catalyst air inlet plug locking plate | 18493-38011 |
| 17400G | Catalyst air inlet gasket | 18494-38010 |
| 17400H | Headed straight thread plug (for catalyst inlet) | 90341-24093 |
| 17400J | Three-way catalytic converter sensor guide | 18492-45010 |
| 17400K | Granular Catalyst Components | 04181-41030 |
| 17400P | Gasket (for three-way catalytic converter sensor guide) | 90430-08252 |
| 17410 | Front exhaust pipe assembly | 17410-15080 · 17410-15200 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 |
| 17410C | Front exhaust pipe bracket (for front) | 17570-15030 · 17571-15070 |
| 17410V | Front exhaust pipe bracket (for rear) | 17503-15040 · 17505-15030 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17565-15020 |
| 17420 | Central exhaust pipe assembly | 17420-15020 · 17420-15031 · 17420-15080 |
| 17420A | Center exhaust pipe front bracket | 17506-15020 |
| 17420D | Center exhaust pipe front bolt or ring | 17565-15020 |
| 17420S | Center exhaust pipe rear bracket | 17507-15020 |
| 17420V | Center exhaust pipe rear bolt or ring | 17565-15030 · 17565-63030 |
| 17420X | Center exhaust pipe liner | 90917-06026 |
| 17430 | Exhaust tailpipe assembly | 17430-15100 · 17430-15101 · 17430-15300 |
| 17430A | Exhaust tailpipe bracket (for front) | 17508-15010 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17565-15020 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17509-63010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 90301-33001 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06018 · 90917-06020 |
| 18435 | Three-way catalytic converter protection device | 18407-15020 · 18407-25011 |
| 18448 | Three-way catalytic converter protection device central bracket | 18439-15030 · 18448-26020 |
