Toyota COROLLA Manifold — Figure 1701

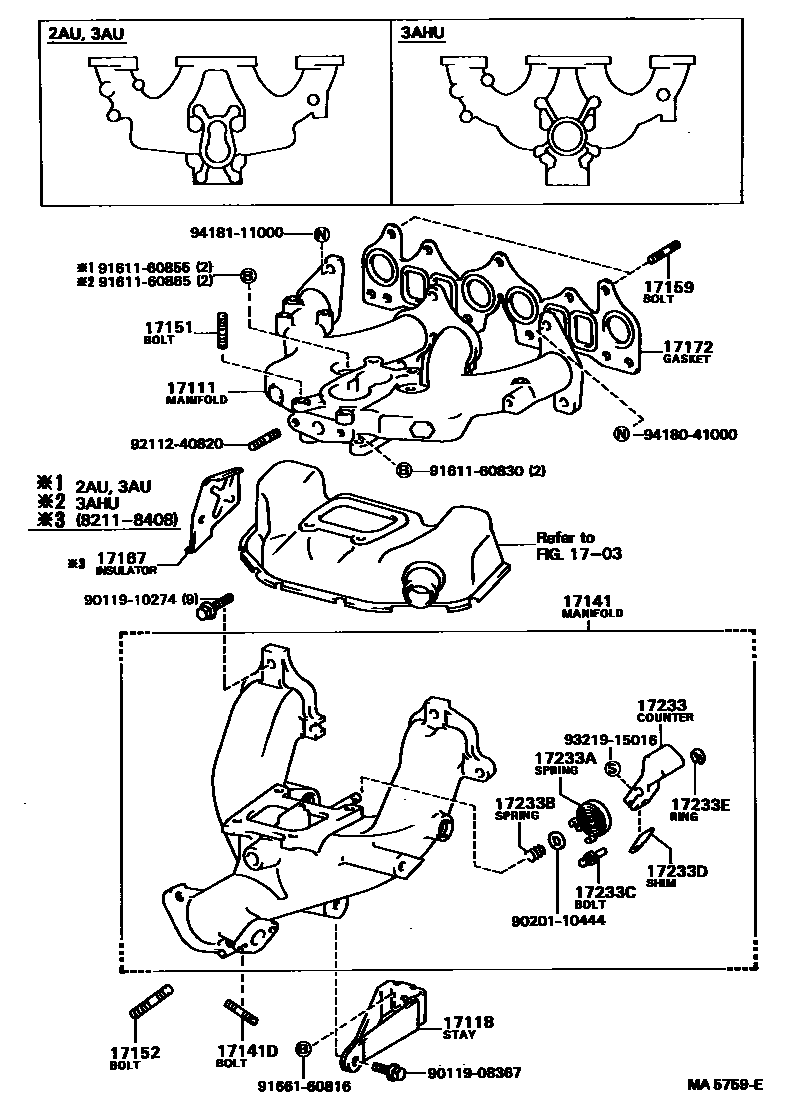

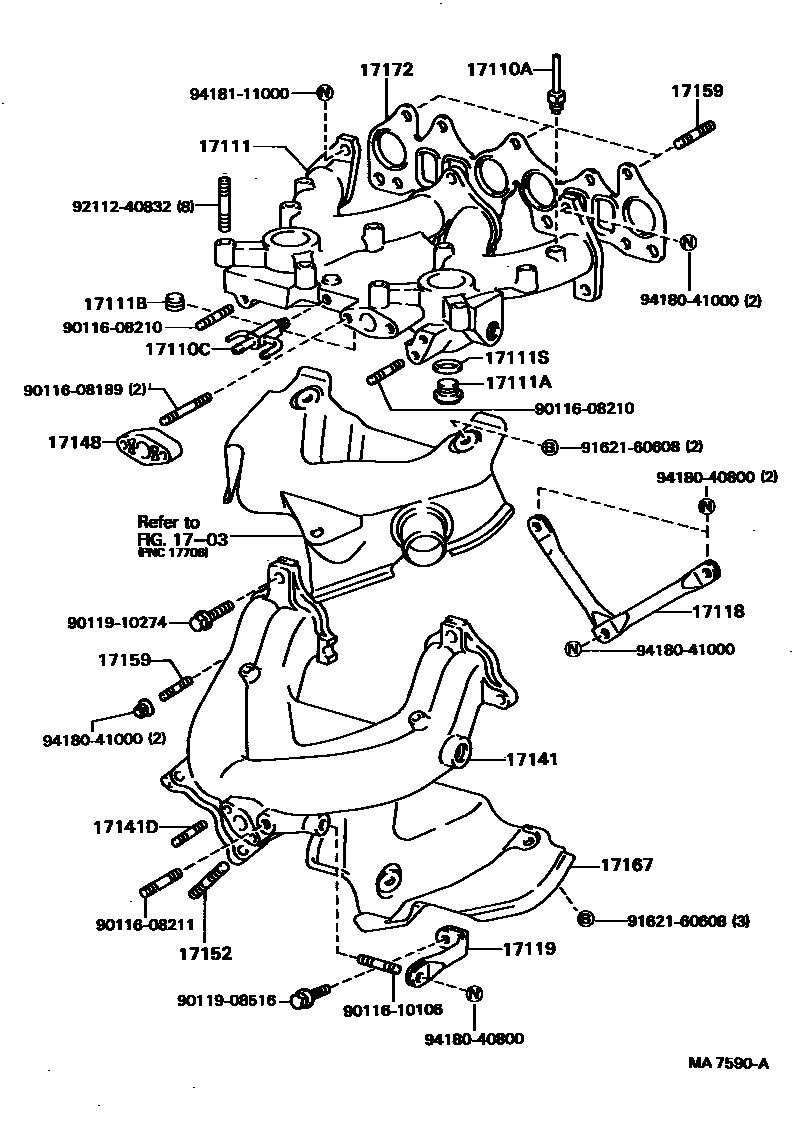

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17110A | Vacuum hose connector | 90404-51051 |
| 17110C | Fitting (for air cleaner to manifold) | 90404-51043 |
| 17111 | Intake Manifold | 17111-15030 · 17111-15040 · 17111-15050 |
| 17111A | No. 1 screw plug | 90341-22003 |
| 17111B | No. 2 screw plug | 90344-53015 |
| 17111S | Gasket (for manifold plug) | 90430-22002 |
| 17118 | Manifold stays | 17118-15040 · 17118-15060 |
| 17119 | No. 2 manifold stay | 17139-15010 |
| 17141 | exhaust manifold | 17140-15070 · 17141-15100 |
| 17141D | Studs (for oxygen sensor) | 90116-08128 |
| 17148 | Exhaust manifold plate (for EGR intake) | 25617-15010 |
| 17151 | Studs (for manifold to carburetor) | 90116-08232 · 92112-40832 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10090 · 92112-61032 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-15020 · 17932-15060 |
| 17172 | Gasket (manifold to cylinder head) | 17172-15010 |
| 17233 | Counterweight | 17233-15010 |
| 17233A | No. 1 coil spring (for counterweight) | 90510-06001 |
| 17233B | No. 2 coil spring (for counterweight) | 90501-08022 |
| 17233C | Bolt (for counterweight) | 90109-10045 |
| 17233D | Spacers (for counterweight) | 90910-10005 |
| 17233E | E-ring (for counterweight) | 96160-00800 |
