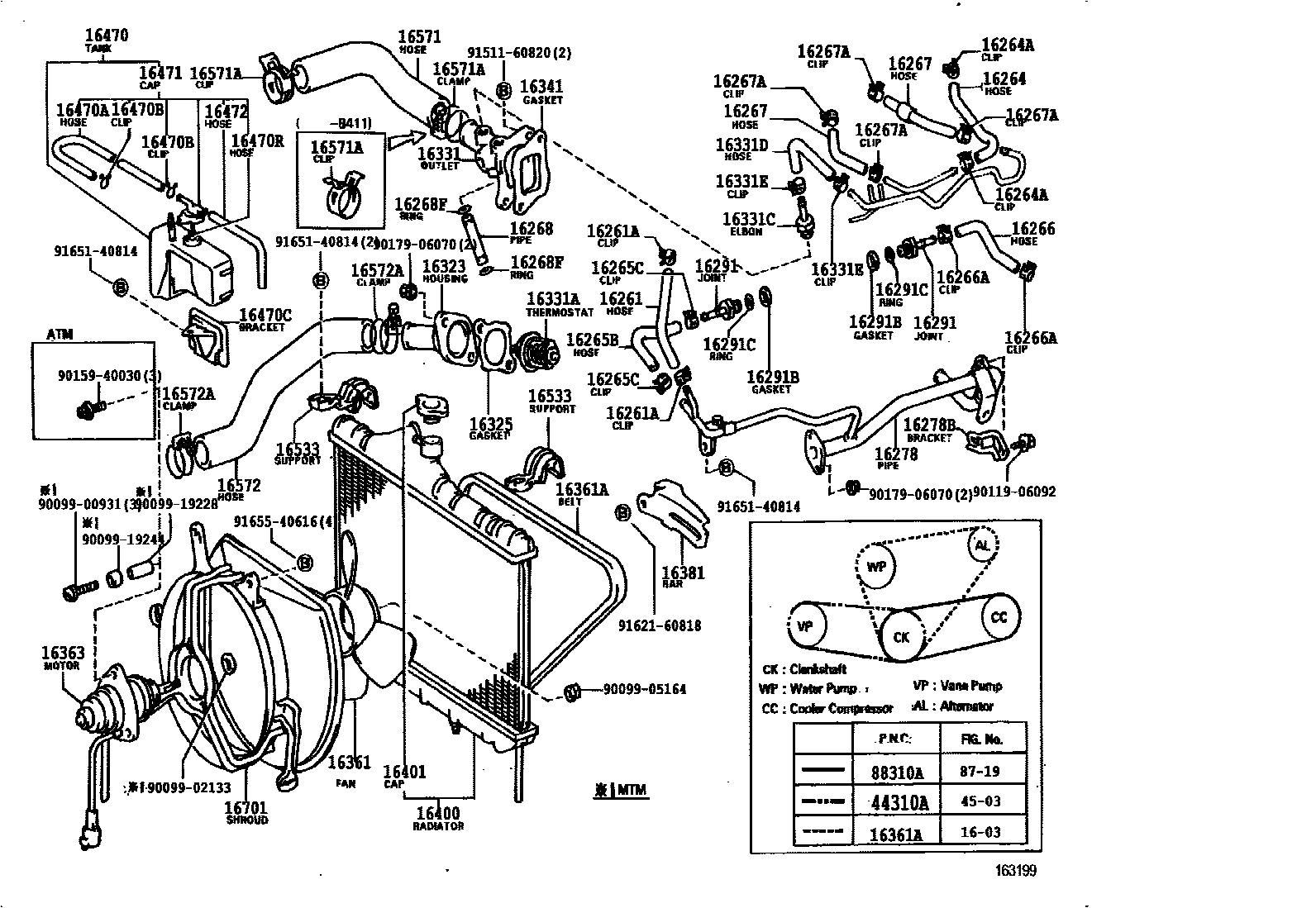

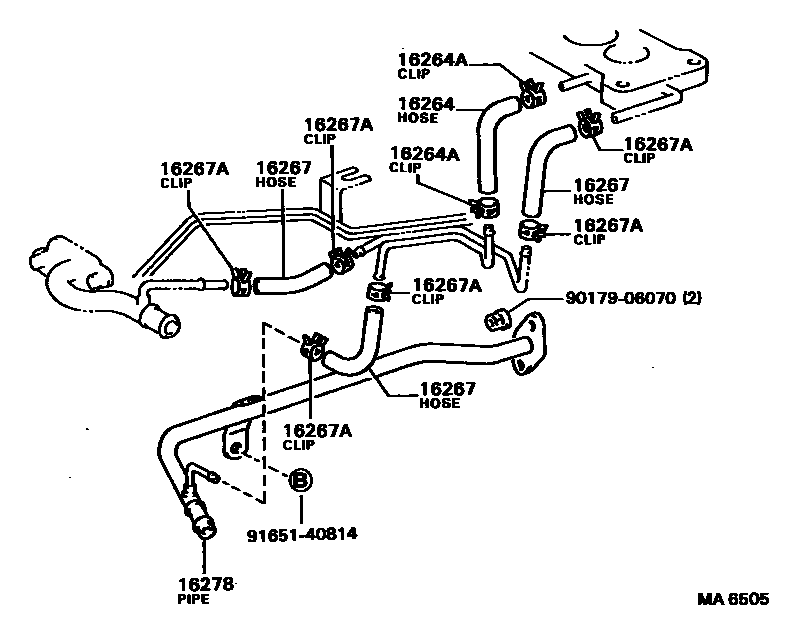

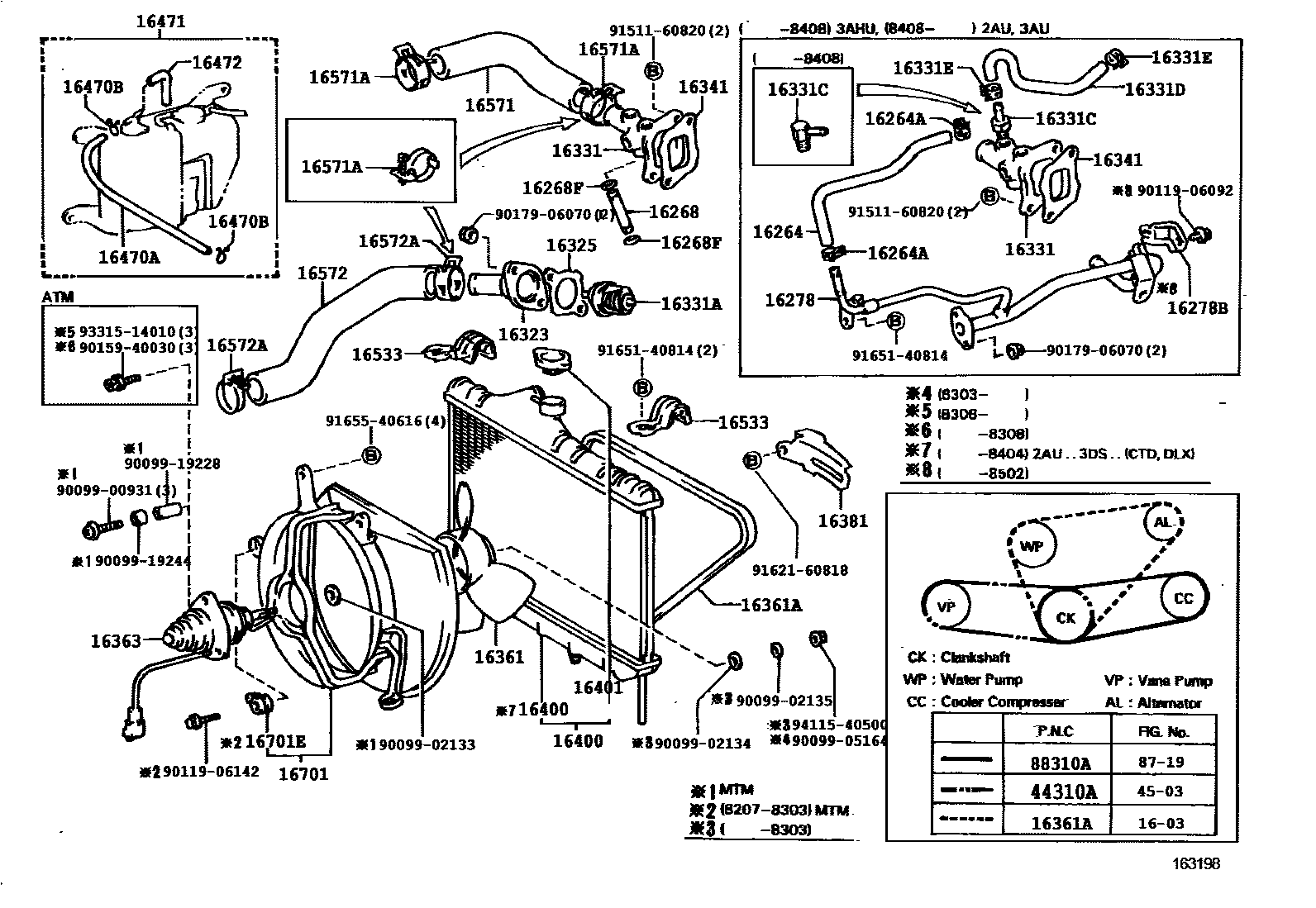

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 99555-00120 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-11009 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-15010 · 16264-15040 · 16264-15050 · 16264-15060 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-11009 · 90467-13007 · 90467-13027 |
| 16265B | No. 1 intake manifold water hose | 16265-15010 |
| 16265C | Clamp or clip (for intake manifold water hose No. 1) | 90467-13001 |
| 16266 | No. 2 intake manifold water hose | 16266-15010 |
| 16266A | Clip or clip (for No. 2 intake manifold water hose) | 90467-13001 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16264-15030 · 99553-00100 · 99555-00100 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-11009 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-15010 · 16268-15011 |
| 16268F | O-ring (for water bypass pipe) | 96711-24013 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-15010 · 16278-15040 · 16278-15050 · 16278-15070 |
| 16278B | Water bypass pipe bracket | 87263-16010 |
| 16291 | water hose connector | 16291-15010 |
| 16291B | Gasket (for water hose coupling) | 90430-18165 |
| 16291C | O-ring (for water hose connector) | 96711-24013 |
| 16323 | HOUSING, WATER INLET | 16323-15020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-70021 |
| 16331 | Water outlet | 16331-15040 · 16331-15050 |
| 16331A | thermostat | 90916-03046 |
| 16331C | Elbow (for water outlet) | 90404-53056 · 90407-53003 |
| 16331D | Water hose (for water outlet to carburetor) | 16267-15010 · 99553-10140 · 99555-00180 · 99555-10140 |
| 16331E | Clamp (for water outlet to carburetor hose) | 90467-11009 · 90467-13007 · 90467-13027 |
| 16341 | GASKET, WATER OUTLET | 16341-15011 |
| 16361 | Fan | 16361-15030 · 16361-15031 · 16361-15040 · 16361-15041 · 16361-15060 |
| 16361A | V-belts (for fans and generators) | 99321-50985 · 99321-51070 |
| 16363 | cooling fan motor | 16363-15070 · 16363-15080 · 16363-15100 |
| 16381 | Fan belt adjustment lever | 16381-15030 · 88437-16040 |

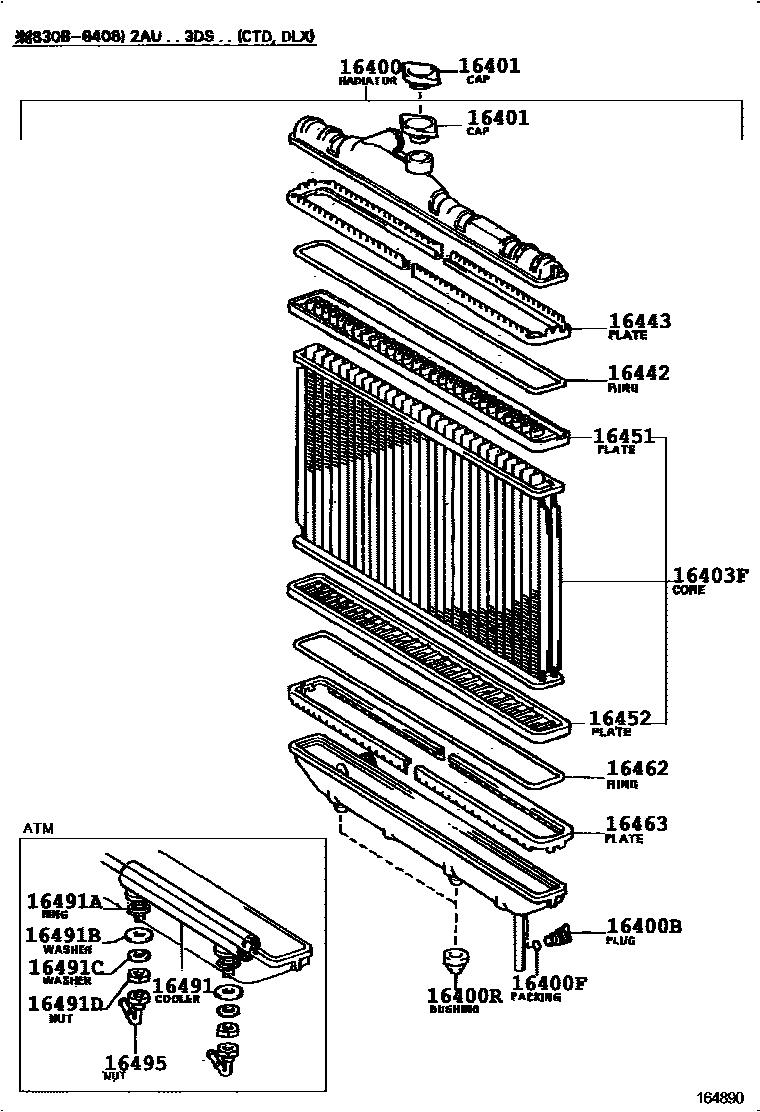

| 16400 | Radiator assembly | 16400-15120 · 16400-15130 · 16400-15140 · 16400-15150 · 16410-15140 · 16410-15150 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16400R | Bushing (for radiator) | 16464-15120 |
| 16401 | Radiator cover sub-assembly | 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-15120 · 16403-15140 |
| 16442 | O-ring (for radiator tank) | 16442-31300 |
| 16443 | Radiator upper tank locking plate | 16443-15120 · 16443-15271 |
| 16451 | Radiator core upper plate | 16451-15120 |
| 16452 | Radiator core lower plate | 16452-15120 |
| 16462 | O-ring (for radiator lower tank) | 16462-15120 |
| 16463 | Radiator lower tank locking plate | 16463-15120 · 16463-15270 |
| 16470 | Radiator reservoir assembly | 16470-15030 |
| 16470A | Hoses or tubes (for radiator reservoir) | 85338-15030 · 90099-33091 · 90099-33392 · 90445-12043 · 90445-12905 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470C | Bracket (for radiator reservoir) | 16611-15010 |
| 16470R | No. 2 hose (for radiator reservoir) | 85338-15030 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-15010 · 16405-15020 · 16405-15040 |
| 16472 | Breather hose | 85338-14030 · 85338-16010 · 85338-16020 |
| 16491 | Oil cooler (for ATM) | 16491-15130 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-35080 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-15130 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-15130 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-15130 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-15130 |
| 16533 | Radiator upper bracket | 16505-15010 · 16505-15040 · 16506-15010 · 16506-15030 |
| 16571 | Radiator water inlet hose | 16571-15081 · 16571-15082 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34001 · 96111-10400 |
| 16572 | Radiator outlet hose | 16572-15111 · 16572-15112 · 16572-15120 · 16572-15180 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34001 · 96111-10400 |
| 16701 | Fan cover sub-assembly | 16711-15080 · 16711-15081 · 16711-15090 · 16711-15170 |
| 16701E | Bushing (for fan guard) | 90385-12001 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99322-50985 |
