Toyota COROLLA Water Pump — Figure 1601

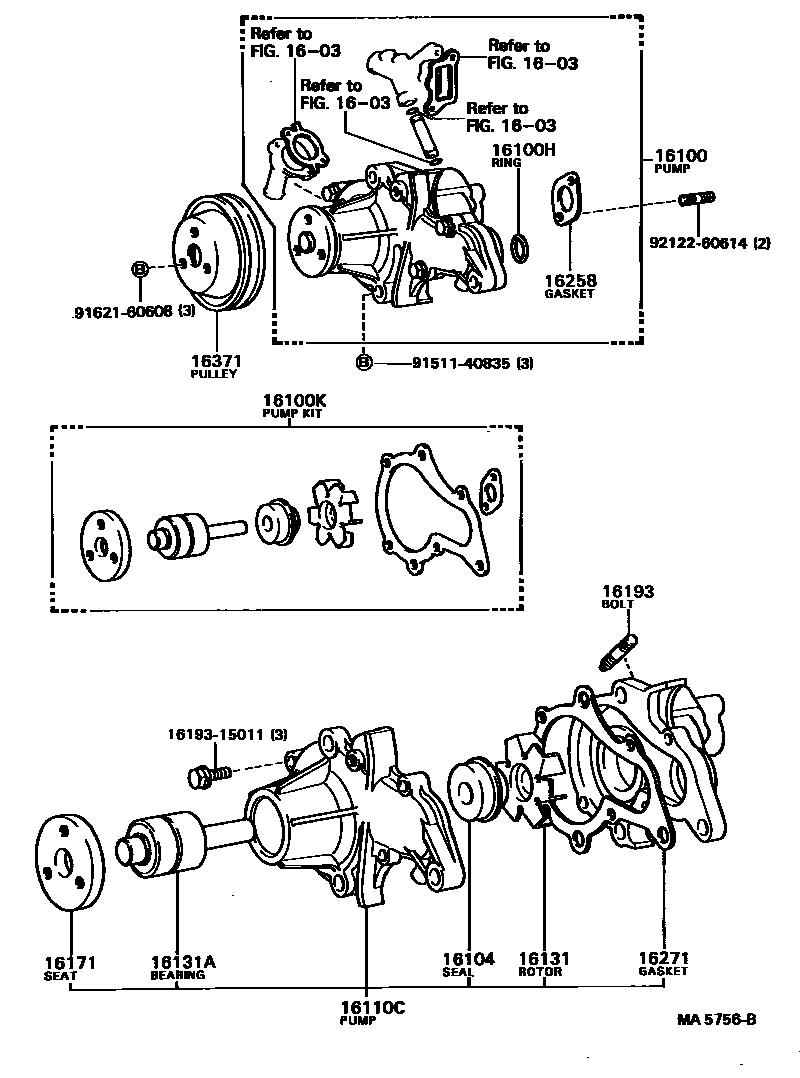

Toyota COROLLA EPC diagram 1601, Water Pump, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-19027 |
| 16100H | O-ring (for water pump) | 96711-24035 |
| 16100K | Water pump components | 04161-15020 |
| 16104 | Water pump seal components | 16104-15020 · 16104-41111 |
| 16110C | Water pump assembly without cover | 16110-19035 |
| 16131 | water pump rotor | 16131-15010 |
| 16131A | water pump bearings | 90369-30024 |
| 16171 | water pump pulley seat | 16171-15011 |
| 16193 | Studs (for water pump cover) | 16193-15010 |
| 16258 | Pad (for heater return) | 16258-15011 |
| 16271 | water pump gasket | 16124-15010 |
| 16371 | fan pulley | 16371-15011 |
