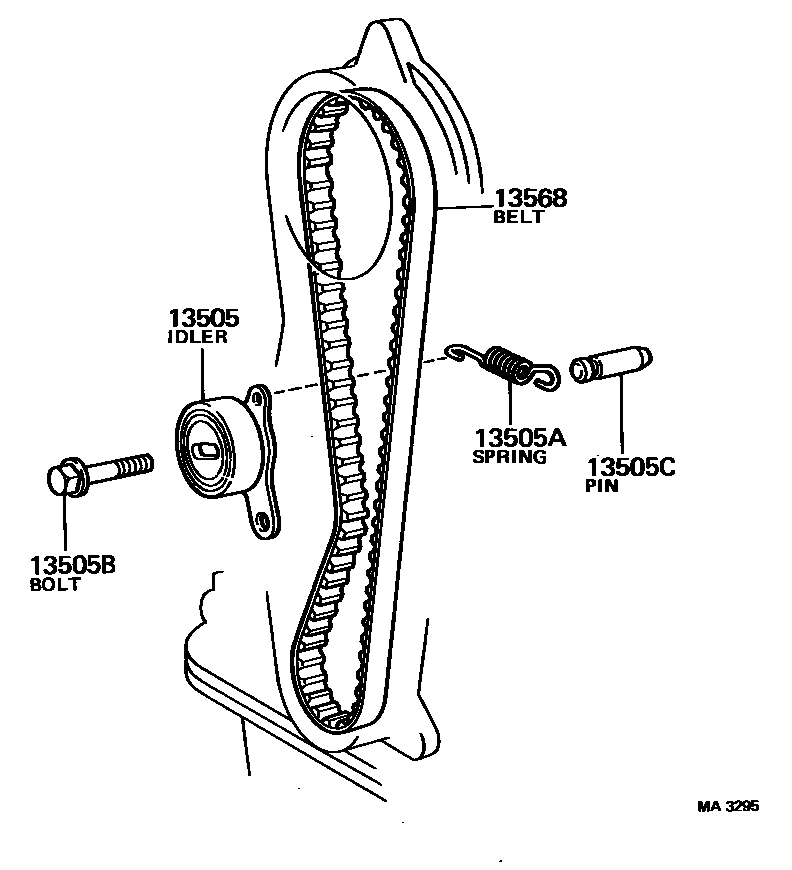

Toyota COROLLA timing belt — Figure 1304
Toyota COROLLA EPC diagram 1304, timing belt, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-15040 · 13505-15041 |
| 13505A | Tension spring (for idler pulley) | 90506-14016 · 90507-18017 |
| 13505B | Flange bolts (for idler gear) | 91511-61040 |
| 13505C | Pin (for idler tension spring) | 90249-06006 |
| 13568 | timing belt | 13568-15010 |
