Toyota COROLLA Crankshaft & Piston — Figure 1301

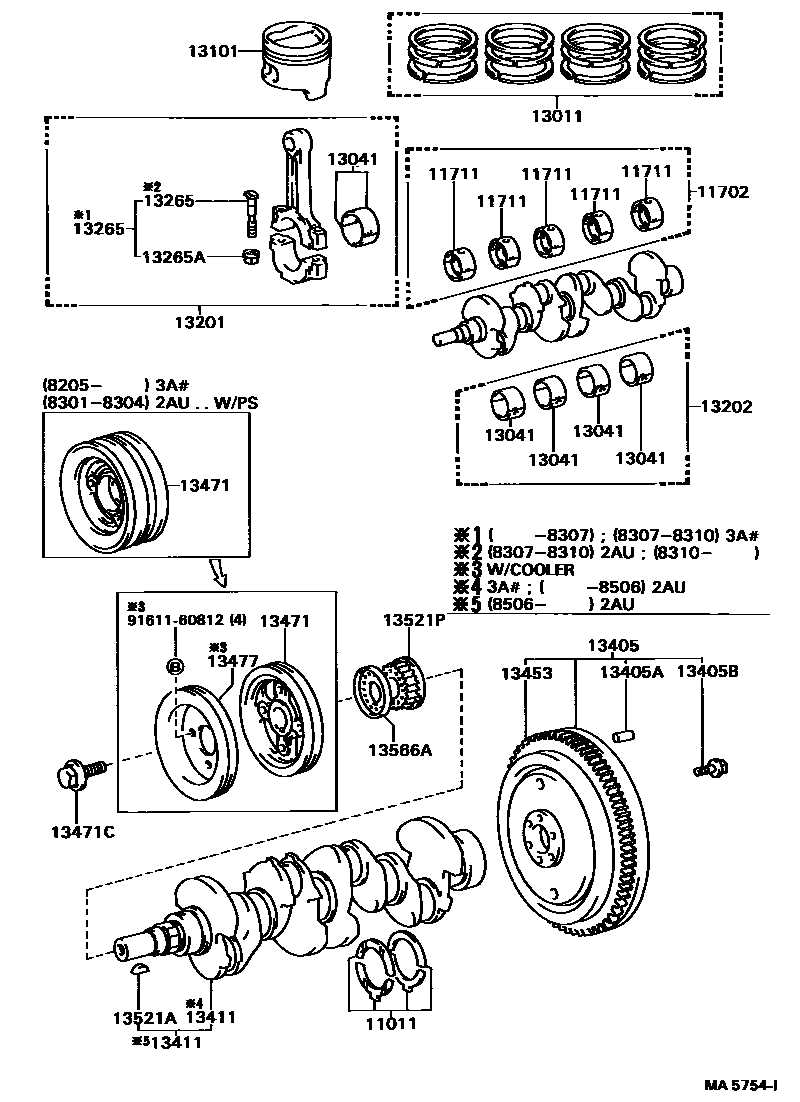

Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-15010 |
| 11702 | crankshaft bearing assembly | 11704-15011 · 11704-15050 |
| 13011 | Piston ring assembly | 13011-14020 · 13011-14021 · 13011-15010 · 13011-15011 · 13013-14020 · 13013-15010 · 13014-14020 · 13014-15010 · 13015-14020 · 13015-15010 |
| 13101 | Piston sub-assembly with pin | 13101-14020 · 13101-15020 · 13103-14020 · 13103-15020 · 13104-14020 · 13104-15020 · 13105-14020 · 13105-15020 |
| 13201 | Connecting rod sub-assembly | 13201-19015 · 13201-19016 · 13201-19045 · 13201-19055 |
| 13202 | Connecting rod bearing assembly | 13204-15011 · 13204-15030 |
| 13265 | Connecting rod bolts | 13265-15020 · 13265-19015 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90170-09001 · 90179-08014 |
| 13405 | Flywheel sub-assembly | 13405-15060 · 13405-19105 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10042 |
| 13411 | crankshaft | 13411-14010 · 13411-14030 · 13411-14900 · 13411-15011 · 13411-15021 · 13411-15030 |
| 13453 | flywheel ring gear | 13453-15010 |
| 13471 | crankshaft pulley | 13407-15013 · 13470-15050 · 13471-15010 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-12012 · 90119-12101 |
| 13477 | No. 2 crankshaft pulley | 88358-16030 |
| 13521A | Key (for crankshaft timing gear) | 90280-05010 |
| 13521P | crankshaft timing pulley | 13521-15010 |
| 13566A | timing belt guide | 13566-15010 |
