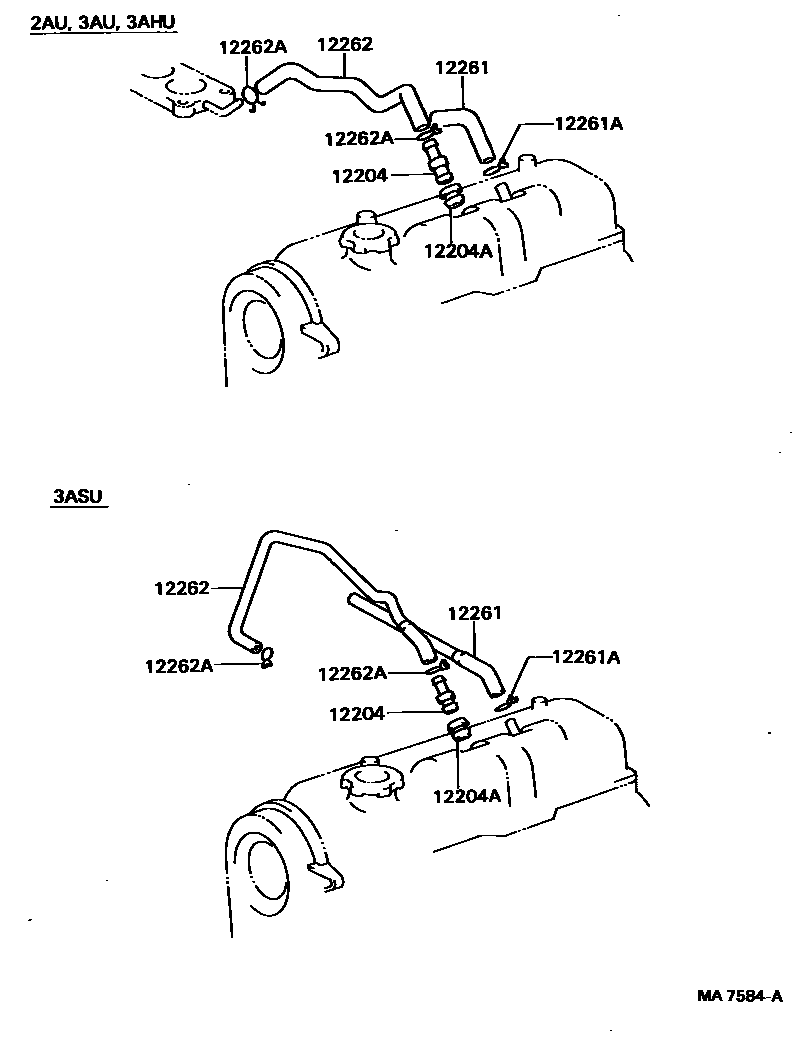

Toyota COROLLA Ventilation Hose — Figure 1201
Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-15022 · 12204-15030 · 12204-71010 |
| 12204A | Gasket (for ventilation system) | 90480-18001 |
| 12261 | Ventilation Hose | 12261-15020 · 12261-15040 |
| 12261A | Clip or clip (for vent hose) | 90467-16010 |
| 12262 | Ventilation hose No. 2 | 12262-15020 · 12262-15030 · 12262-15070 |
| 12262A | Clamp (for vent hose No. 2) | 90467-13103 |
