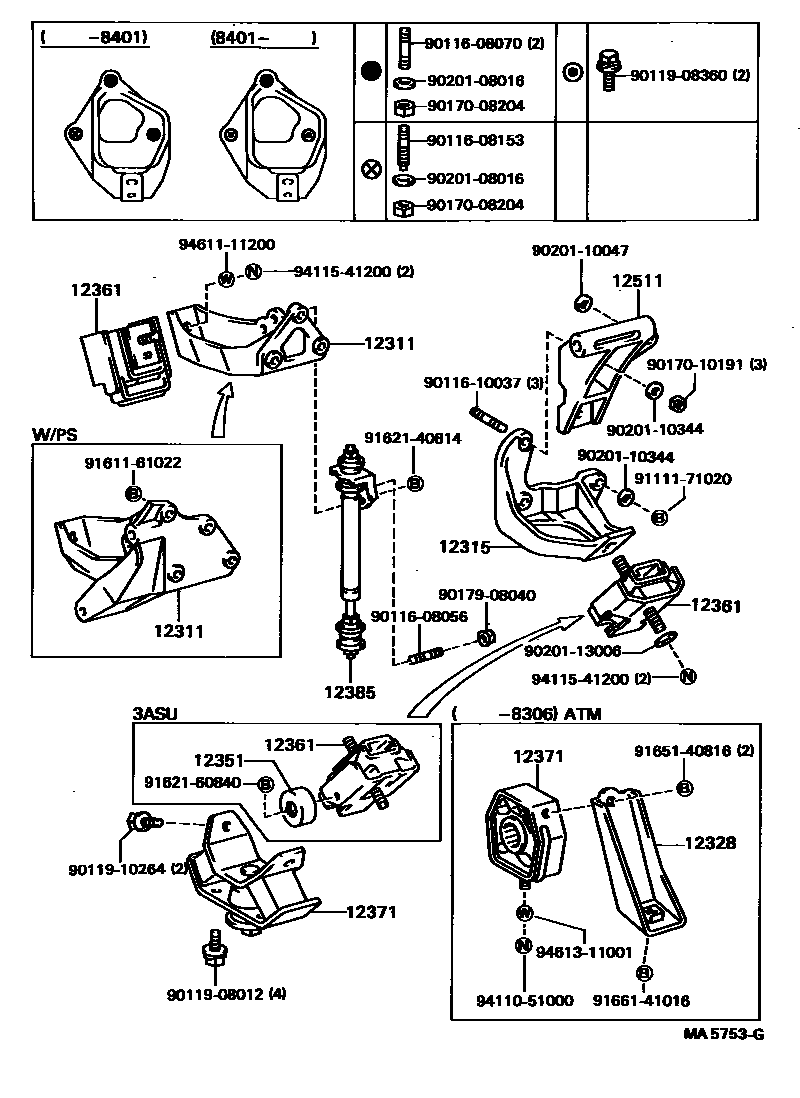

Toyota COROLLA Engine Mounting — Figure 1107
Toyota COROLLA EPC diagram 1107, Engine Mounting, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-15050 · 12311-15060 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-15030 |
| 12328 | Engine left rear mounting bracket | 12328-15030 |
| 12351 | engine mount shock absorber | 12351-15010 |
| 12361 | Engine front mounting vibration isolation pad | 12361-15050 · 12361-15130 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-15031 · 12371-15050 |
| 12385 | Engine No. 1 mount shock absorber | 12307-15010 |
| 12511 | No. 1 generator bracket | 12511-15011 |
