Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 10 PNC and OE references.

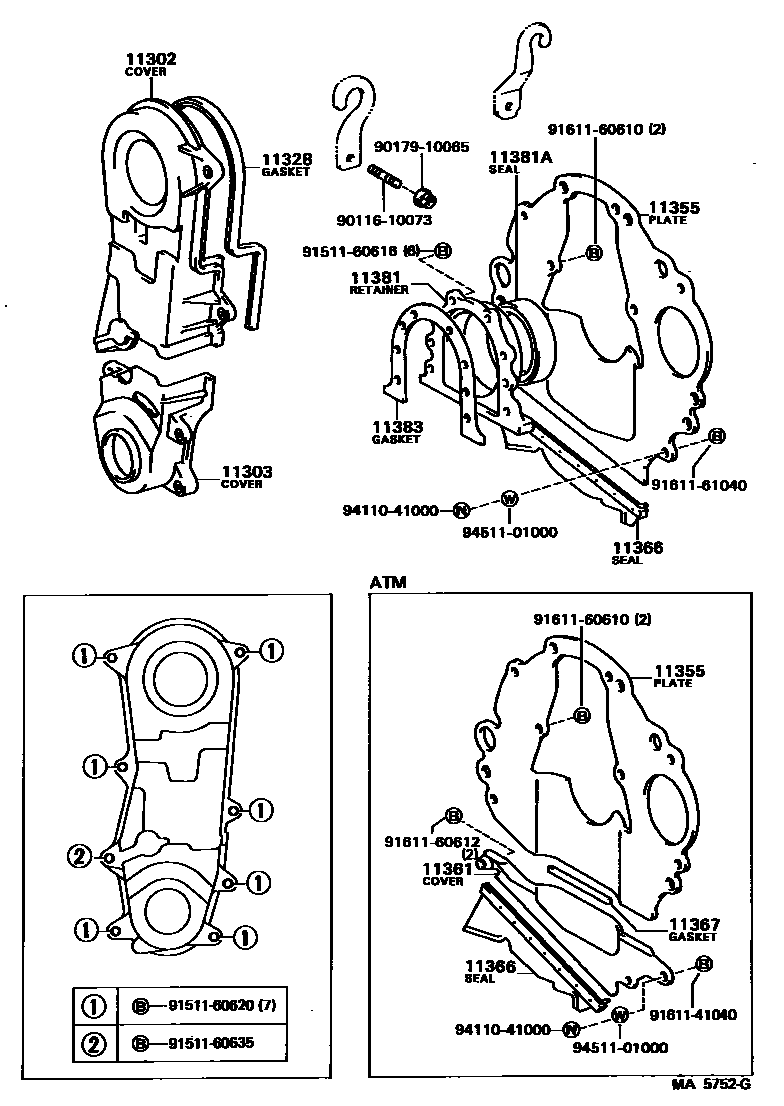

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — MA5752G
Timing Gear Cover & Rear End Plate — MA5752G (198205 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-15020
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-15020
11328GASKET, TIMING GEAR OR CHAIN COVER11328-15020
11355rear end plate11355-15010 · 11355-15040
11361Flywheel housing bottom cover11361-15010
11366Flywheel housing bottom cover dust seal11366-15010 · 11366-15020
11367Flywheel housing lower gasket11367-15010
11381RETAINER, ENGINE REAR OIL SEAL11381-15010
11381ASEAL, ENGINE REAR OIL90311-70004
11383Engine rear oil seal seat gasket11383-15010
