Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 1 images and 2 PNC and OE references.

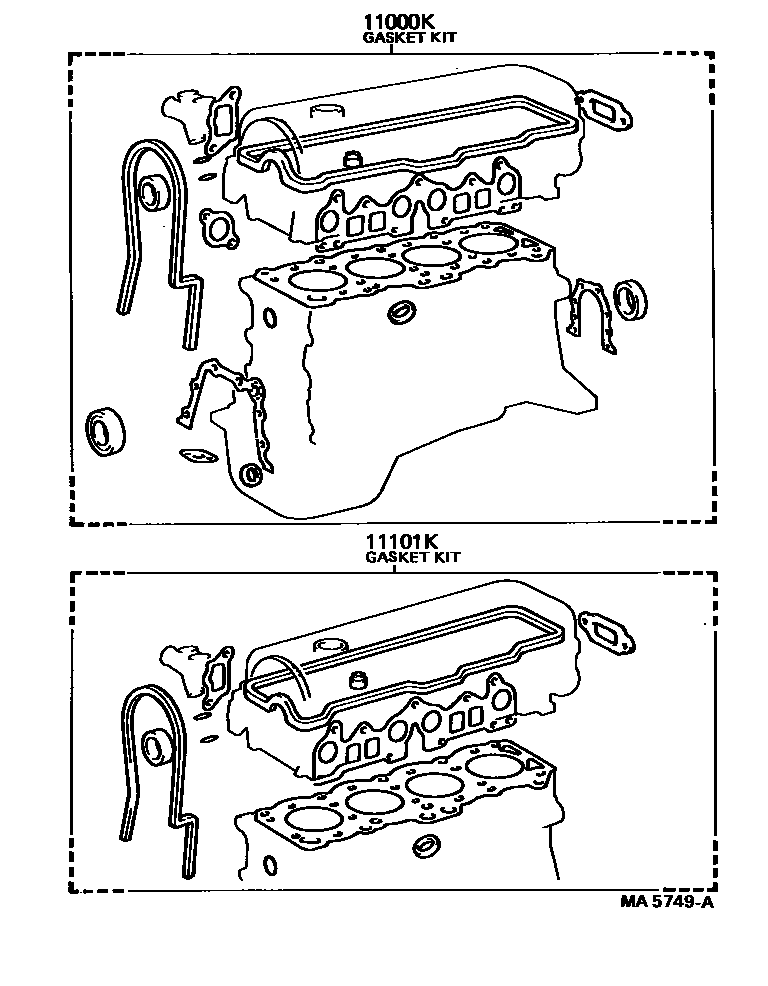

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — MA5749A
Engine Overhaul Gasket Kit — MA5749A (198205 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000KEngine overhaul gasket assembly04111-14040 · 04111-14041 · 04111-14070 · 04111-15030 · 04111-15031 · 04111-15060
11101KEngine valve grinding pad assembly04112-14040 · 04112-14070 · 04112-15030 · 04112-15060
