Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 12 PNC and OE references.

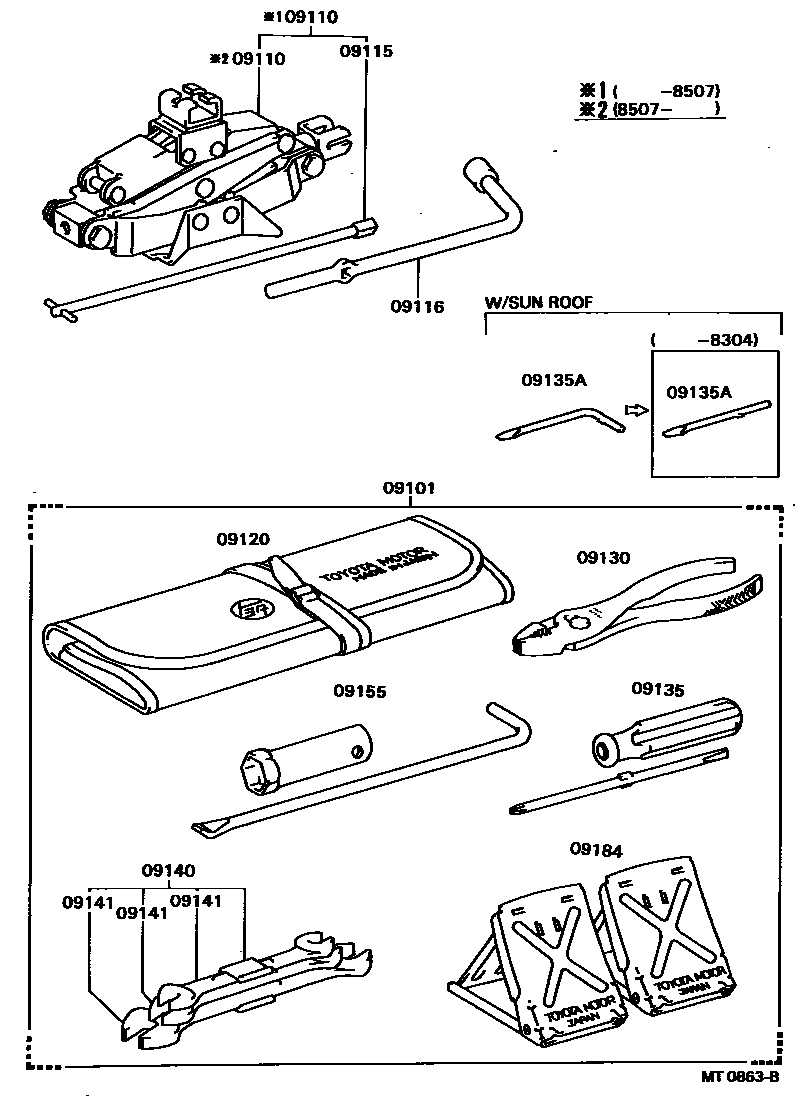

Toyota COROLLA Standard Tools EPC diagram — MT0863B
Standard Tools — MT0863B (198205 – 999999)

PNC and OE references

PNCPart nameOE numbers
09101Standard kit without jack09102-12074
09110Jack Assembly09111-12070 · 09118-12020 · 09118-12021
09115Jack Handle Rod Sub-Assembly09115-16020 · 09115-32010
09116Jack Handle Rod09116-16010
09120Tool Bag09120-12011
09130Pliers99913-11500
09135Screwdriver99915-10700
09135Ascrewdriver tip09135-00011 · 09135-00012
09140Wrench assembly09140-12011
09141Wrench99914-10810 · 99914-11012 · 99914-11417
09155Spark Plug Wrench09155-44020
09184Wheel Chock09184-00010
