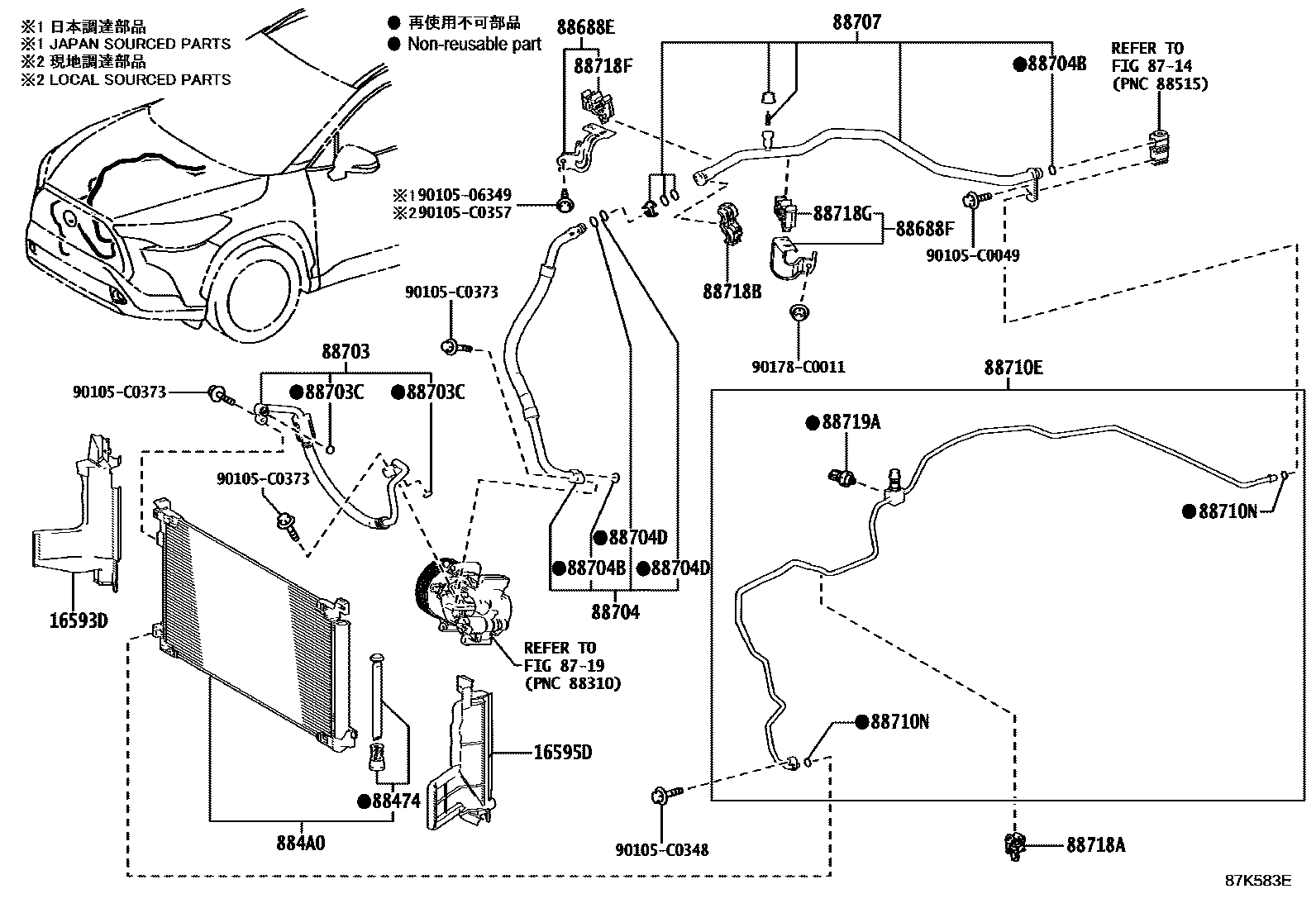

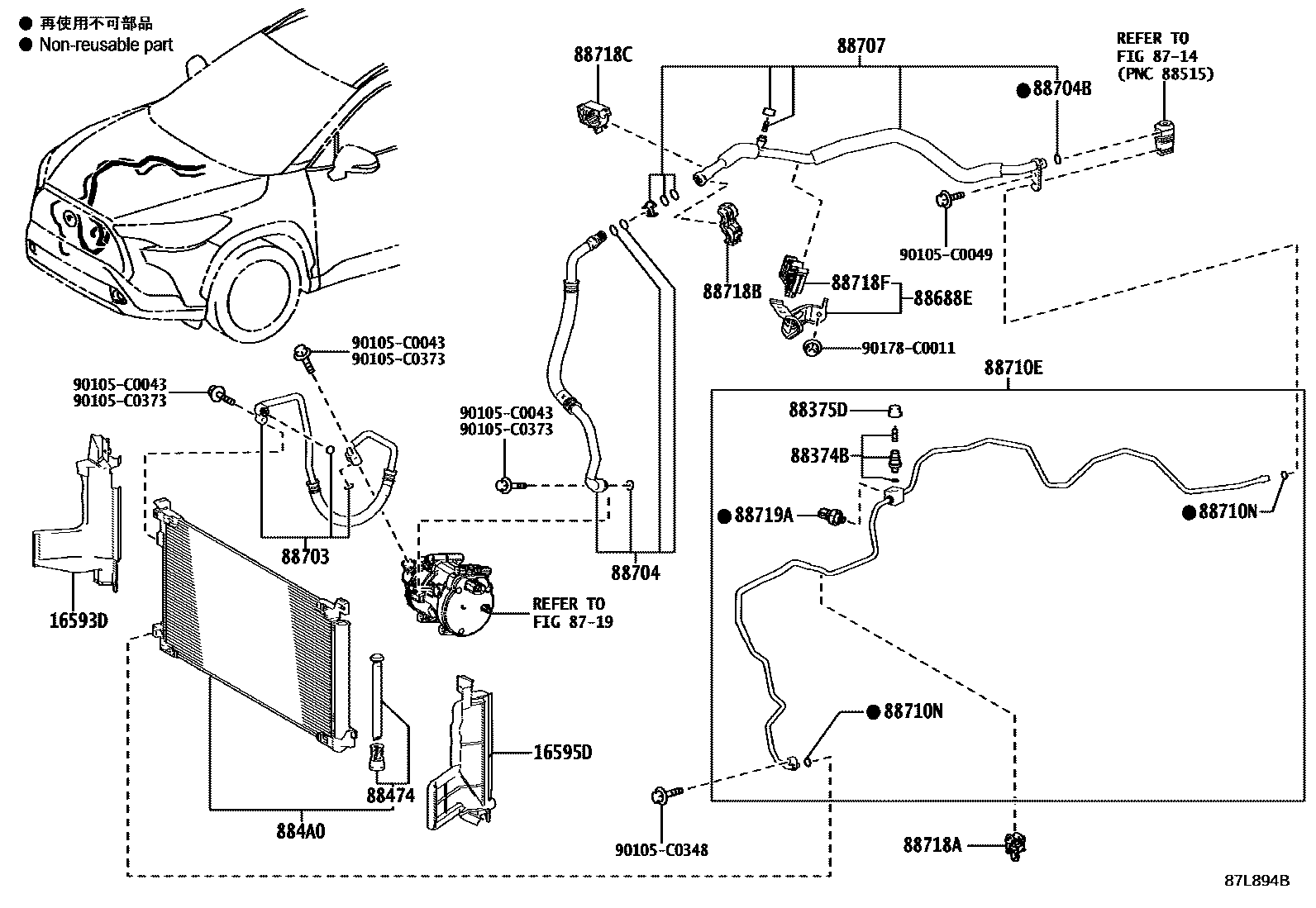

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16593D | No. 1 radiator right deflector | 16593-F2180 |
| 16595D | No. 1 radiator left deflector | 16595-F2200 |
| 88374B | Service valve No. 1 | 88374-0E600 |
| 88375D | No. 2 maintenance valve cover | 88375-0E600 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 884A0 | Air conditioning condenser assembly | 884A0-0A090 · 884A0-0A110 · 884A0-0A120 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02G50 · 88688-0A020 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-0A030 |
| 88703 | Discharge hose sub-assembly | 88703-0A050 · 88703-0A150 |
| 88703C | O-ring (for drain hose) | 88899-0E140 |
| 88704 | Oil suction hose sub-assembly | 88704-0A090 · 88704-0A180 |
| 88704B | O-ring (for suction hose) | 88899-0E160 · 88899-0E170 |
| 88704D | No. 2 O-ring (for oil suction hose) | 88899-0E180 |
| 88707 | Suction pipe sub-assembly | 88707-0A010 · 88707-0A080 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0A070 · 88710-0A090 · 88710-0A110 · 88710-0A170 |
| 88710N | No. 1 O-ring (for air conditioning pipe and accessory assembly) | 88899-0E170 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-0A110 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-0EA10 |
| 88718C | Clamp No. 3 (for cooler refrigerant pipe) | 88718-02B60 |
| 88718F | Clamp No. 1 (for cooler refrigerant hose) | 88718-0A130 |
| 88718G | Clamp No. 2 (for cooler refrigerant hose) | 88718-0A130 |
| 88719A | Air conditioning pressure sensor | 88719-07010 · 88719-11010 |
