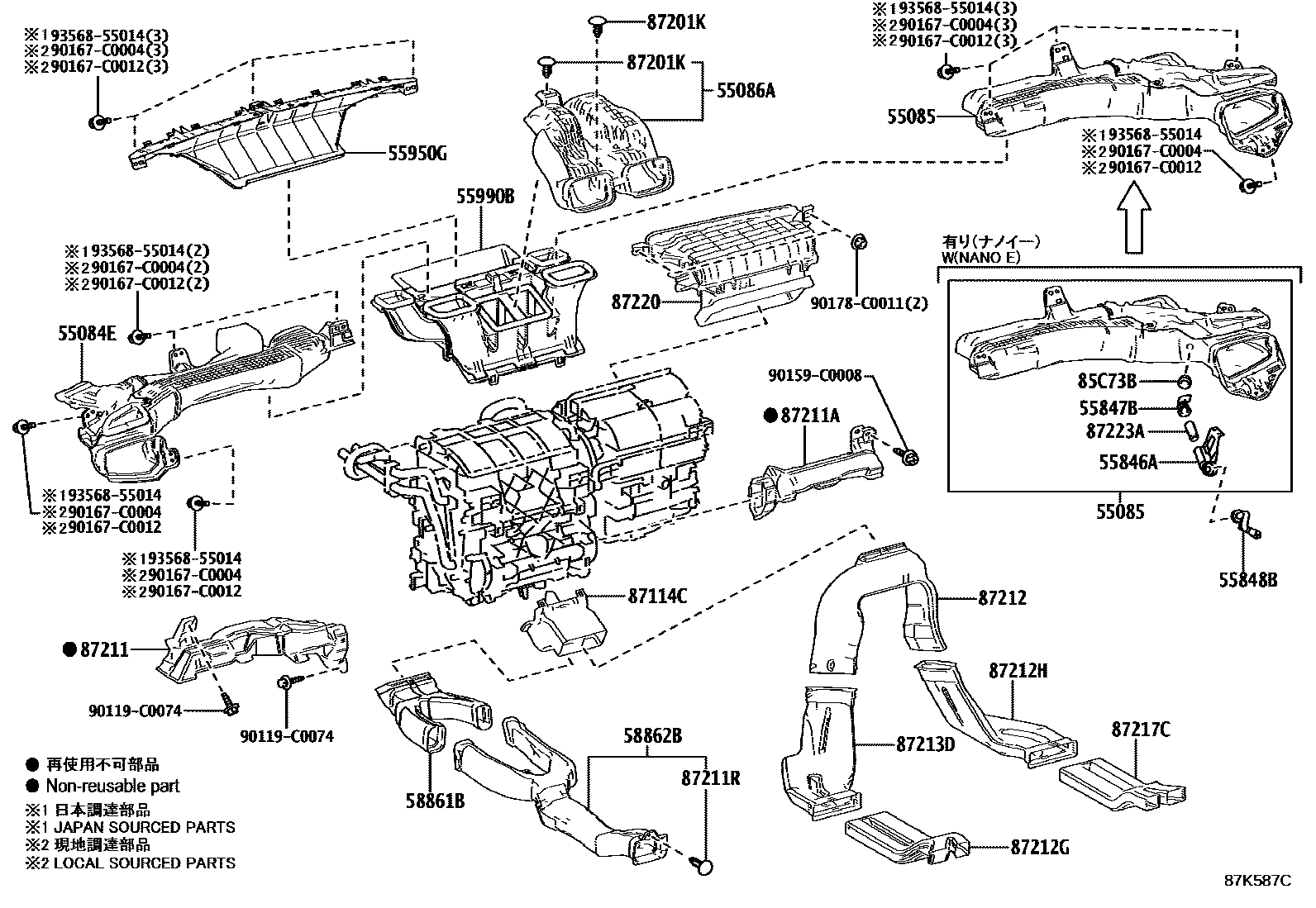

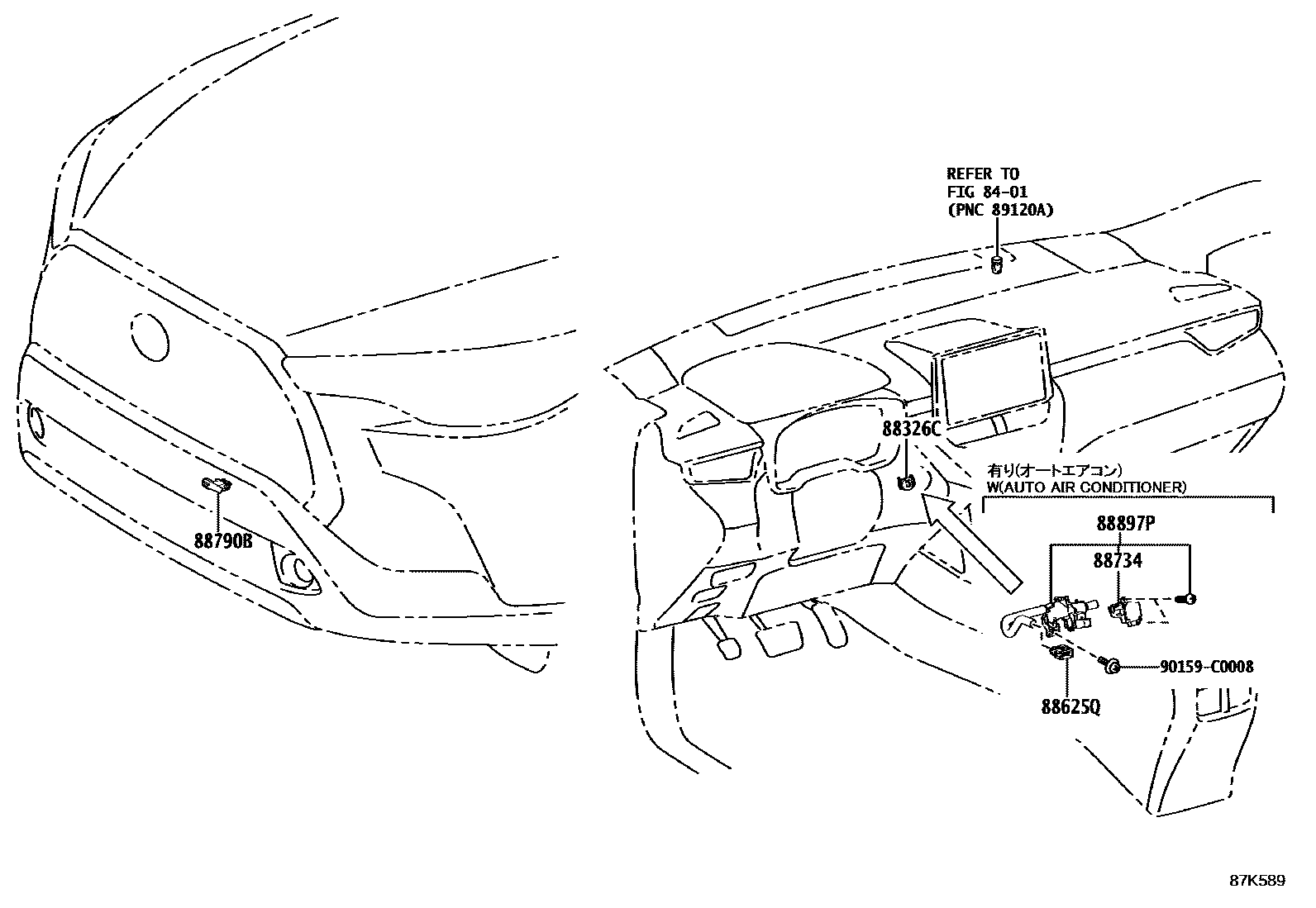

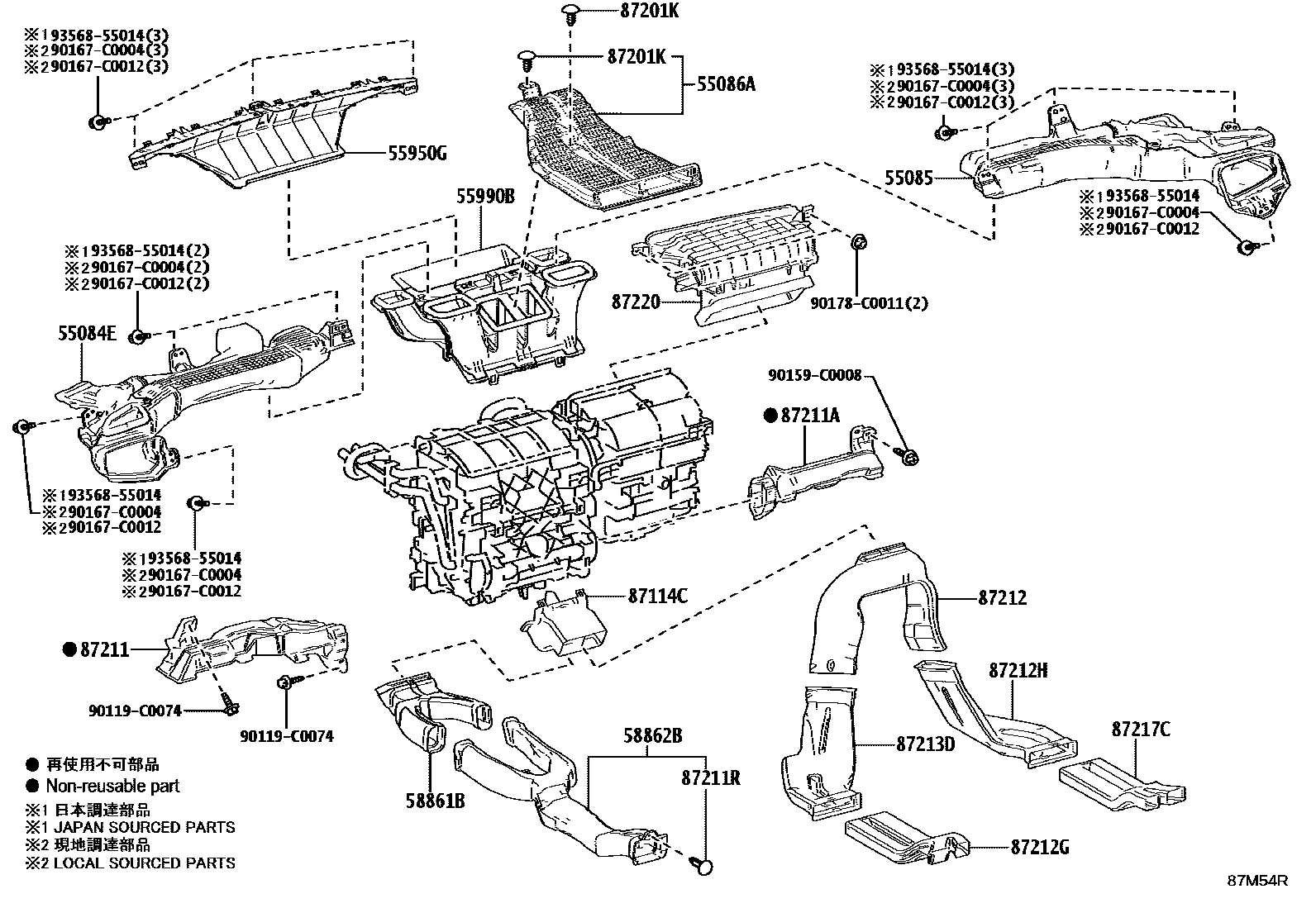

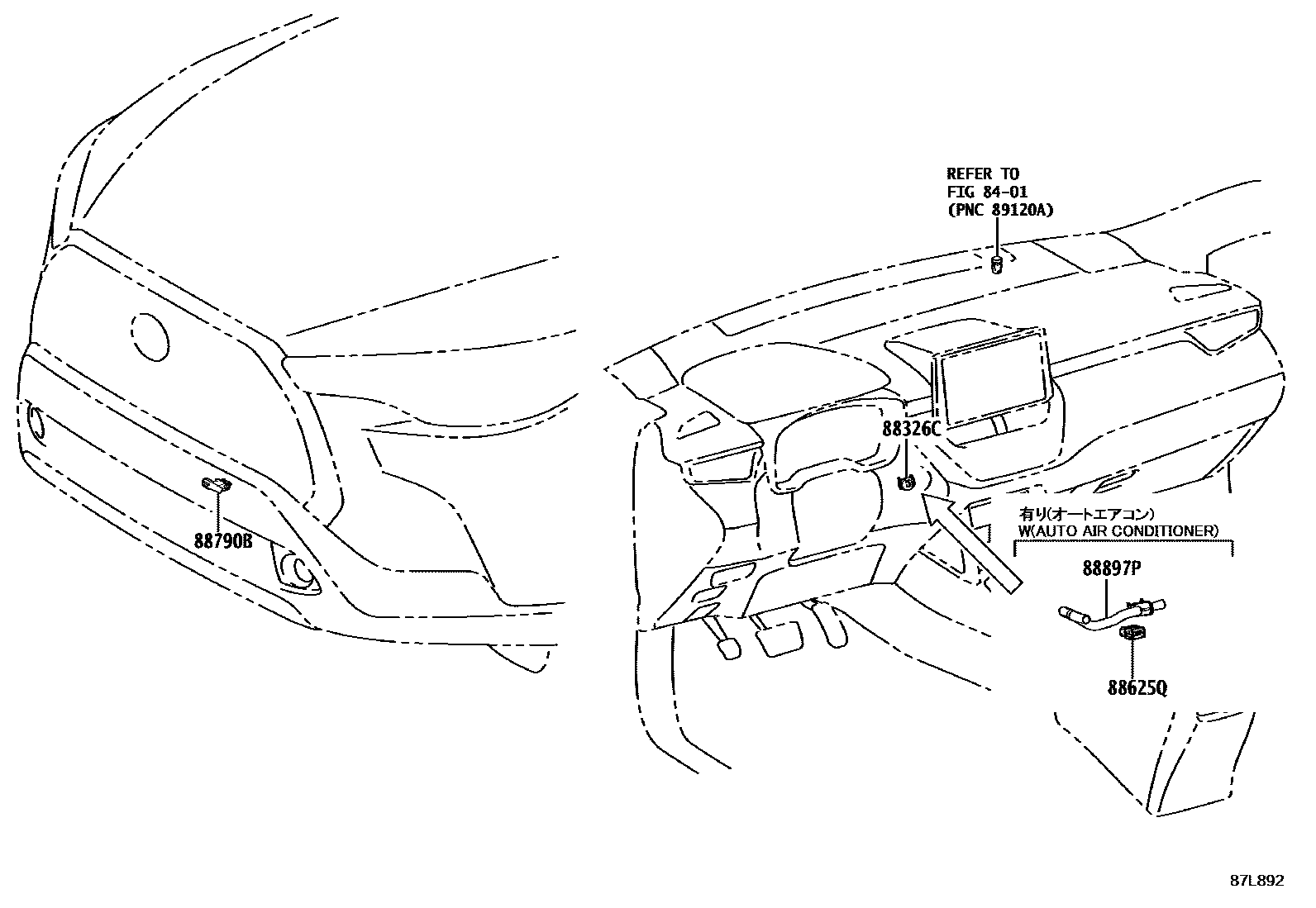

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-0A060 · 55084-0A120 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-0A060 · 55085-0A100 · 55085-0A160 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-02680 · 55086-0A030 |
| 55846A | Air duct No. 4 from heater to air register | 55846-0A010 |
| 55847B | Air duct No. 5 from heater to air regulator | 55847-0A010 |
| 55848B | Air duct No. 6 from heater to air register | 55848-0A010 |

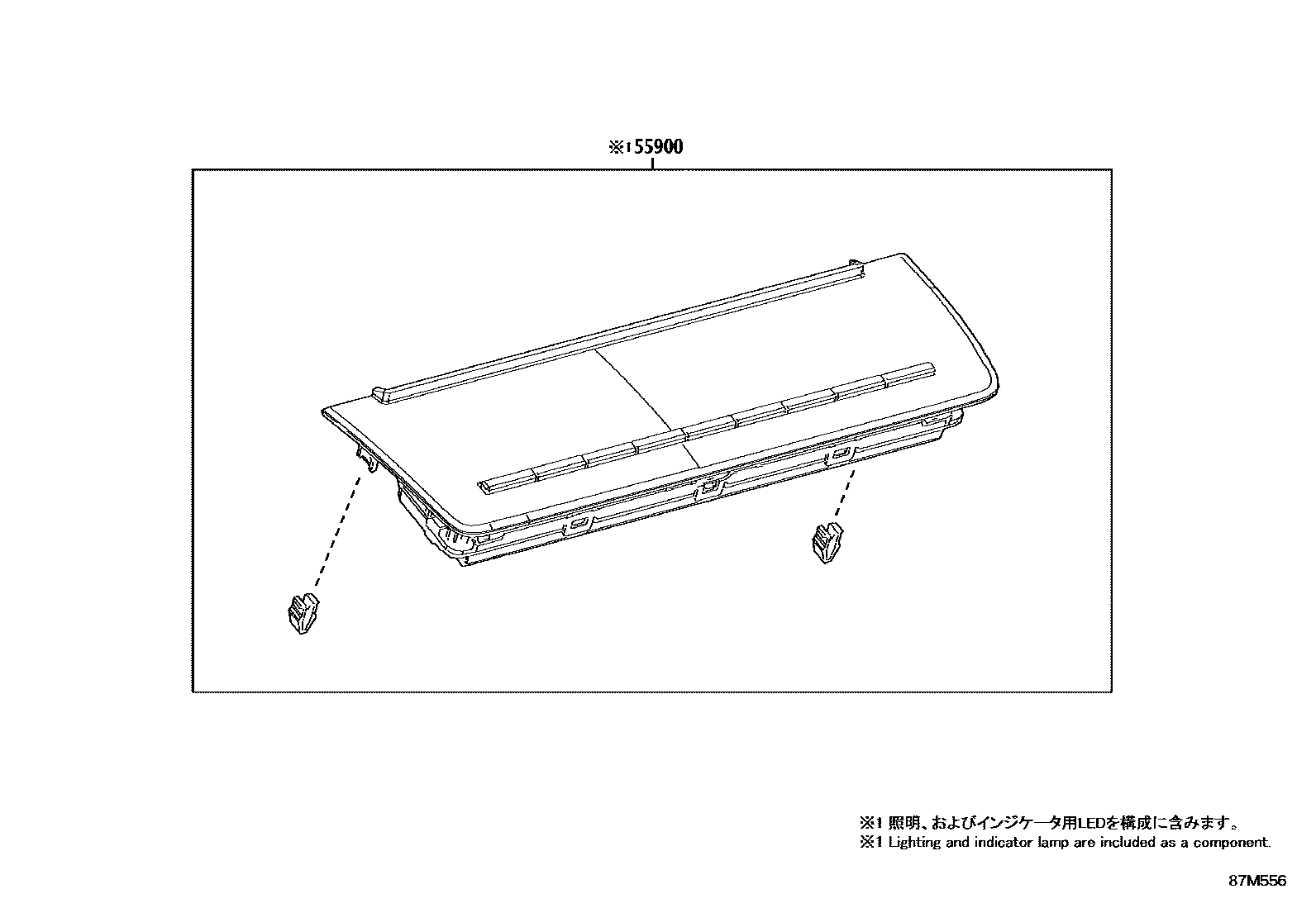

| 55900 | Air conditioning control assembly | 55900-0A250 |

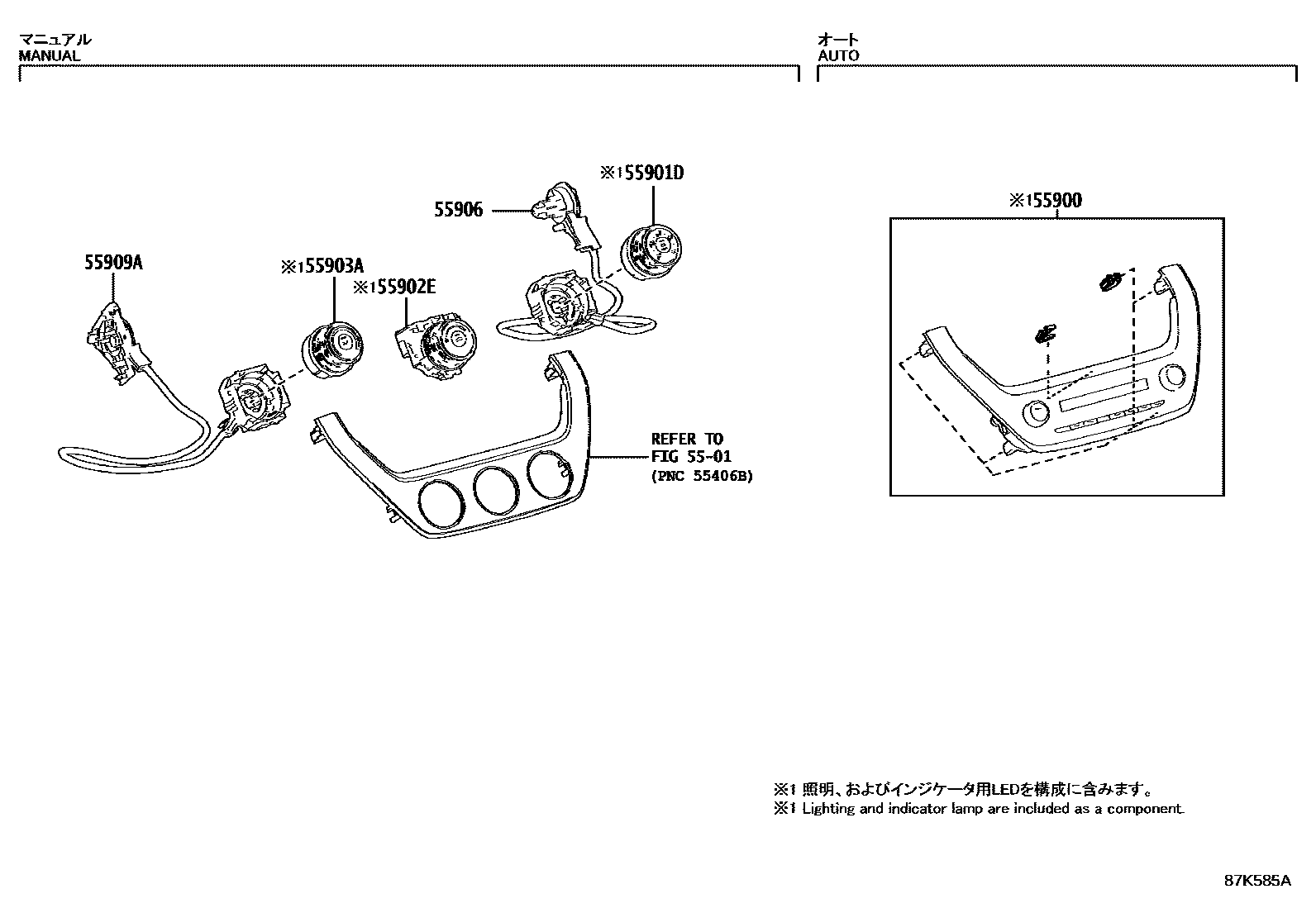

| 55901D | No. 1 heater control sub-assembly | 55901-02160 · 55901-02240 · 55901-02260 |
| 55902E | No. 2 heater control sub-assembly | 55902-02160 · 55902-02310 · 55902-02330 |
| 55903A | No. 3 heater control sub-assembly | 55903-02280 · 55903-02460 · 55903-02480 |
| 55906 | Heater control cable sub-assembly | 55906-26091 |
| 55909A | Air mix damper control cable sub-assembly | 55909-26141 |
| 55950G | Defroster nozzle assembly | 55950-0A060 |
| 55990B | Lower defroster nozzle assembly | 55990-0A060 |
| 58861B | Air duct No. 1 for armrest box | 58861-0A070 |
| 58862B | Air duct No. 2 for armrest box | 58862-0A070 |
| 85C73B | Cleaner seal | 85373-33020 |
| 87114C | heater cover | 87413-02050 |
| 87211 | No. 1 air duct | 87211-0A090 |
| 87211A | Duct No. 2 | 87211-0A100 |
| 87212 | No. 1 rear air duct | 87215-02190 |
| 87212G | No. 3 rear air duct | 87217-F4020 |
| 87212H | No. 4 rear air duct | 87212-F4020 |
| 87213D | No. 2 rear air duct | 87213-F4020 |
| 87217C | No. 5 rear air duct | 87216-F4020 |
| 87220 | Air duct assembly | 87220-0A060 |
| 87223A | Duct gasket | 87223-0E020 |
| 88326C | Cover plate | 88899-0A050 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-07050 |
| 88734 | Air conditioning PM sensor | 88734-12030 |
| 88790B | Thermistor assembly | 88790-0D020 |
| 88897P | aspirator | 88505-02350 · 88505-F4050 |
