Toyota COROLLA 后视镜 — Figure 8701

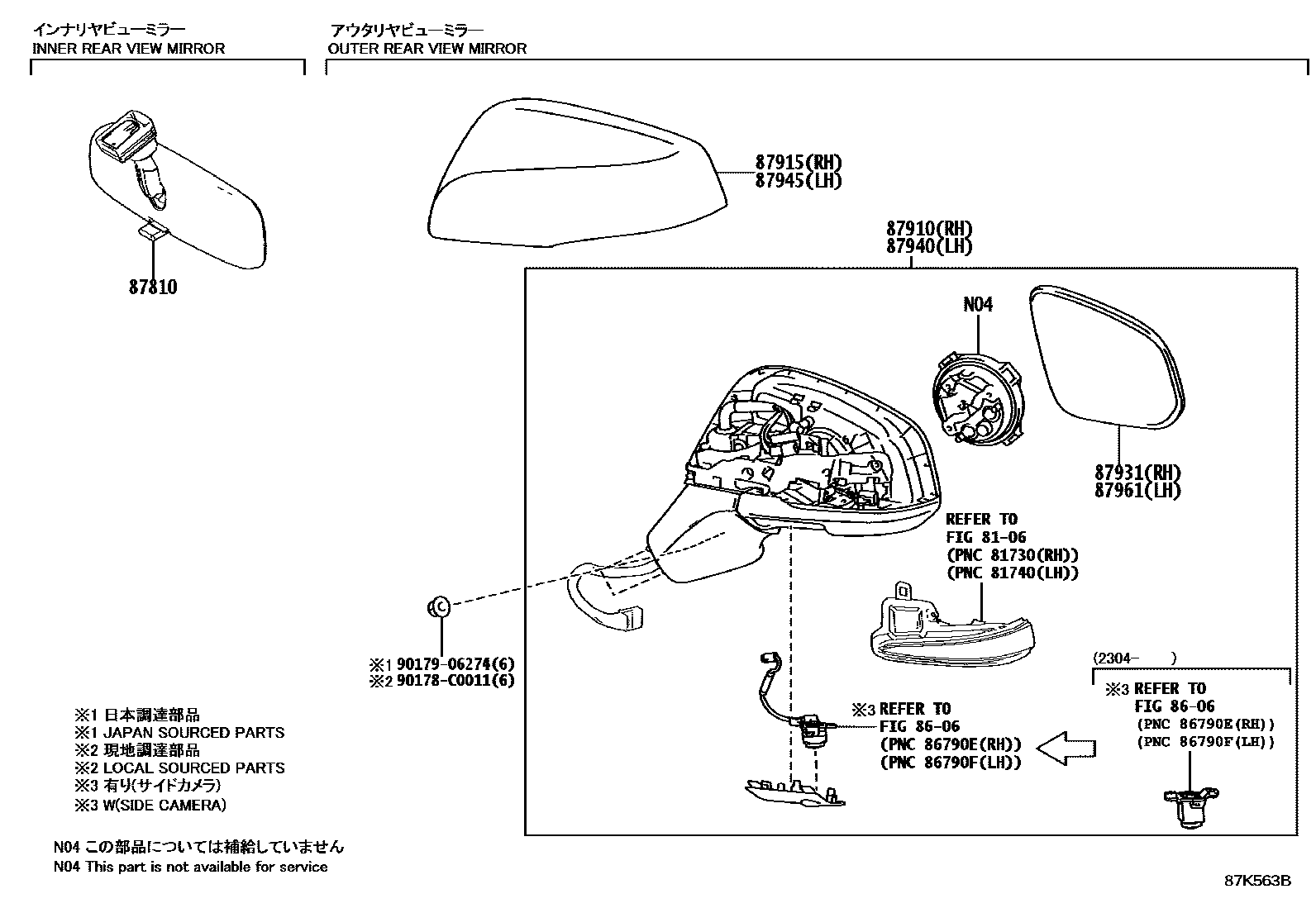

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-F4050 |
| 87910 | Right exterior rearview mirror assembly | 87910-0A160 · 87910-0A170 · 87910-0A171 · 87910-0A180 · 87910-0A190 · 87910-0A330 · 87910-0A360 |
| 87915 | Right exterior rearview mirror cover | 87915-0R904 |
| 87931 | Right exterior rearview mirror | 87931-0R321 · 87931-0R341 · 87931-0R520 |
| 87940 | Left exterior rearview mirror assembly | 87940-0A150 · 87940-0A160 · 87940-0A161 · 87940-0A170 · 87940-0A180 · 87940-0A320 · 87940-0A360 |
| 87945 | Left exterior rearview mirror cap | 87945-0R905 |
| 87961 | Left exterior rearview mirror | 87961-0R320 · 87961-0R340 · 87961-0R390 |
