Toyota COROLLA 预碰撞安全系统 — Figure 8617

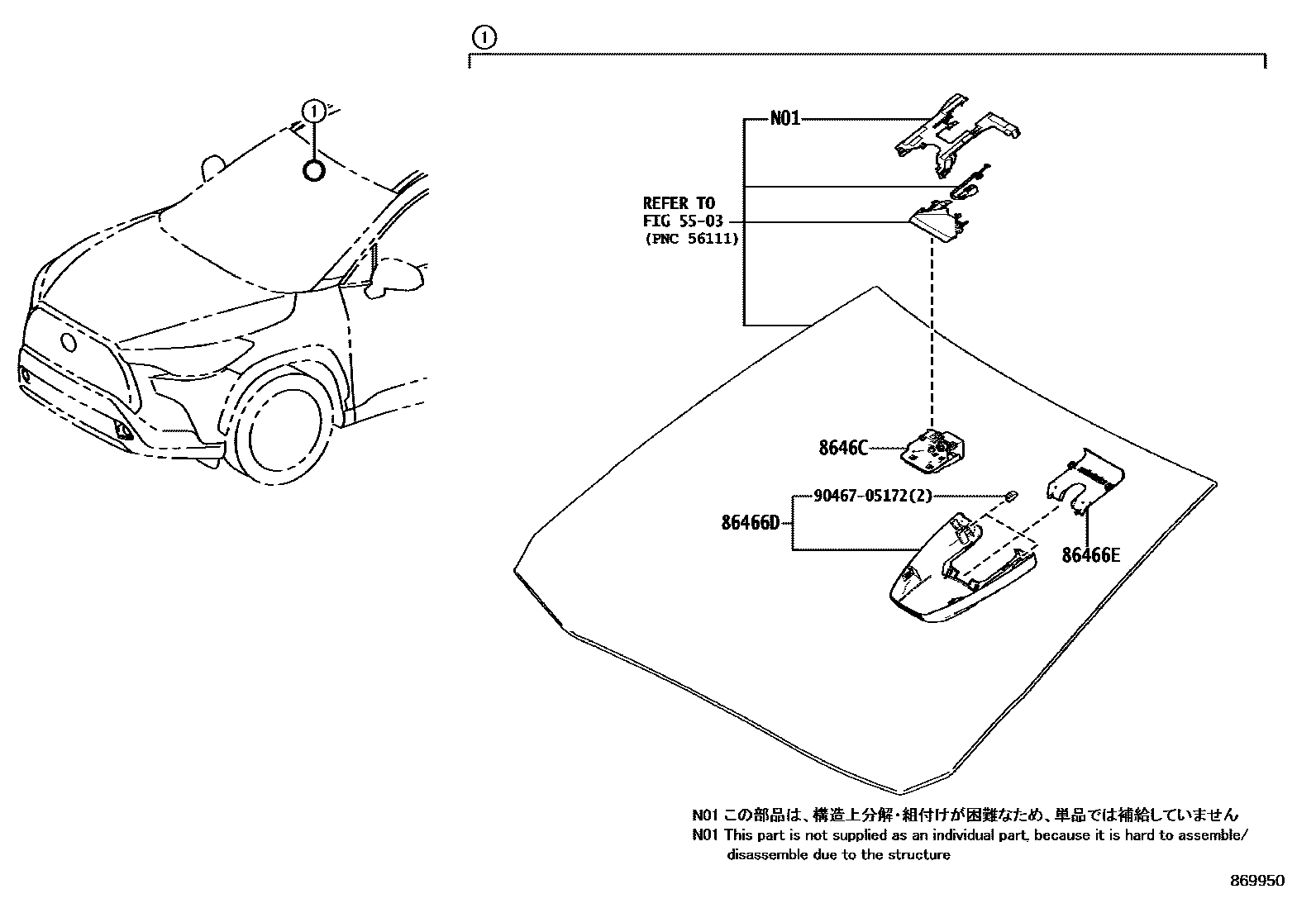

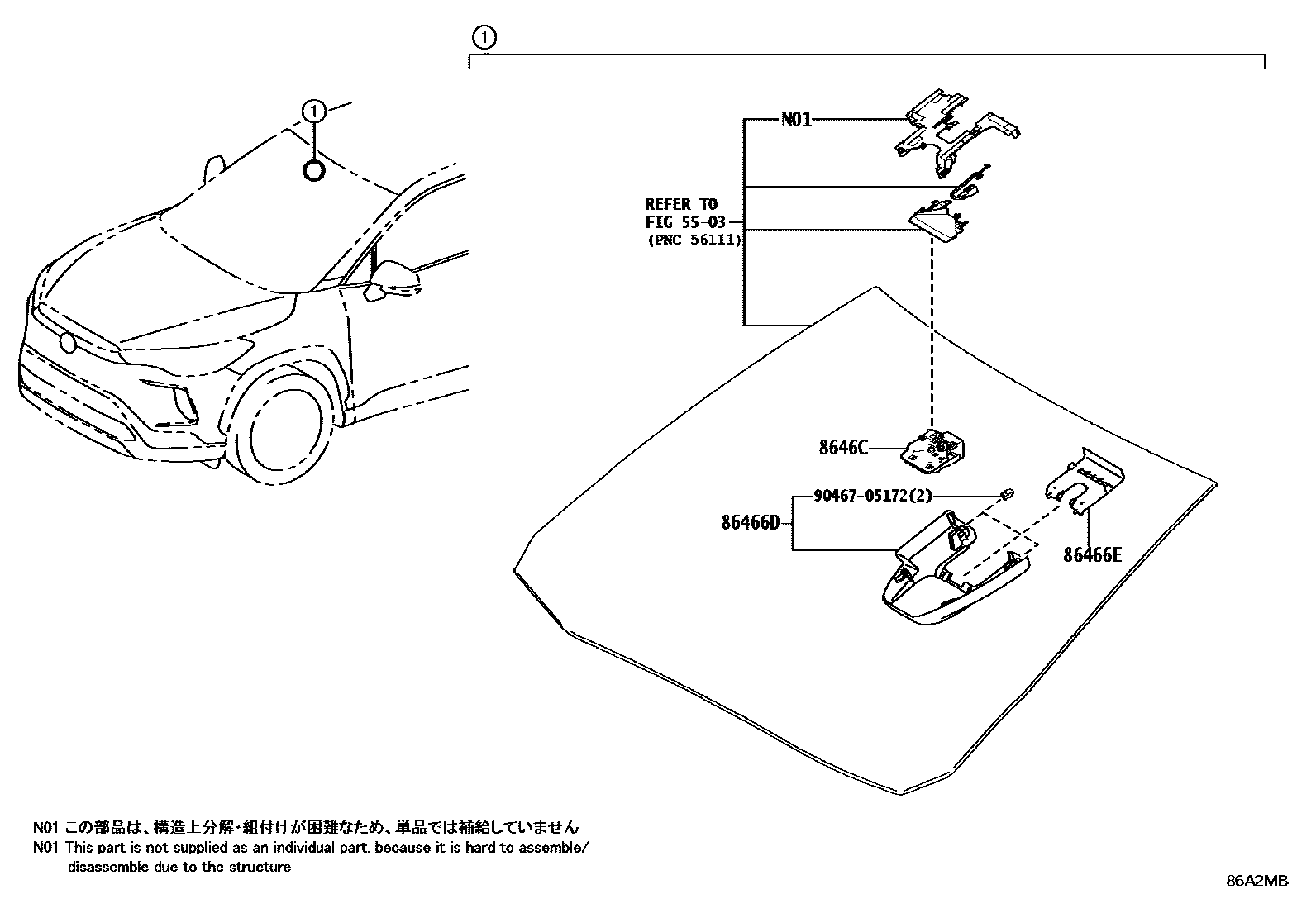

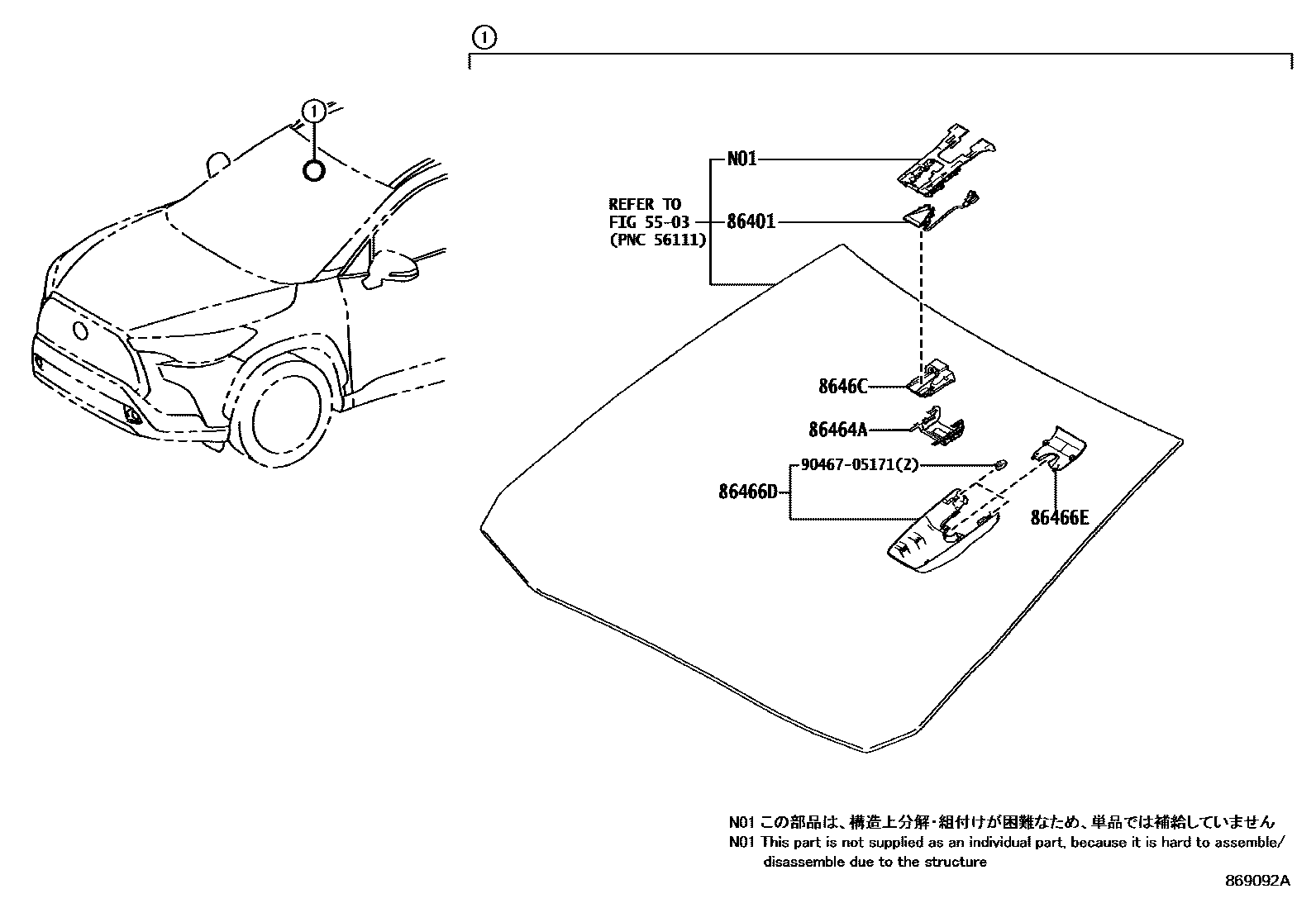

Toyota COROLLA EPC diagram 8617, 预碰撞安全系统, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | Front identification hood sub-assembly with heater | 86401-0A010 |
| 86464A | Front identification lock | 86464-0E020 |
| 86466D | Front identification cover No. 1 | 86466-0A030 · 86466-0A080 · 86466-0A100 |
| 86466E | Front identification cover No. 2 | 86466-0A040 · 86467-0A020 · 86467-0A040 |
| 8646C | front recognition camera | 8646C-0A020 · 8646C-0A050 · 8646C-0A051 · 8646C-0A120 |
