Toyota COROLLA 车载电话和呼救装置 — Figure 8615

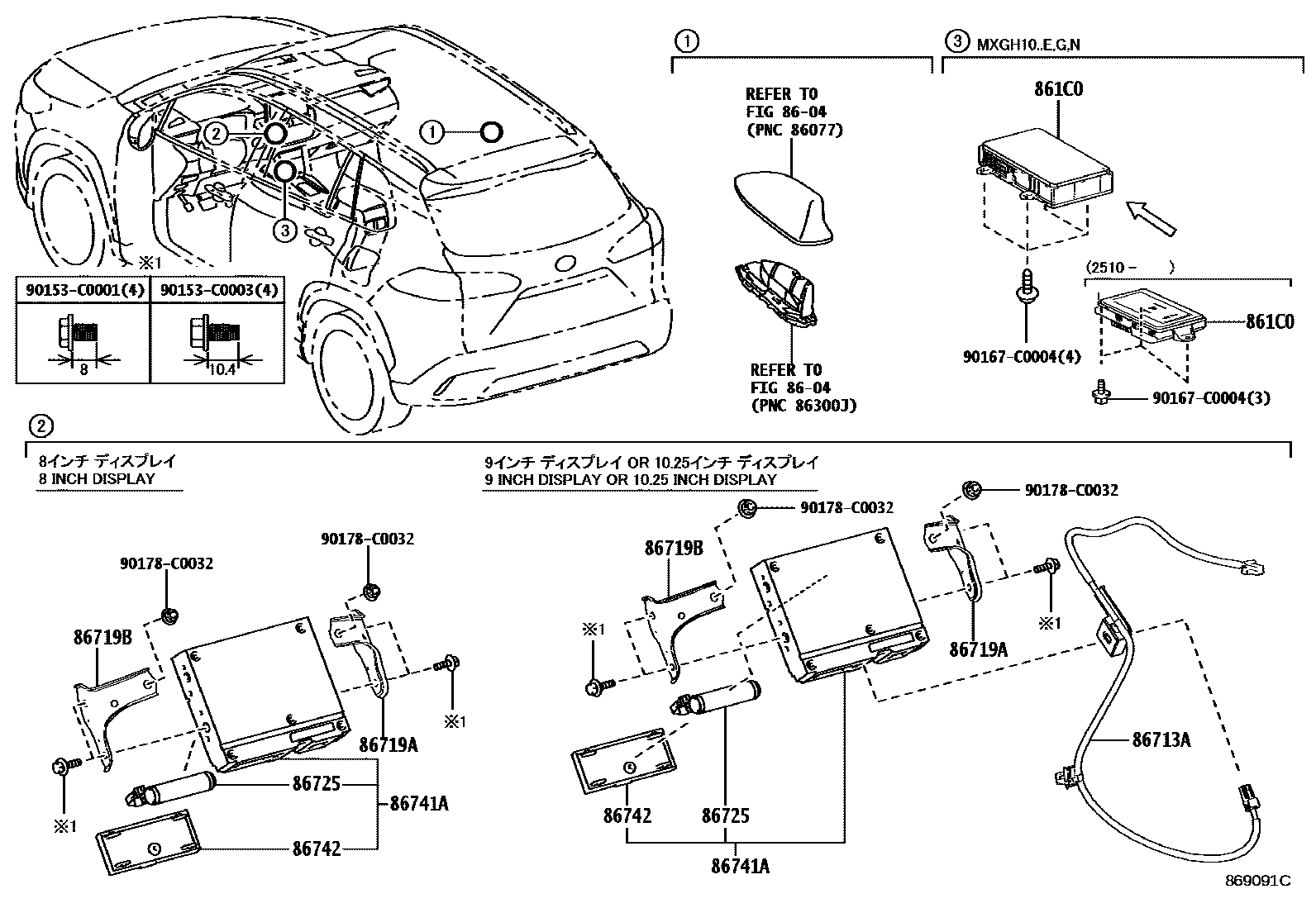

Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | Mobile wireless charger bracket assembly | 861C0-02040 · 861C0-YY140 |
| 86713A | Telephone ECU harness (to transceiver) | 86713-0A030 · 86713-0A040 |
| 86719A | Phone holder No. 1 | 86719-02120 |
| 86719B | Phone holder No. 2 | 86719-02130 |
| 86725 | mobile phone battery | 86725-F4010 |
| 86741A | Telecommunications transceiver | 86741-02230 · 86741-0A010 |
| 86742 | transceiver cover | 86742-0A010 |
