Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 4 PNC and OE references.

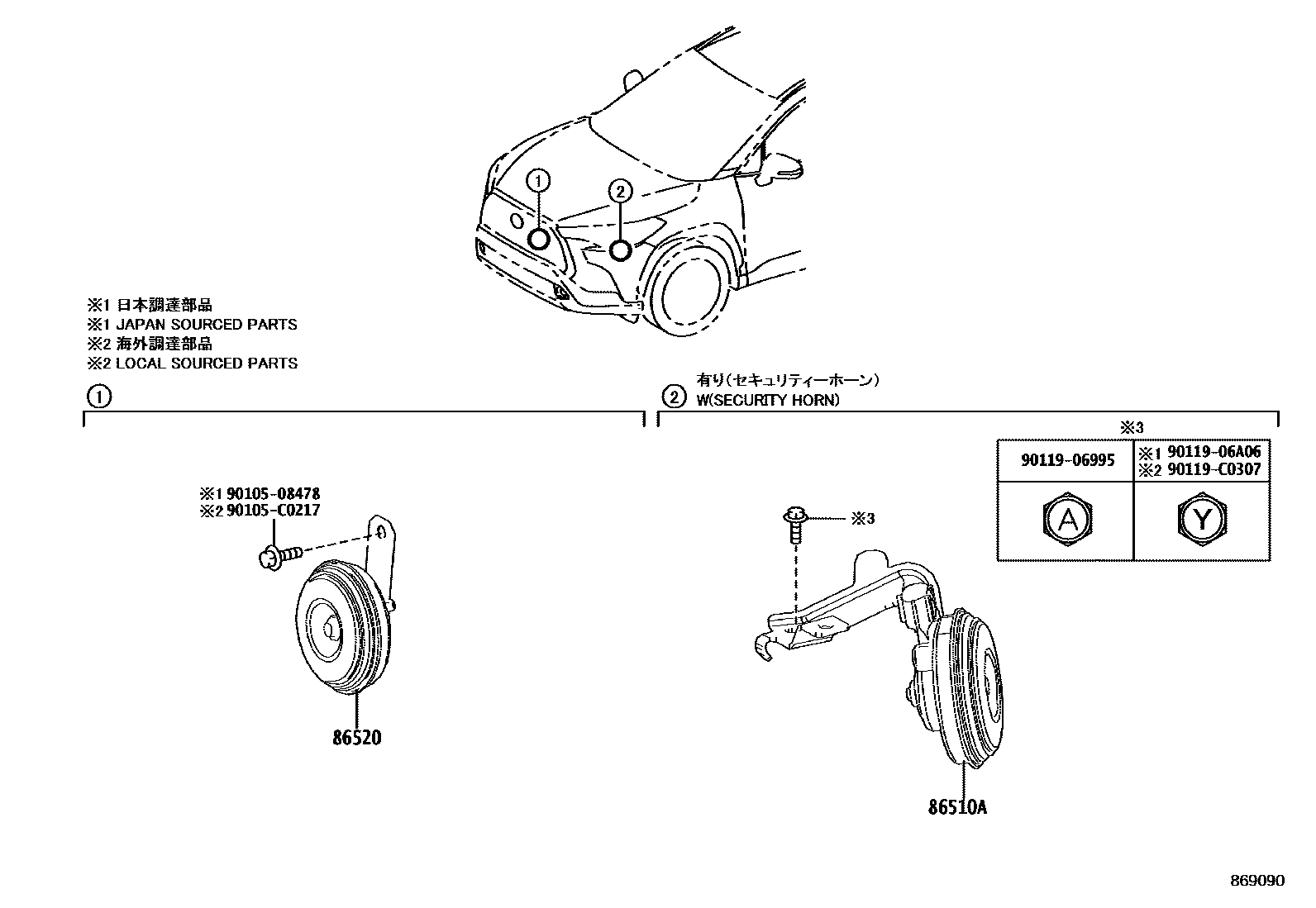

Toyota COROLLA 喇叭 EPC diagram — 869090
喇叭 — 869090 (202201 – 999999)

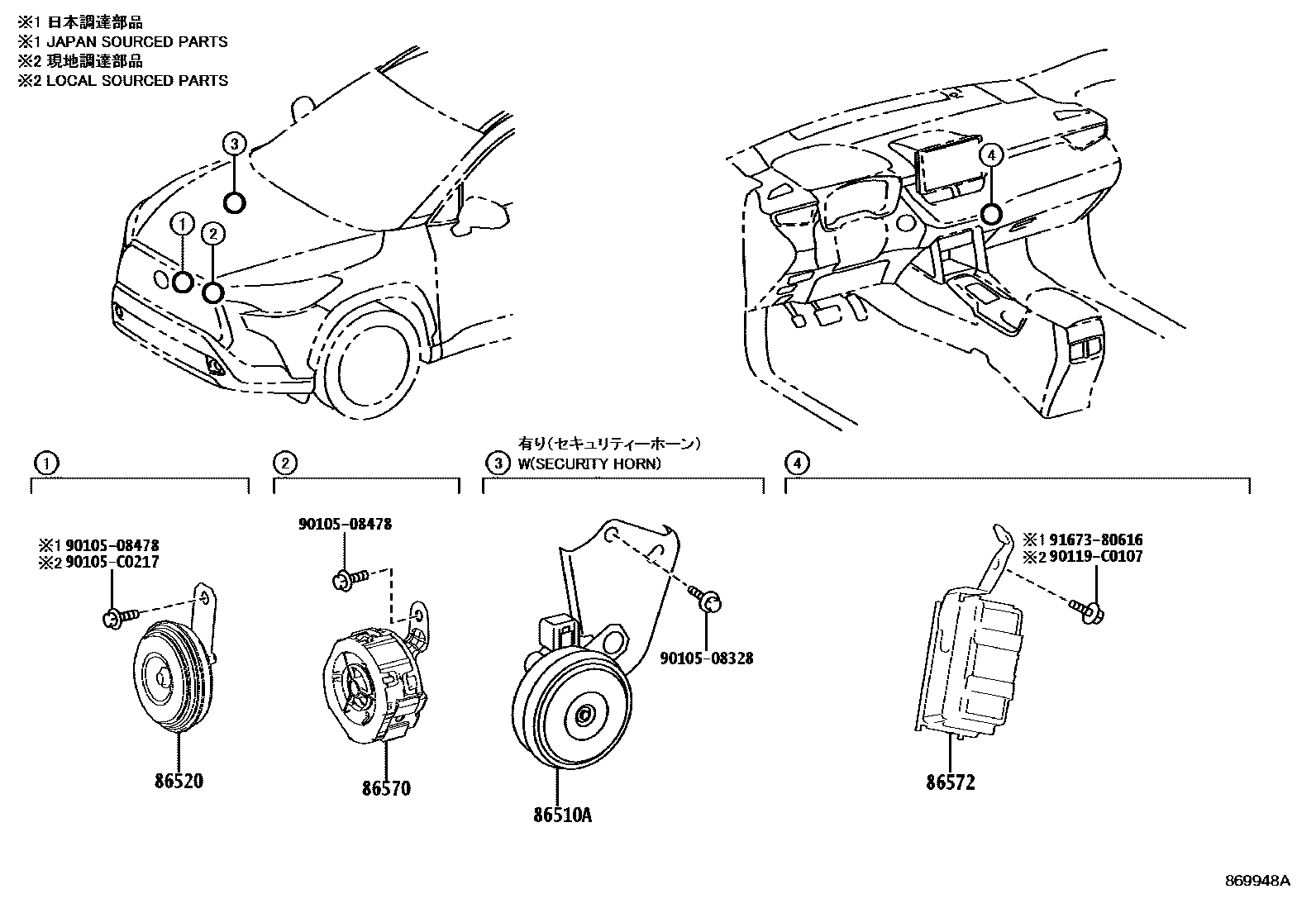

Toyota COROLLA 喇叭 EPC diagram — 869948A
喇叭 — 869948A (202307 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510AAlarm horn assembly86560-02180 · 86560-02210
86520Subwoofer assembly86520-0A030 · 86520-0A031
86570Vehicle intrusion speaker assembly86570-02030
86572vehicle hacking speaker controller86572-0A020 · 865H2-0A010
