Toyota COROLLA 倒车影像和摄像头 — Figure 8606

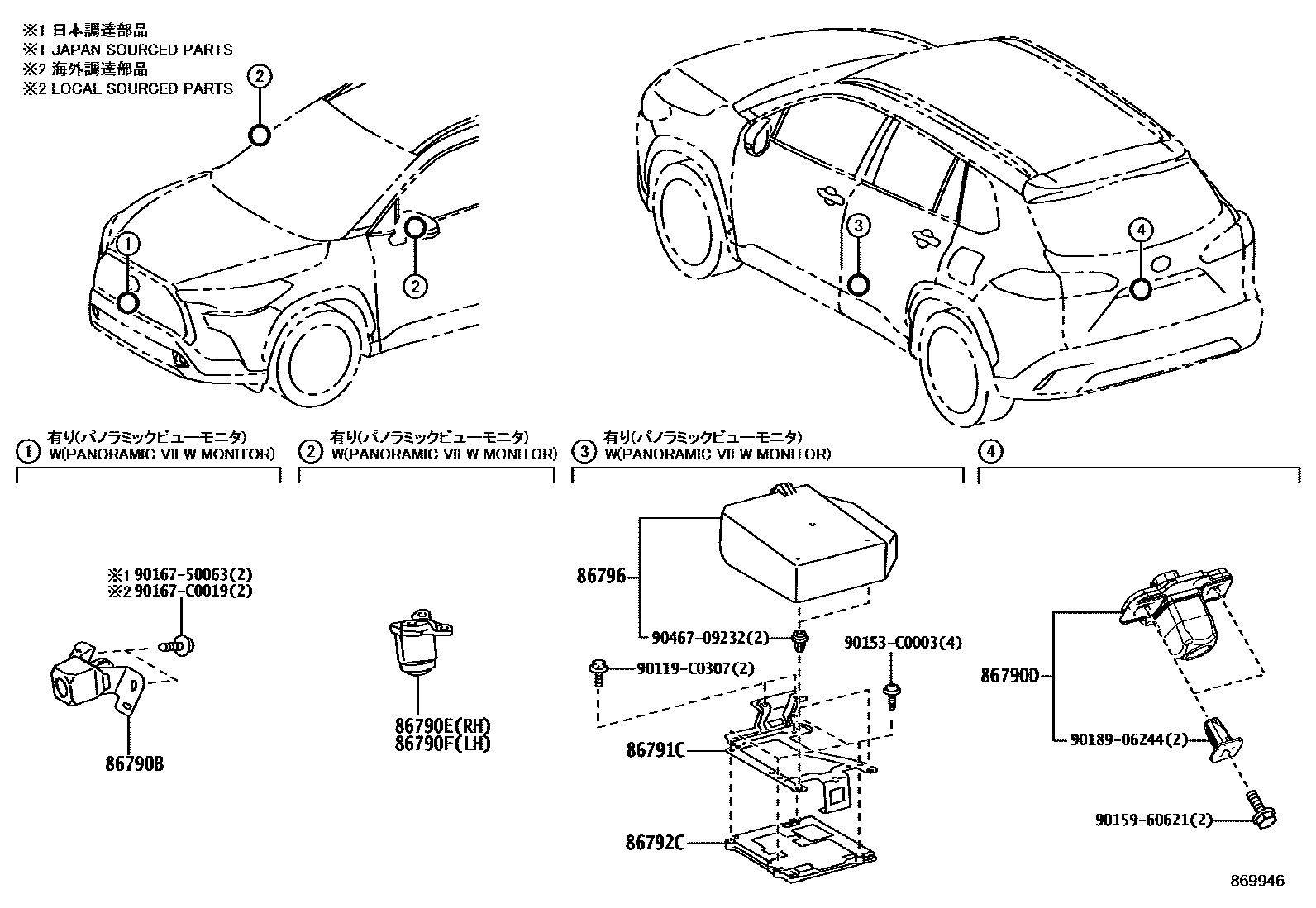

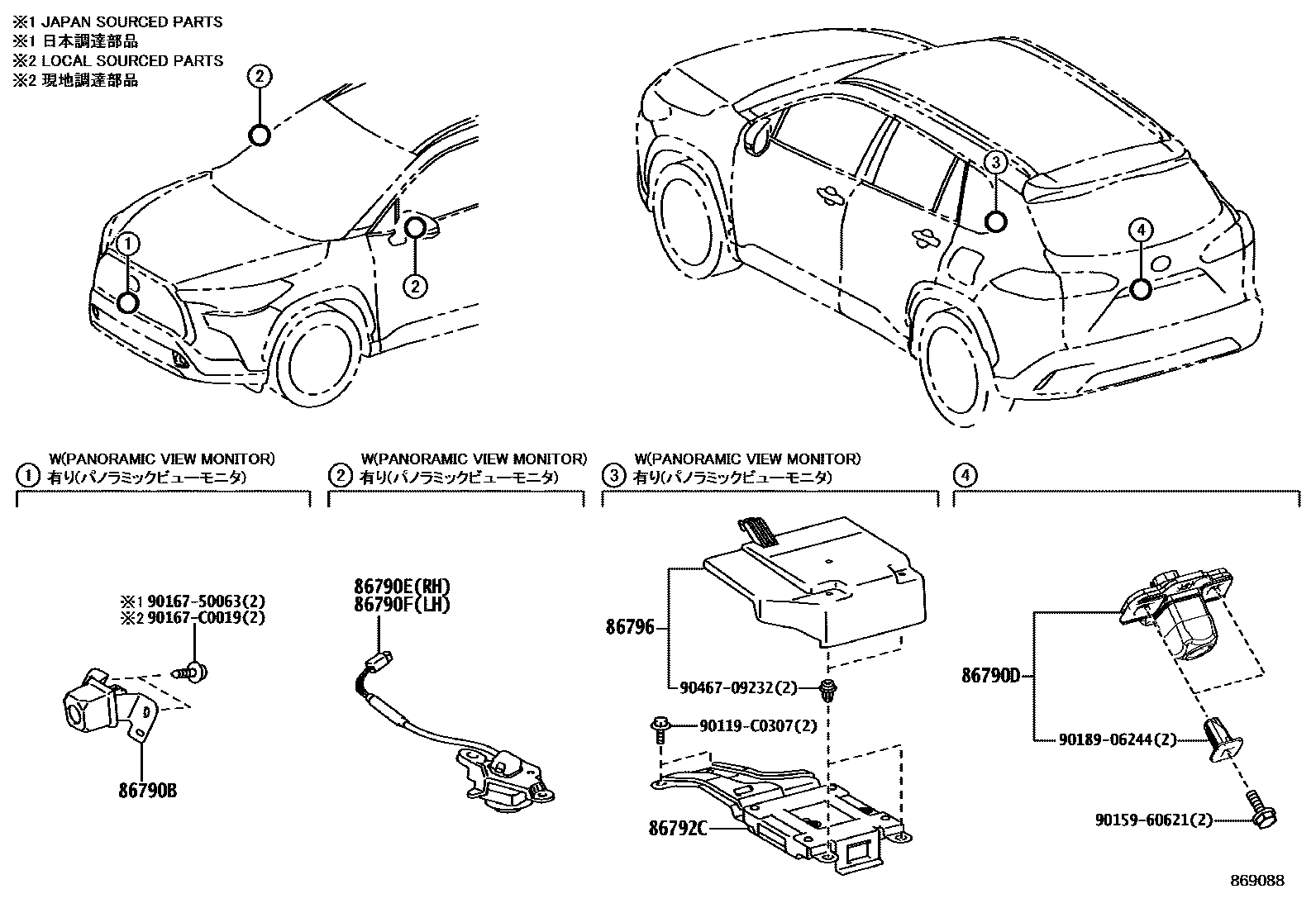

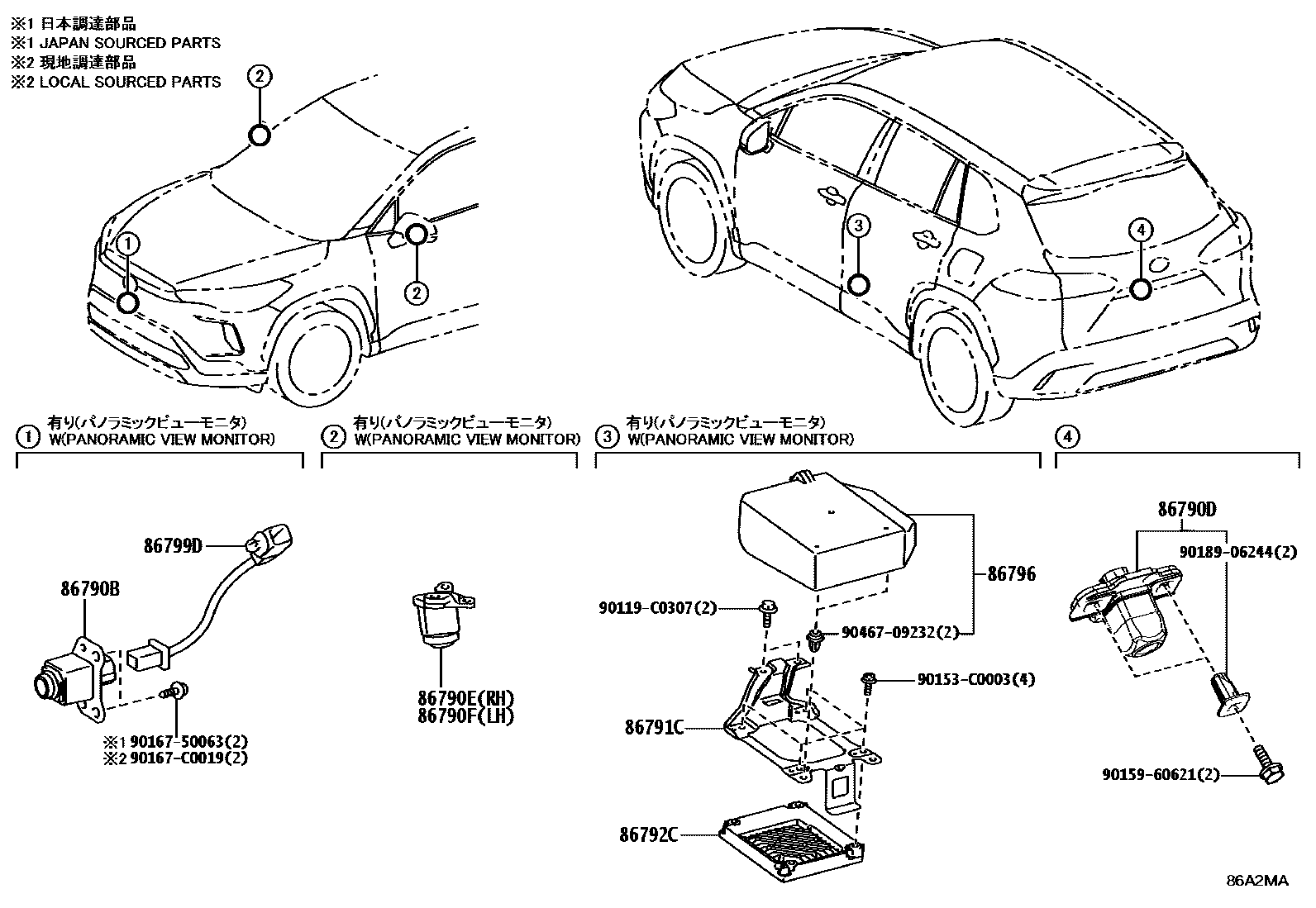

Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-0A080 · 86790-0A140 · 86790-0A380 |
| 86790D | Rear reversing image camera assembly | 86790-0A020 · 86790-0A130 · 86790-0A390 · 867B0-0A040 · 867B0-0A041 |
| 86790E | Right image camera assembly | 86790-0A040 · 86790-0A160 · 86790-0A350 |
| 86790F | Left image camera assembly | 86790-0A030 · 86790-0A150 · 86790-0A340 |
| 86791C | Parking assist ECU No. 1 bracket | 86791-0A020 · 86791-0A070 |
| 86792C | Parking assist ECU | 86792-0A010 · 86792-0A030 · 86792-16090 · 86792-16091 |
| 86796 | Parking assist ECU cover | 86796-0A070 · 86796-0A090 · 86796-47010 |
| 86799D | CABLE, CAMERA TELEVISION, AVANT | 86799-02020 |
