Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.

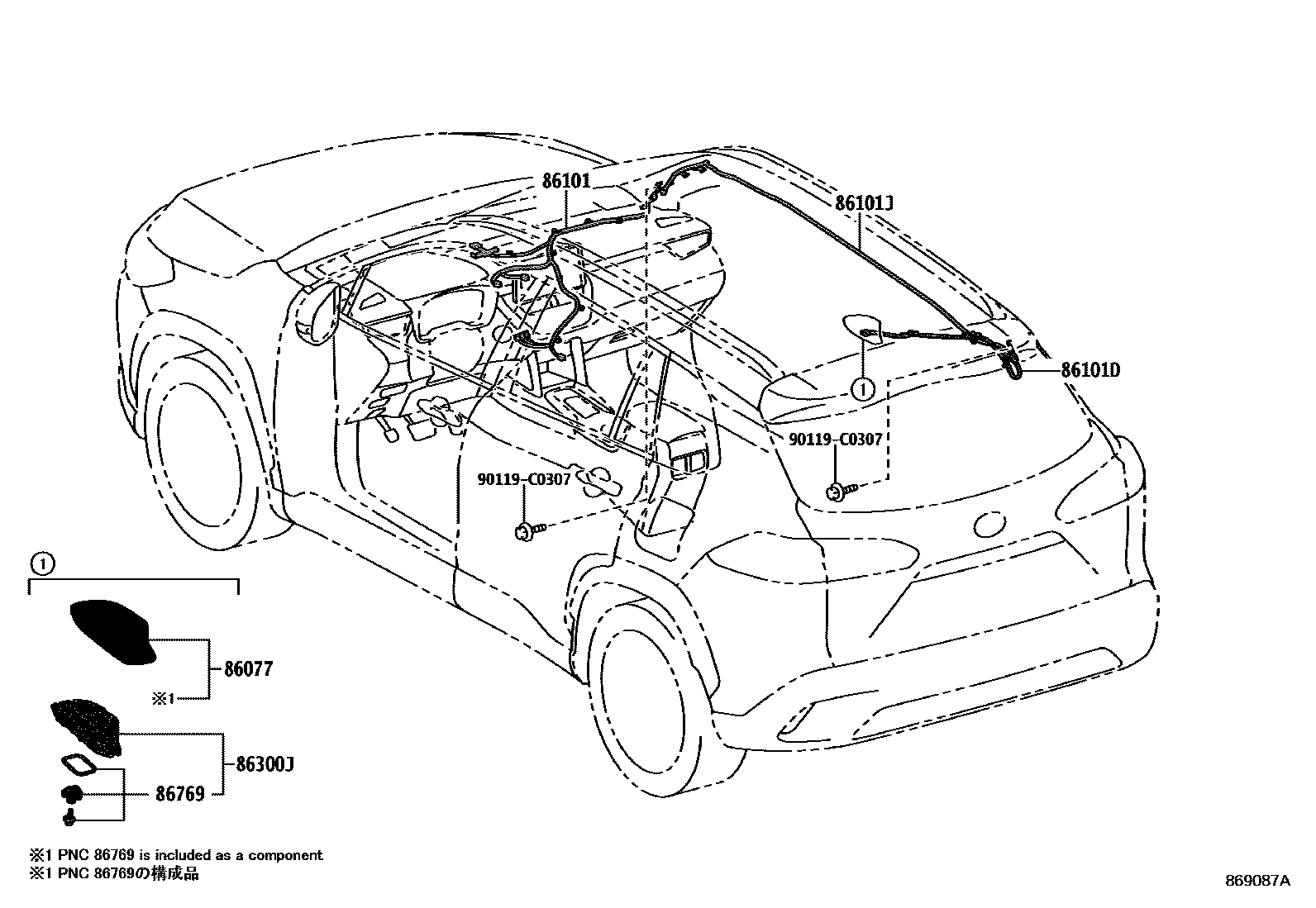

Toyota COROLLA antenna EPC diagram — 869087A
antenna — 869087A (202201 – 999999)

PNC and OE references

PNCPart nameOE numbers
86077Antenna dust cover assembly86766-09010
86101Antenna wire sub-assembly86101-0A440 · 86101-0A560 · 86101-0A840 · 86101-0AC40 · 86101-0AC50
86101DNo. 3 antenna wire sub-assembly86101-0A480 · 86101-0A800
86101JAntenna No. 2 wire sub-assembly86101-0A450 · 86101-0A460 · 86101-0A810 · 86101-0A820
86300JRoof antenna assembly86300-0A040 · 86300-0A070
86769roof radome86769-0E030 · 86769-12010
