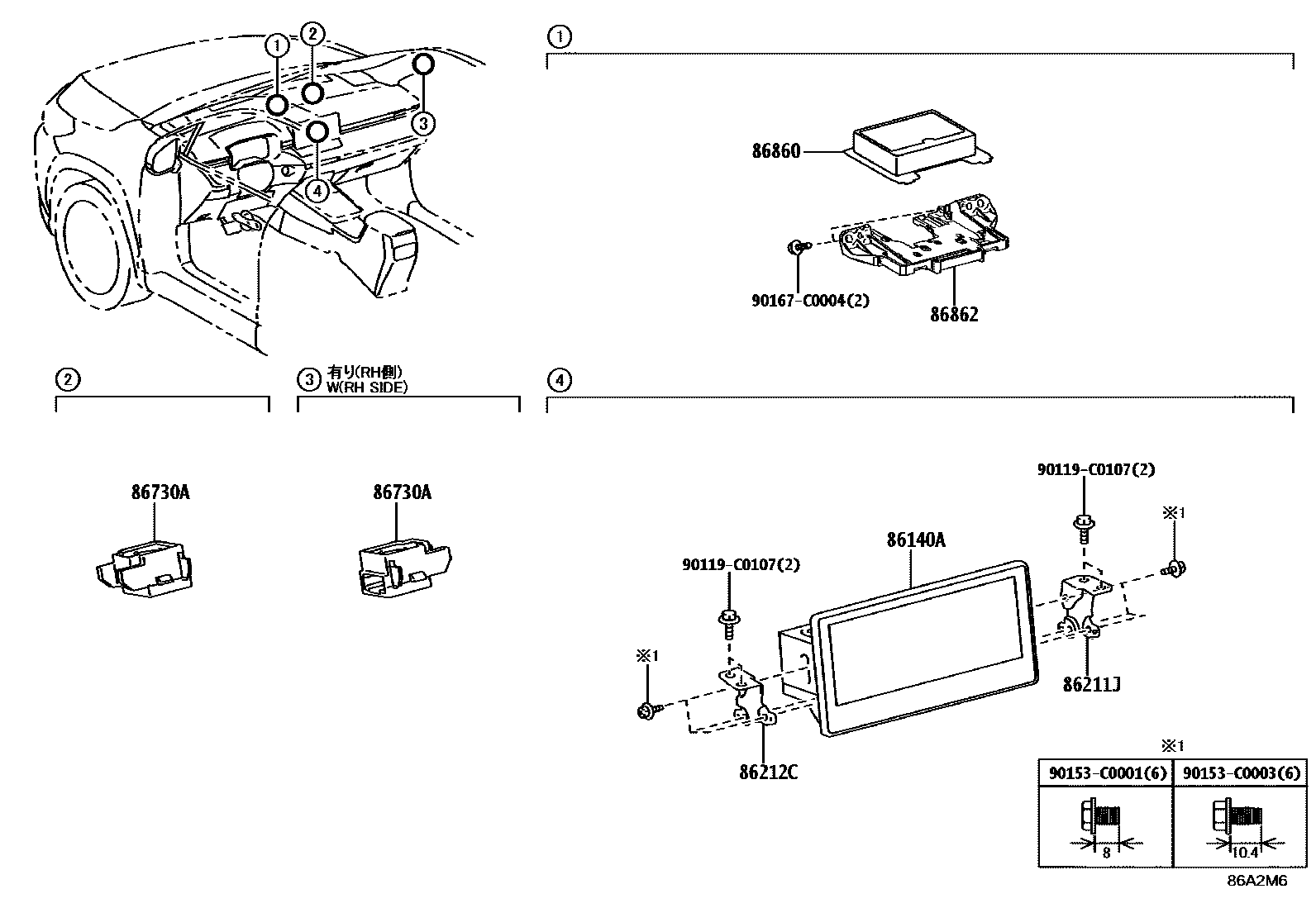

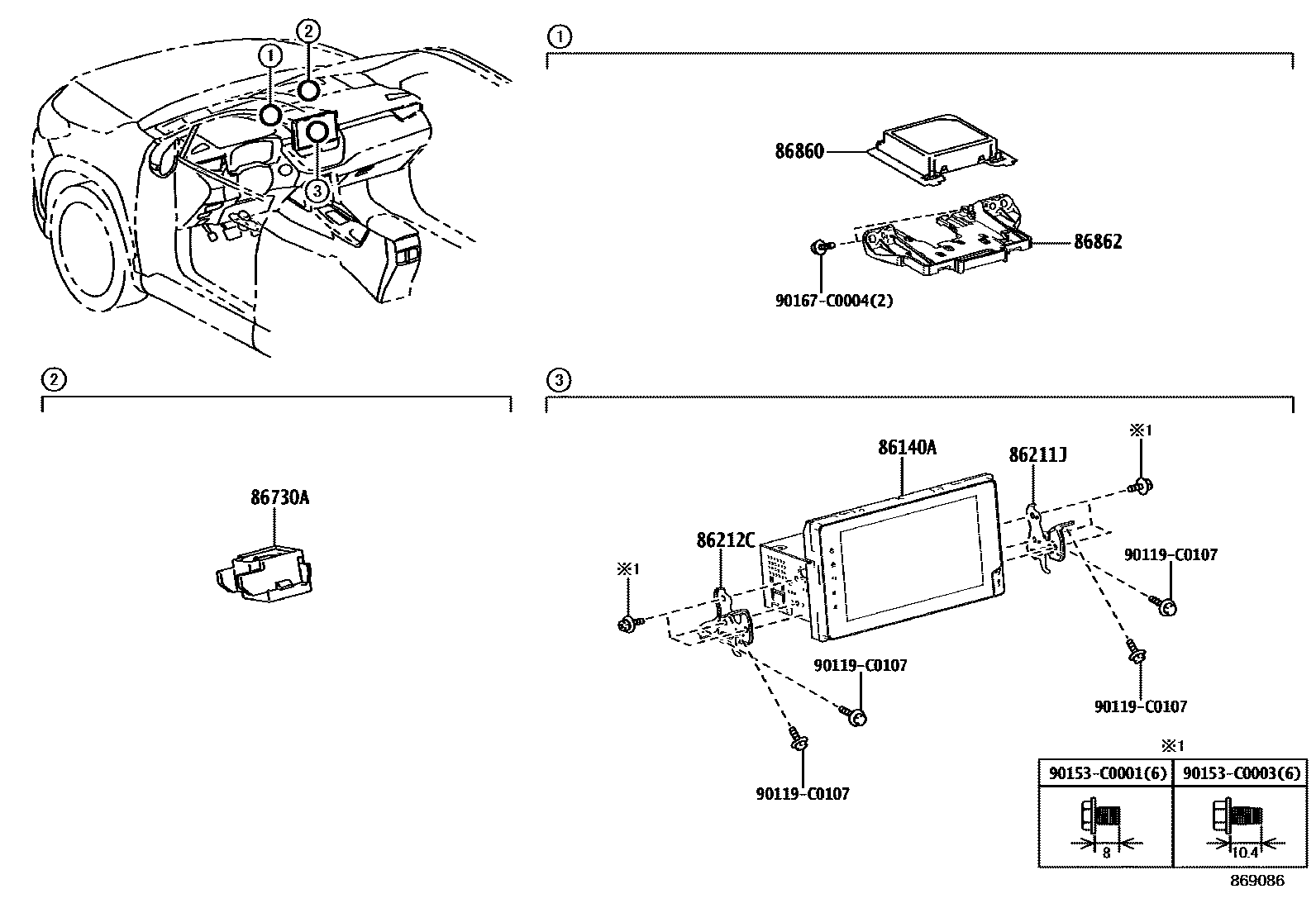

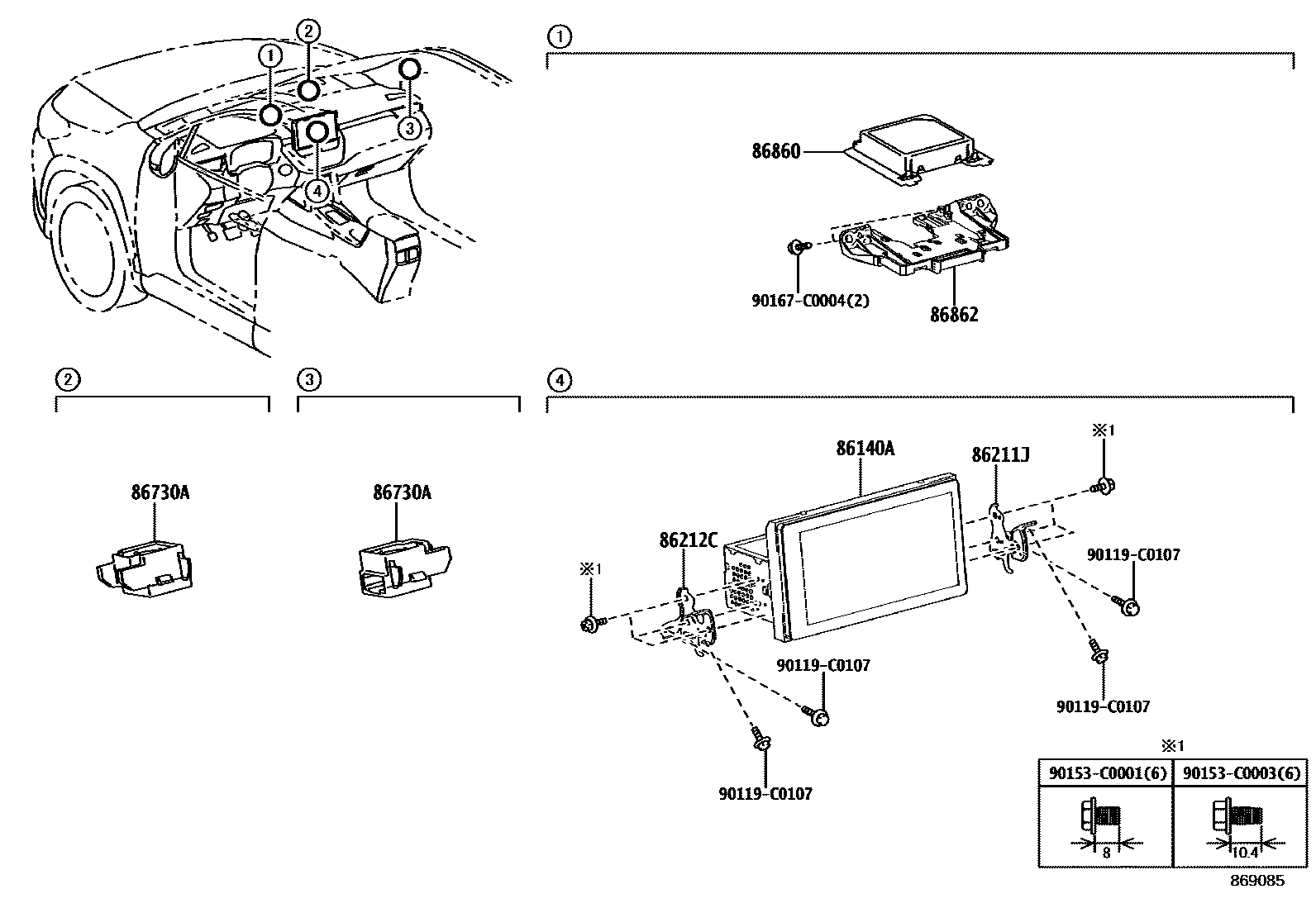

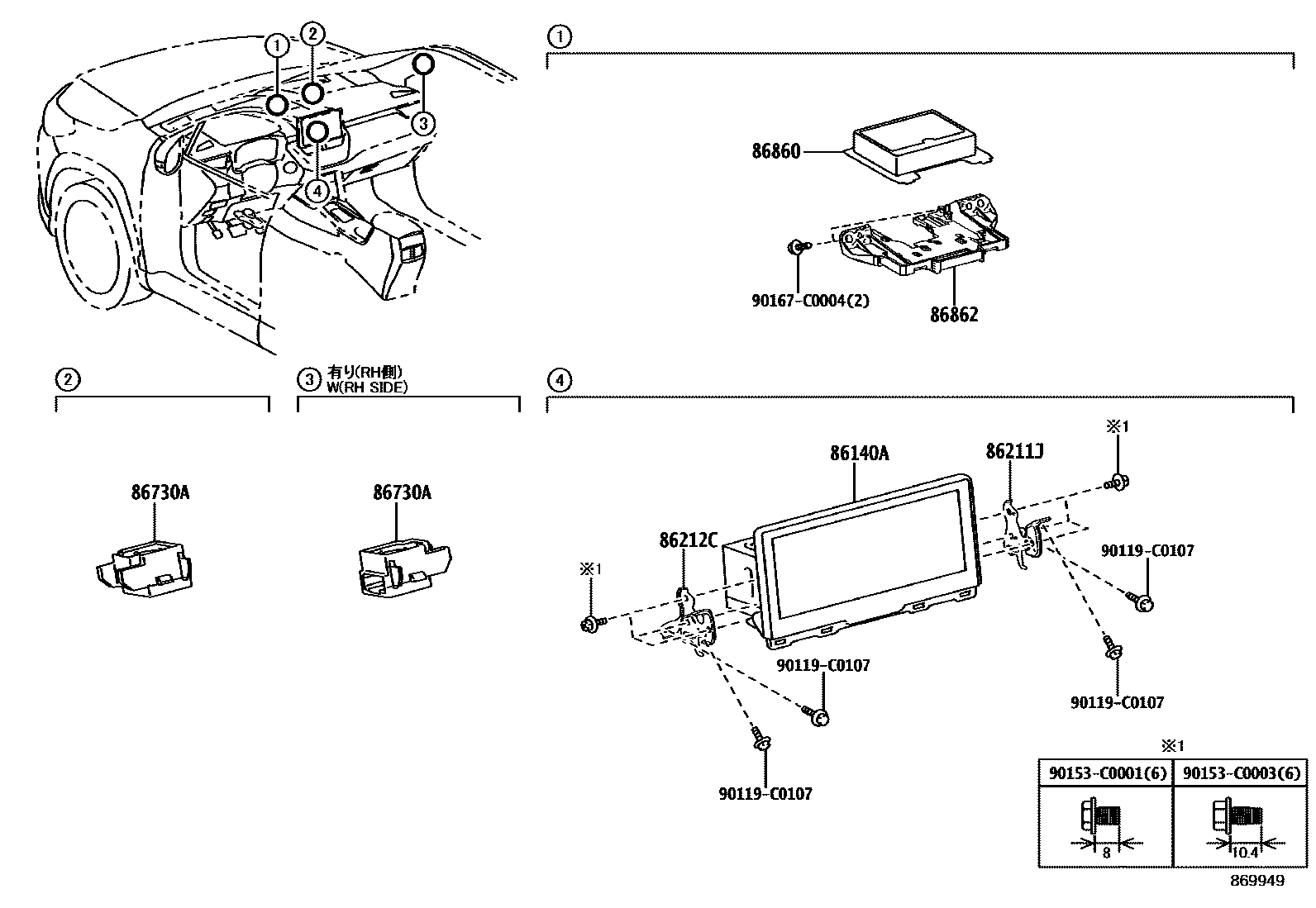

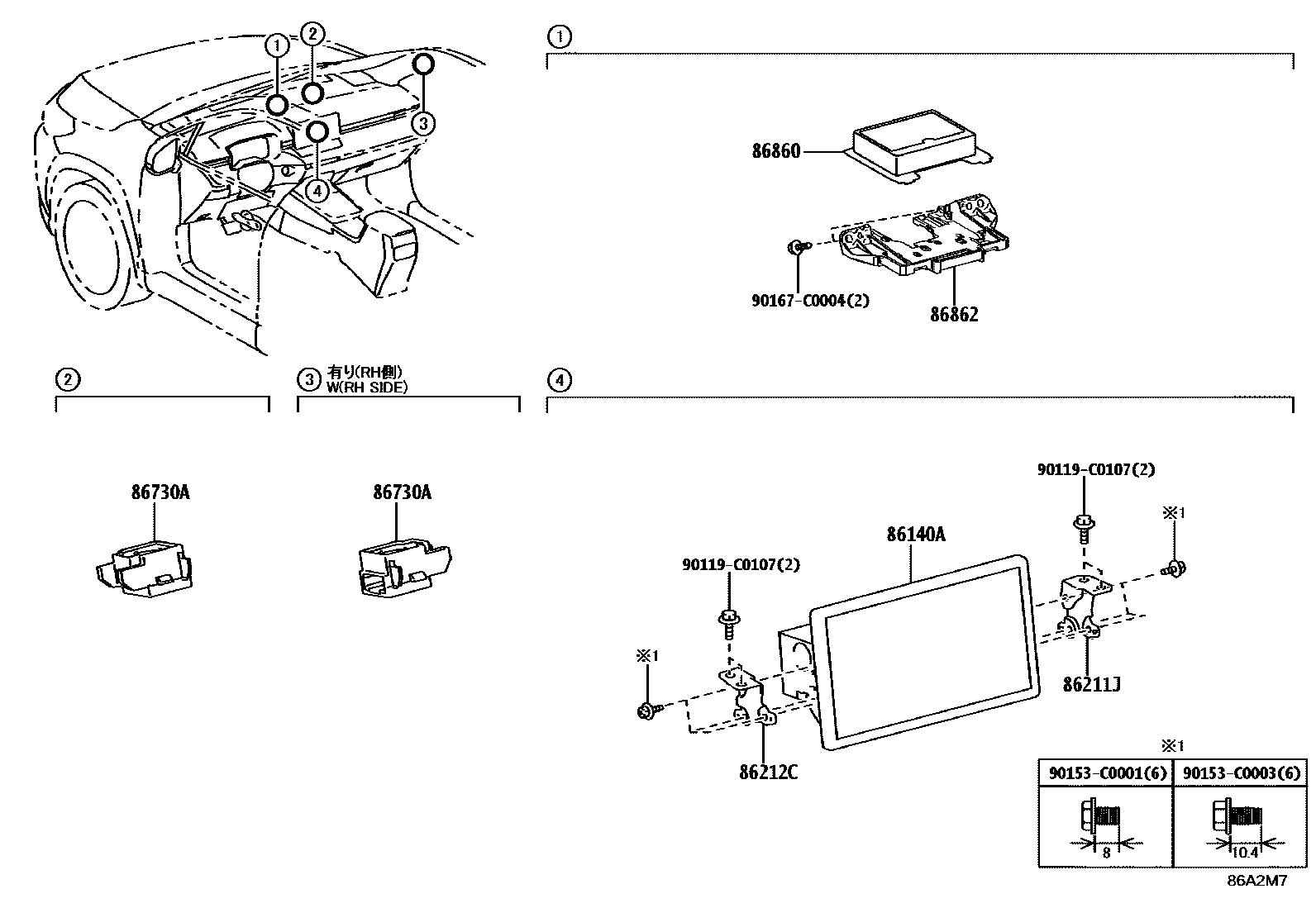

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 5 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86100-0A010 · 86100-0A011 · 86100-0A012 · 86100-0A031 · 86100-0A032 · 86100-0A052 · 86100-0A081 · 86100-0A091 · 86140-0A250 · 86140-0A361 · 86140-0A362 · 86140-0A520 · 86140-0A540 |
| 86211J | No. 1 radio bracket | 86211-02630 · 86211-02750 · 86211-02751 · 86211-0A040 |
| 86212C | No. 2 radio bracket | 86212-02630 · 86212-02740 · 86212-02741 · 86212-0A040 |
| 86730A | Telephone amplifier assembly | 86730-0A010 |
| 86860 | Navigation antenna assembly | 86880-02050 · 86880-02100 |
| 86862 | Navigation antenna bracket | 86862-02040 · 86862-0E030 · 86862-42010 |
