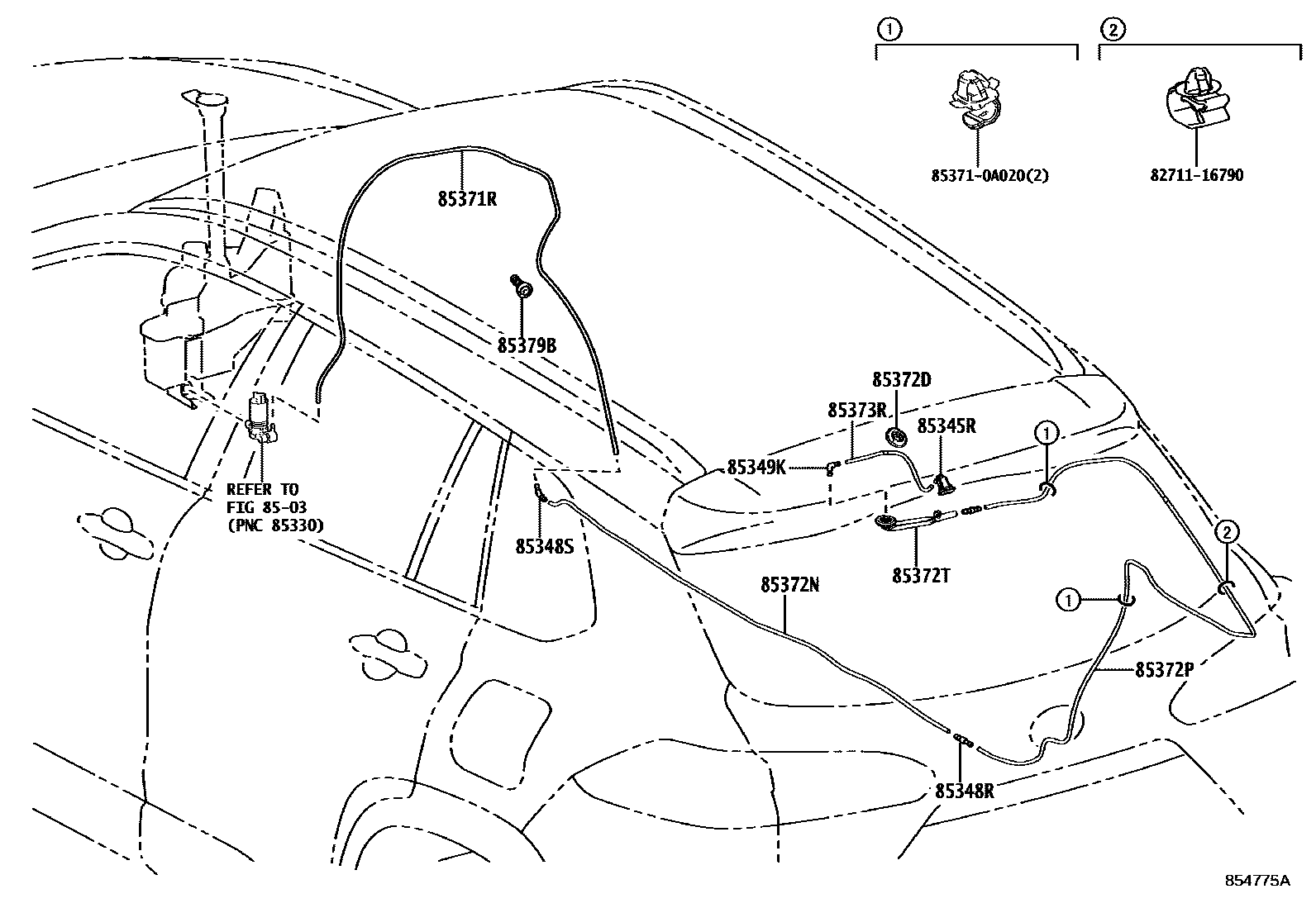

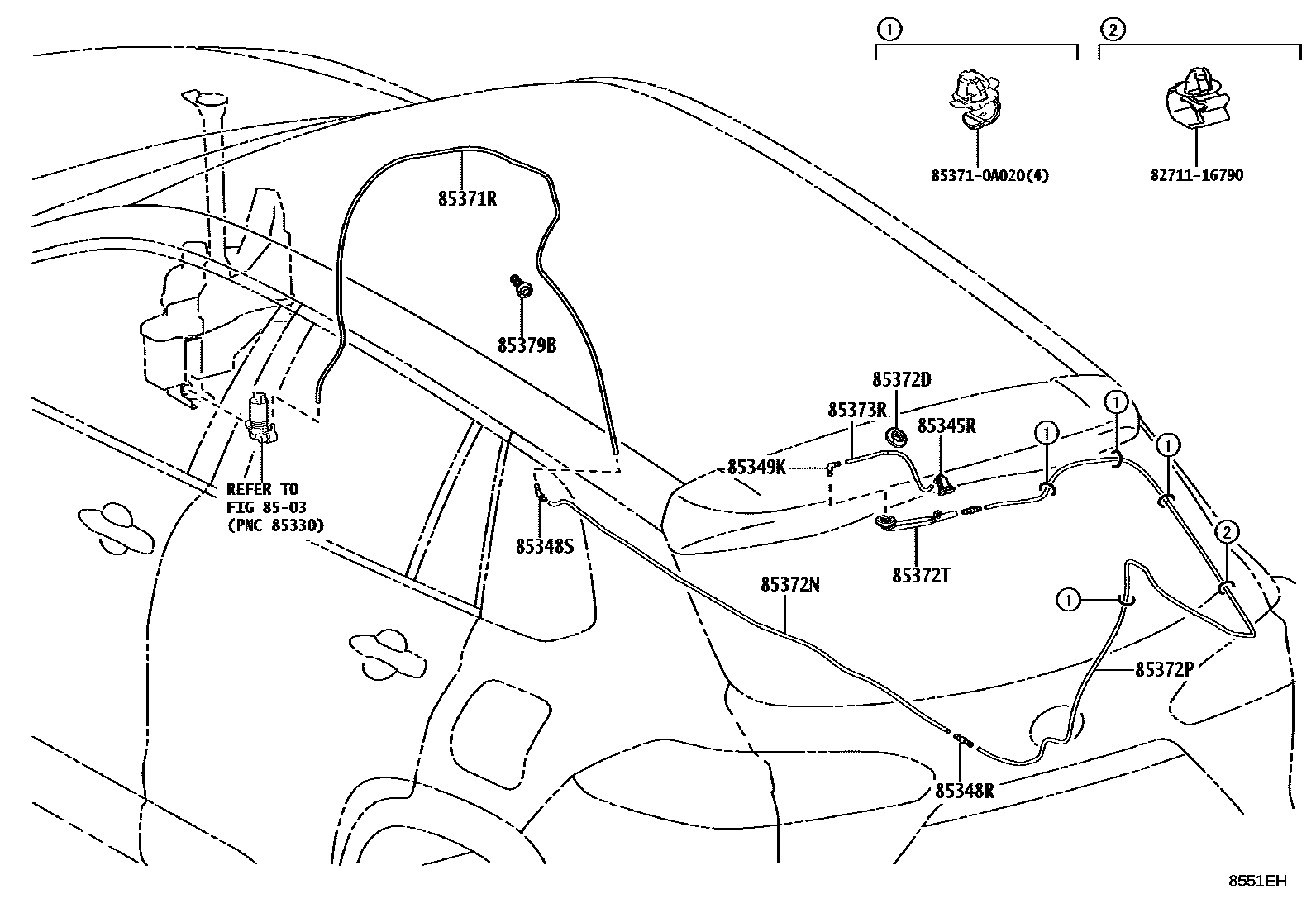

Toyota COROLLA 后清洗器 — Figure 8504
Toyota COROLLA EPC diagram 8504, 后清洗器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-0A050 |
| 85348R | No. 1 rear washer hose connector | 85375-02650 |
| 85348S | No. 1 rear cleaner elbow joint | 85376-0R260 |
| 85349K | No. 2 rear cleaner elbow joint | 85376-0R260 |
| 85371R | Rear washer hose (from motor to connector) | 90069-46169 |
| 85372D | Rear washer hose seal | 85372-20020 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 85370-0A210 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90069-46168 |
| 85372T | Cleaner seal | 85372-20040 |
| 85373R | Rear washer hose (from connector to nozzle) | 90069-46166 |
| 85379B | Cleaner seal A | 85379-0R260 |
