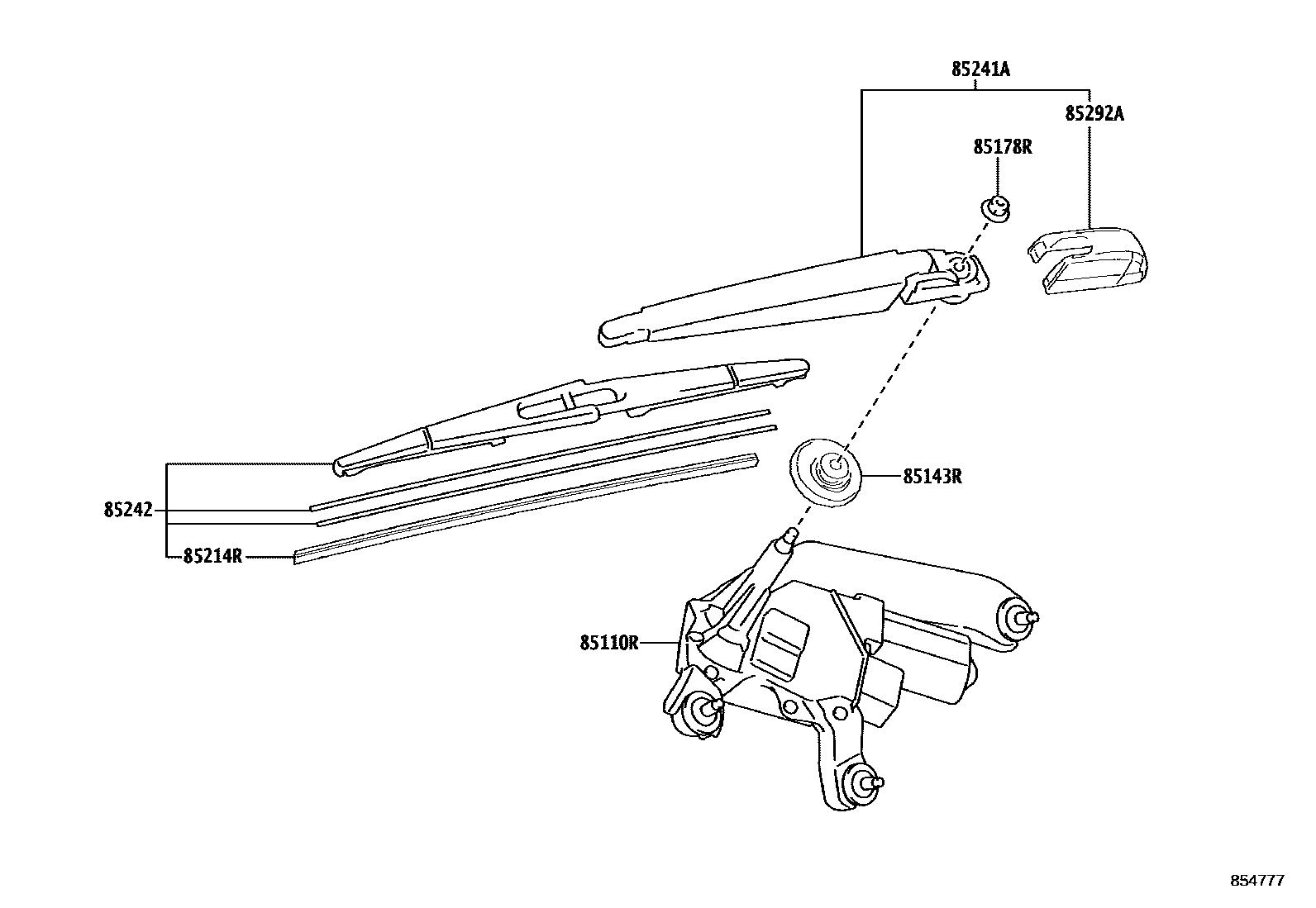

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-0A050 |
| 85143R | Rear wiper motor seal | 85143-0A050 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 · 90182-C0004 |
| 85214R | Rear wiper rubber strip | 85214-0E240 |
| 85241A | rear wiper arm | 85241-0E110 |
| 85242 | Rear wiper blade | 85242-0E130 |
| 85292A | Rear wiper arm cap | 85292-0E070 |
