Toyota COROLLA 逆变器冷却系统 — Figure 8432

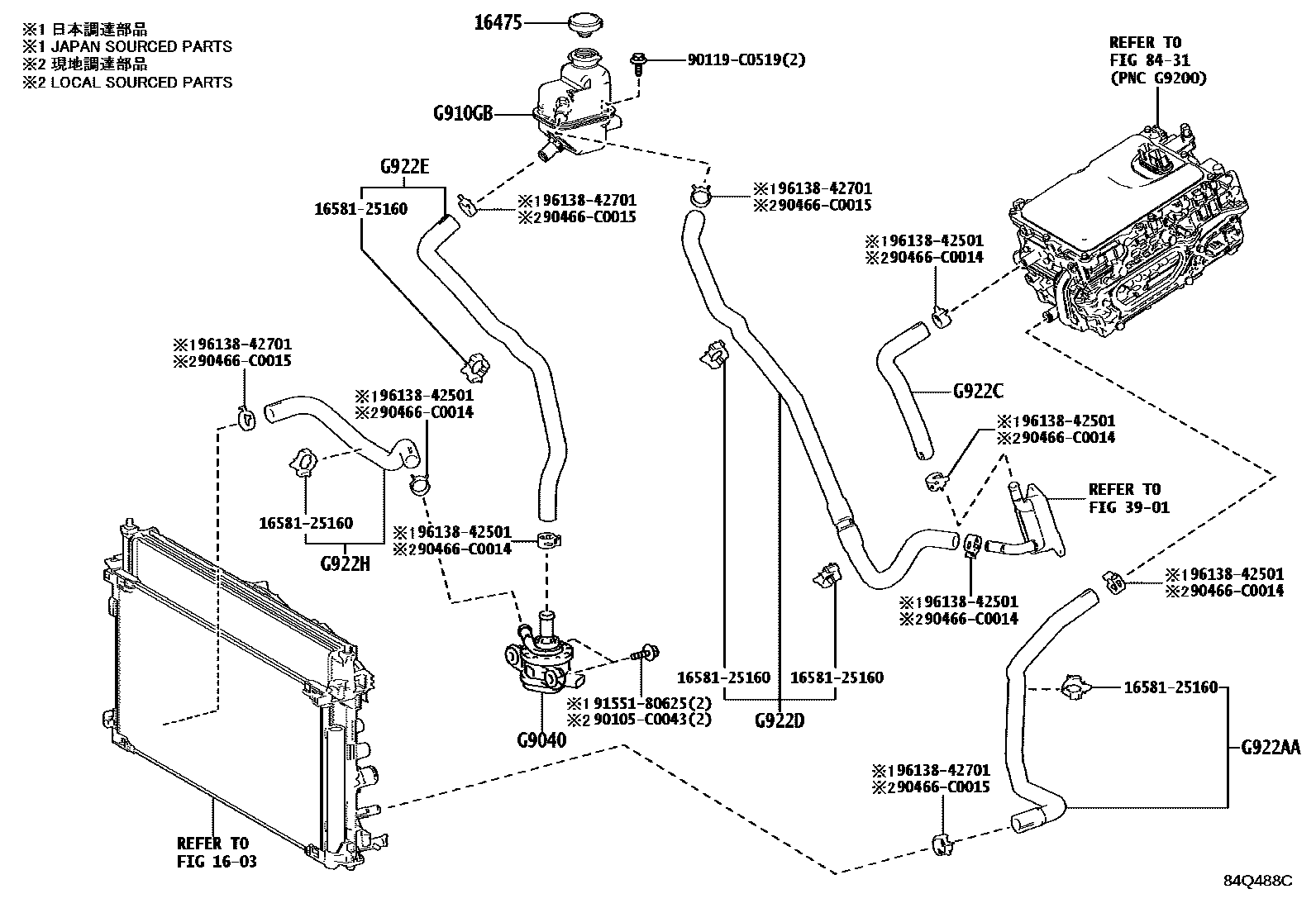

Toyota COROLLA EPC diagram 8432, 逆变器冷却系统, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16475 | Reservoir tank cover | 16475-0T081 · 16475-28140 · G91H4-07020 |
| G9040 | Inverter water pump assembly (with motor) | G9040-02050 |
| G910GB | Inverter reservoir sub-assembly without cover | 164A2-F2040 · G910G-F4060 |
| G922AA | No. 1 inverter cooling water inlet hose | G922A-0A020 |
| G922C | No. 1 inverter cooling water outlet hose | G922C-0A020 |
| G922D | No. 2 inverter cooling water outlet hose | G922D-0A020 |
| G922E | HV water pump water inlet hose | G922E-0A020 |
| G922H | HV radiator water inlet hose | G922H-0A020 |
