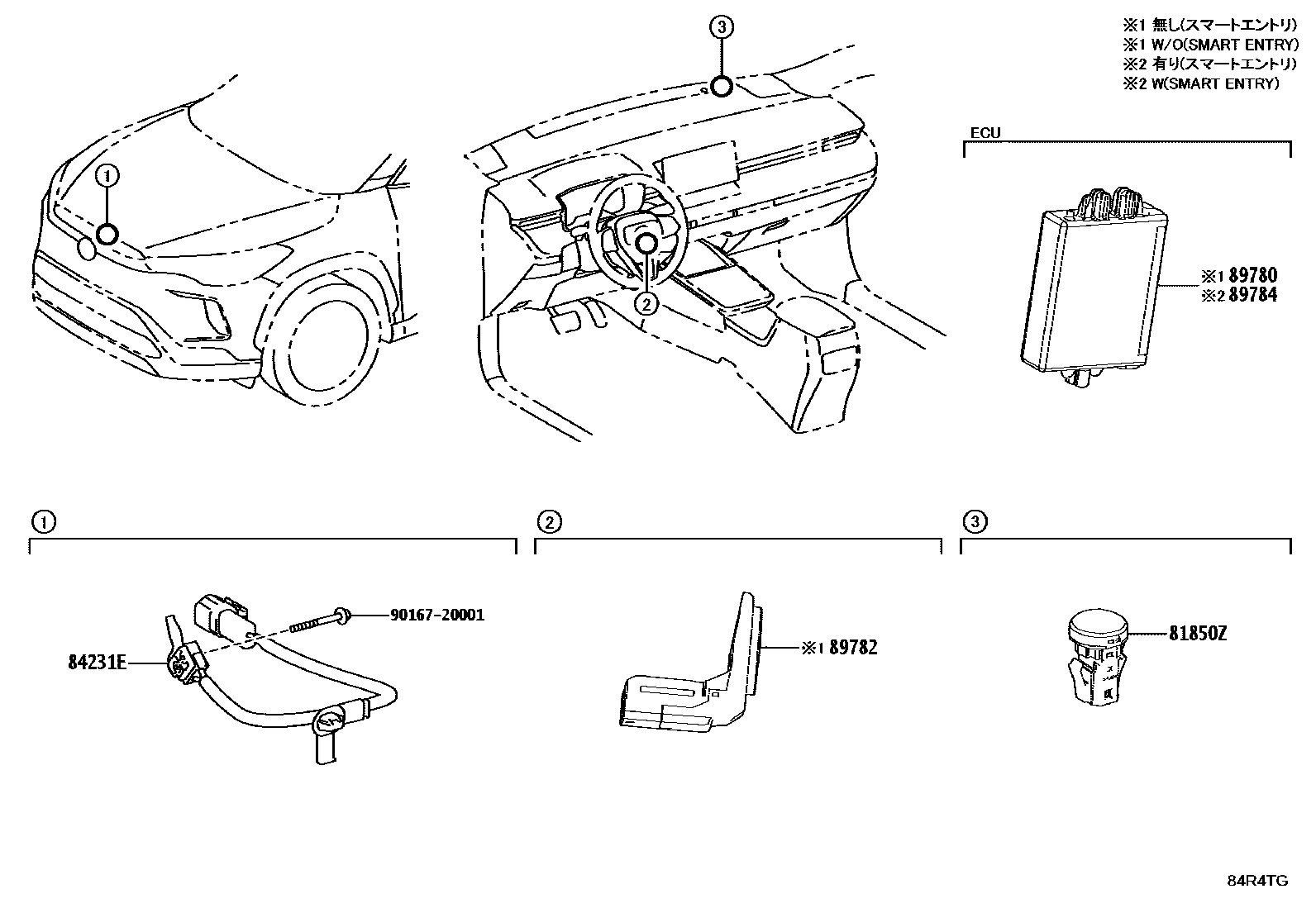

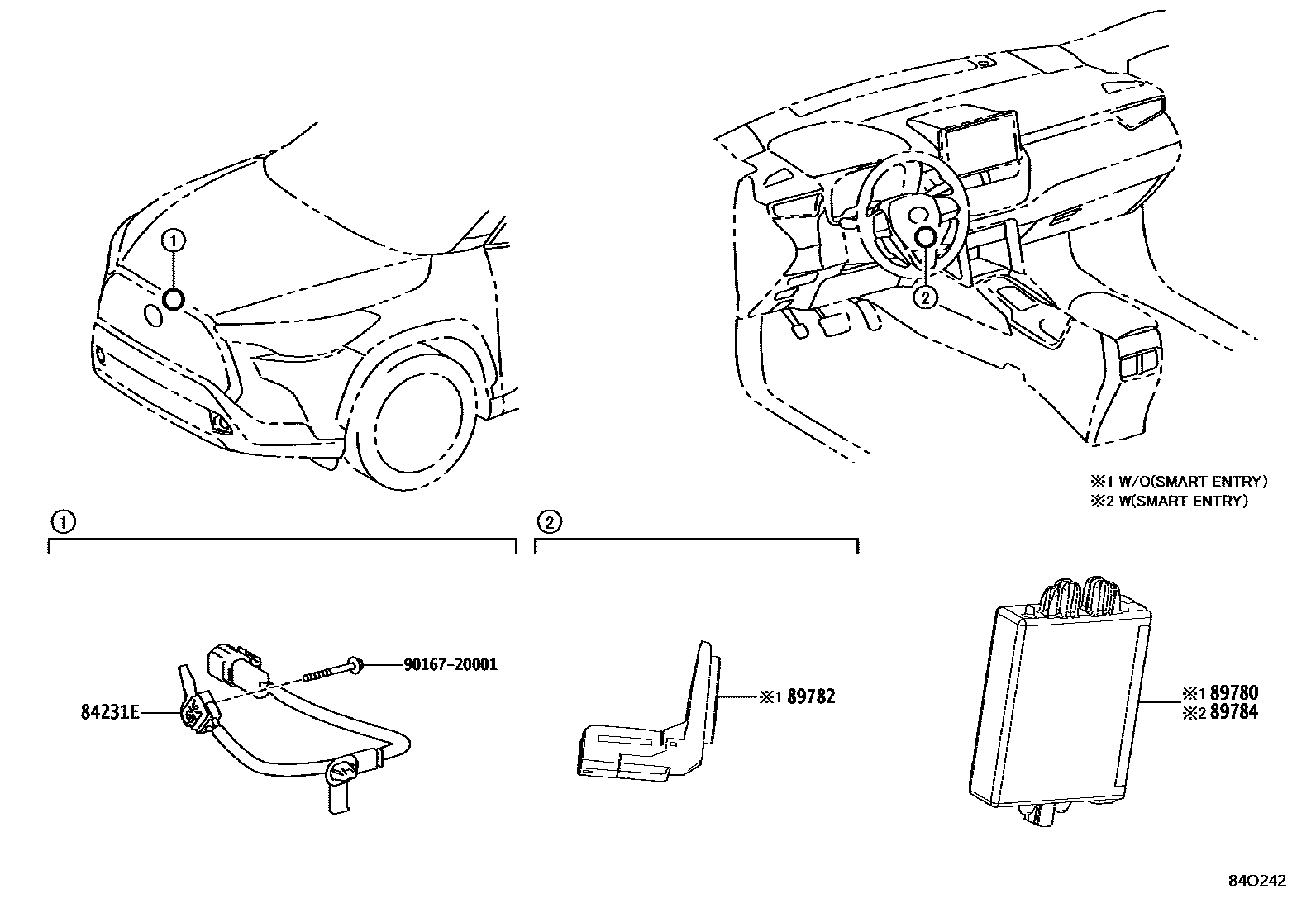

Toyota COROLLA 防盗装置 — Figure 8424
Toyota COROLLA EPC diagram 8424, 防盗装置, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850Z | Anti-theft warning indicator light assembly | 81850-0A010 |
| 84231E | Door control light switch (anti-theft) | 84237-0A010 |
| 89780 | Transceiver key ECU assembly | 897H0-02060 |
| 89782 | transceiver key coil | 89782-02160 |
| 89784 | Shutdown code system ECU | 89784-0E110 · 89784-0E160 |
