Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417

Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 3 PNC and OE references.

Toyota COROLLA 测距雷达和倒车雷达 EPC diagram — 84O259A
测距雷达和倒车雷达 — 84O259A (202201 – 999999)

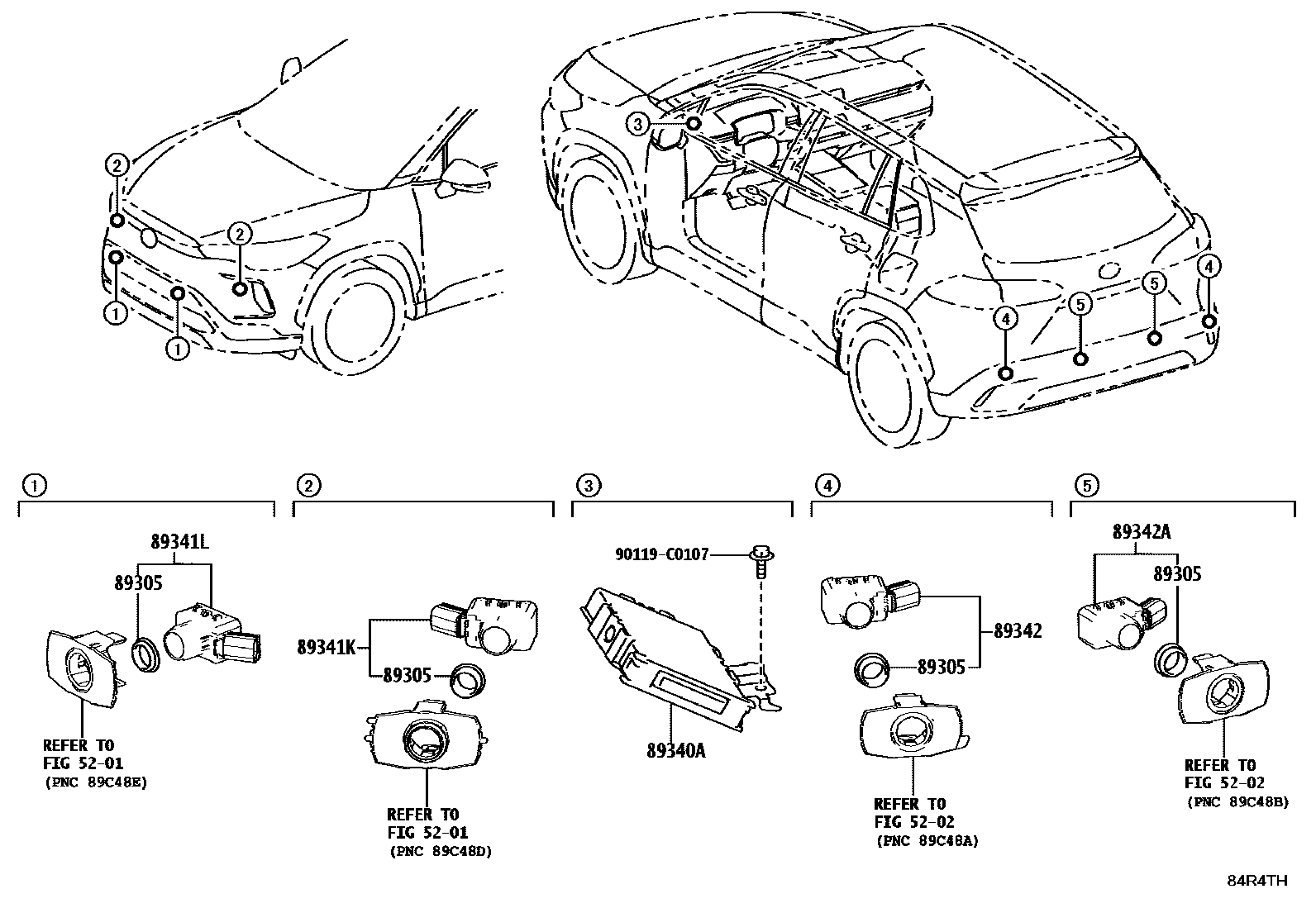

Toyota COROLLA 测距雷达和倒车雷达 EPC diagram — 84R4TH
测距雷达和倒车雷达 — 84R4TH (202510 – 999999)

PNC and OE references

PNCPart nameOE numbers
89305Ultrasonic sensor pad assembly89305-52010
89340ADistance warning ECU assembly89340-0A060 · 89340-0A100 · 89340-0A230 · 89340-0A240
89343CNo. 1 distance warning buzzer89343-02010
