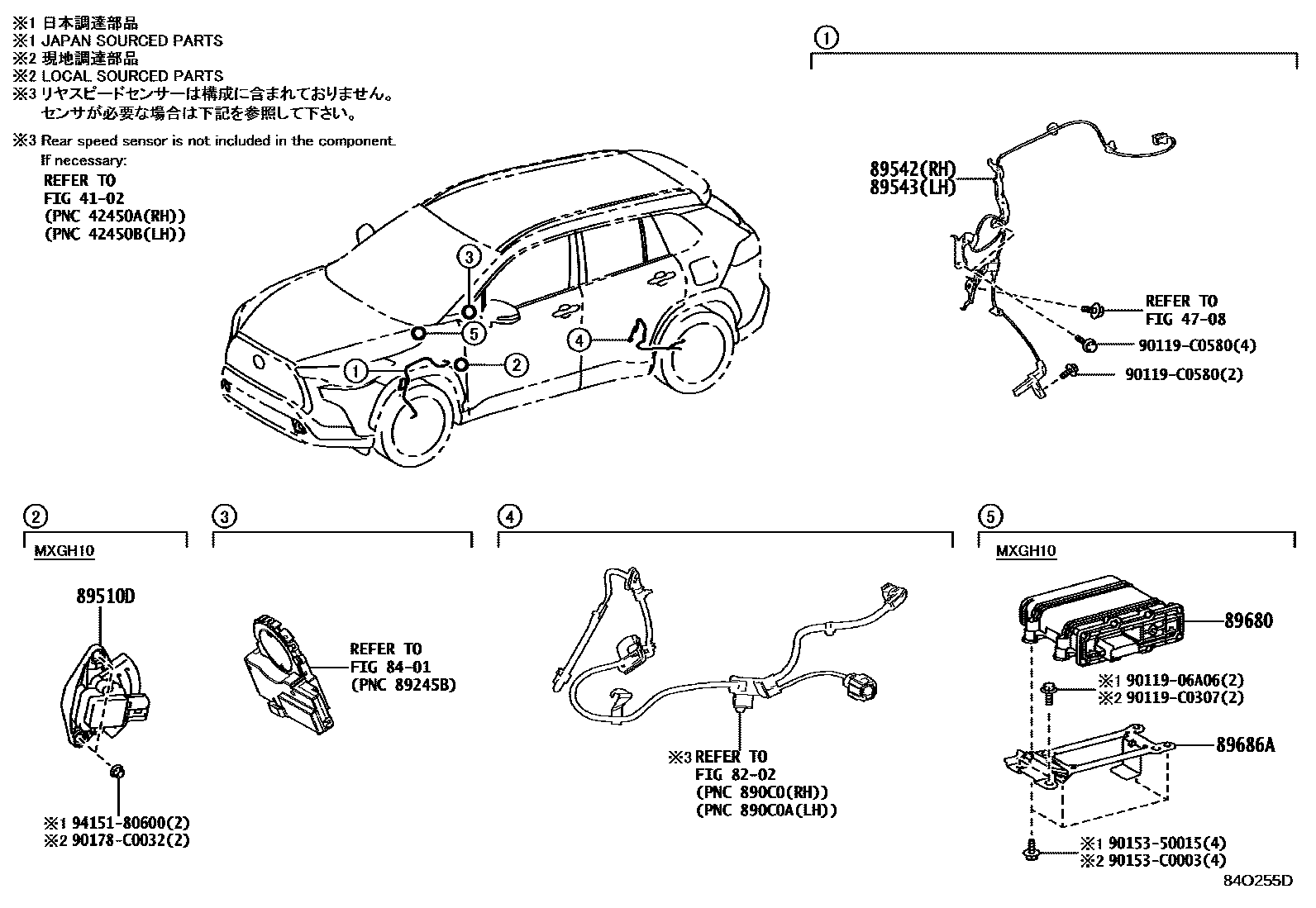

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-K0011 |
| 89542 | Right front wheel speed sensor | 89542-0A060 |
| 89543 | Left front wheel speed sensor | 89543-0A060 |
| 89680 | Brake control power supply assembly | 89680-0R020 |
| 89686A | No. 1 brake control power bracket | 89686-02030 |
