Toyota COROLLA 线束和卡夹 — Figure 8202

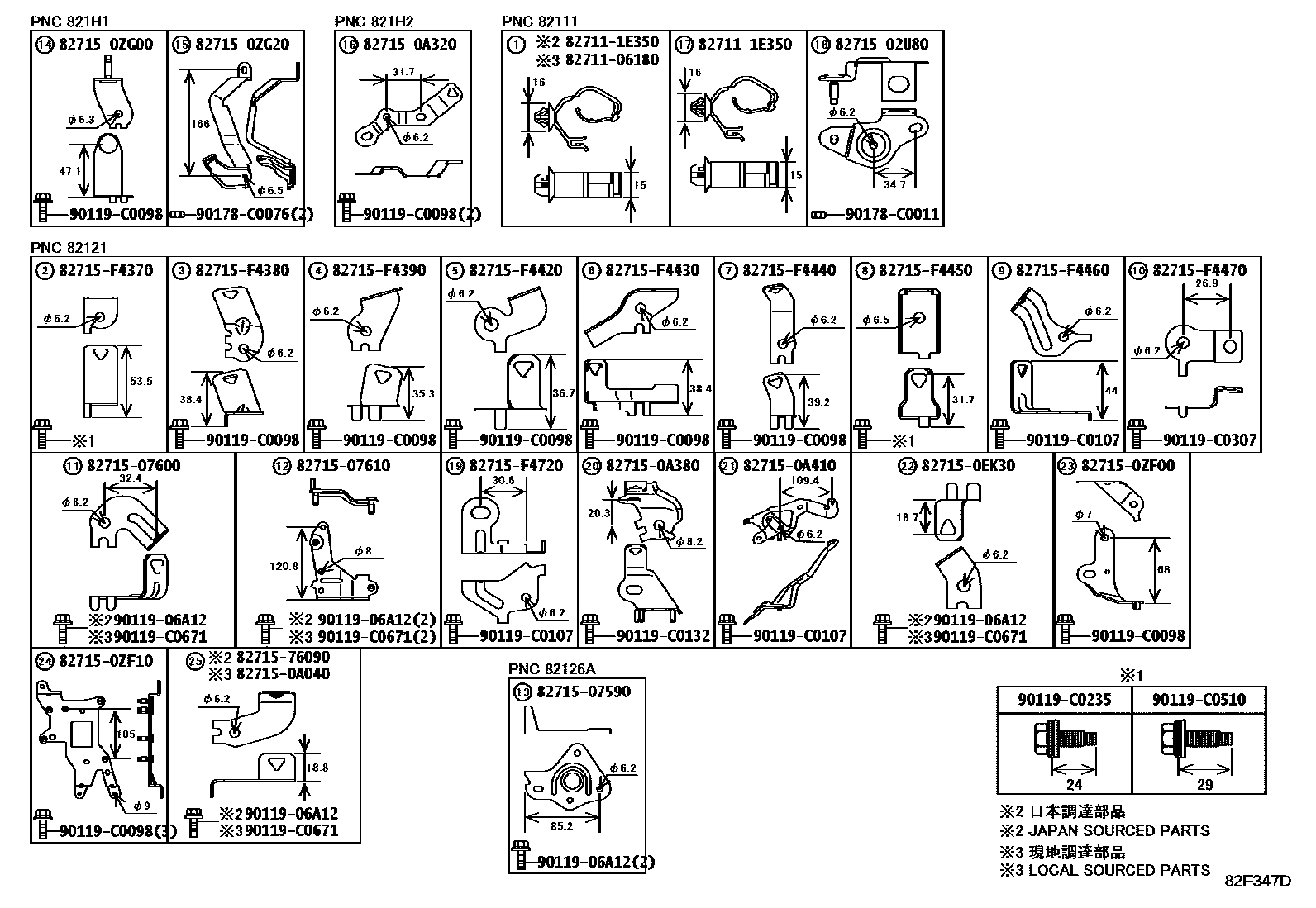

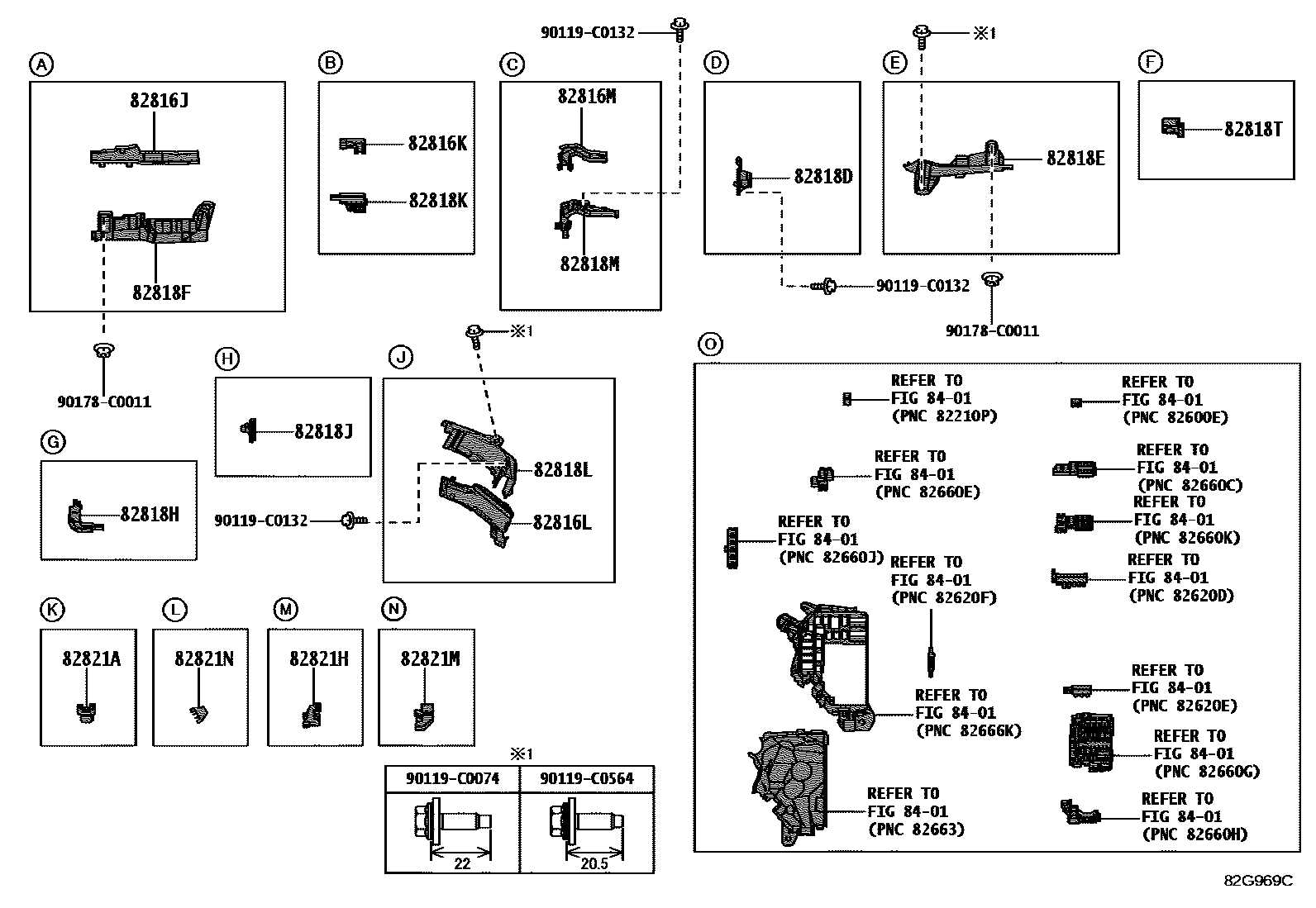

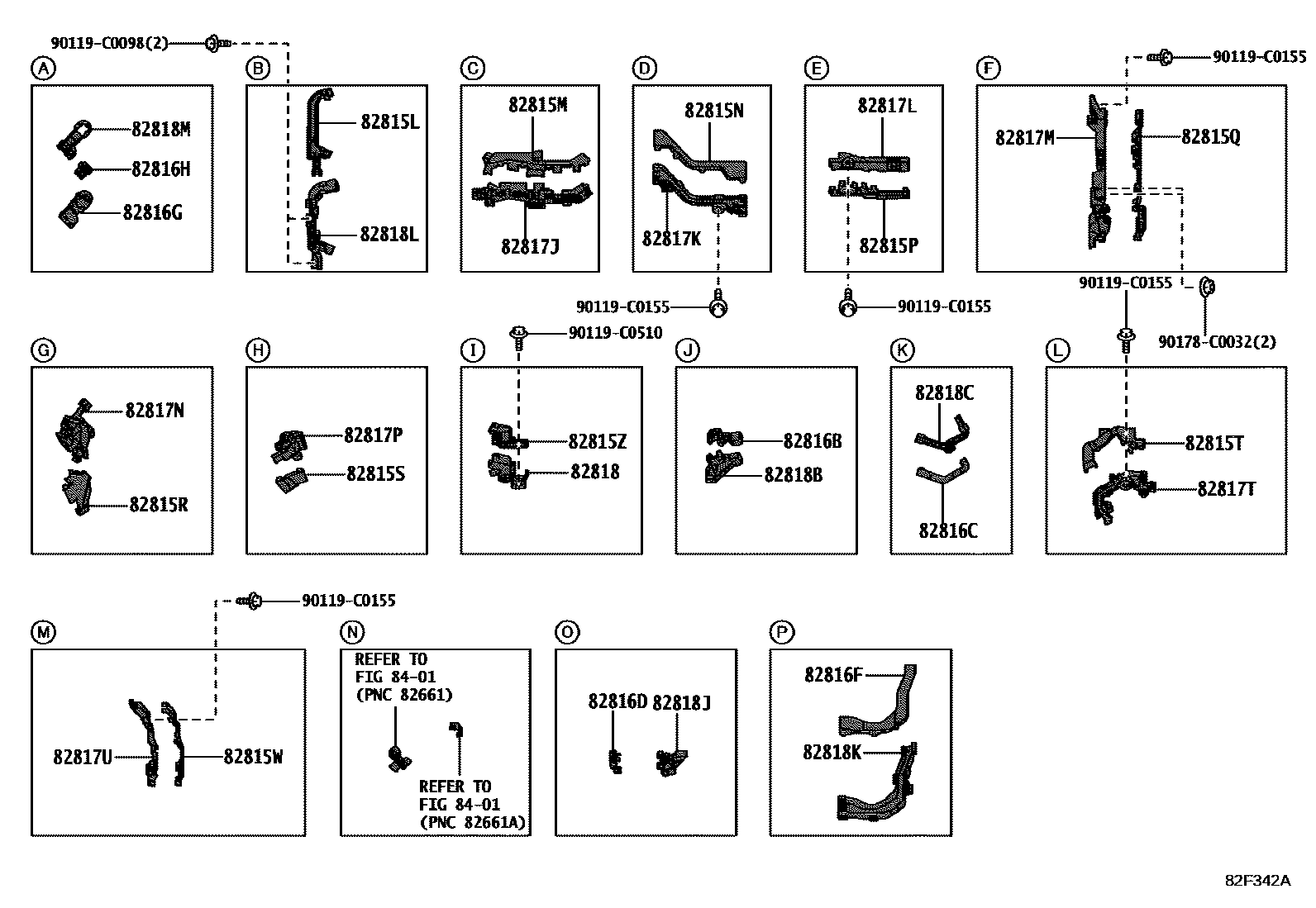

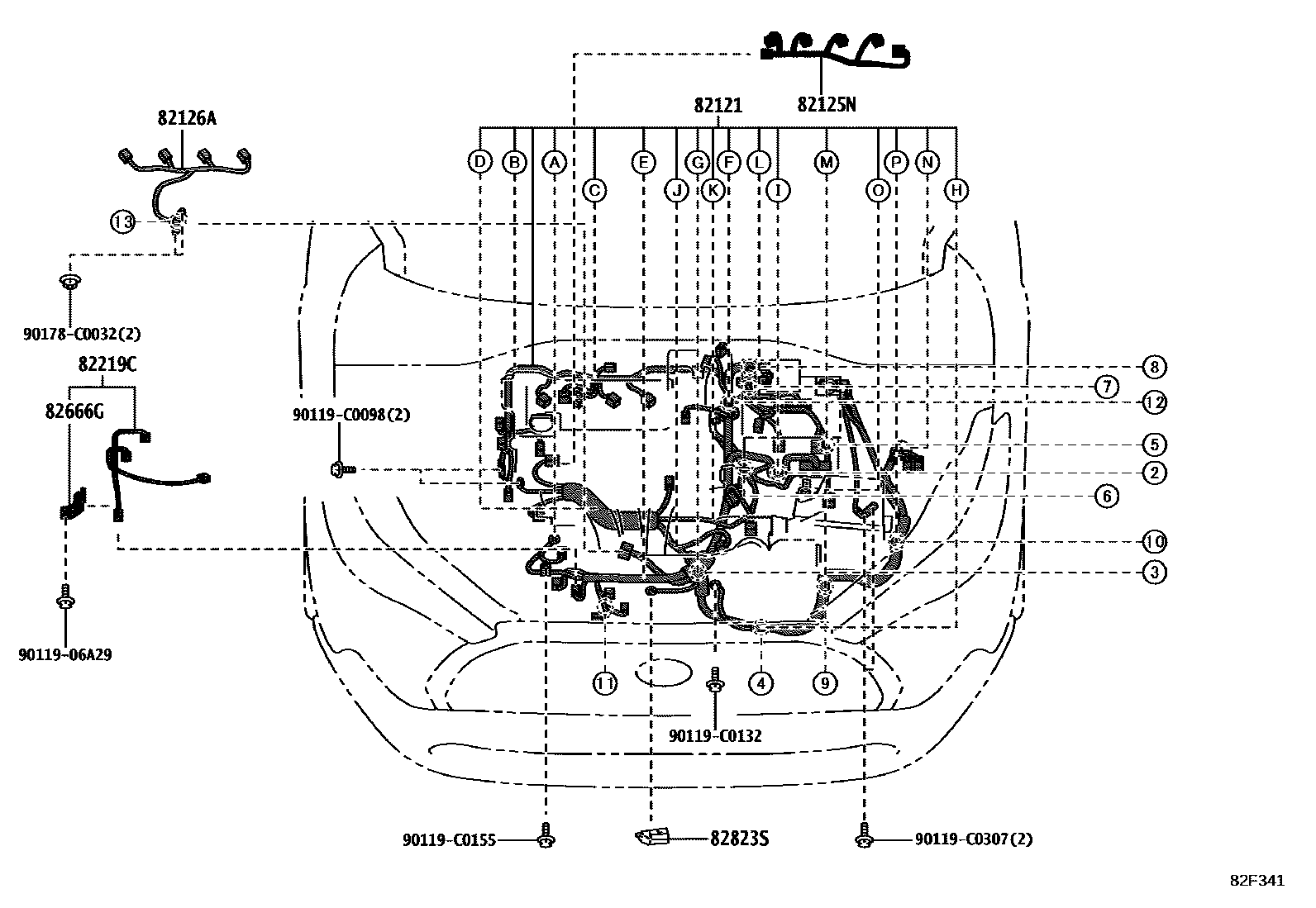

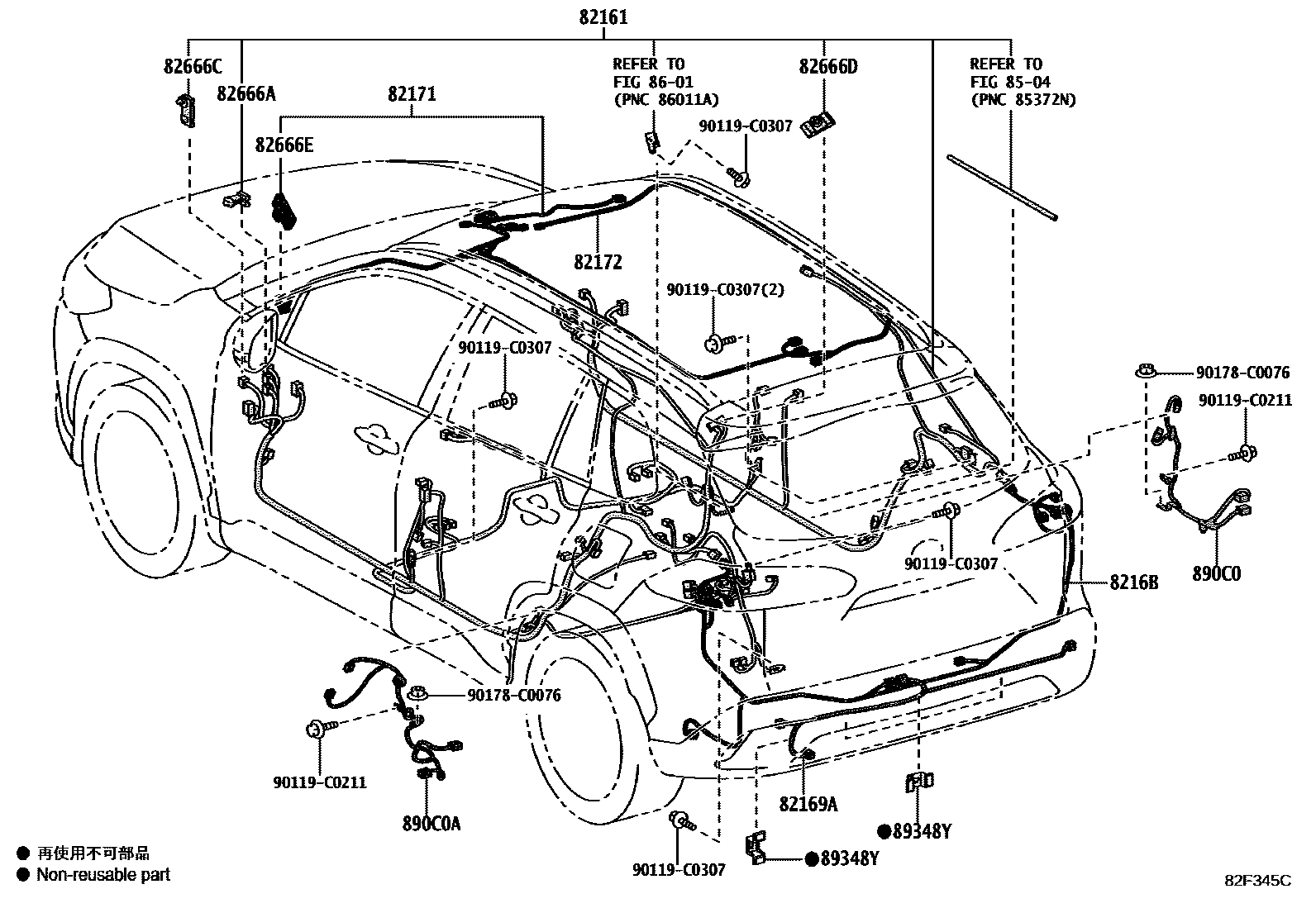

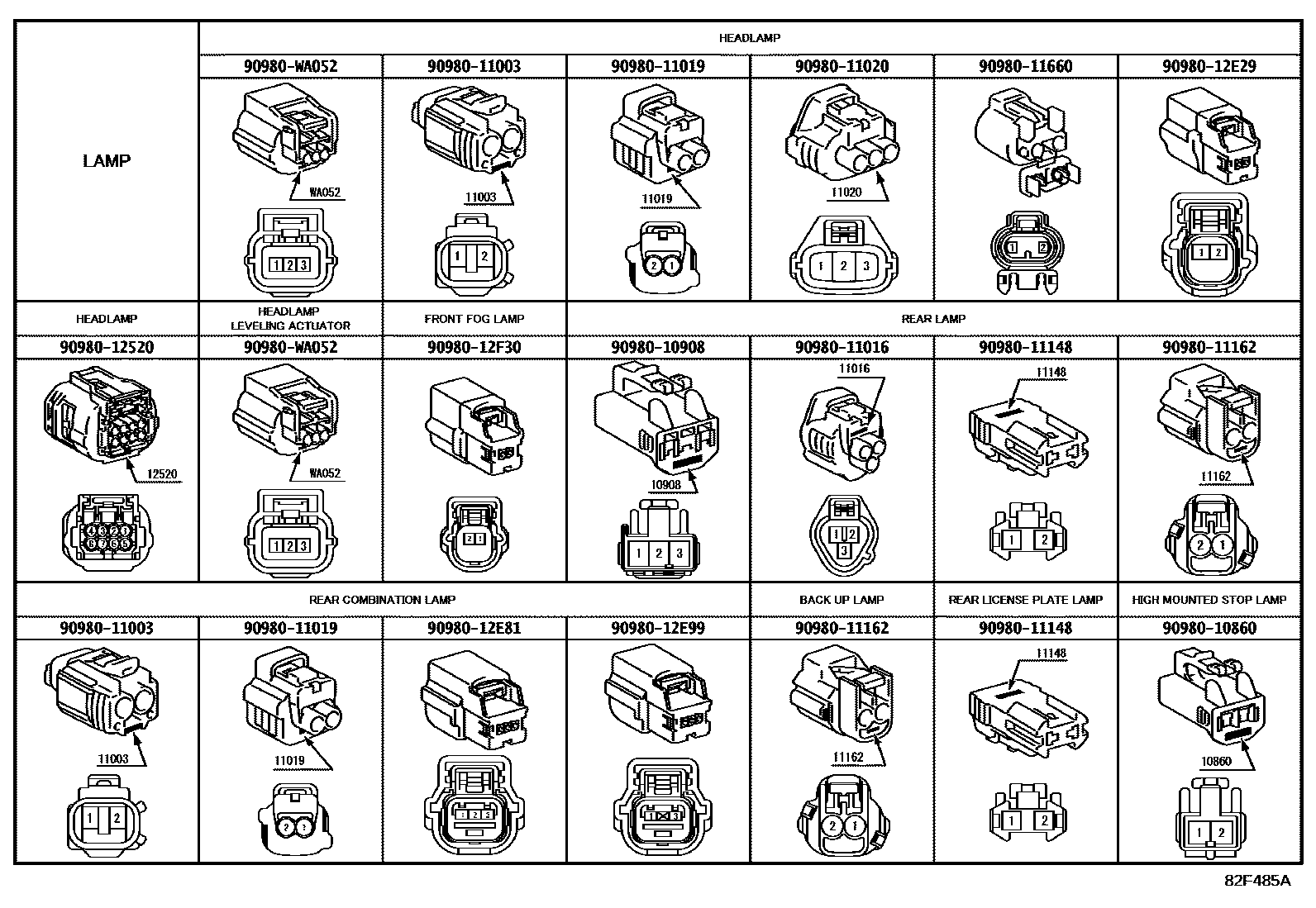

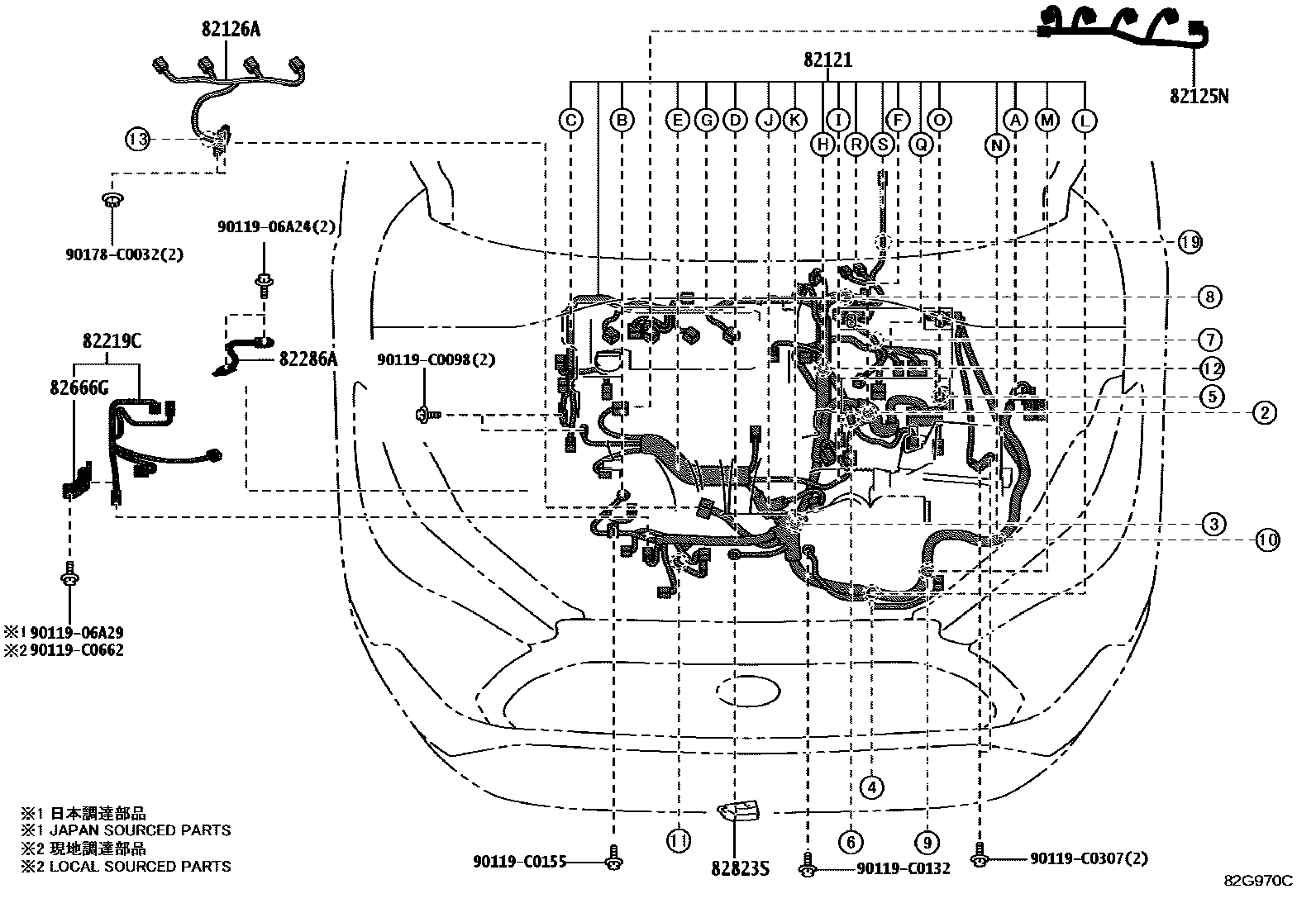

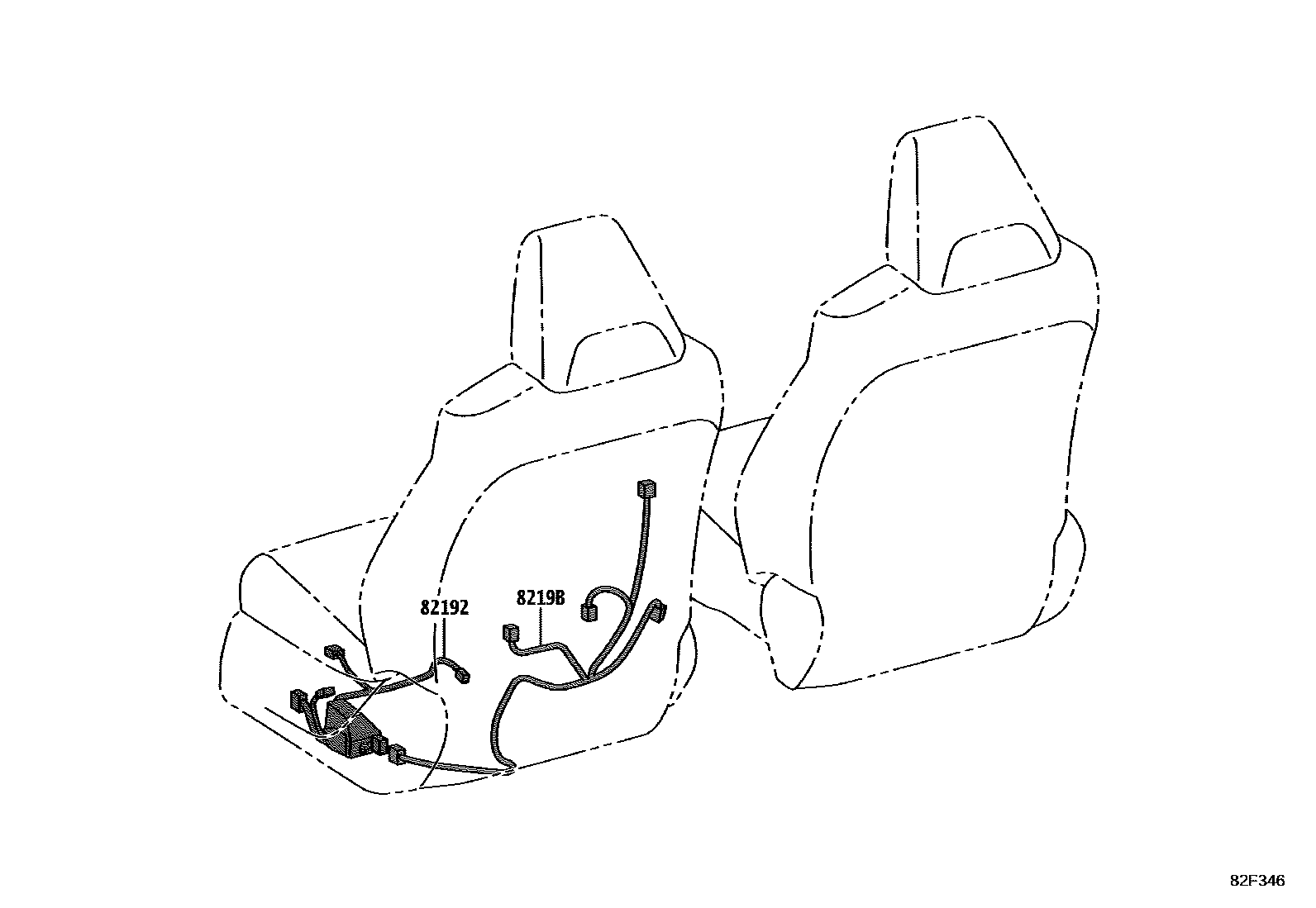

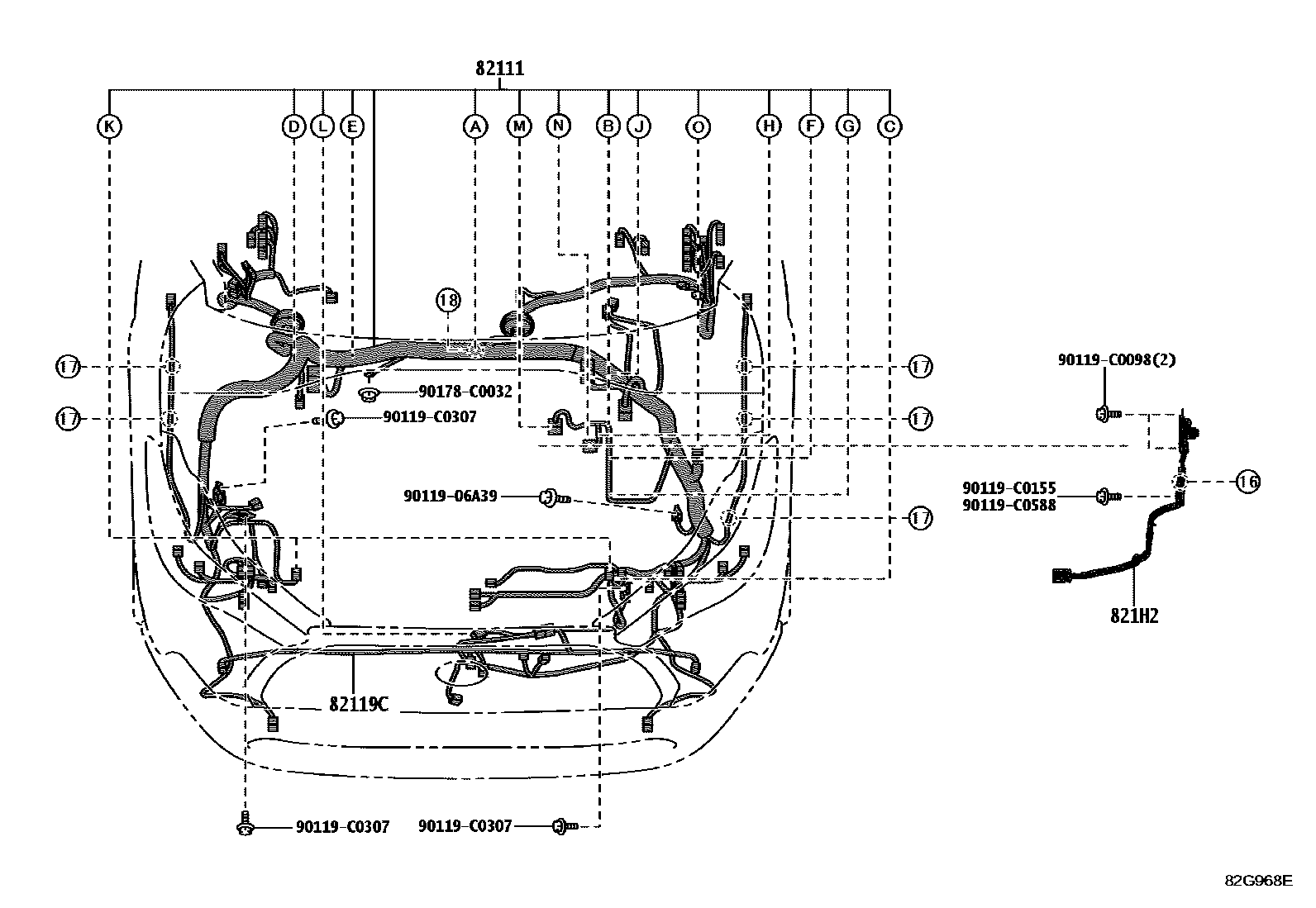

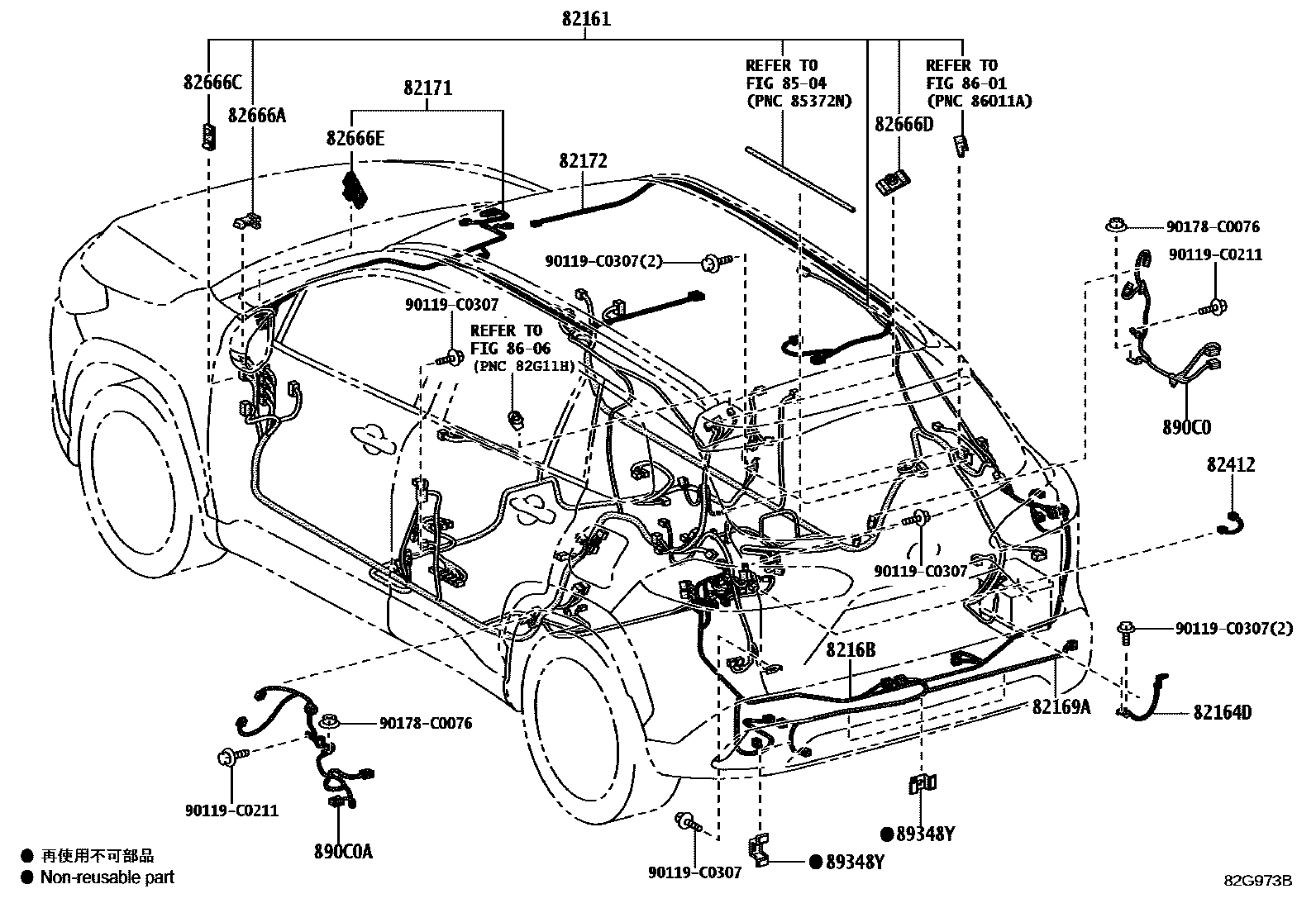

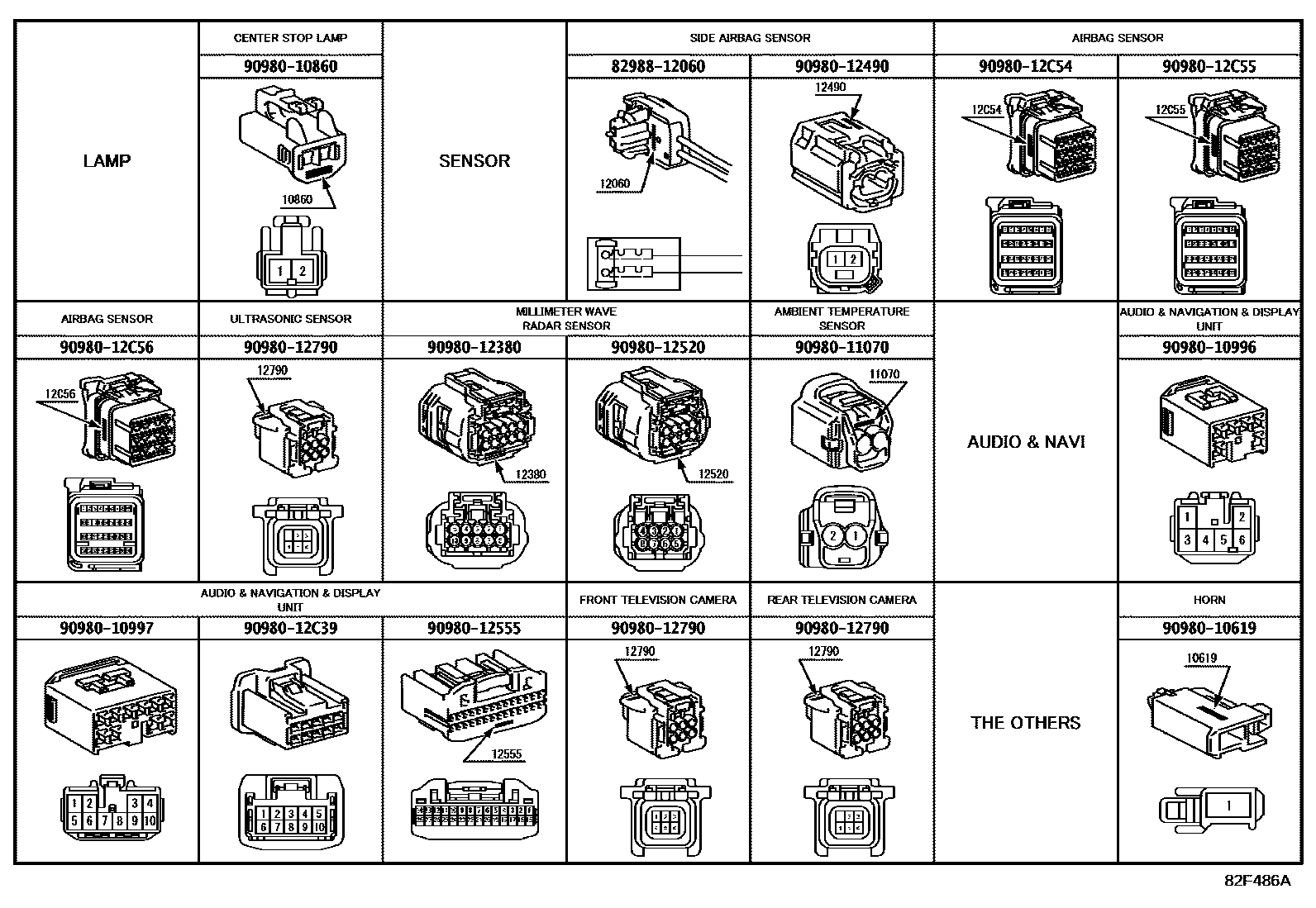

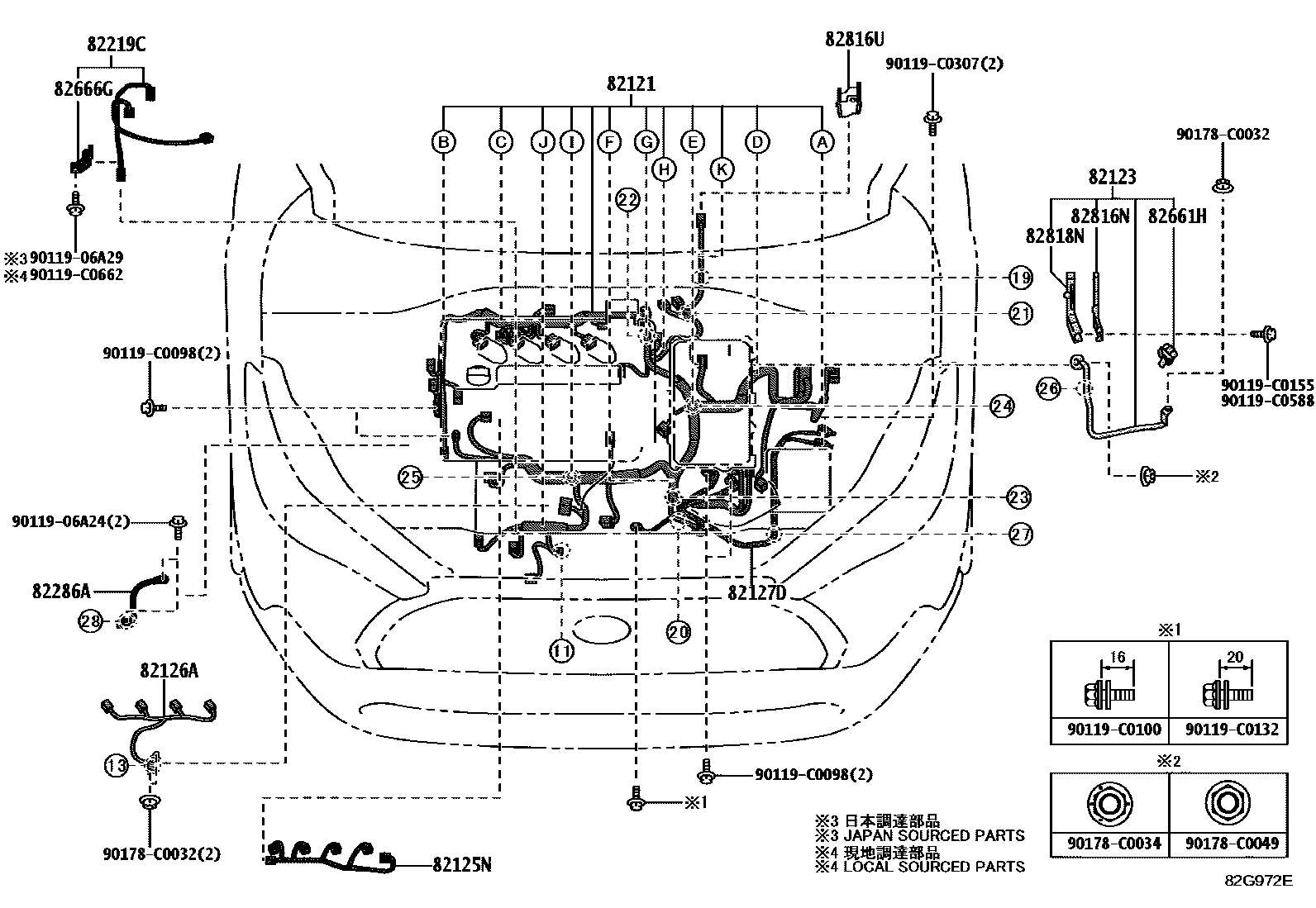

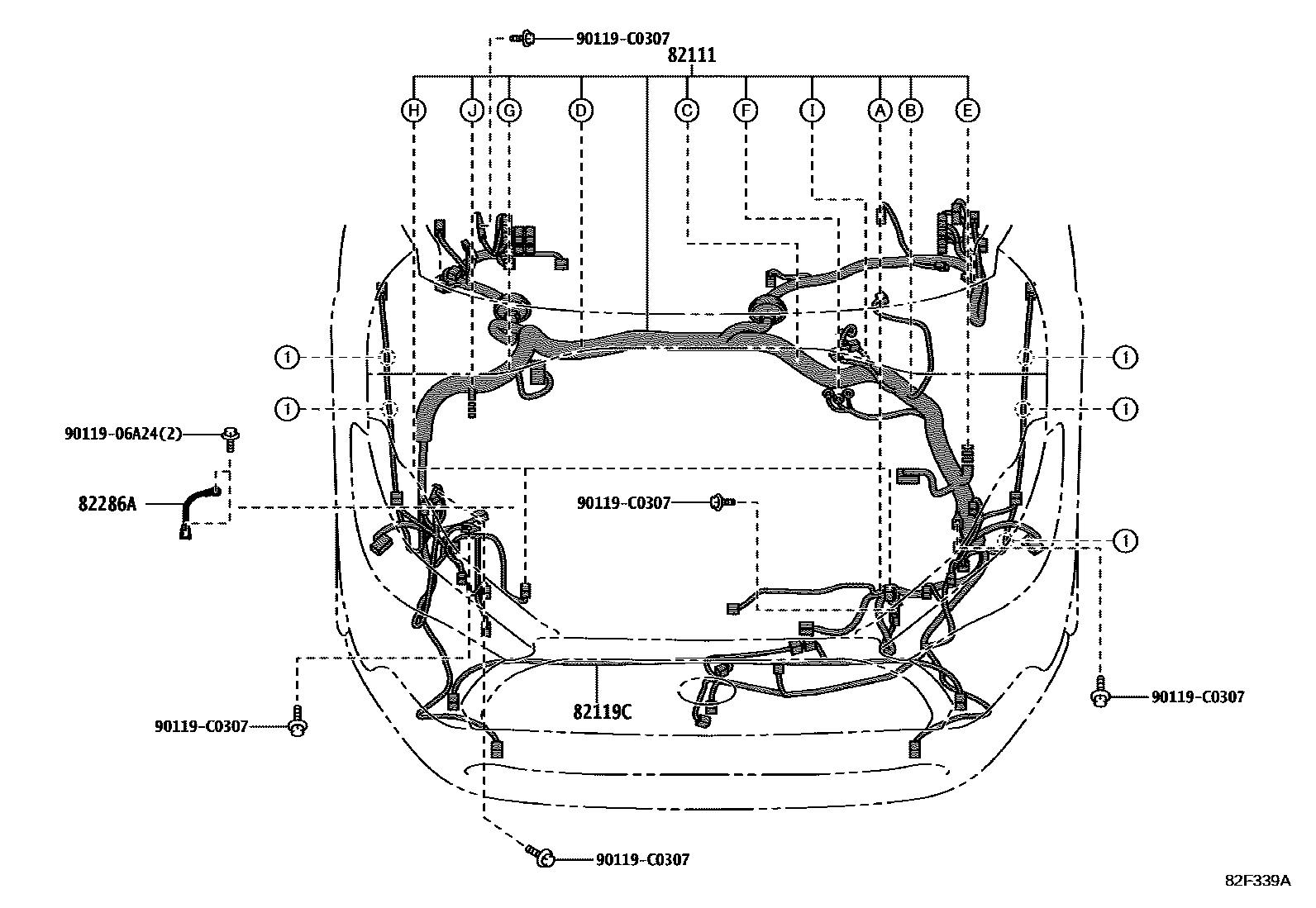

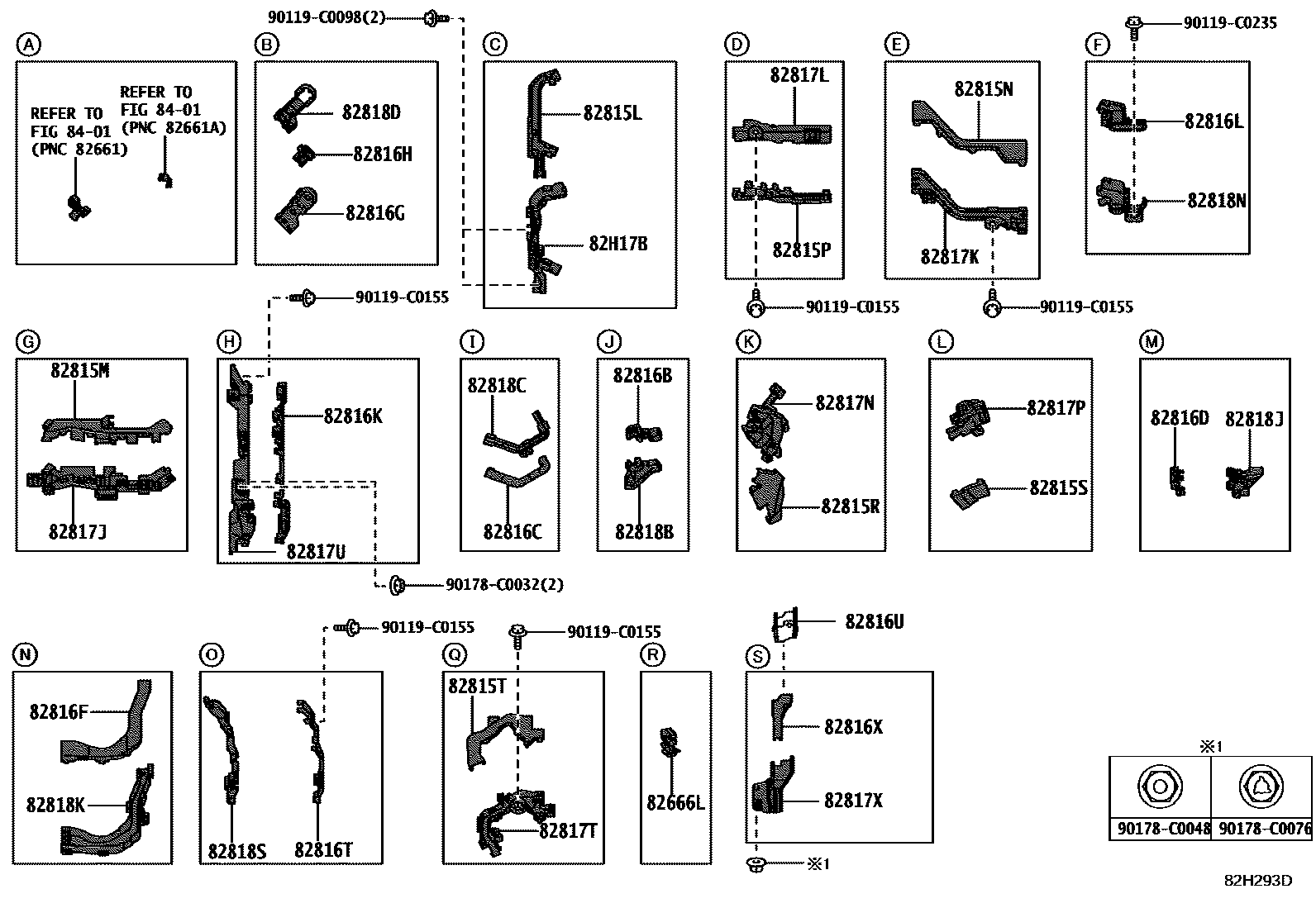

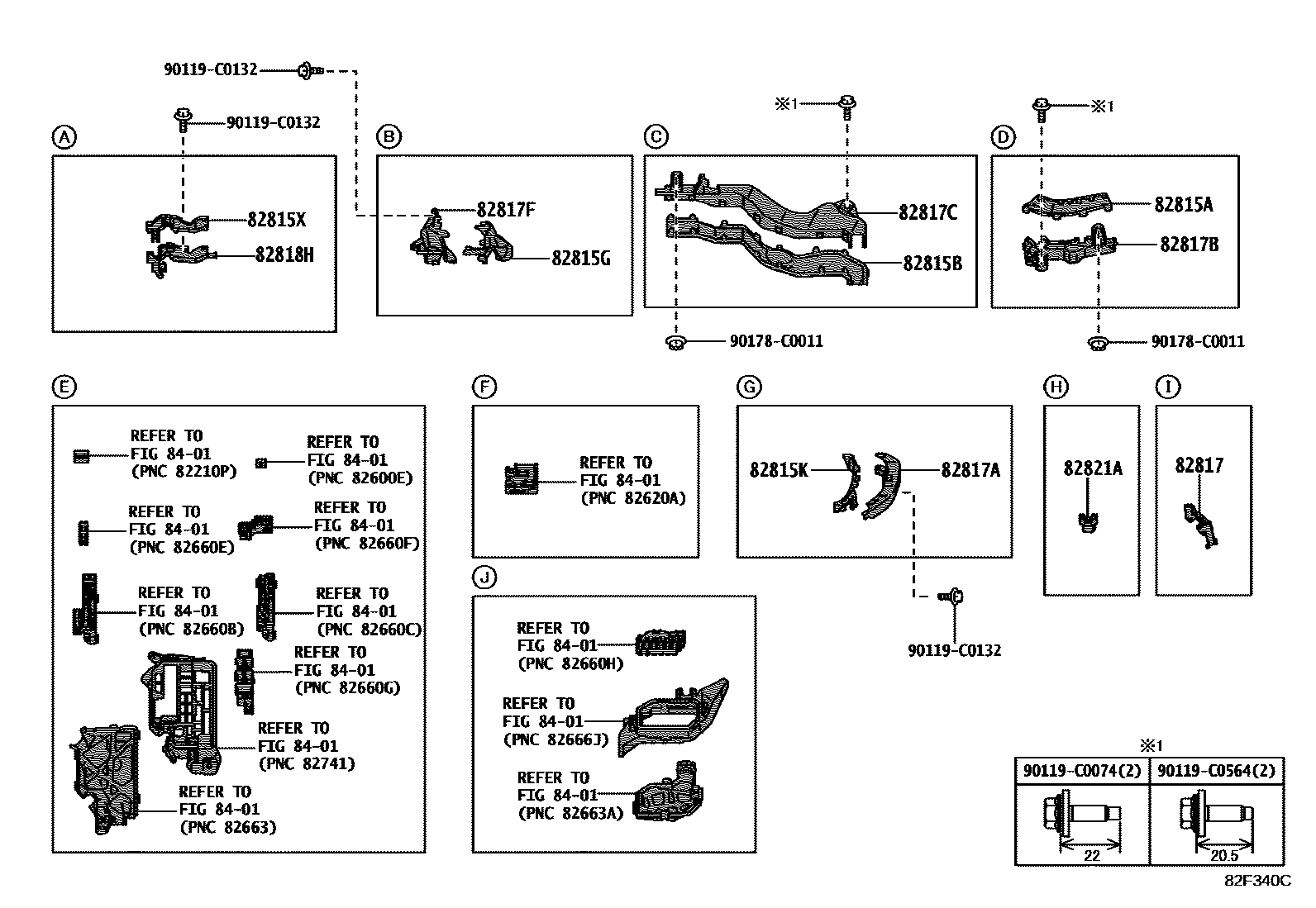

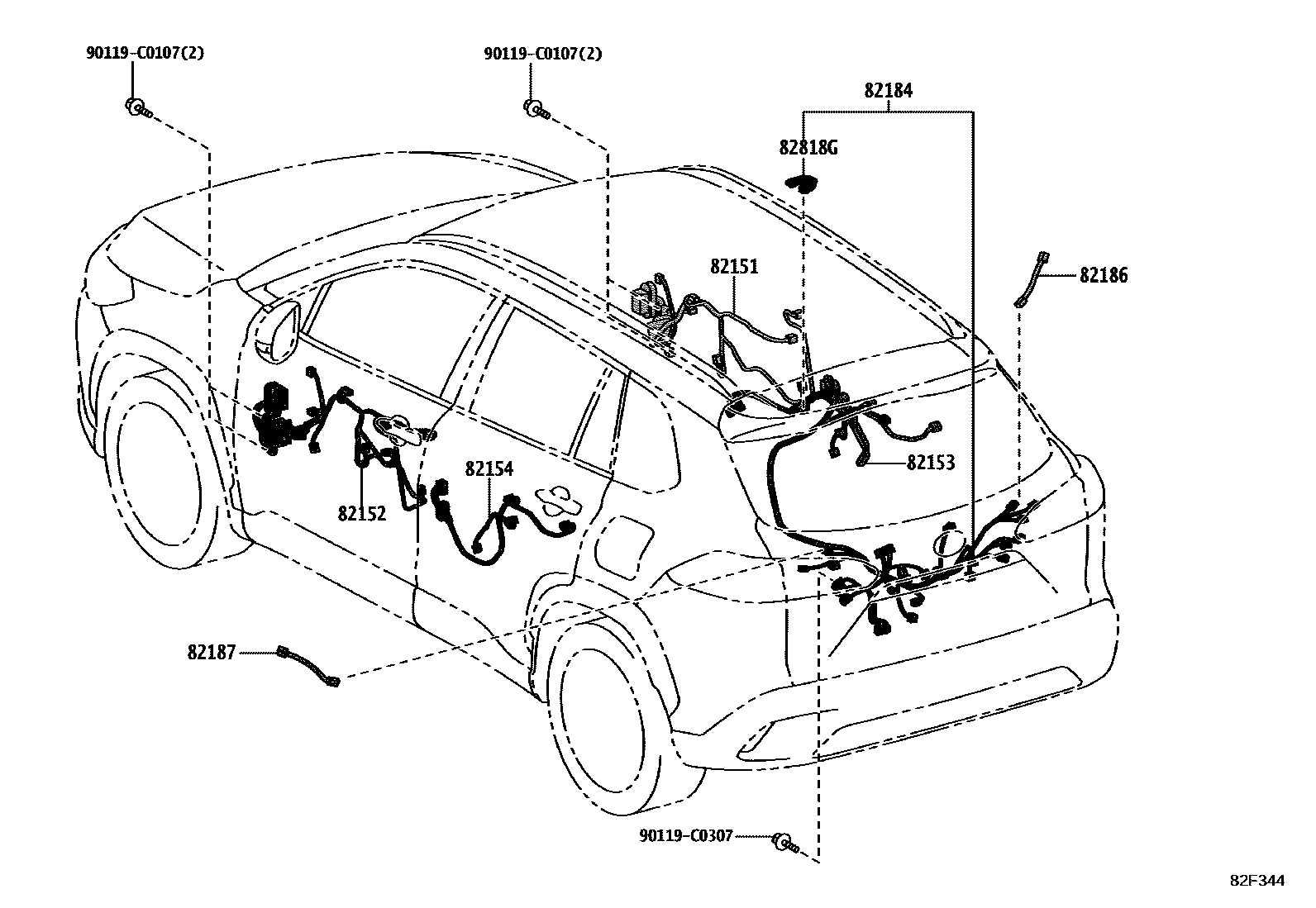

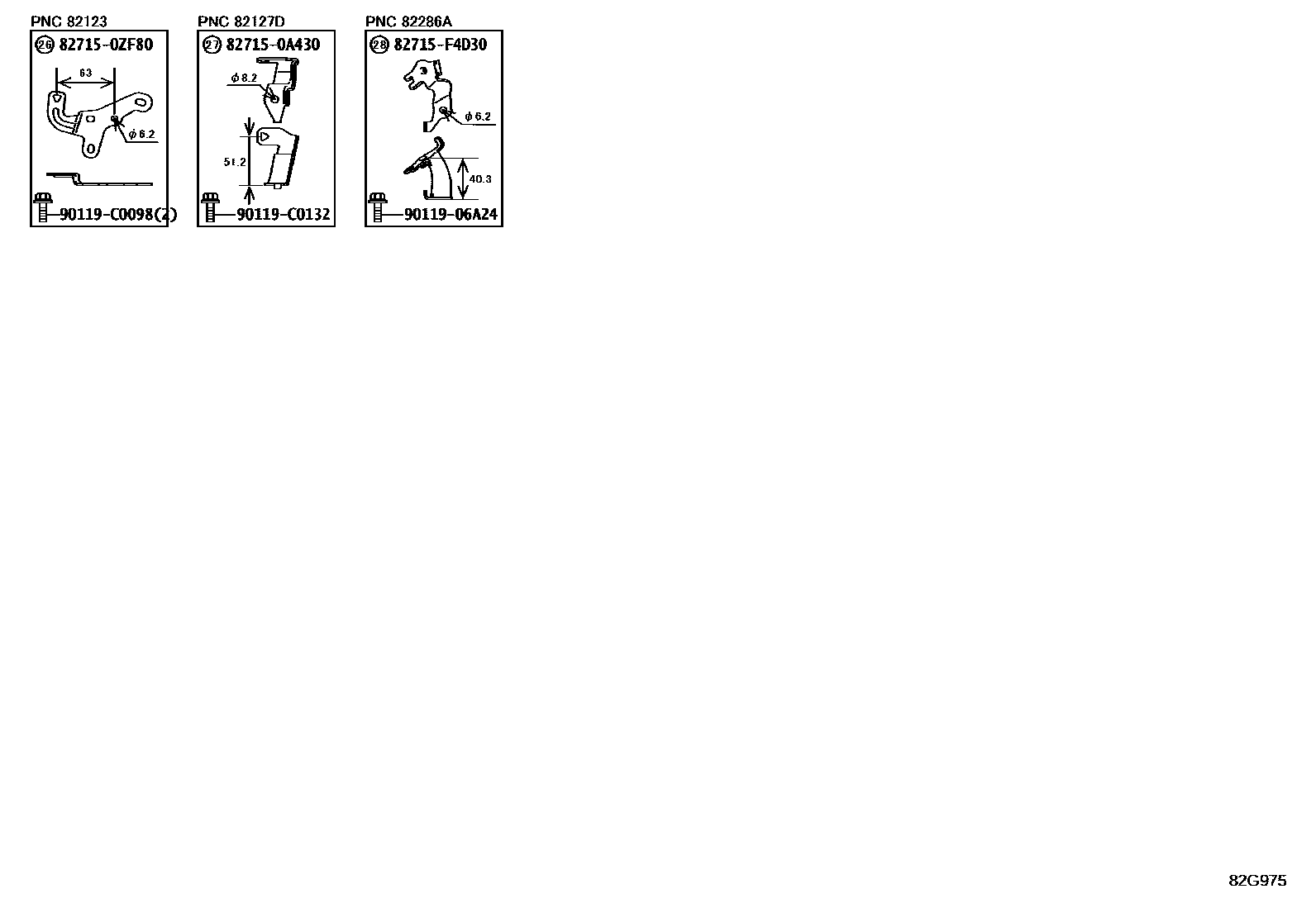

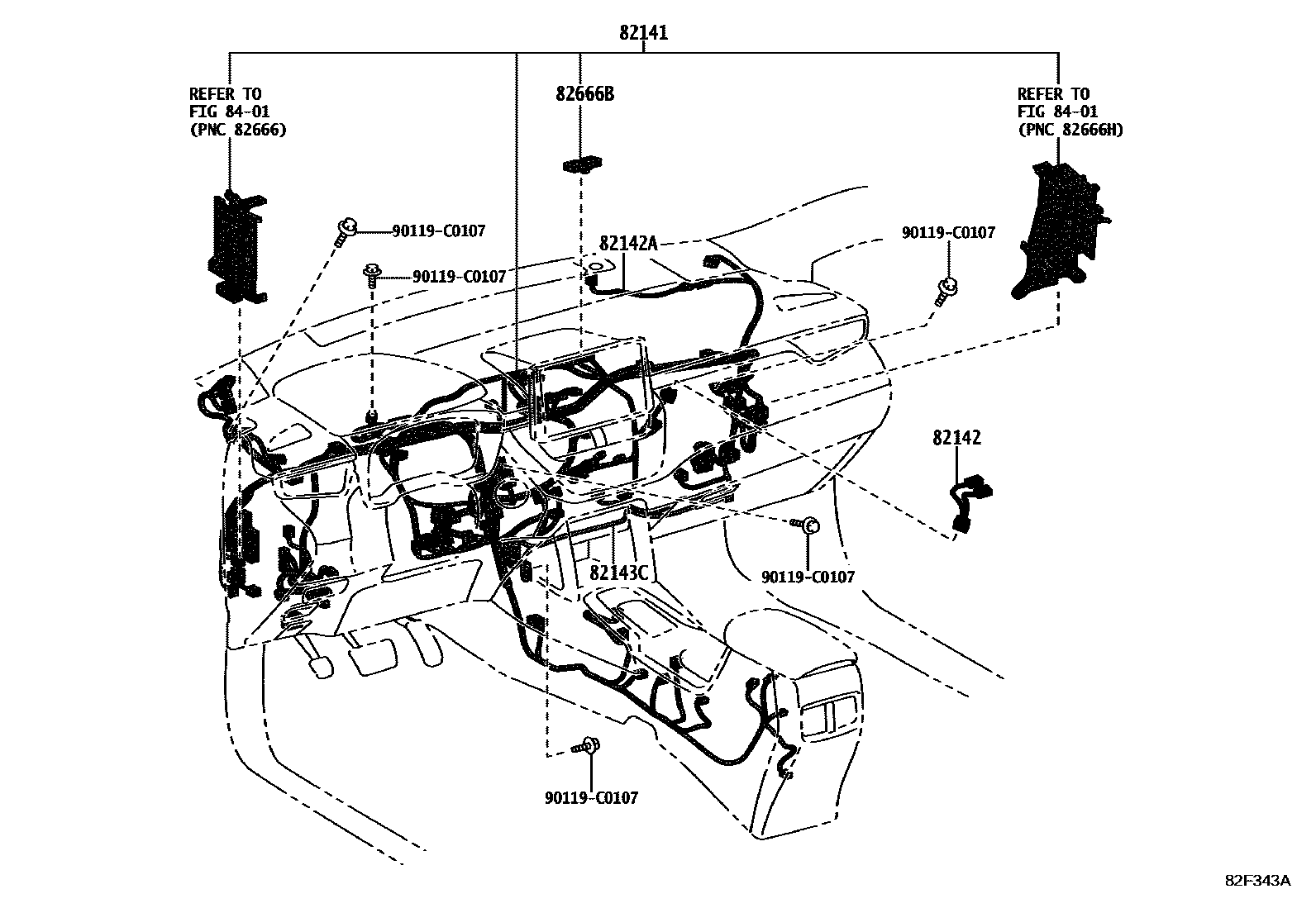

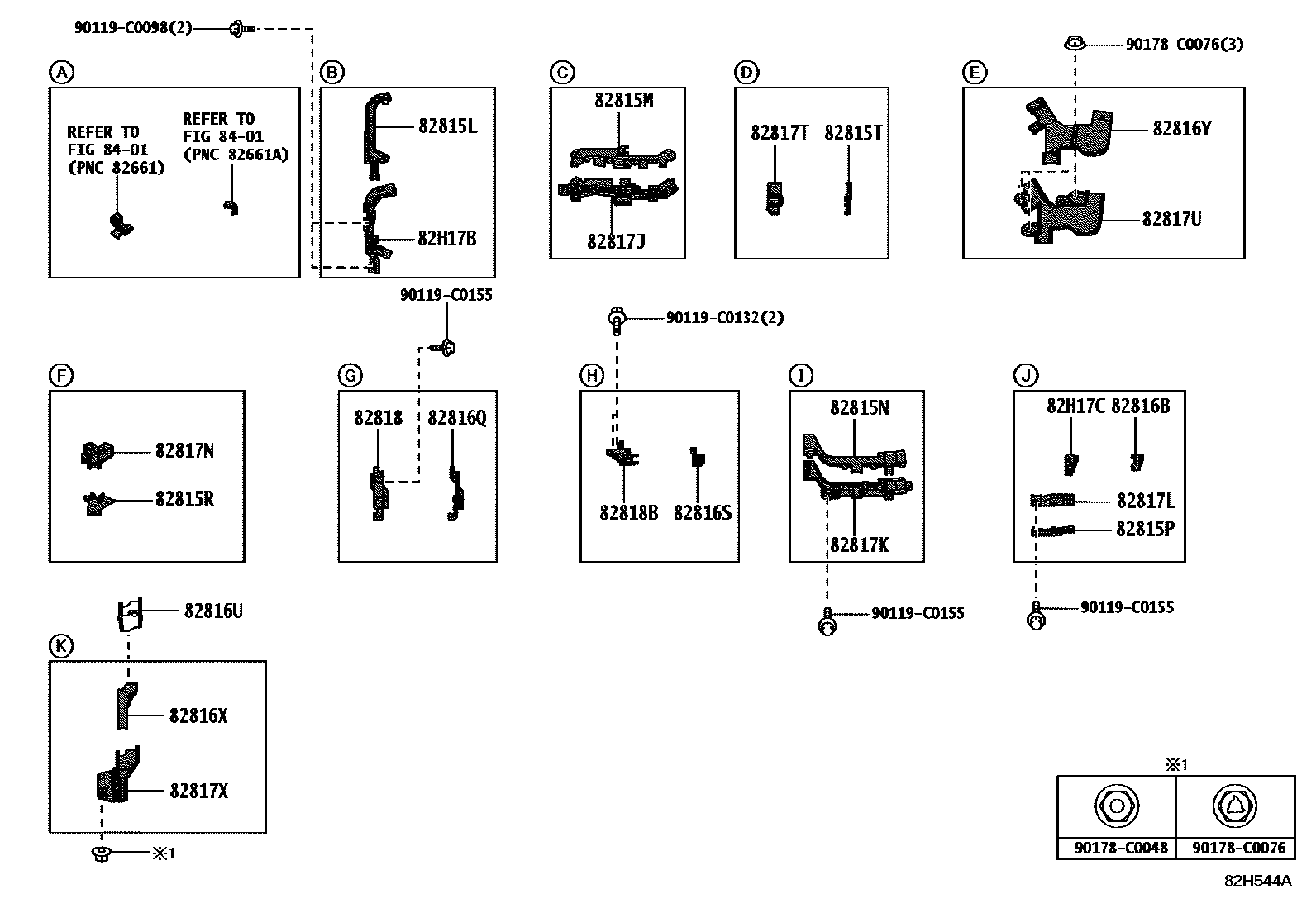

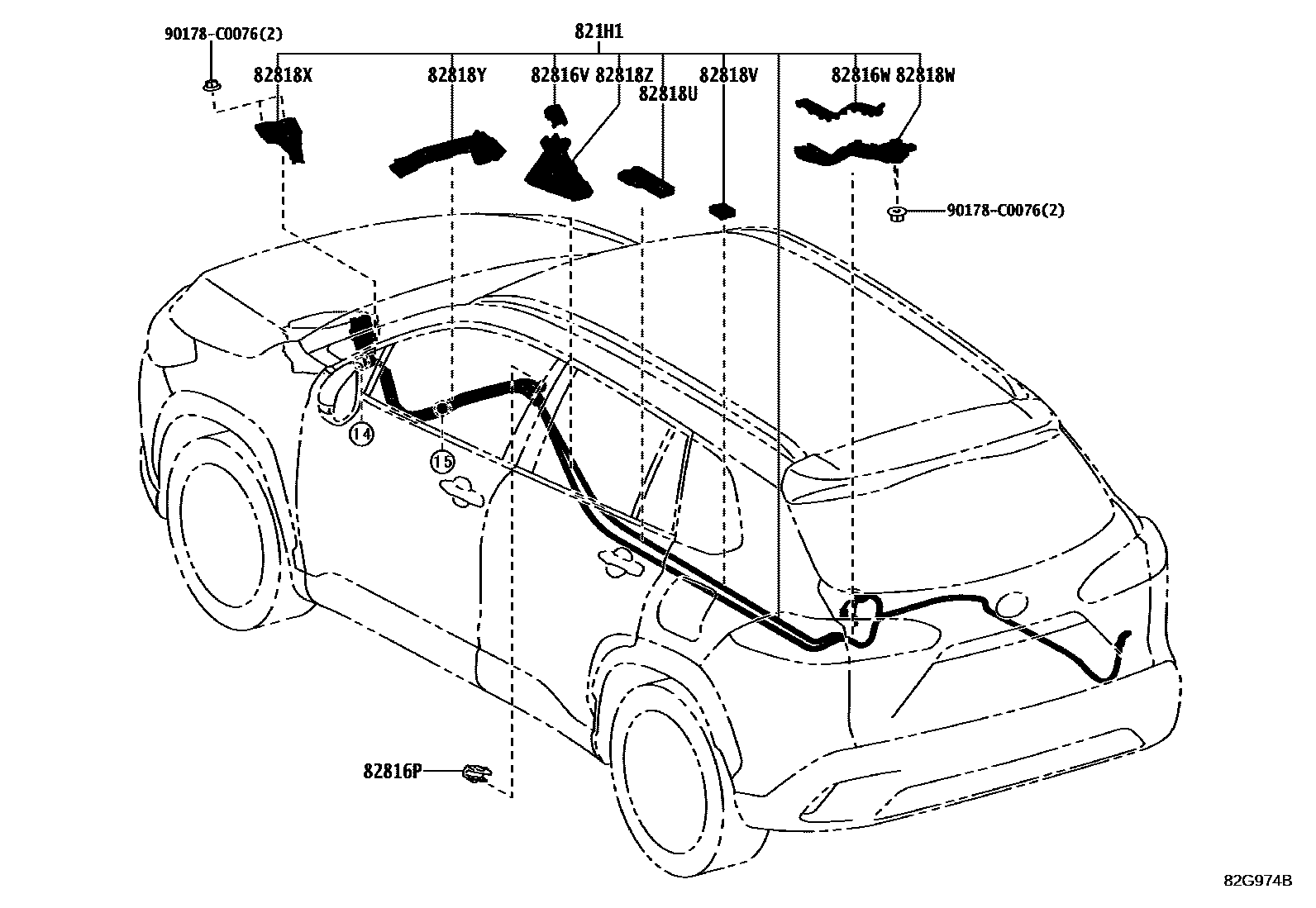

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 20 images and 119 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82111 | Engine room main wiring harness | 82111-0A590 · 82111-0AA30 · 82111-0AA40 · 82111-0AA50 · 82111-0AC20 · 82111-0AJ40 · 82111-0AJ50 · 82111-0AJ60 · 82111-0AJ61 · 82111-0AJ70 · 82111-0AJ80 · 82111-0AJ90 · 82111-0AK00 · 82111-0AK01 · 82111-0AK10 · 82111-0AK20 · 82115-0A110 · 82115-0A120 · 82115-0A140 · 82115-0A150 · 82115-0A160 · 82115-0A180 · 82115-0A330 · 82115-0A340 |
| 82119C | Engine room wiring harness No. 5 | 82119-0A080 · 82119-0A320 · 82119-0A330 |
| 82121 | Engine wiring harness | 82121-0A230 · 82121-0A390 · 82121-0A400 · 82121-0A590 · 82121-0A610 |
| 82123 | Engine No. 3 wiring harness | 82123-02E10 |
| 82125N | Engine No. 5 wiring harness | 82125-07020 · 82125-0A010 |
| 82126A | No. 6 engine wiring harness | 82126-07030 |
| 82127D | Engine No. 7 wiring harness | 82127-0A020 |
| 82141 | Dashboard wiring harness | 82141-0AD50 · 82141-0AF50 · 82141-0AF60 · 82141-0AF70 · 82141-0AK20 · 82141-0AR80 · 82141-0AR90 · 82141-0AR91 · 82141-0AS00 · 82141-0AS01 · 82141-0AS10 · 82141-0AS20 · 82141-0AS30 · 82141-0AS31 · 82141-0AS40 · 82141-0AS41 · 82141-0AS42 · 82141-0AS50 · 82141-0AS51 · 82141-0AS52 · 82141-0AS60 · 82141-0AS61 · 82141-0AS70 · 82141-0AS71 · 82141-0AS80 · 82141-0AS81 · 82141-0AU90 · 82145-0AT80 · 82145-0AU00 · 82145-0AU10 · 82145-0AU20 · 82145-0AU50 · 82145-0AU60 · 82145-0AU70 · 82145-0AU80 |
| 82142 | Instrument panel wiring harness No. 2 | 82140-02500 · 82140-02640 |
| 82142A | Instrument panel wiring harness No. 2 | 82142-0A060 |
| 82143C | Instrument panel wiring harness No. 3 | 82143-0A010 |
| 82151 | Right front door wiring harness | 82151-0A250 · 82151-0A260 · 82151-0A320 · 82151-0A420 · 82151-0A430 · 82151-0A440 · 82151-0A760 · 82151-0A770 · 82151-0A780 · 82151-0A790 · 82151-0AB80 · 82151-0AE20 · 82151-0AE30 · 82151-0AE50 |
| 82152 | Left front door wiring harness | 82152-0A250 · 82152-0A260 · 82152-0A310 · 82152-0A420 · 82152-0A430 · 82152-0A440 · 82152-0A760 · 82152-0A770 · 82152-0A780 · 82152-0A790 · 82152-0AB60 · 82152-0AD70 · 82152-0AD80 · 82152-0AE00 |
| 82153 | Rear door wiring harness No. 1 | 82153-0A080 · 82153-0A260 |
| 82154 | Rear door wiring harness No. 2 | 82154-0A050 · 82154-0A230 |
| 82161 | floor wiring harness | 82161-0AB00 · 82161-0AD90 · 82161-0AE00 · 82161-0AE50 · 82161-0AF50 · 82161-0AJ60 · 82161-0AL90 · 82161-0AM00 · 82161-0AM01 · 82161-0AM10 · 82161-0AM11 · 82161-0AM20 · 82161-0AM30 · 82161-0AM40 · 82161-0AM50 · 82161-0AM60 · 82161-0AM61 · 82161-0AM70 · 82161-0AM80 · 82161-0AM90 · 82161-0AY40 · 82161-0AY50 · 82161-0AY60 · 82161-0AY70 · 82161-0AZ00 · 82161-0AZ10 · 82161-0AZ20 · 82161-0AZ30 · 82199-0A520 |
| 82164D | No. 5 floor wiring harness | 82165-0A020 |
| 82169A | No. 6 floor wiring harness | 82169-0A120 · 82169-0A240 · 82169-0A250 · 82169-0A560 · 82169-0A570 · 82169-0A580 |
| 8216B | No. 8 floor wiring harness | 8216B-0A290 · 8216B-0A420 · 8216B-0A430 · 8216B-0A680 · 8216B-0A690 · 8216B-0A700 · 8216B-0A710 · 8216B-0A790 · 8216B-0A800 · 8216B-0A810 · 8216B-0A820 · 8216B-0A830 · 8216B-0AL40 · 8216B-0AL50 · 8216B-0AL60 · 8216B-0AL80 · 8216B-0AL90 · 8216B-0AN20 · 8216B-0AN30 |
| 82171 | Roof No. 1 wiring harness | 82171-0A660 · 82171-0A780 · 82171-0A790 · 82171-0AB20 · 82171-0AB30 · 82171-0AB40 · 82171-0AC90 · 82171-0AD00 · 82171-0AD10 · 82171-0AD20 · 82171-0AD30 · 82171-0AD40 · 82171-0AK60 · 82171-0AK70 · 82171-0AK80 · 82171-0AL00 · 82171-0AL10 · 82171-0AL20 · 82171-0AN20 · 82171-0AN30 |
| 82172 | Roof No. 2 wiring harness | 82172-0A010 |
| 82184 | Rear door No. 1 wiring harness | 82184-0A450 · 82184-0A530 · 82184-0A540 · 82184-0A550 · 82184-0AB00 · 82184-0AB10 · 82184-0AB20 · 82184-0AB30 · 82184-0AJ10 · 82184-0AJ20 · 82184-0AJ30 · 82184-0AJ40 · 82184-0AK20 · 82184-0AK30 |
| 82186 | Rear window wiring harness No. 1 | 82186-0A050 |
| 82187 | Rear window wiring harness No. 2 | 82187-0A070 |
| 82192 | Front left seat wiring harness | 82192-0A030 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-07010 · 8219B-0R210 |
| 821H1 | Underfloor wiring harness | 821H1-0A080 |
| 821H2 | HV air conditioner wiring harness | 821H2-0A030 |
| 82219C | sensor harness | 82219-07041 · 82219-0A050 |
| 82286A | Line 2 | 82286-02330 · 82286-F4060 · 82286-F4090 |
| 82412 | Fuel gauge wiring harness | 82412-0A020 |
| 82661H | Relay box cover | 82661-16250 |
| 82666A | Connector holder No. 2 | 82666-22190 |
| 82666B | No. 3 connector holder | 82666-60220 |
| 82666C | No. 4 connector holder | 82666-22070 |
| 82666D | No. 5 connector holder | 82666-60220 |
| 82666E | No. 6 connector holder | 82666-60220 |
| 82666G | No. 8 connector holder | 82666-12490 |
| 82666L | No. 9 connector holder | 82666-F4180 |
| 82815A | Wiring harness protector cover | 82815-12L10 |
| 82815B | Wiring harness protector cover | 82815-12L20 |
| 82815G | No. 5 wire harness protector cover | 82815-12L30 |
| 82815K | No. 8 wire harness protector cover | 82815-12L00 |
| 82815L | No. 9 wire harness protector cover | 82815-12B00 |
| 82815M | No. 10 wire harness protector cover | 82815-F4550 |
| 82815N | No. 11 wire harness protector cover | 82815-12D80 · 82815-76720 |
| 82815P | No. 12 wire harness protector cover | 82815-F4190 · 82815-F4700 |
| 82815Q | No. 13 wire harness protector cover | 82815-F4620 |
| 82815R | No. 14 wire harness protector cover | 82815-F4590 · 82815-F4670 |
| 82815S | No. 15 wire harness protector cover | 82815-F4530 |
| 82815T | No. 16 wire harness protector cover | 82815-02C20 · 82815-12E40 |
| 82815W | No. 2 wire harness protector cover | 82815-F4510 |
| 82815X | No. 3 wire harness protector cover | 82815-12D10 |
| 82815Z | No. 18 wire harness protector cover | 82815-F4610 |
| 82816B | No. 1 wire harness protector cover | 82815-F4570 · 82815-F4690 |
| 82816C | No. 2 wire harness protector cover | 82815-F4600 |
| 82816D | No. 3 wire harness protector cover | 82815-F4540 |
| 82816F | No. 4 wire harness protector cover | 82815-F4470 |
| 82816G | No. 5 wire harness protector cover | 82815-33J10 |
| 82816H | No. 6 wire harness protector cover | 82815-33L00 |
| 82816J | No. 7 wire harness protector cover | 82815-02C60 |
| 82816K | No. 8 wire harness protector cover | 82815-16300 · 82815-F4400 |
| 82816L | No. 9 wire harness protector cover | 82815-16310 · 82815-F4410 |
| 82816M | No. 10 wire harness protector cover | 82815-76600 |
| 82816N | No. 11 wire harness protector cover | 82815-V1340 |
| 82816P | No. 12 wire harness protector cover | 82815-0A040 · 82815-16030 |
| 82816Q | No. 13 wire harness protector cover | 82815-16120 |
| 82816S | No. 15 wire harness protector cover | 82815-F4680 |
| 82816T | No. 16 wire harness protector cover | 82815-F4580 |
| 82816U | No. 17 wire harness protector cover | 82815-0A020 |
| 82816V | No. 18 wire harness protector cover | 82815-16050 |
| 82816W | No. 19 wire harness protector cover | 82815-16070 |
| 82816X | 20 gauge wire harness protector cover | 82815-02C00 |
| 82816Y | No. 21 wire harness protector cover | 82815-02C10 |
| 82817 | No. 1 wire harness protection device | 82817-12W30 |
| 82817A | No. 2 wire harness protection device | 82817-12Y70 |
| 82817B | No. 3 wire harness protection device | 82817-0A070 · 82817-12Y80 |
| 82817C | No. 4 wire harness protection device | 82817-12Y90 |
| 82817F | No. 7 wire harness protection device | 82817-12Z00 |
| 82817J | No. 9 wire harness protection device | 82817-F4770 |
| 82817K | No. 10 wire harness protection device | 82817-12R80 · 82817-76520 |
| 82817L | No. 11 wire harness protection device | 82817-F4420 · 82817-F4B30 |
| 82817M | No. 12 wire harness protection device | 82817-F4840 |
| 82817N | No. 13 wire harness protection device | 82817-F4810 · 82817-F4B00 |
| 82817P | No. 14 wire harness protection device | 82817-F4750 |
| 82817T | No. 15 wire harness protection device | 82817-02S00 · 82817-12S40 |
| 82817U | No. 16 wire harness protection device | 82817-02R90 · 82817-F4730 · 82817-F4800 |
| 82817X | No. 17 wire harness protection device | 82817-02R80 |
| 82818 | No. 2 wire harness protection device | 82817-16860 · 82817-F4830 |
| 82818B | No. 3 wire harness protection device | 82817-F4790 · 82817-F4B10 |
| 82818C | No. 4 wire harness protection device | 82817-F4820 |
| 82818D | No. 5 wire harness protection device | 82817-02R10 · 82817-33S70 |
| 82818E | No. 6 wire harness protection device | 82817-02R20 |
| 82818F | No. 7 wire harness protection device | 82817-02S40 |
| 82818G | No. 8 wire harness protection device | 82817-0A050 |
| 82818H | No. 9 wire harness protection device | 82817-12V50 · 82817-16780 |
| 82818J | No. 10 wire harness protection device | 82817-16A10 · 82817-F4760 |
| 82818K | No. 11 wire harness protection device | 82817-16A20 · 82817-F4660 |
| 82818L | No. 12 wire harness protection device | 82817-12V00 · 82817-16A30 |
| 82818M | No. 13 wire harness protection device | 82817-33S70 · 82817-76A20 |
| 82818N | No. 14 wire harness protection device | 82817-F4870 · 82817-V1510 |
| 82818S | No. 15 wire harness protection device | 82817-F4A70 |
| 82818T | No. 16 wire harness protection device | 82817-16770 |
| 82818U | No. 17 wire harness protection device | 82817-16620 |
| 82818V | No. 18 wire harness protection device | 82817-16660 |
| 82818W | No. 19 wire harness protection device | 82817-16680 |
| 82818X | No. 20 wire harness protection device | 82817-16540 |
| 82818Y | No. 21 wire harness protection device | 82817-16560 |
| 82818Z | No. 22 wire harness protection device | 82817-16600 |
| 82821A | Connector cover | 82821-16140 |
| 82821H | Connector cover | 82821-28430 |
| 82821M | Connector cover | 82821-50500 |
| 82821N | Connector cover | 82821-78050 |
| 82823S | starter terminal cover | 28192-F2030 |
| 82H17B | No. 1 wire harness protection device | 82817-12V00 |
| 82H17C | No. 2 wire harness protection device | 82817-F4B20 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-0A030 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-0A040 |
| 89348Y | Rear corner ultrasonic sensor clip | 89348-07120 · 89348-50050 |
