Toyota COROLLA 后组合灯 — Figure 8111

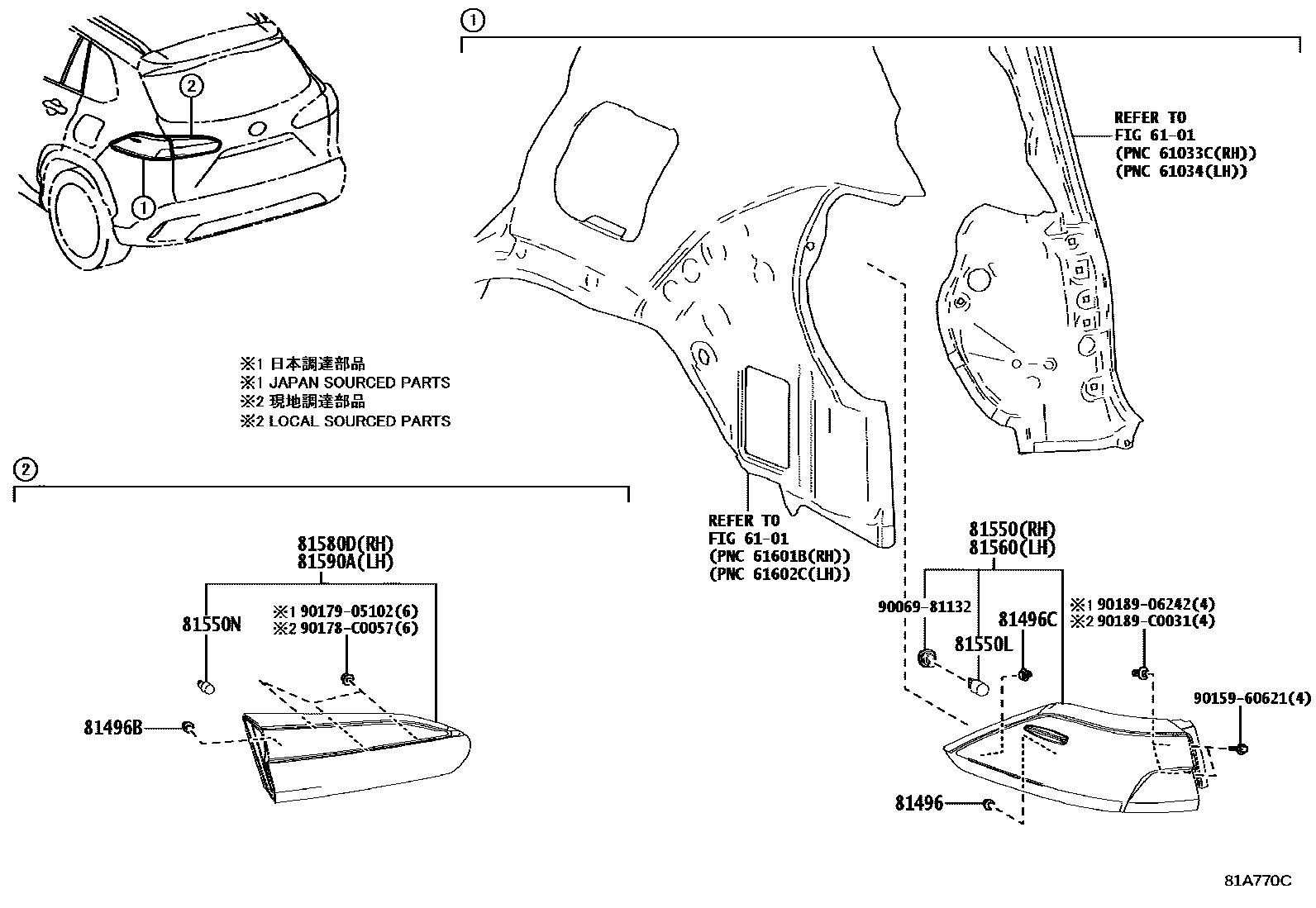

Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-02020 · 81496-52020 |
| 81496B | Rear light guide block | 81496-02020 · 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 · 90467-C0019 |
| 81550 | Right rear combination light assembly | 81550-0A120 · 81550-0A121 · 81550-0A130 · 81550-0A131 |
| 81550L | Rear turn signal light bulb | 90981-CB004 |
| 81550N | reversing light bulb | 90981-CB002 |
| 81560 | Left rear combination light assembly | 81560-0A120 · 81560-0A121 · 81560-0A130 · 81560-0A131 |
| 81580D | Right rear light assembly | 81580-0A100 · 81580-0A110 |
| 81590A | Left rear light assembly | 81590-0A110 · 81590-0A120 |
