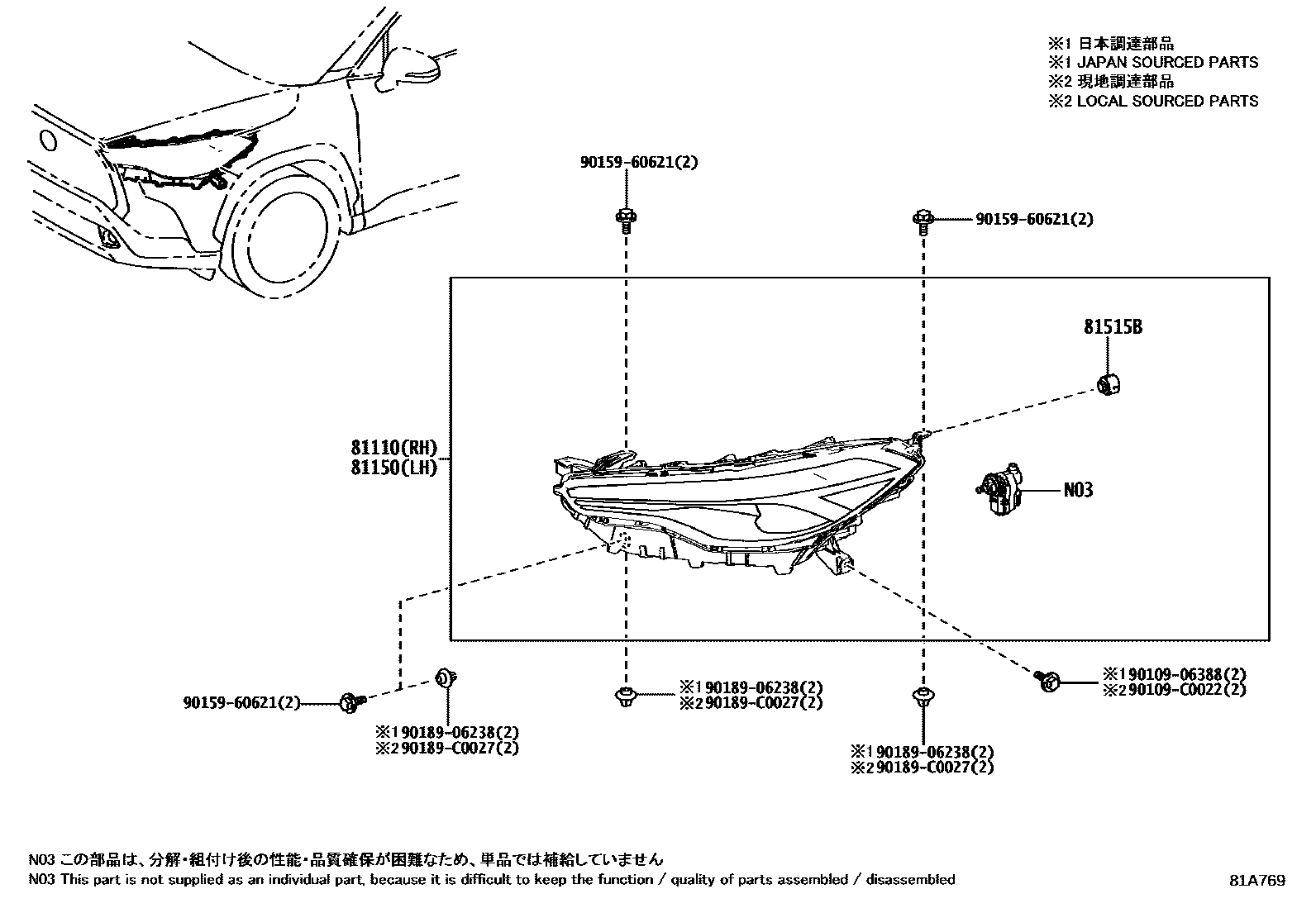

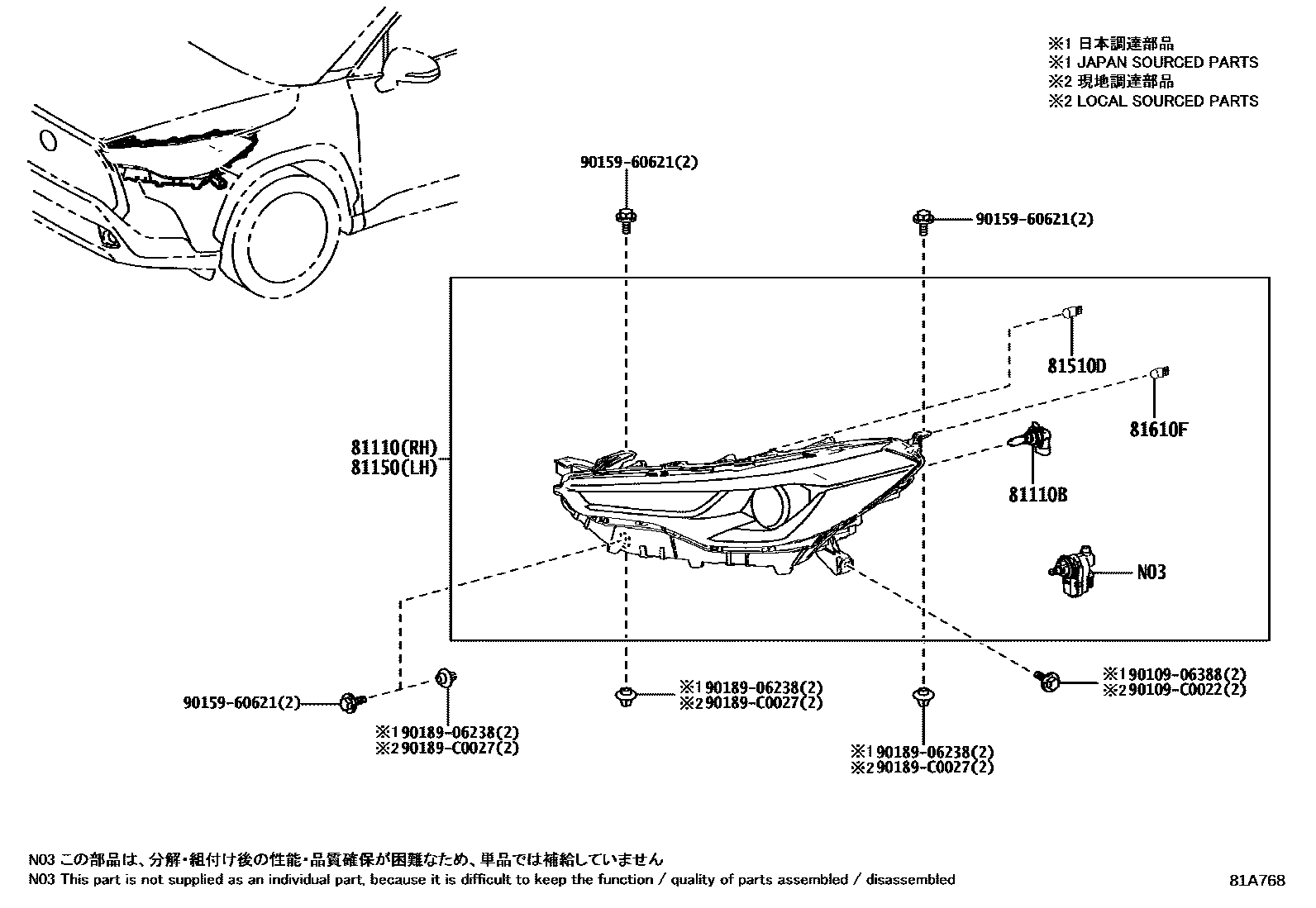

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0A180 · 81110-0A190 · 81110-0A191 |
| 81110B | Bulb (for headlight No. 1) | 90981-CD010 |
| 81150 | Left headlight assembly | 81150-0A180 · 81150-0A190 · 81150-0A191 |
| 81510D | Bulb (for front turn signal lamp) | 90981-CB004 |
| 81515B | Front turn signal lamp holder | 90069-81131 |
| 81610F | Light bulb (for width indicator light) | 90981-CB008 |
