Toyota COROLLA 燃油箱和燃油管 — Figure 7701

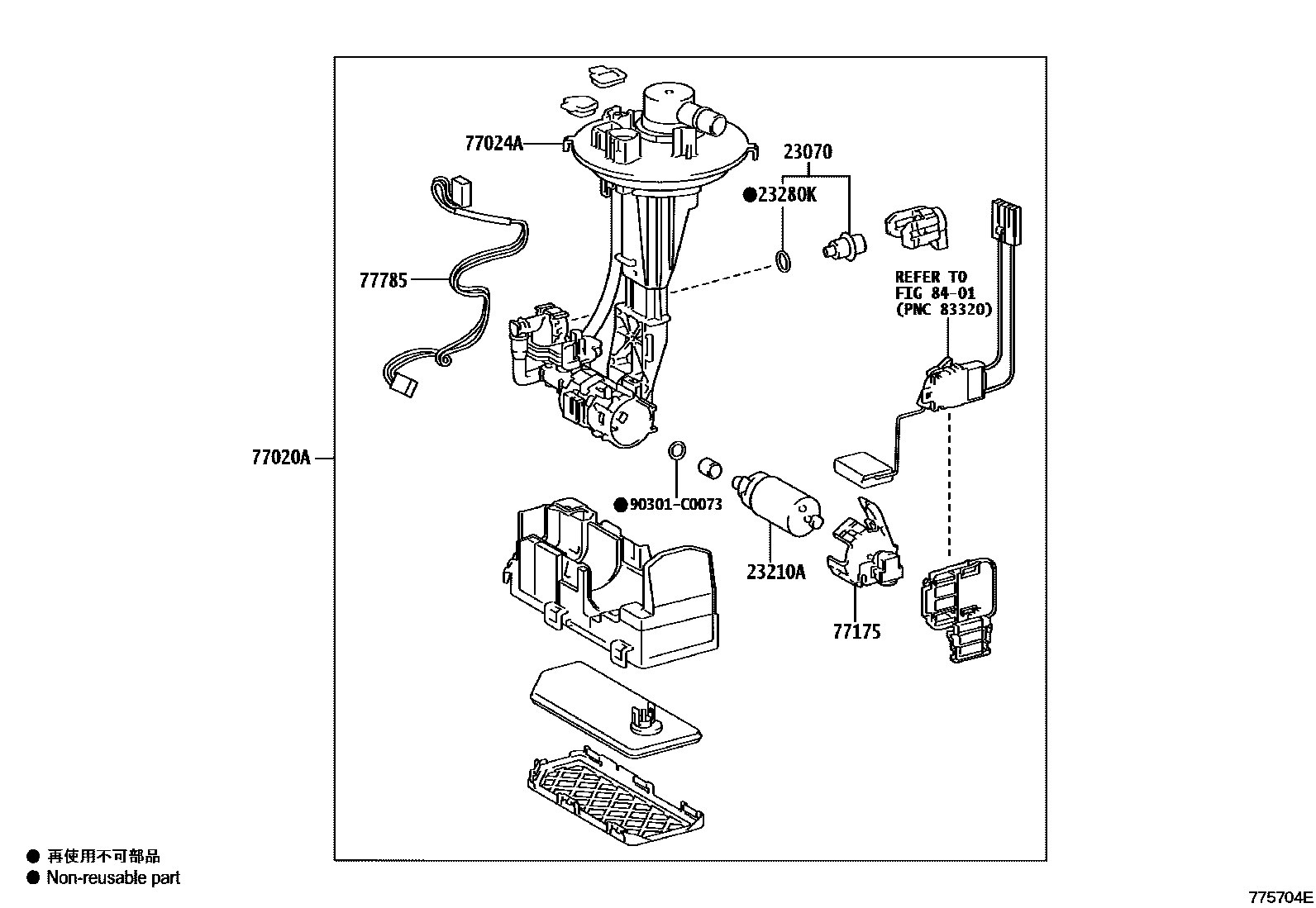

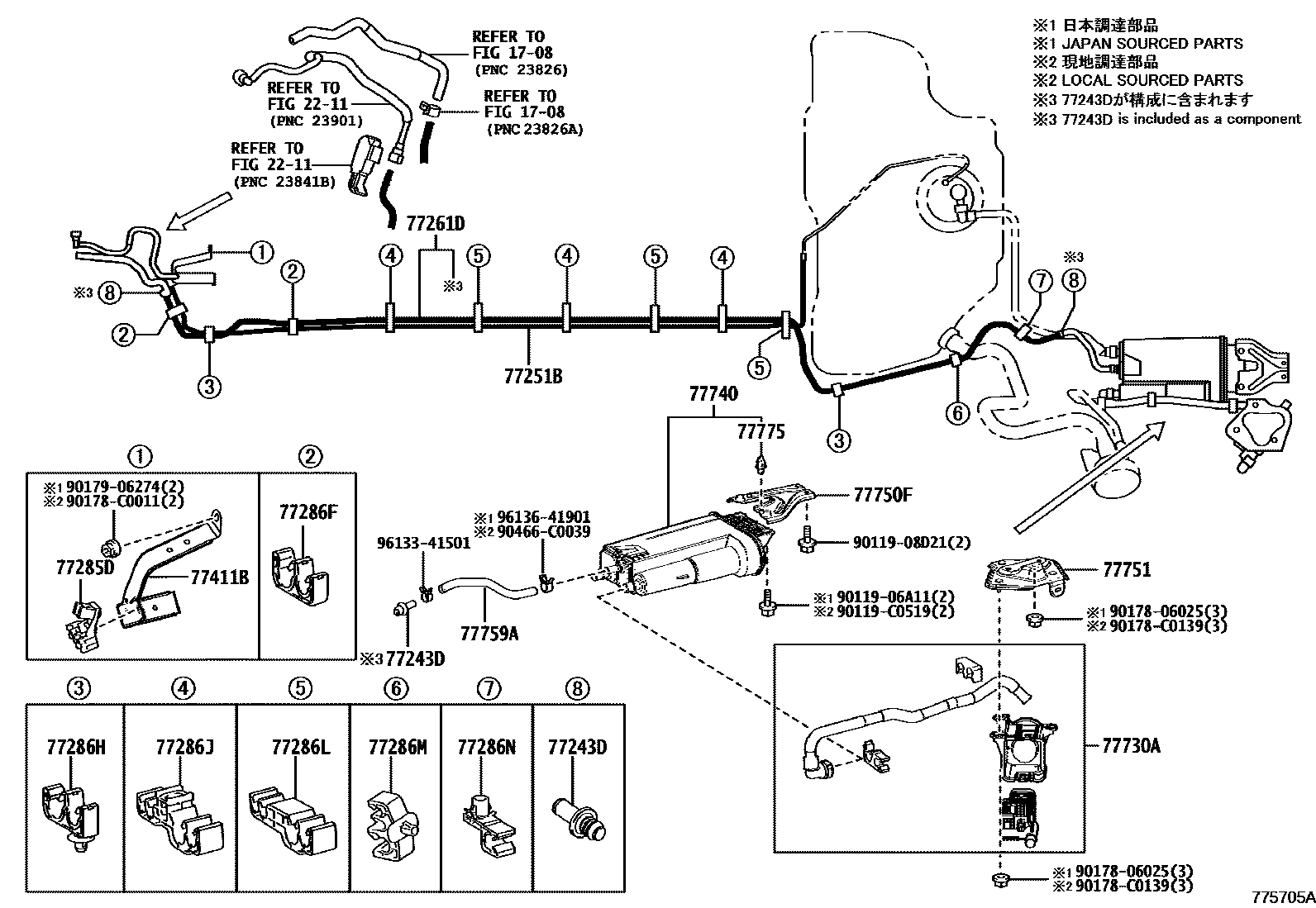

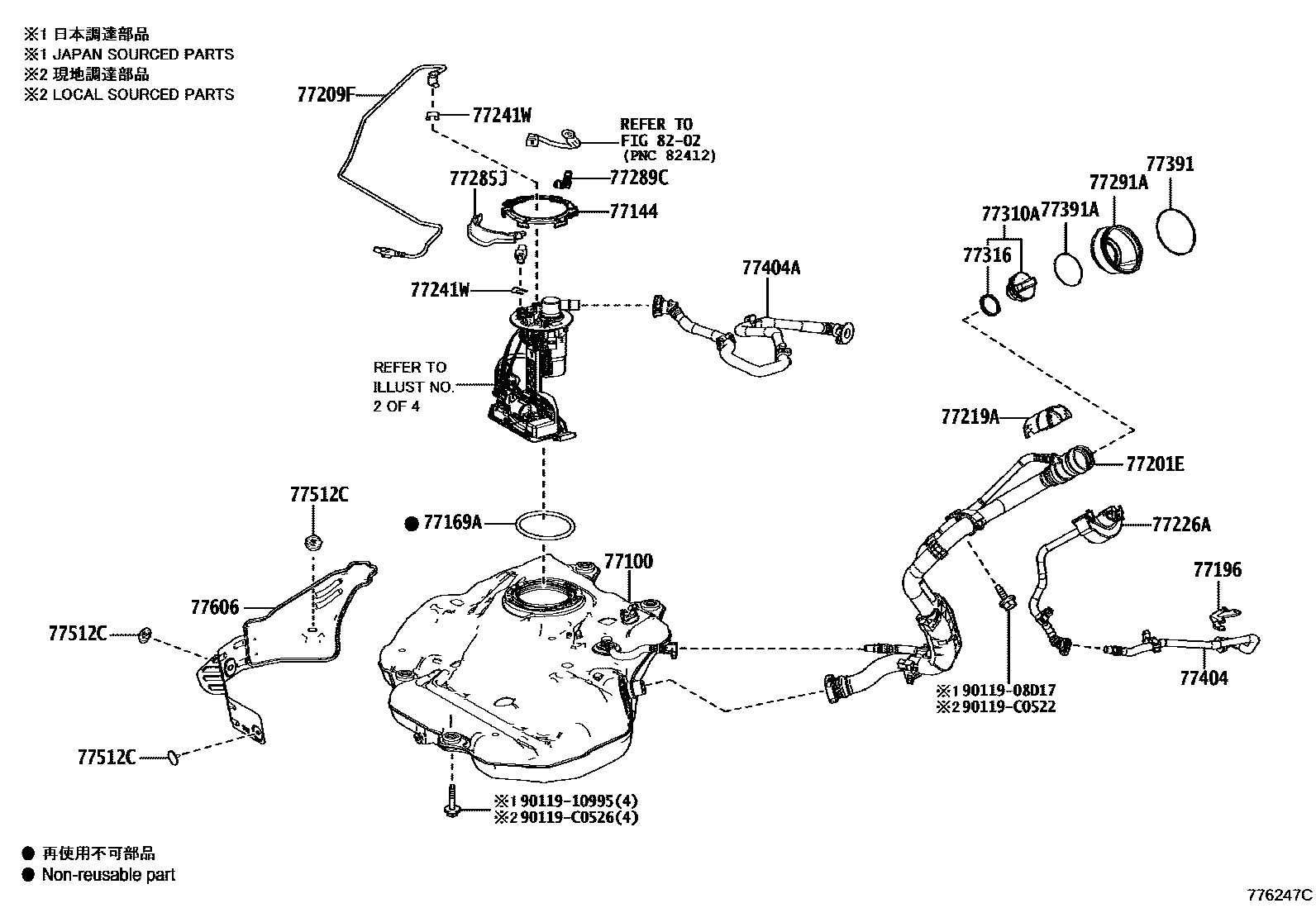

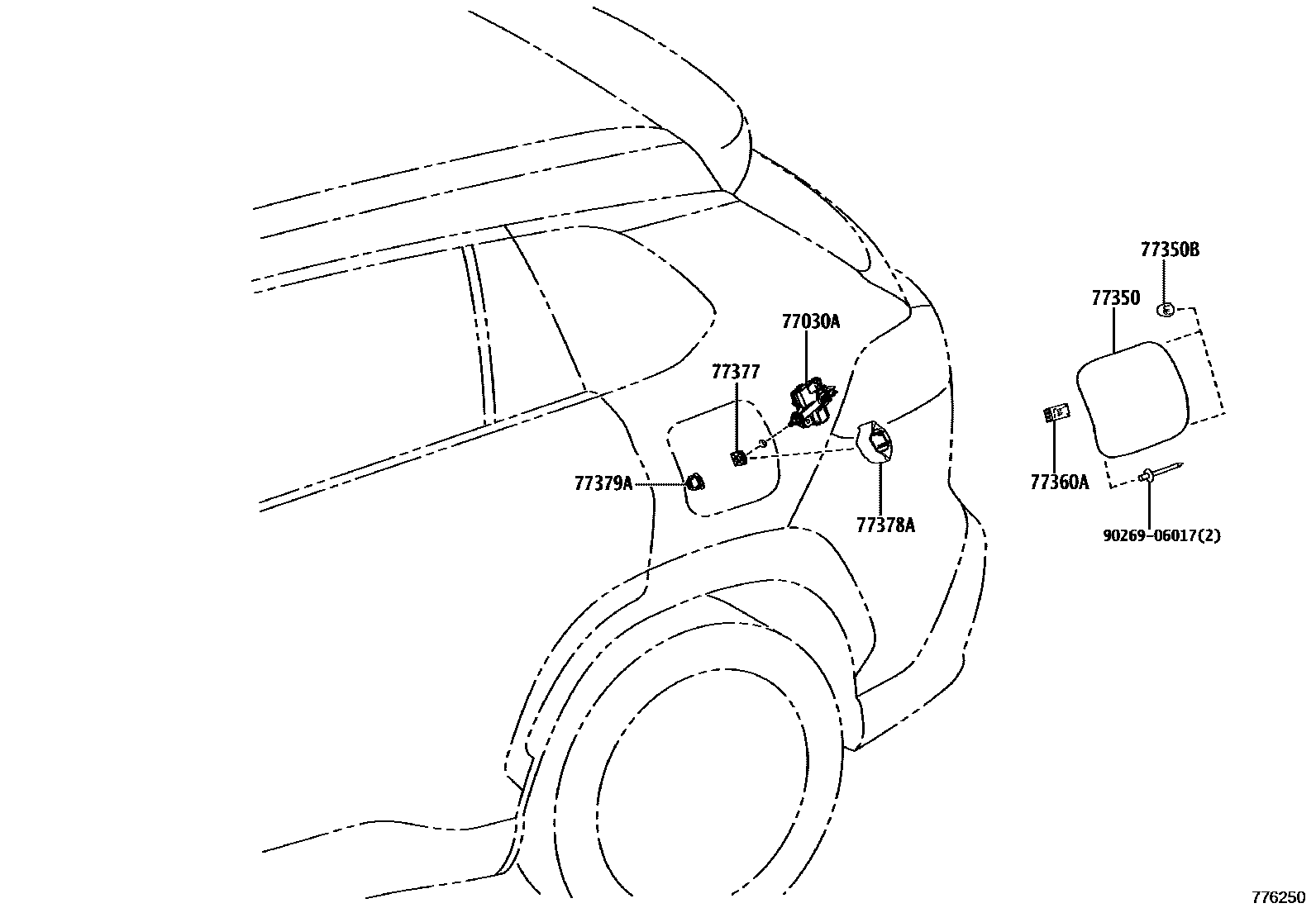

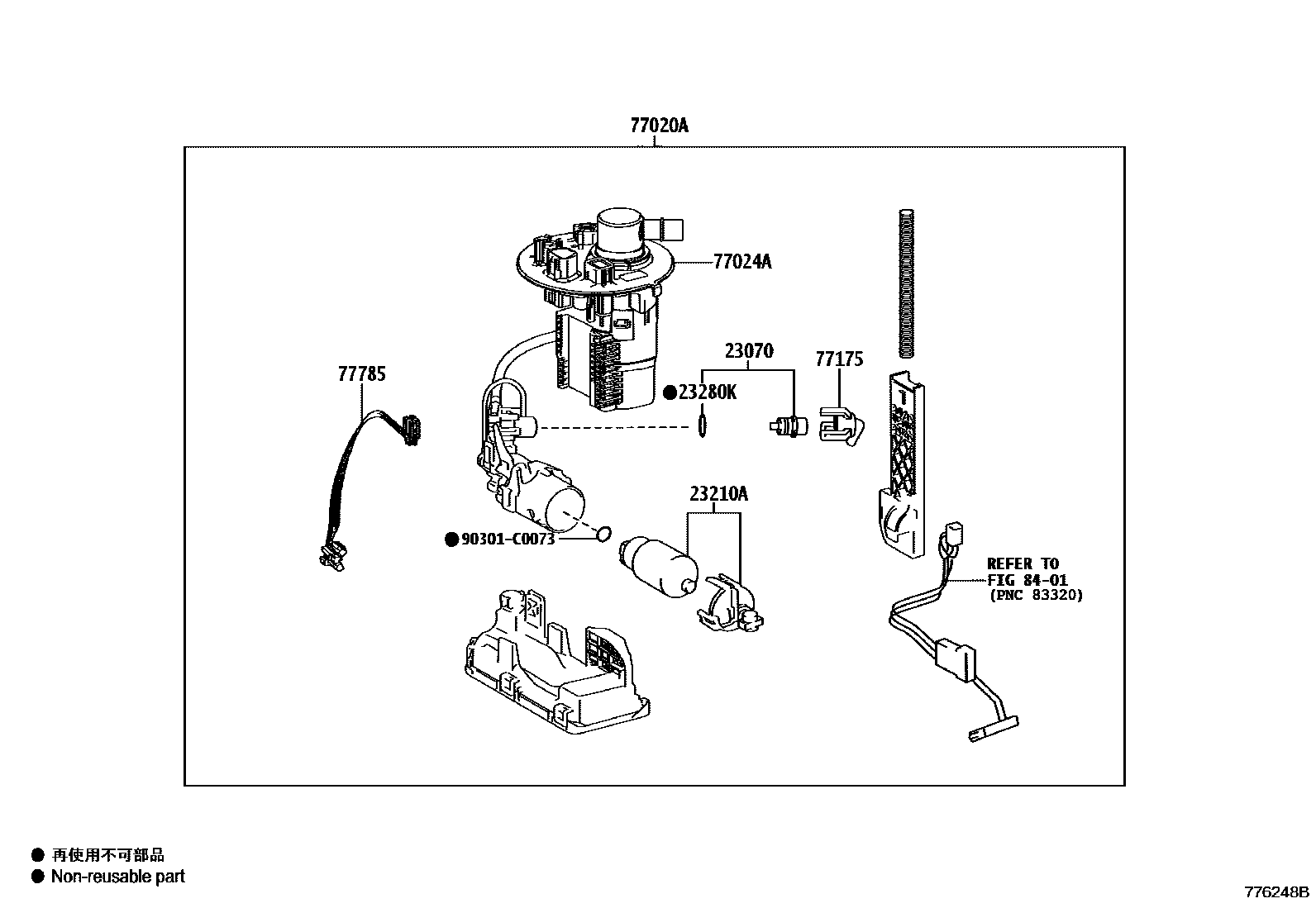

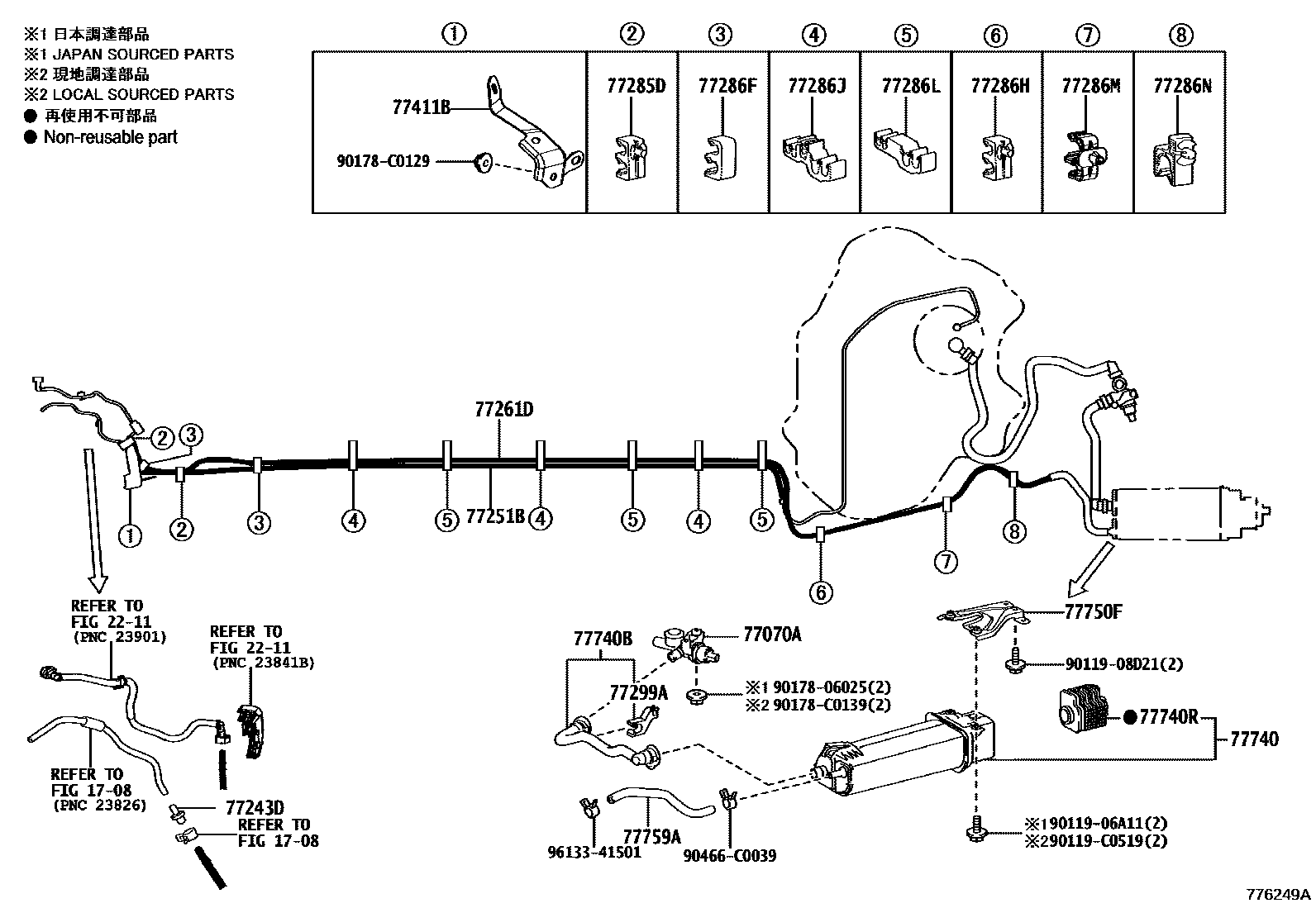

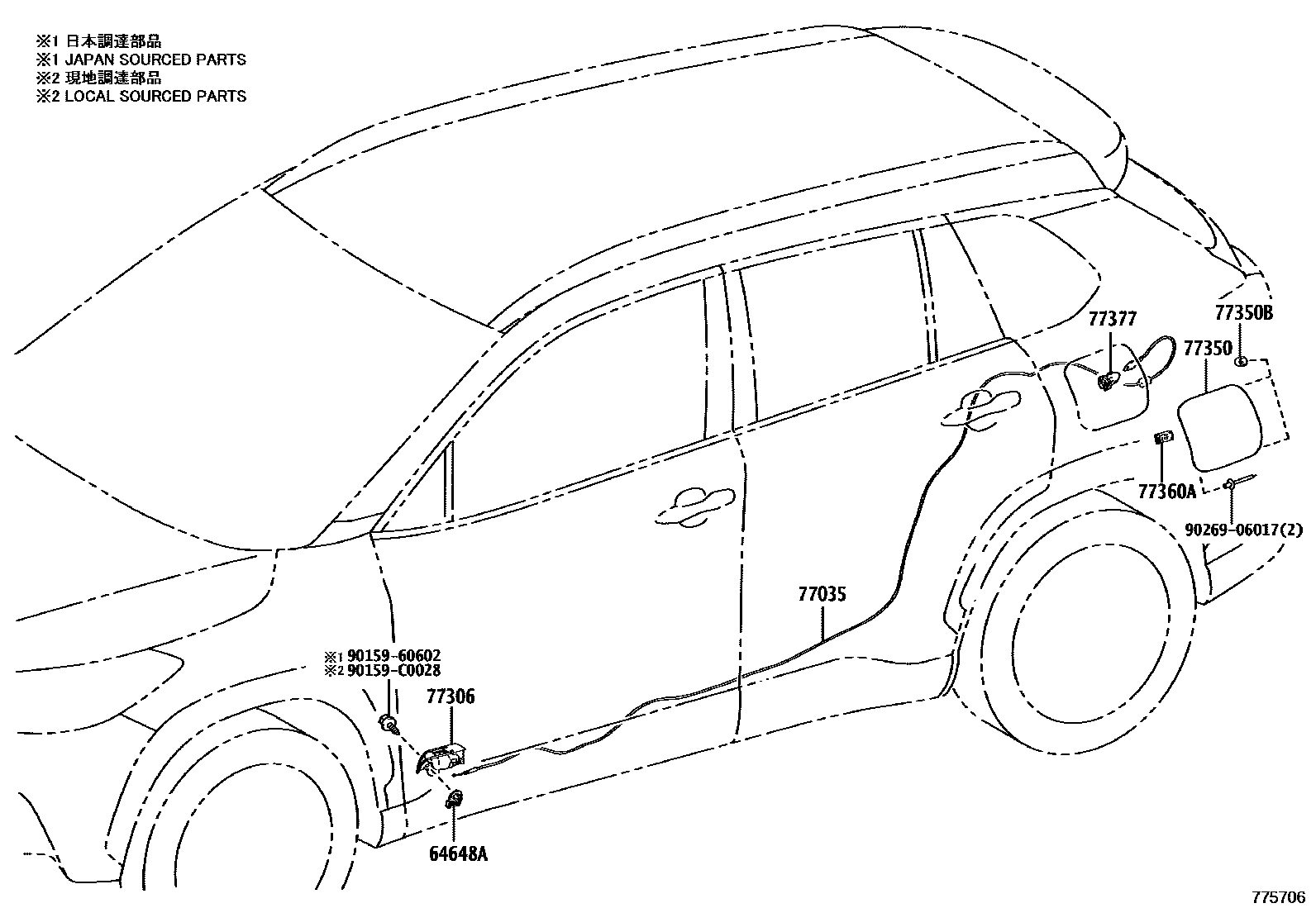

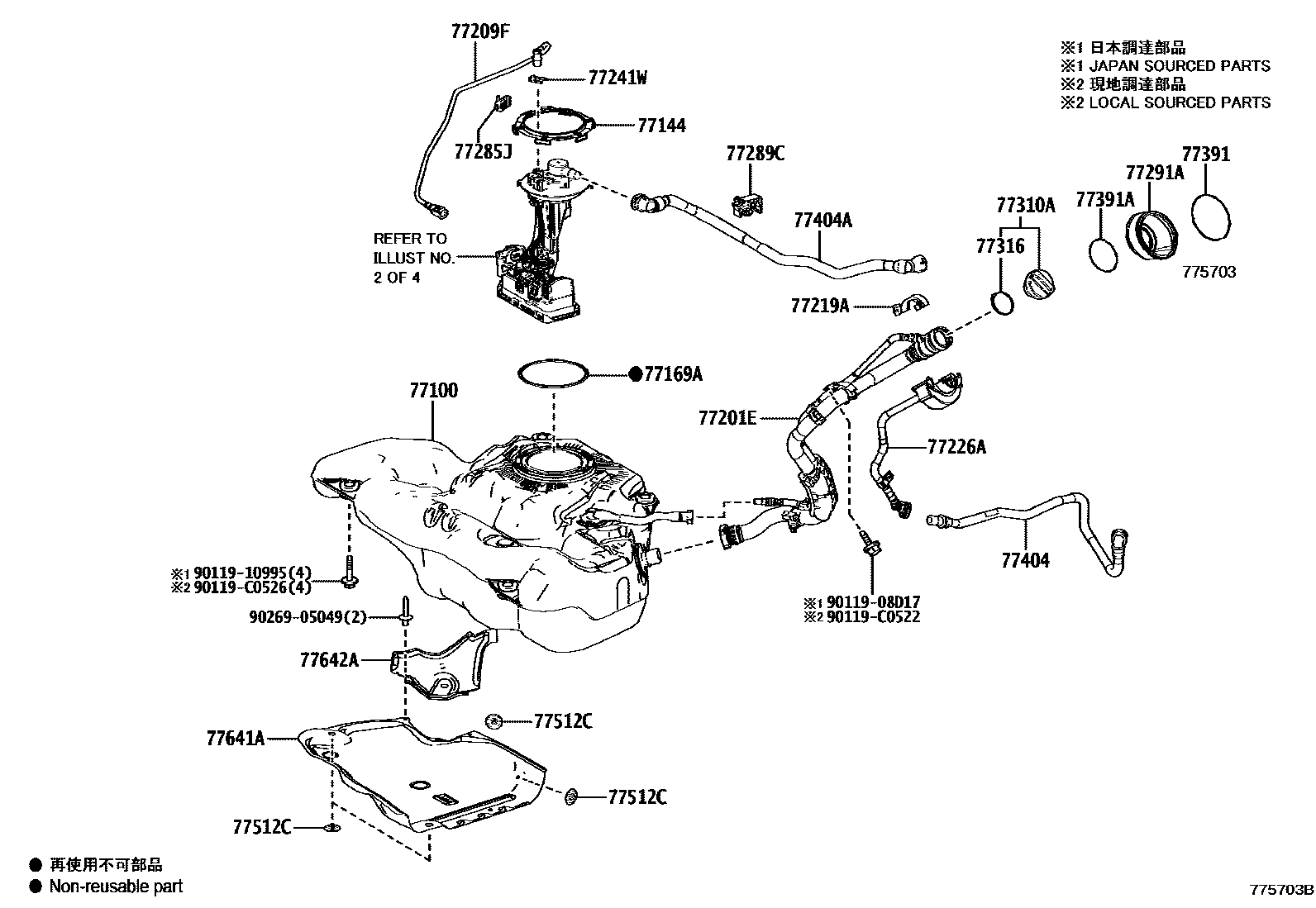

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 8 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 · 23070-F0030 · 23280-15040 |
| 23210A | Water pump assembly with motor and bracket | 23210-F0010 · 23210-F2010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-02020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0A140 · 77020-0A150 · 77020-0A210 · 77020-0A230 |
| 77024A | Fuel absorber sub-assembly | 77024-0A040 · 77024-0A070 · 77024-0A100 · 77024-0A130 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-02100 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0A080 |
| 77070A | Closed fuel tank valve assembly | 90910-15087 · 90910-CE005 · 90910-CE007 |
| 77100 | fuel tank assembly | 77001-0A140 · 77001-0A170 · 77001-0A280 |
| 77144 | Fuel pump instrument fixture | 77144-0E050 · 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02130 · 77169-0A020 · 77169-47030 |
| 77175 | No. 2 oil suction pipe bracket | 77175-F4020 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-0A020 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-0A060 · 77201-0A140 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0A140 · 77209-0A240 |
| 77219A | Fuel tank filler pipe cap | 77219-0D150 |
| 77226A | No. 6 fuel tank breather pipe | 77226-0A070 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77243D | No. 1 fuel pipe joint | 77243-12050 |
| 77251B | main fuel pipe | 77251-0A140 · 77251-0A170 · 77251-0A230 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0A150 · 77261-0A230 · 77261-0A290 |
| 77285D | No. 1 fuel pipe clamp | 77286-02340 · 77286-02350 |
| 77285J | No. 1 fuel pipe clamp | 77285-0A130 · 77285-16130 |
| 77286F | No. 2 fuel pipe clamp | 77289-02170 · 77289-02180 |
| 77286H | No. 3 fuel pipe clamp | 77286-02360 |
| 77286J | No. 4 fuel pipe clamp | 77298-02340 · 77298-02360 |
| 77286L | No. 5 fuel pipe clamp | 77298-02350 · 77298-02370 |
| 77286M | No. 6 fuel pipe clamp | 77285-02270 |
| 77286N | No. 7 fuel pipe clamp | 77299-0A040 |
| 77289C | No. 4 fuel pipe clamp | 77285-10050 · 77285-30350 · 77285-42240 |
| 77291A | Fuel tank filler pipe cover | 77291-0A050 |
| 77299A | No. 5 fuel pipe clamp | 77299-0A060 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0A060 |
| 77310A | Fuel tank cap assembly | 77300-06100 · 77300-06110 · 77300-0R010 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-0A030 |
| 77350B | Cushion (for fuel filler cap) | 90541-06069 · 90541-C0010 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-02100 · 77377-02190 |
| 77378A | Fuel filler cap lock cover | 77378-0A030 |
| 77379A | Fuel filler cap opening lever spacer | 77379-02020 |
| 77391 | fuel inlet ring | 77391-0R050 · 77391-42010 |
| 77391A | fuel inlet ring | 77391-0R030 · 77391-12020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0A120 · 77404-0A250 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-0A100 · 77404-0A160 · 77404-0A240 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-0A030 · 77411-F4070 |
| 77512C | fuel tank bracket | 77512-07010 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-0A120 |
| 77641A | No. 1 fuel tank protective shell | 77641-0A030 |
| 77642A | No. 2 fuel tank protective shell | 77642-0A030 |
| 77730A | Capture carbon canister assembly with oil outlet valve | 77730-0A030 · 77730-0A050 |
| 77740 | Carbon canister assembly | 77740-02260 · 77740-F4020 |
| 77740B | No. 2 fuel hose (for charcoal canister) | 77404-0A260 |
| 77740R | Leak detection pump sub-assembly | 90910-CF002 |
| 77750F | No. 1 carbon canister bracket assembly | 77751-0A060 |
| 77751 | Carbon canister base bracket | 77751-0A020 |
| 77759A | Carbon canister hose | 77759-0A040 · 77759-0A070 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-0A010 · 77785-52120 |
