Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

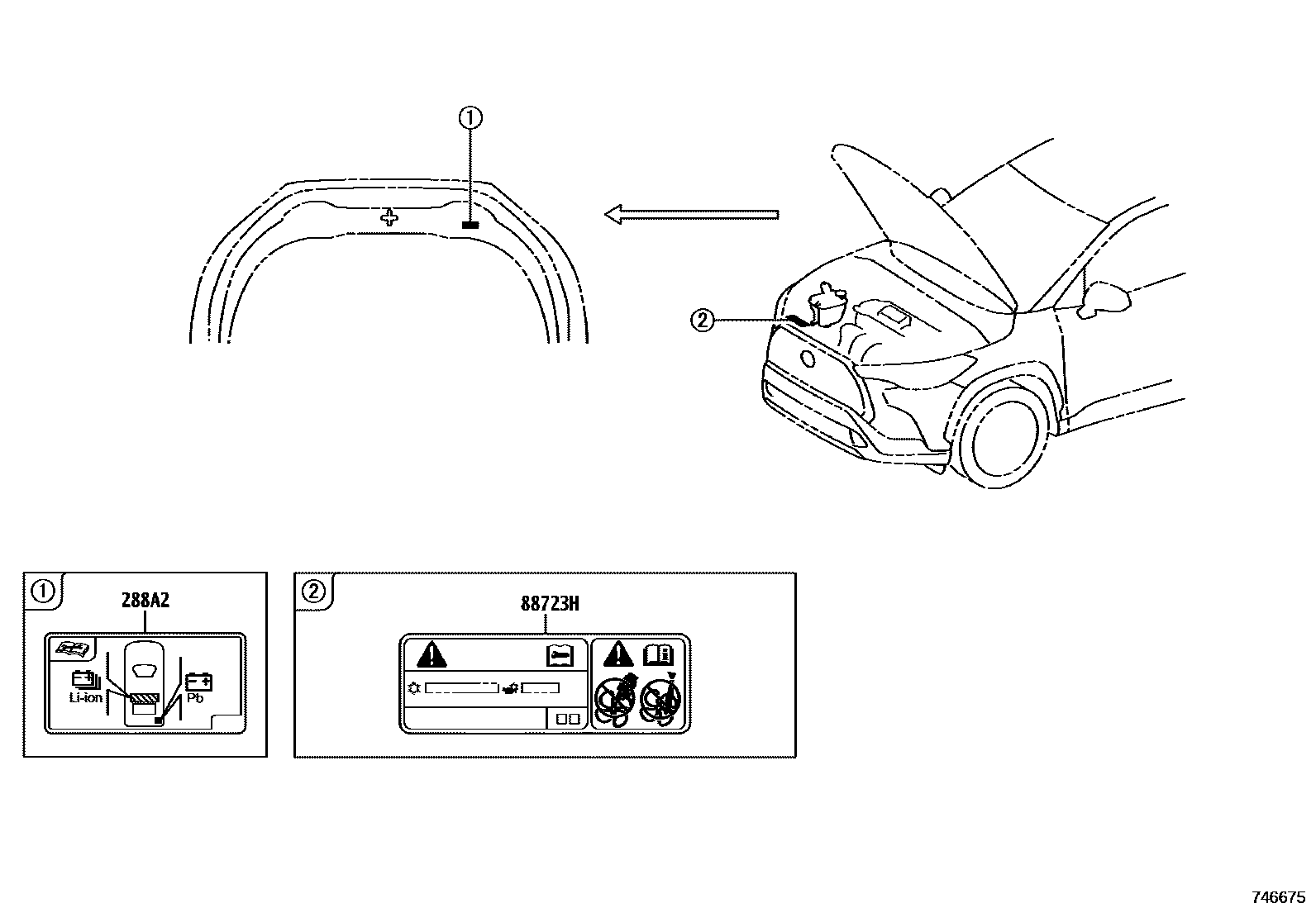

| 288A2 | Battery location label | 288A2-F2040 |

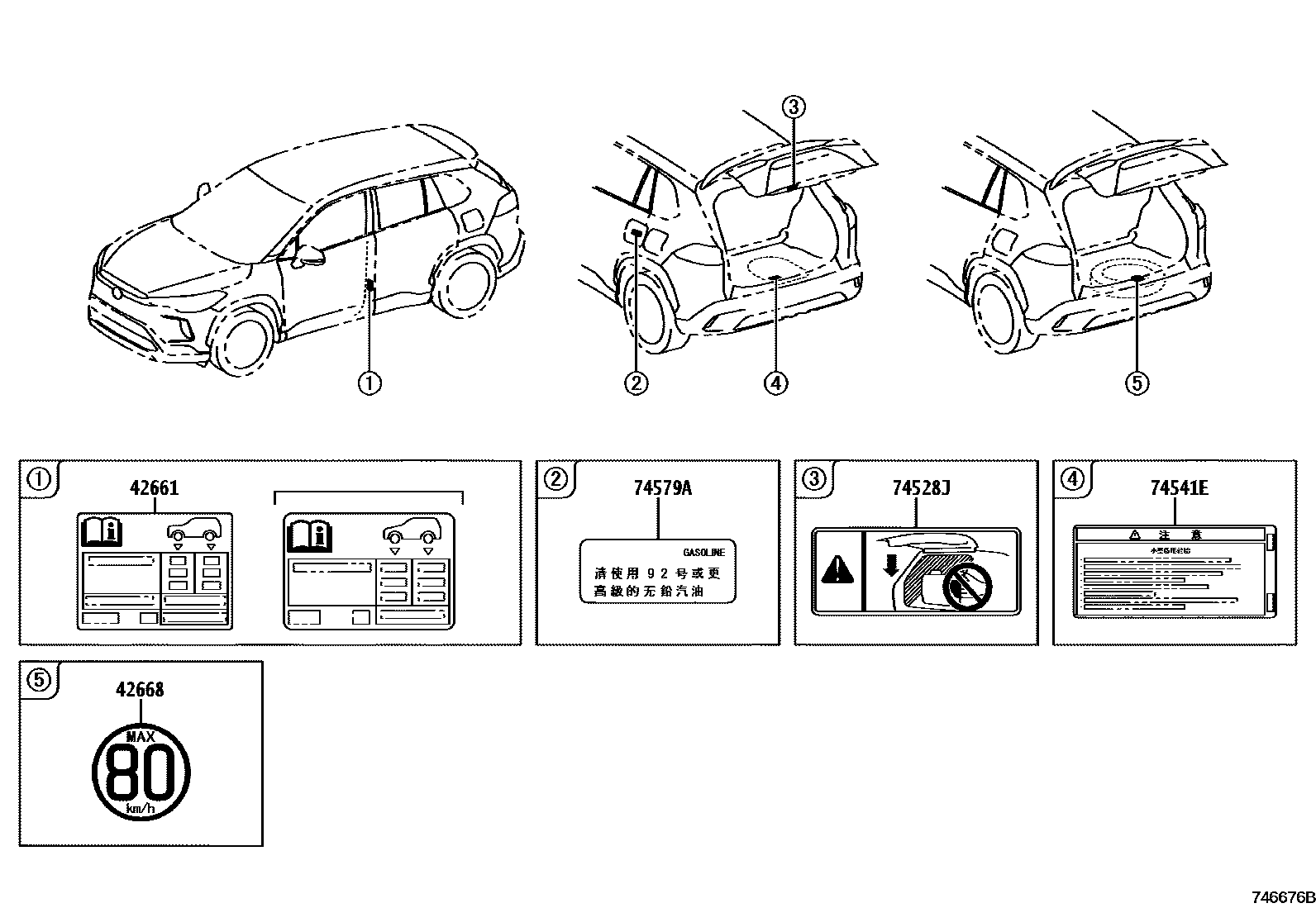

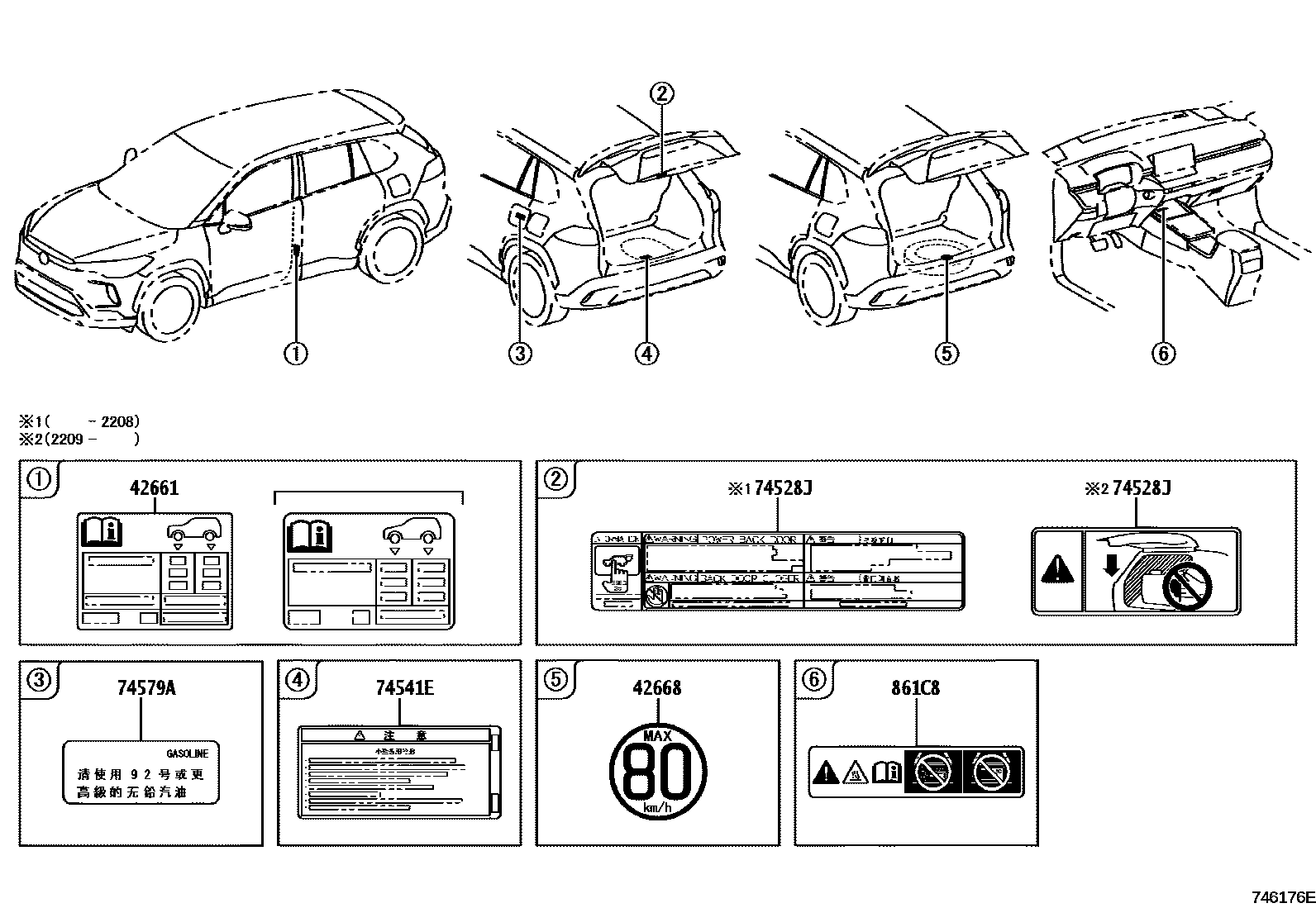

| 42661 | tire pressure information label | 42661-0A260 · 42661-0A270 · 42661-0A440 |
| 42668 | Small spare tire warning label | 42668-08010 · 42668-20020 |
| 74528J | Electric back door warning label | 74528-0R030 · 74528-0R031 |
| 74541E | Small spare tire warning plate | 42668-0N010 |
| 74579A | Unleaded Fuel Information Label | 74579-0D010 · 74579-26011 |

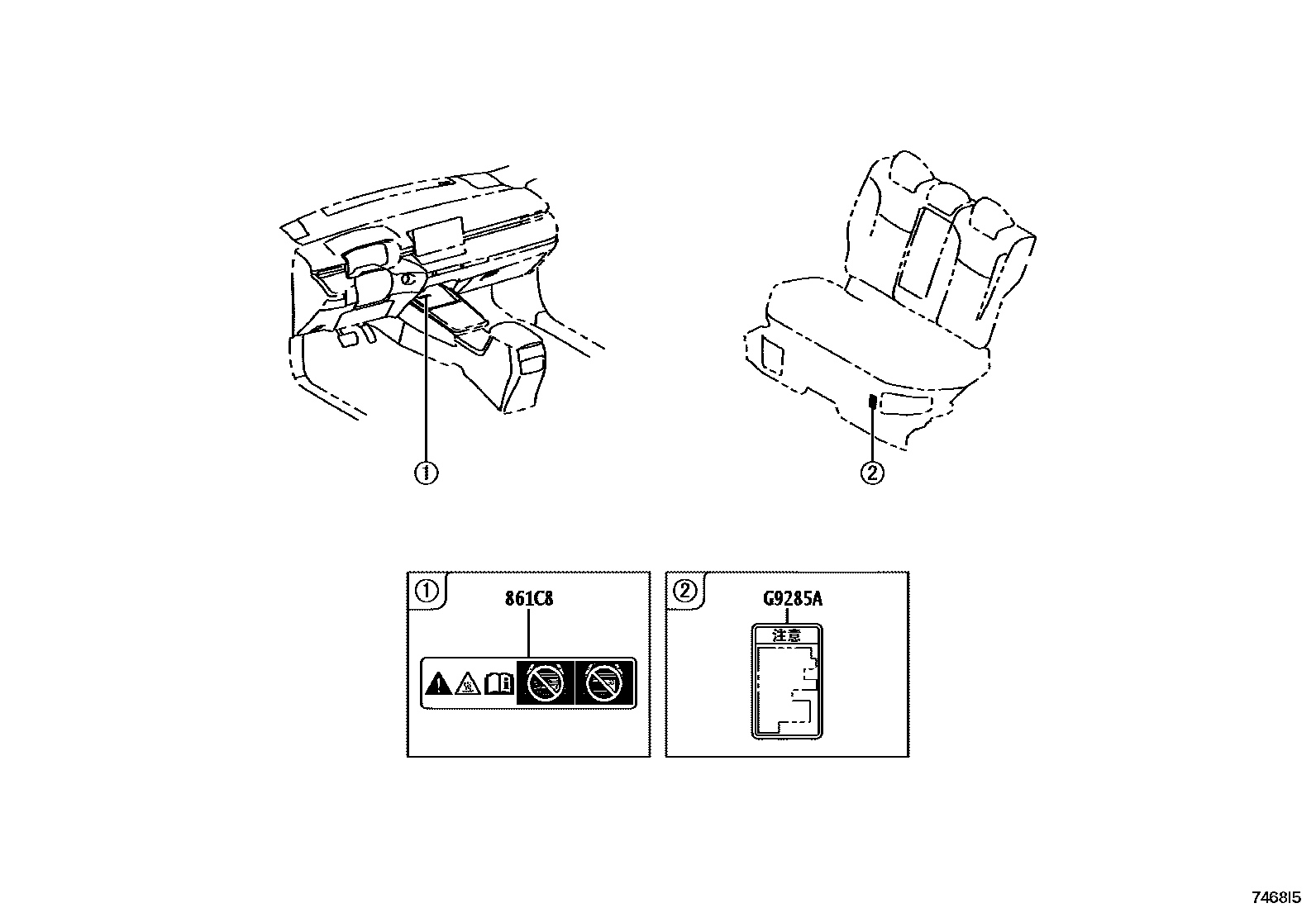

| 861C8 | Mobile Wireless Charger Warning Label | 861C8-0R010 |

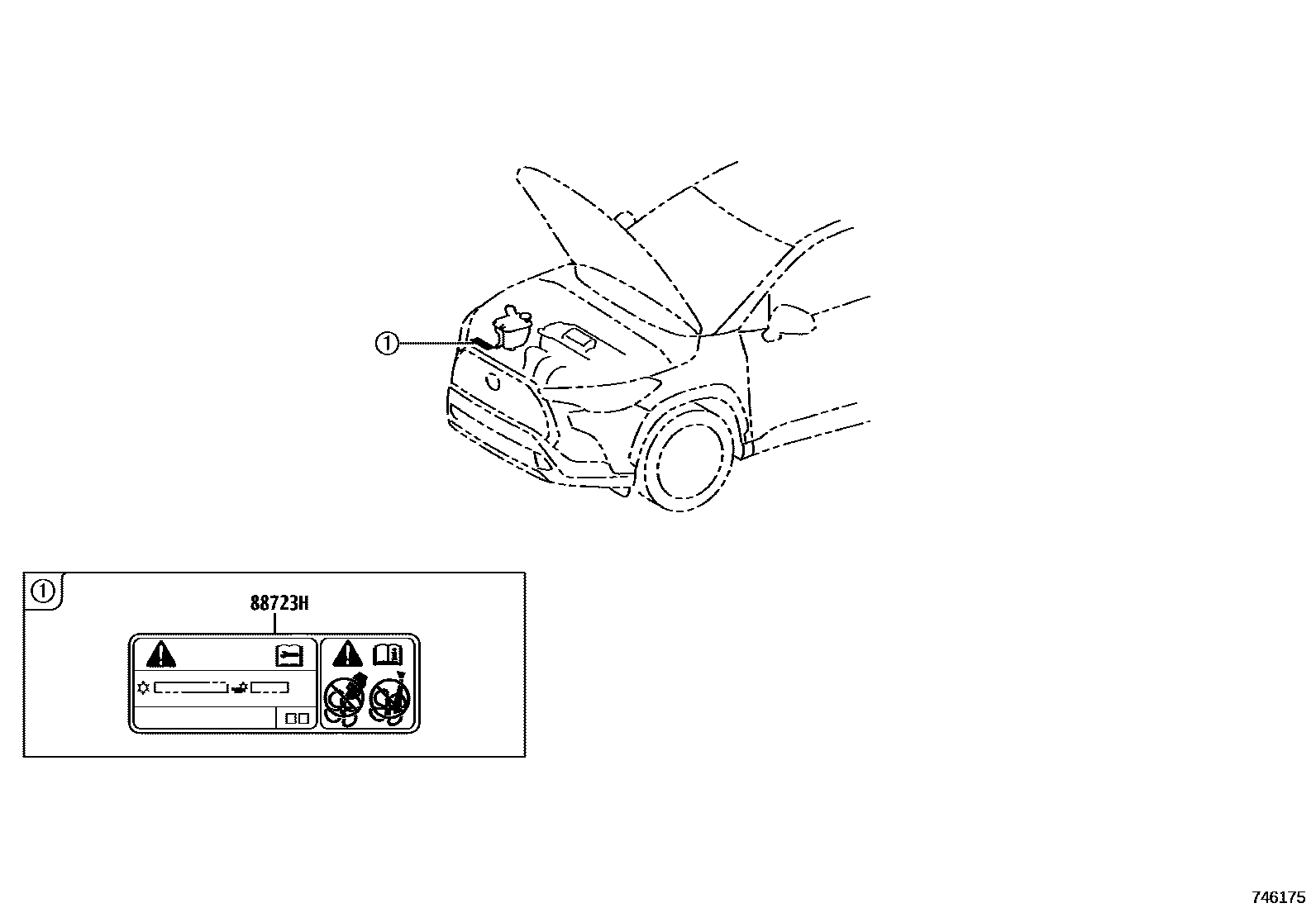

| 88723H | Cooler maintenance warning label | 88723-0A140 · 88723-0A230 |
| G9285A | HV Battery No. 1 Warning Label | G928L-02010 |
