Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 8 PNC and OE references.

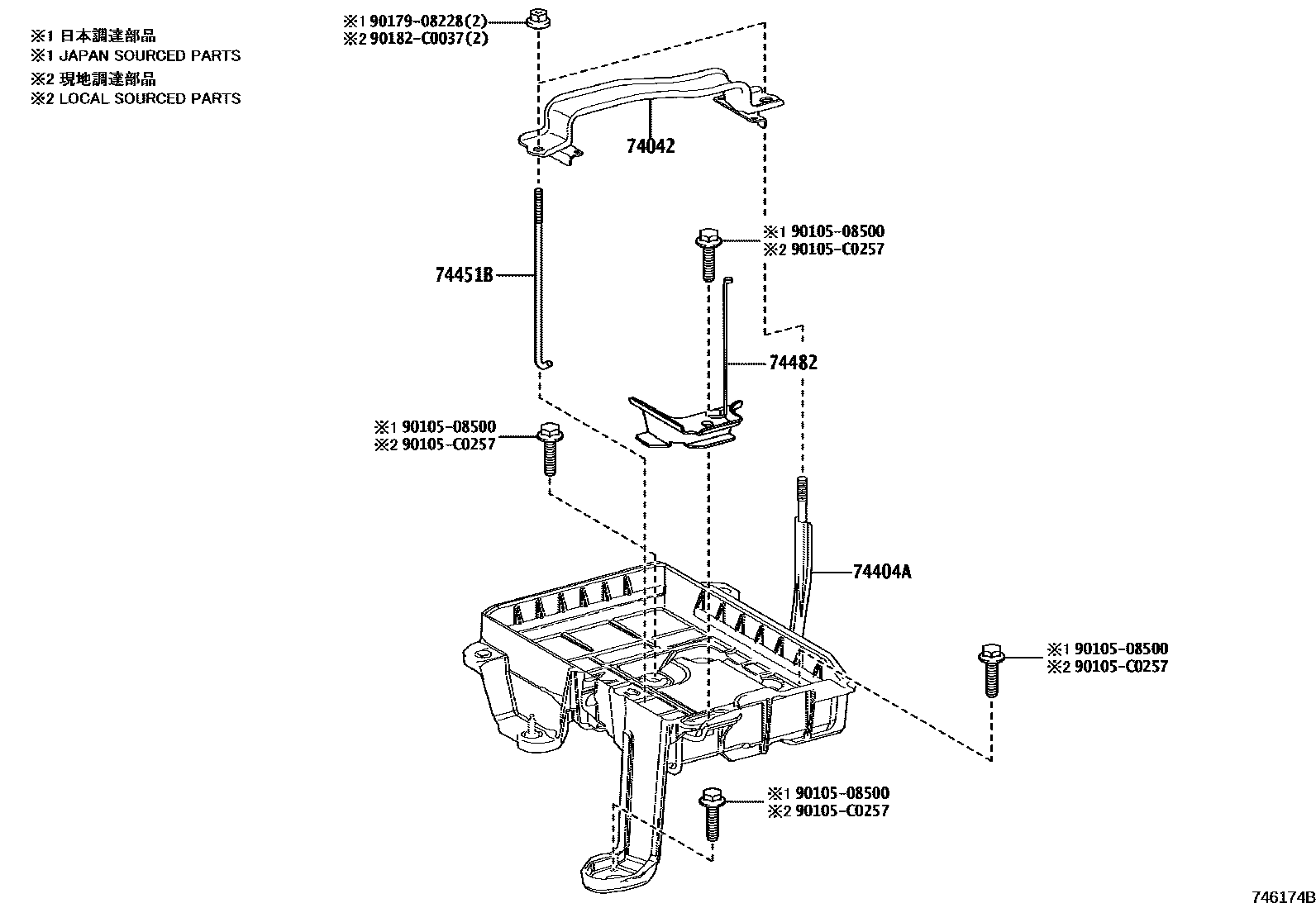

Toyota COROLLA battery holder EPC diagram — 746174B
battery holder — 746174B (202201 – 999999)

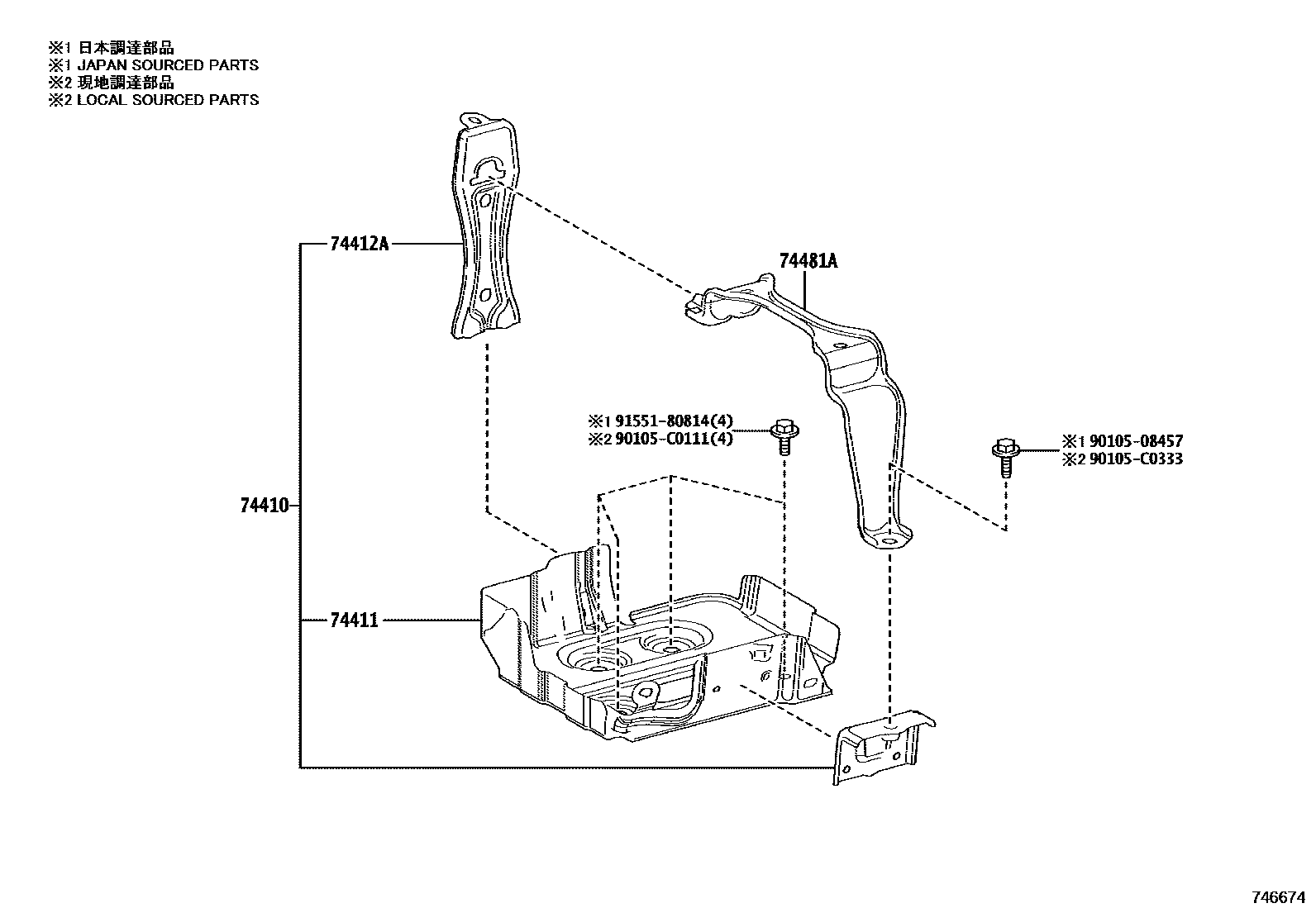

Toyota COROLLA battery holder EPC diagram — 746674
battery holder — 746674 (202307 – 999999)

PNC and OE references

PNCPart nameOE numbers
74042Battery bracket sub-assembly74401-0A010 · 74401-0A030
74404ABattery clip sub-assembly74404-0A030 · 74404-0A070
74410Battery bracket assembly74410-0A020
74411battery holder74411-0A030
74412ANo. 2 battery holder74412-0A020
74451BBattery clamp bolt74451-0A030
74481ABattery clip74481-0A040
74482No. 2 battery clip74405-02090
