Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

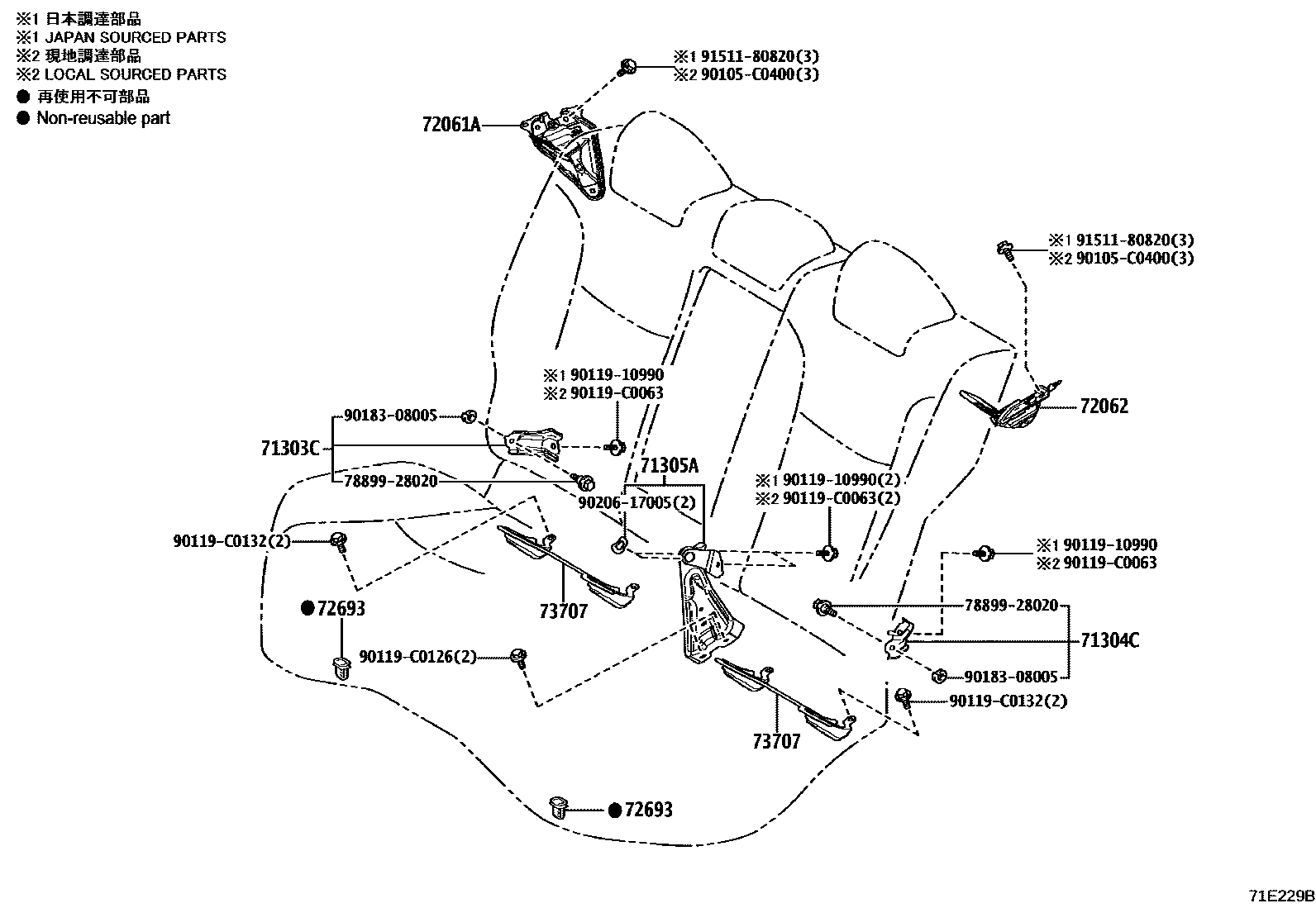

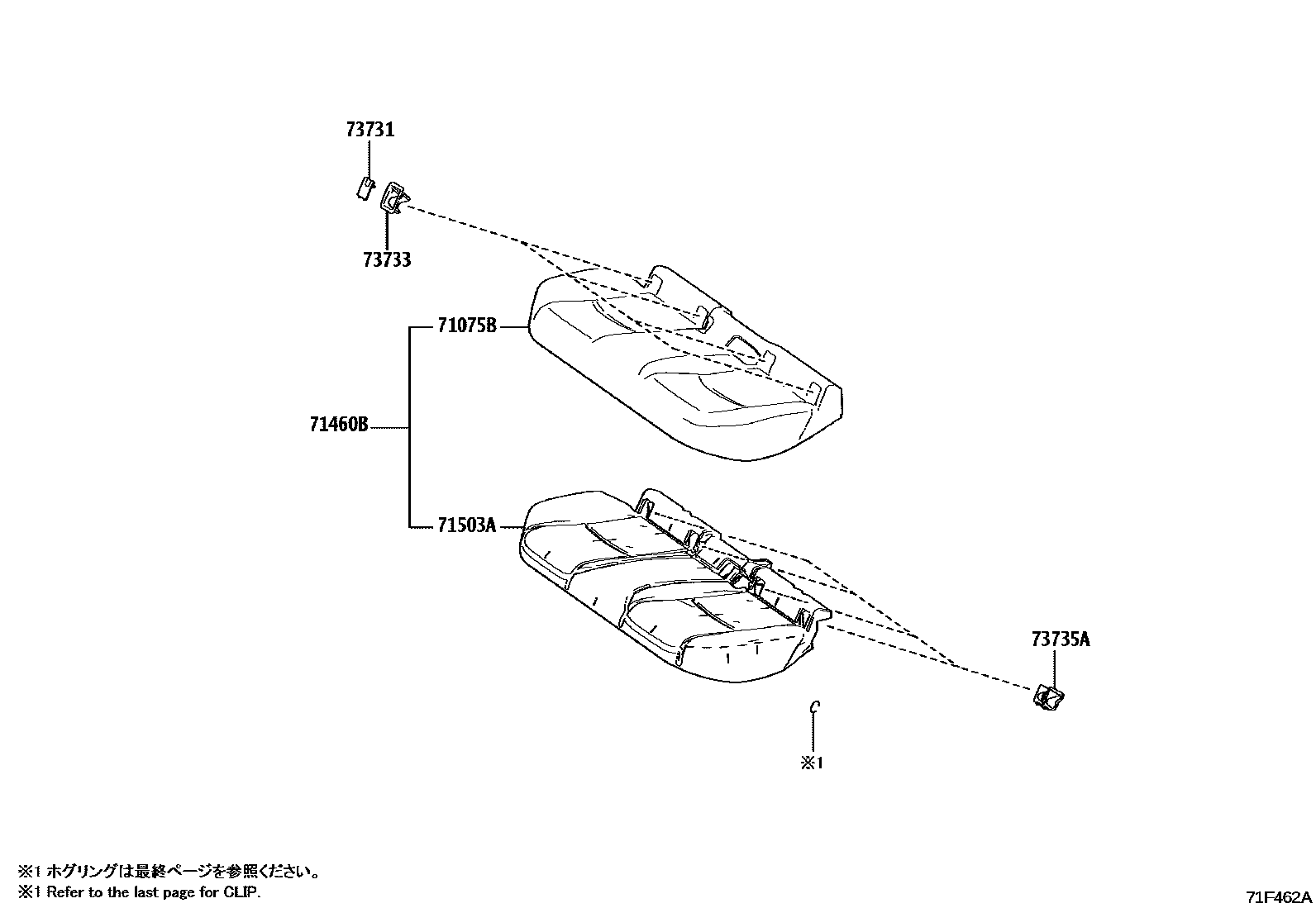

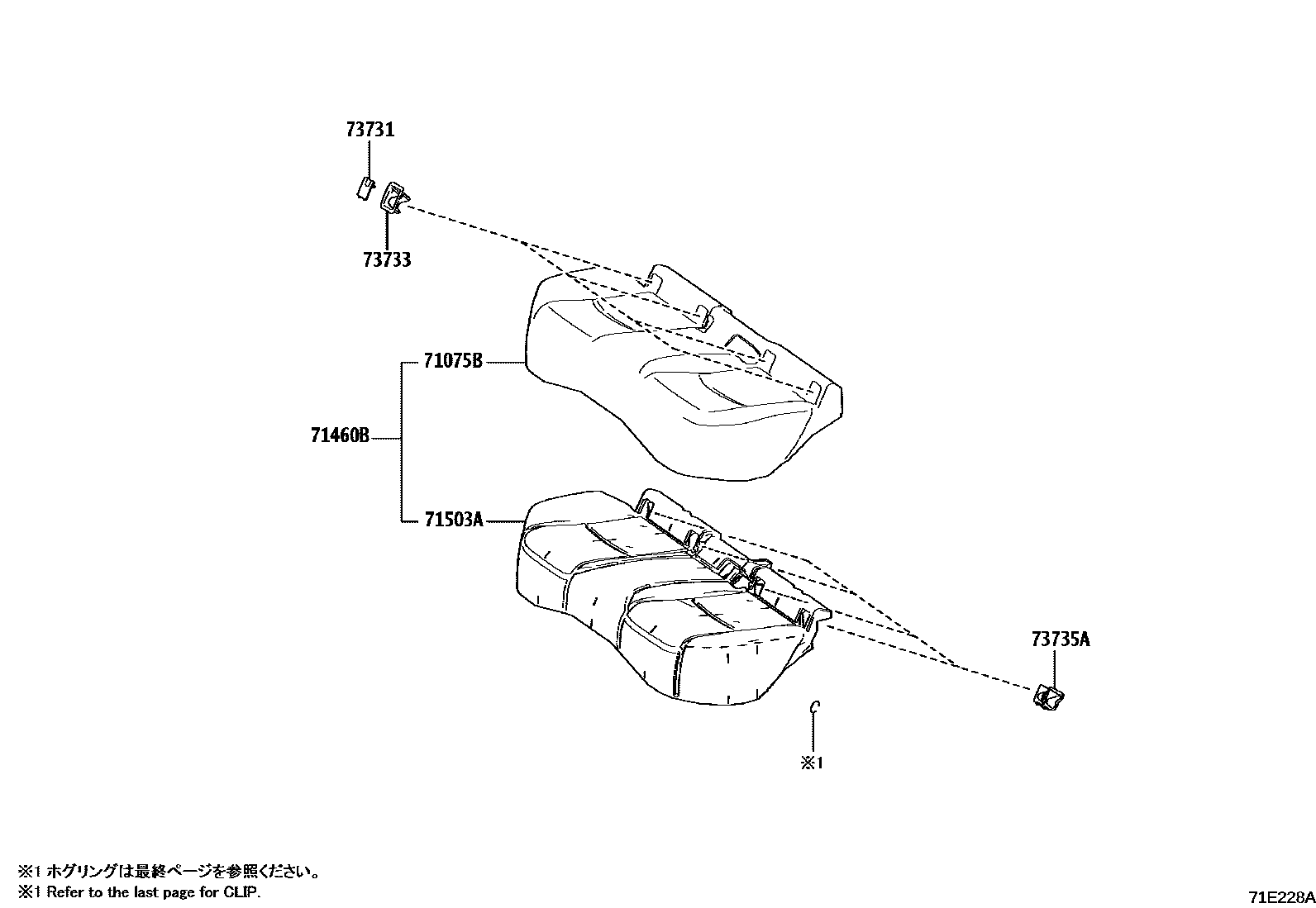

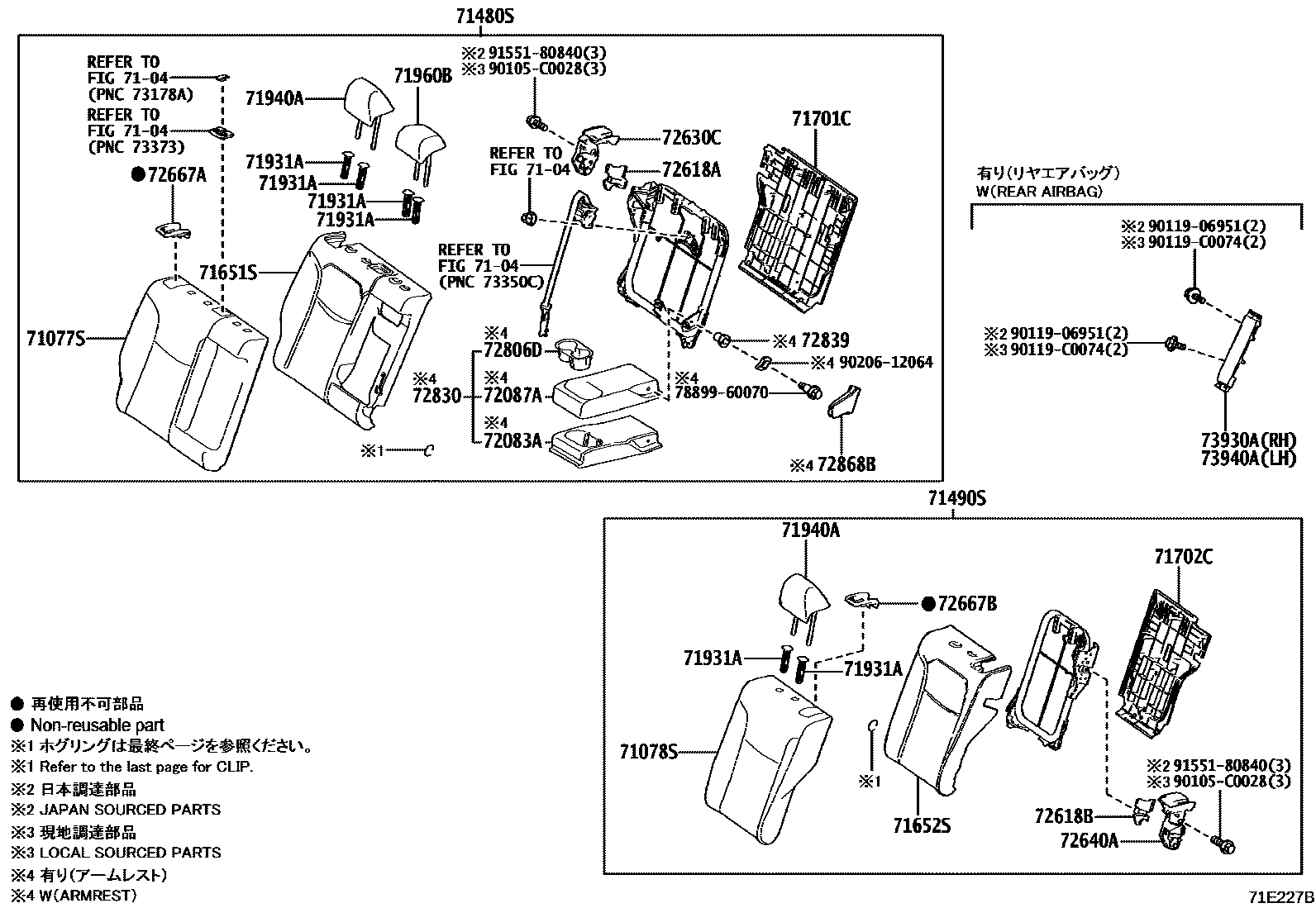

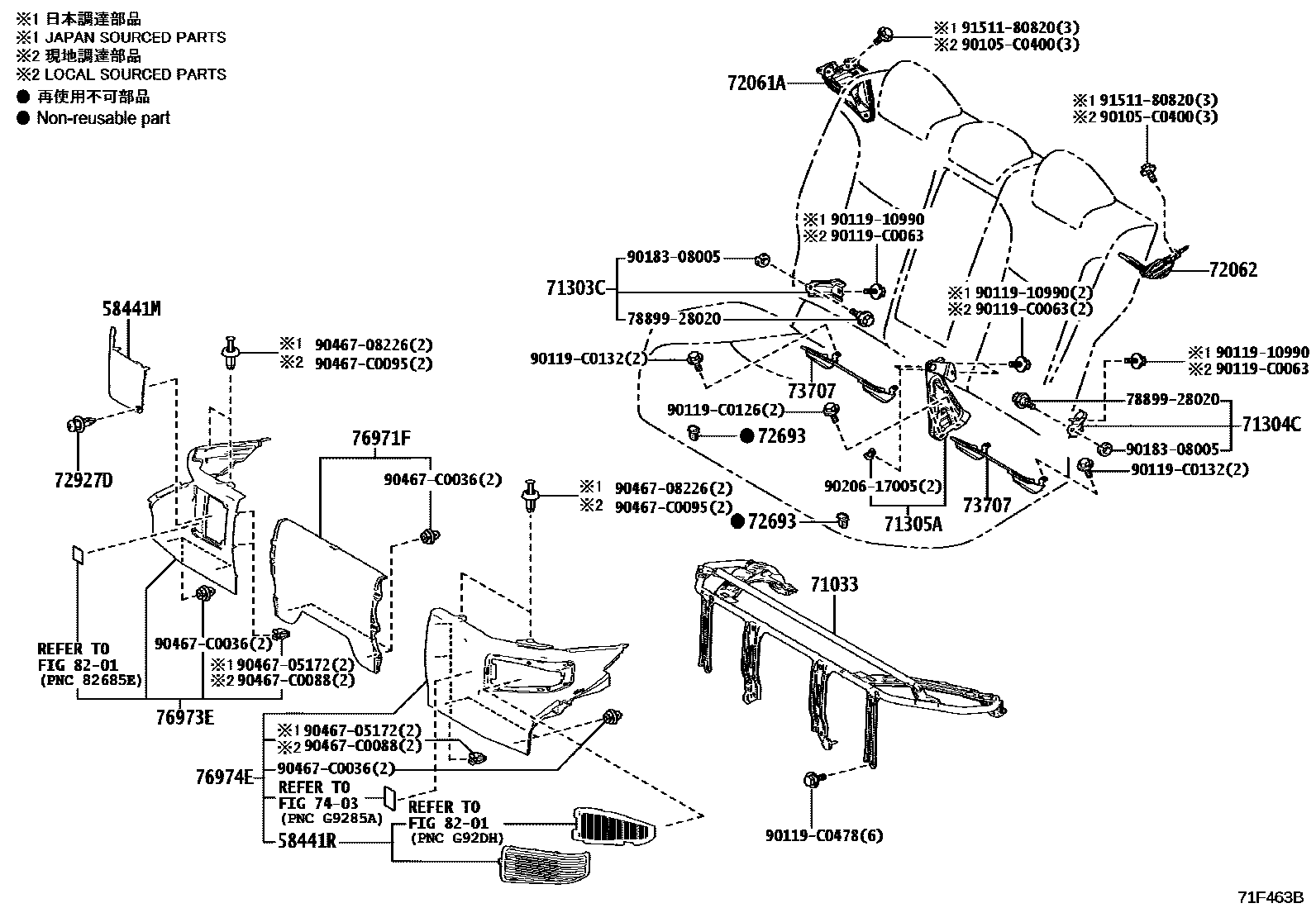

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71033 | Rear seat cushion and leg sub-assembly | 71033-02090 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-YK130 · 71075-YK150 |
| 71077S | Right rear seat back cover (for split seats) | 71077-YK150 |
| 71078S | Rear left seat back cover (for split seats) | 71078-YK080 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-F4030 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-F4030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-0A080 |
| 71480S | Rear right seat back assembly (for split seats) | 71480-YK150 |
| 71490S | Rear left seat back assembly (for split seats) | 71490-YK080 |
| 71503A | Rear seat cushion sub-assembly | 71503-0A111 · 71503-0A180 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0A080 · 71651-0A090 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0A050 |
| 72061A | Rear right seat back lock base sub-assembly | 72061-0A050 |
| 72062 | Rear left seat back lock base sub-assembly | 72062-0A050 |
| 72083A | Rear seat center armrest pad sub-assembly | 72083-0A050 |
| 72693 | Rear seat cushion hook | 72693-02030 · 72693-12080 |
| 72839 | Rear seat armrest hinge gasket | 72839-22010 |
| 73707 | Child restraint seat inner anchor bracket sub-assembly | 73705-0A120 |
| 73930A | Rear right seat airbag assembly | 73930-0A030 |
| 73940A | Rear left seat air bag assembly | 73940-0A030 |
