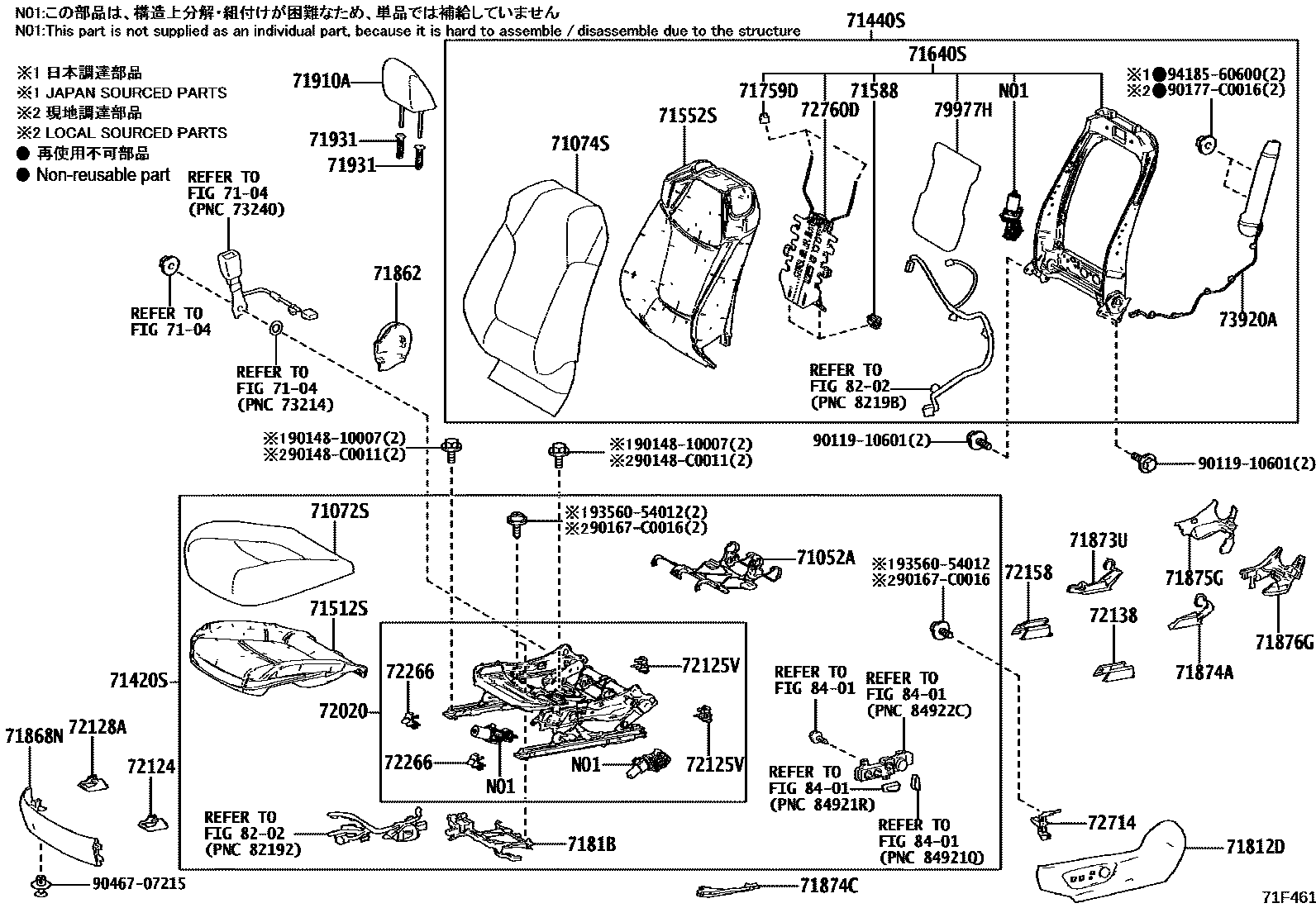

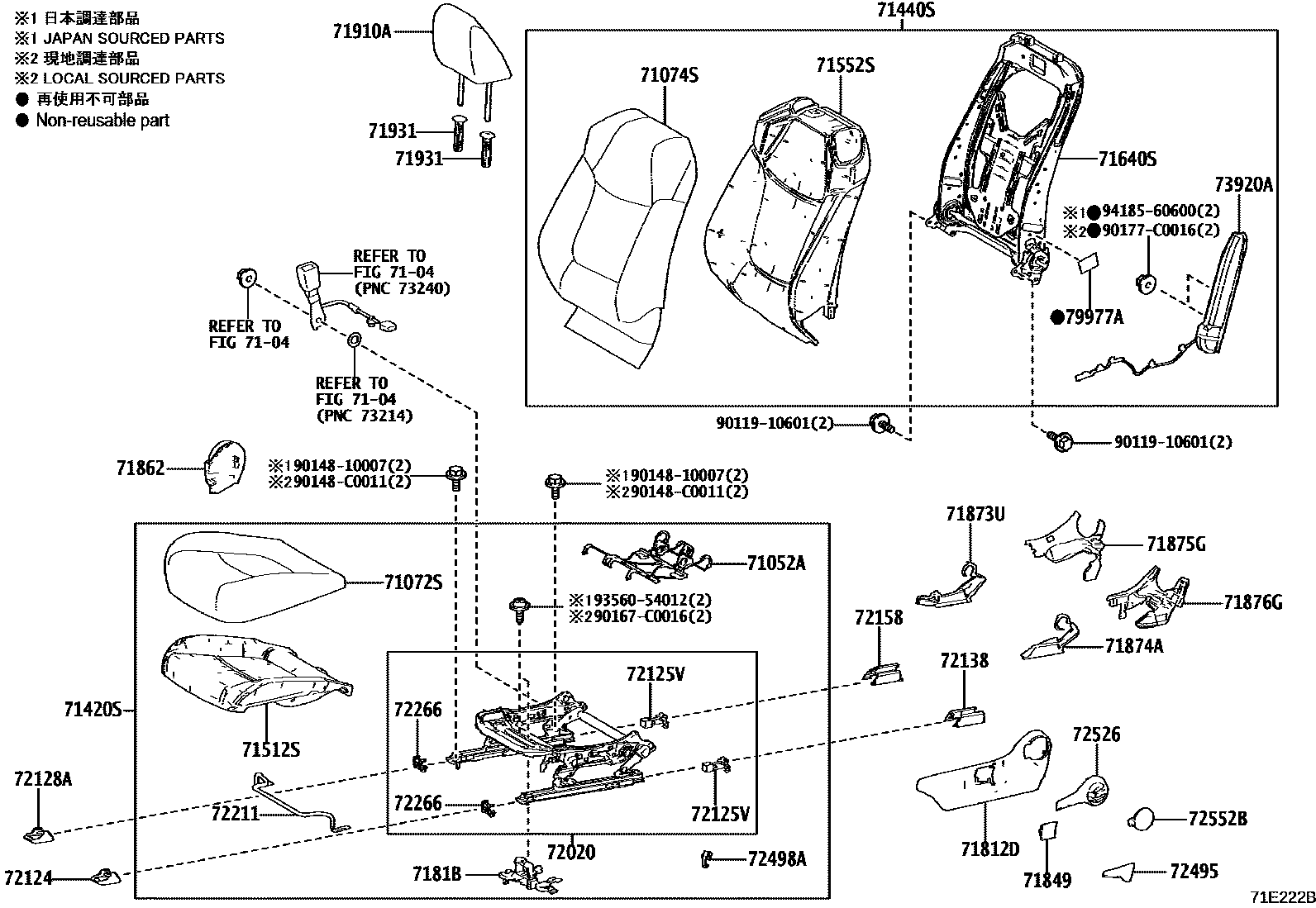

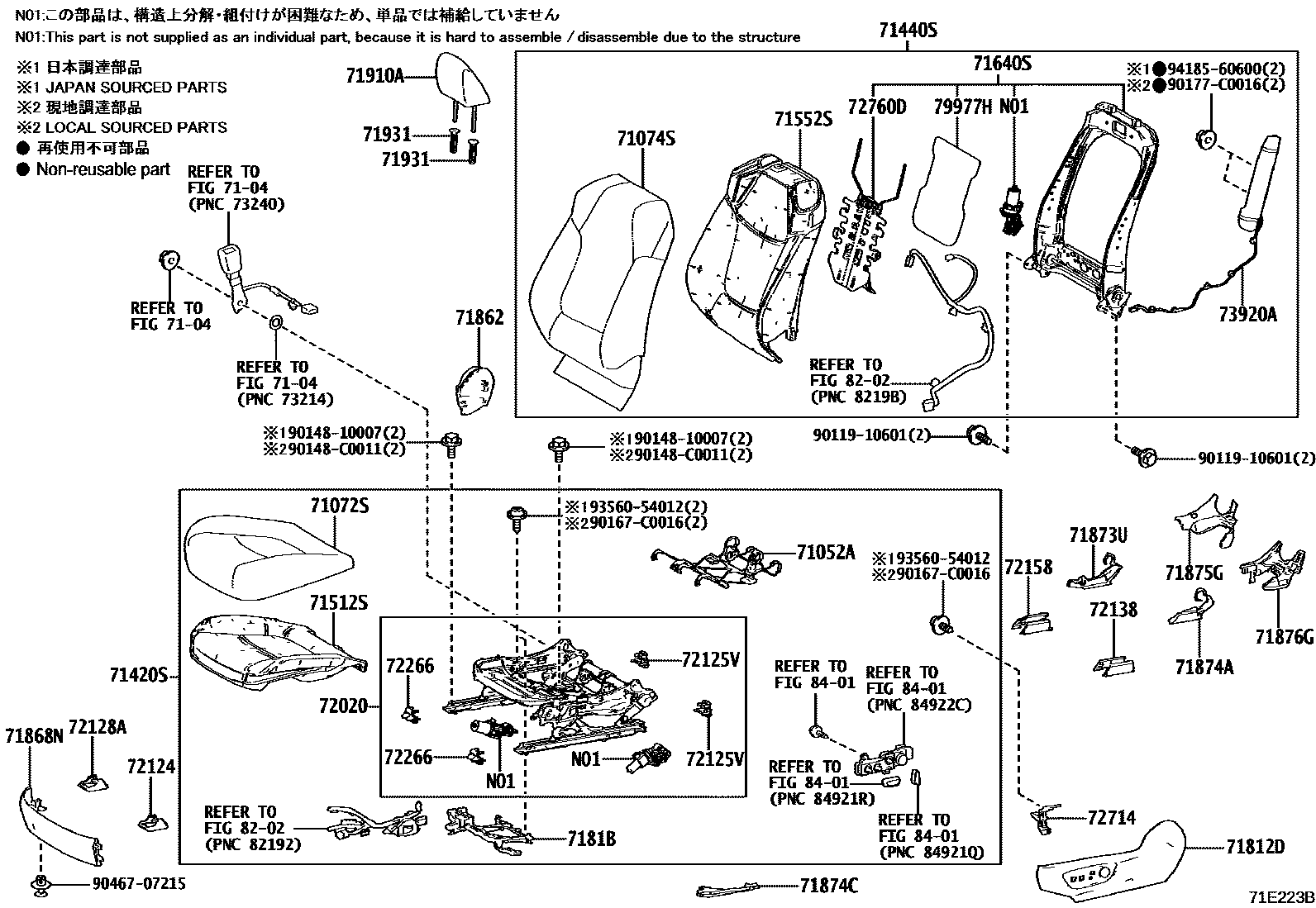

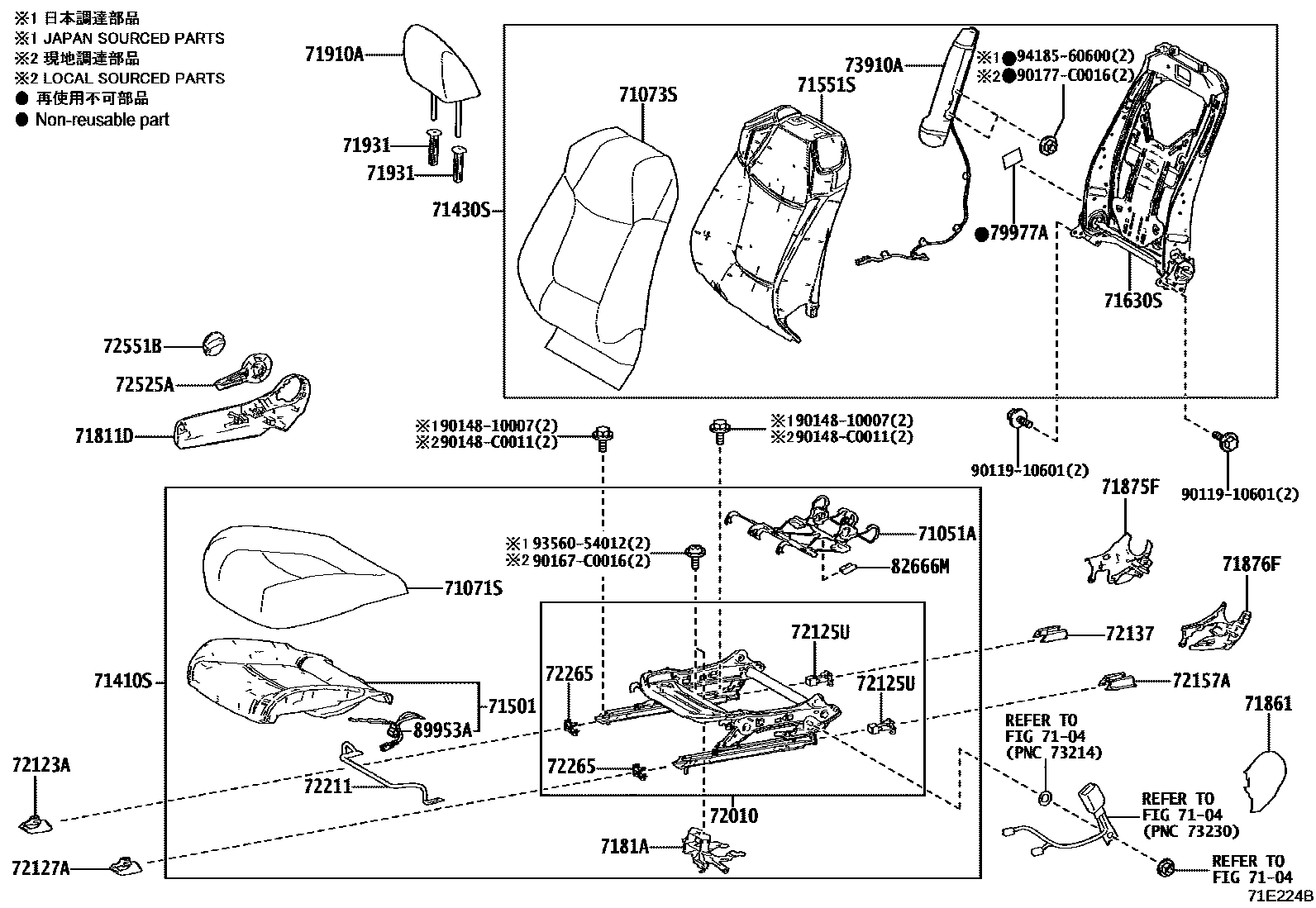

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051A | Front right seat cushion spring sub-assembly | 71051-06040 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06040 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-YK120 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-YK120 |
| 71073S | Front right seat back cover (for split seats) | 71073-YK130 |
| 71074S | Front left seat back cover (for split seats) | 71074-YK120 |
| 71410S | Front right seat cushion assembly (for split seats) | 71410-YK110 |
| 71420S | Front left seat cushion assembly (for split seats) | 71420-YK110 |
| 71430S | Front right seat back assembly (for split seats) | 71430-YK110 |
| 71440S | Front left seat back assembly (for split seats) | 71440-YK120 |
| 71501 | Front right seat cushion sub-assembly | 71501-0A050 · 71501-0A070 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0A090 · 71512-0A100 · 71512-0A230 · 71512-0A240 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02F40 · 71551-0A170 |
| 71552S | Front left seat back cushion (for split seats) | 71552-02D00 · 71552-0A200 |
| 71588 | Front seat back edge protective cover No. 2 | 71587-F4020 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02B50 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02C50 · 71640-02D20 · 71640-0A140 |
| 71759D | Front seat back hook 2 | 71759-F4020 |
| 7181A | Front right seat cushion harness holder | 7181A-F4030 |
| 7181B | Front left seat cushion harness holder | 7181B-07020 · 7181B-F4030 |
| 72010 | Front right seat adjuster assembly | 72010-07040 · 72010-0R070 |
| 72020 | Front left seat adjuster assembly | 72020-02A80 · 72020-07052 · 72020-0A080 · 72020-0R220 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-F4030 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-F4030 |
| 72125U | Slide rail cover on right rear seat | 72125-F4010 |
| 72125V | Slide rail cover on left rear seat | 72125-F4010 · 72125-F4020 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-F4030 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-F4030 |
| 72137 | Right seat outer slide rail cover | 72137-F4020 |
| 72138 | Left seat outer slide rail cover | 72137-F4020 |
| 72157A | Right seat inner slide rail bracket cover | 72157-F4020 |
| 72158 | Left seat inner slide rail bracket cover | 72158-F4020 |
| 72211 | Seat slide adjustment handle | 72211-06140 |
| 72265 | Right seat rail upper rail cover | 72265-F4010 |
| 72266 | Left seat rail upper rail cover | 72265-07020 · 72265-F4010 |
| 72498A | Left height adjuster bracket cover | 72498-F4040 |
| 72714 | Left seat adjuster protective clip bracket | 72714-07010 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 |
| 73910A | Front right seat airbag assembly | 73910-02400 |
| 73920A | Front left seat airbag assembly | 73920-02370 |
| 79977A | Seat back felt pad | 79977-02130 |
| 79977H | Felt pad, left side of front seat backrest | 79977-06080 · 79977-33030 |
| 82666M | Connector holder | 82666-07300 |
| 89953A | Seat Belt Warning Occupant Detection Sensor | 89953-06070 |
