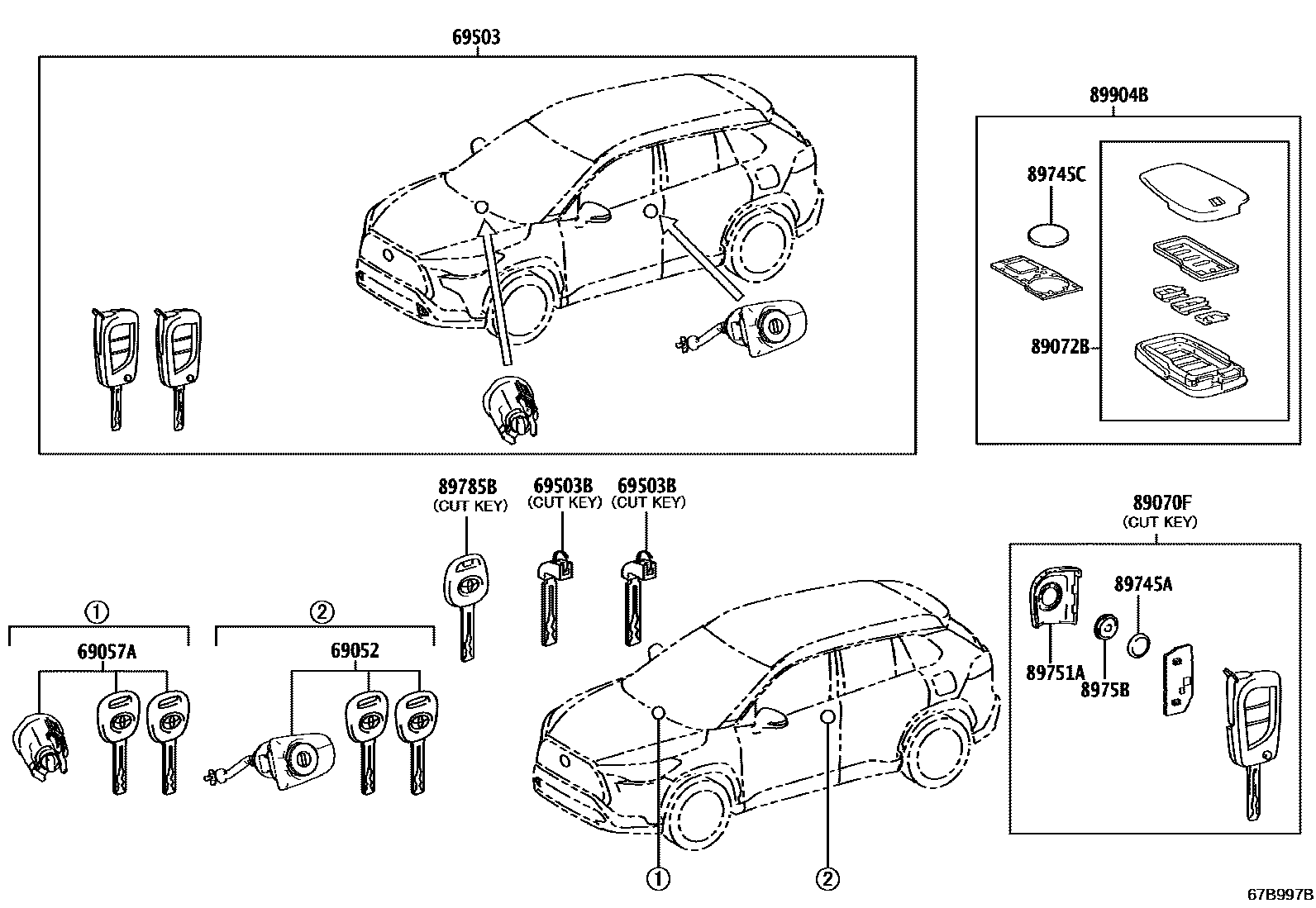

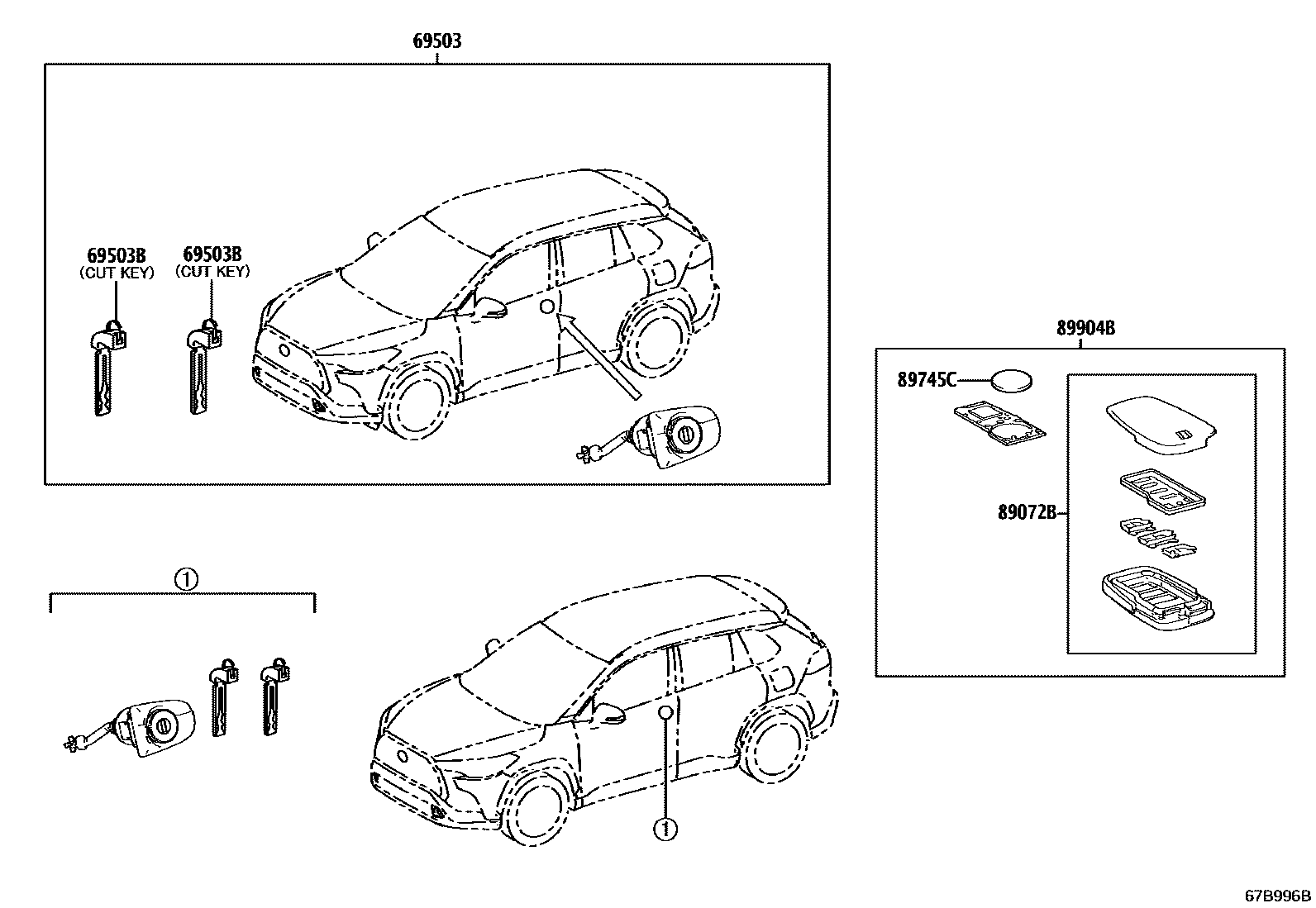

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-0A070 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0A020 |
| 69503 | Door lock cylinder components | 69005-0A100 · 89704-0A080 |
| 69503B | internal tooth key | 69515-0R160 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0R330 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0A100 · 89072-0A110 · 89072-0A220 · 89072-0A230 · 89072-0A240 · 89072-0A250 |
| 89745A | Transmitter battery | 89745-06010 |
| 89745C | Transmitter battery | 89745-12020 · 89745-50020 · 89745-K0010 |
| 89751A | Transmitter housing cover | 89751-06130 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785B | transceiver key master transmitter | 89785-28070 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-0A100 · 8990H-0A110 · 8990H-0A220 · 8990H-0A221 · 8990H-0A230 · 8990H-0A231 · 8990H-0A240 · 8990H-0A241 · 8990H-0A250 · 8990H-0A251 |
