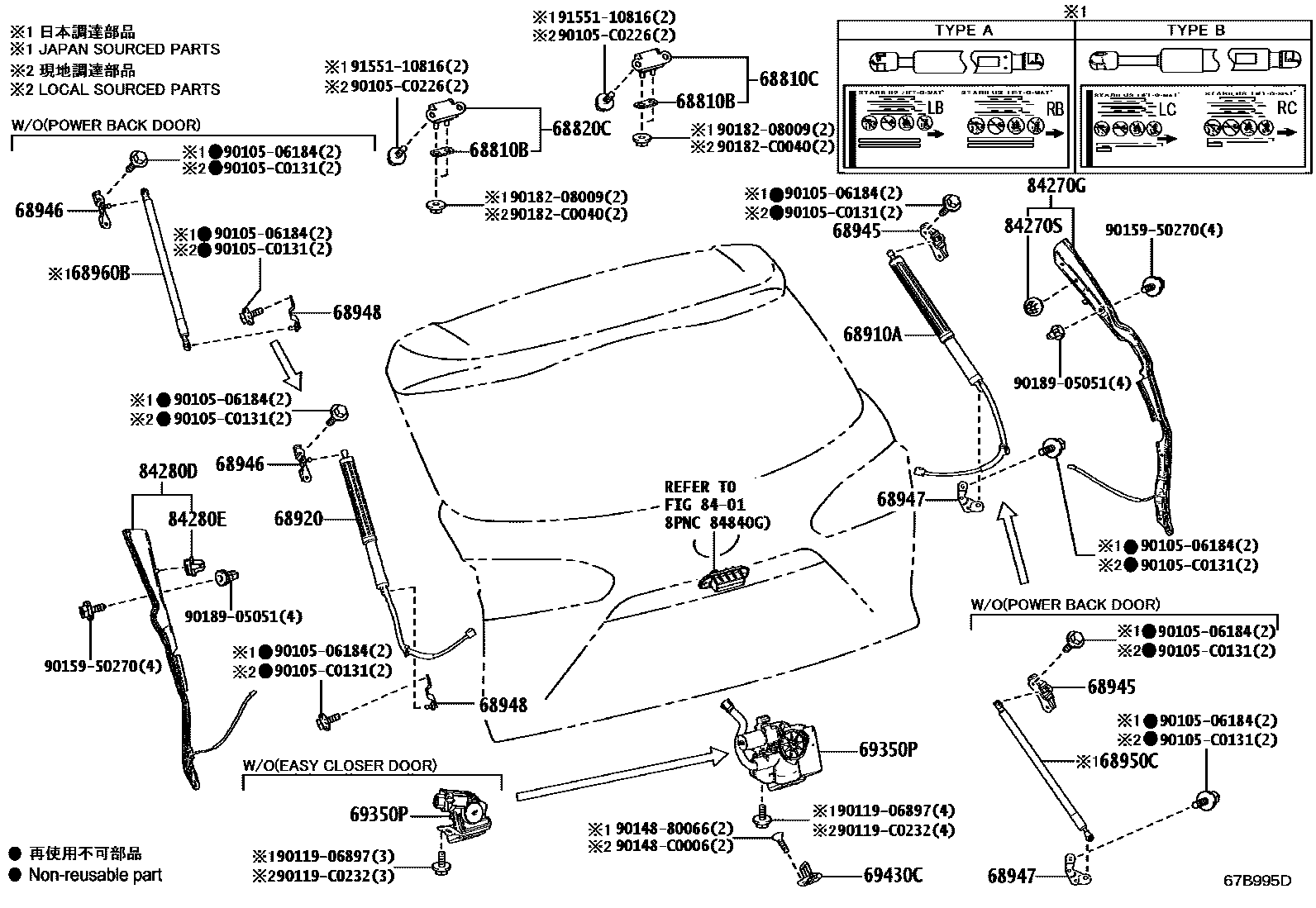

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810B | Back door hinge gasket | 68838-F4070 · 68838-F4080 · 68838-F4090 |
| 68810C | Back door right hinge assembly | 68810-0A120 |
| 68820C | Back door left hinge assembly | 68810-0A120 |
| 68910A | Right rear door electric unit assembly assembly | 68910-0A040 |
| 68920 | Left rear door electric unit assembly assembly | 68920-0A040 |
| 68945 | Back door right damping stay upper bracket | 68945-0A080 · 68945-0A090 |
| 68946 | Rear door left damping strut upper bracket | 68946-0A080 · 68946-0A090 |
| 68947 | Back door right damping strut lower bracket | 68947-0A080 |
| 68948 | Rear door left damping strut lower bracket | 68948-0A100 |
| 68950C | Back door right support rod assembly | 68950-0A060 · 68950-0A061 · 68950-0A080 |
| 68960B | Back door left support rod assembly | 68960-0A060 · 68960-0A061 · 68960-0A080 |
| 69350P | Back door with door control light switch lock assembly | 69350-0A080 · 69350-0A090 |
| 69430C | Back door lock assembly | 69430-F4030 |
| 84270G | Electric back door right side sensor assembly | 84270-0A040 |
| 84270S | Catch (sensor on the right side of the electric back door) | 75898-0E010 |
| 84280D | Electric back door left sensor assembly | 84280-0A040 |
| 84280E | Catch (electric back door left sensor) | 75898-0E010 |
