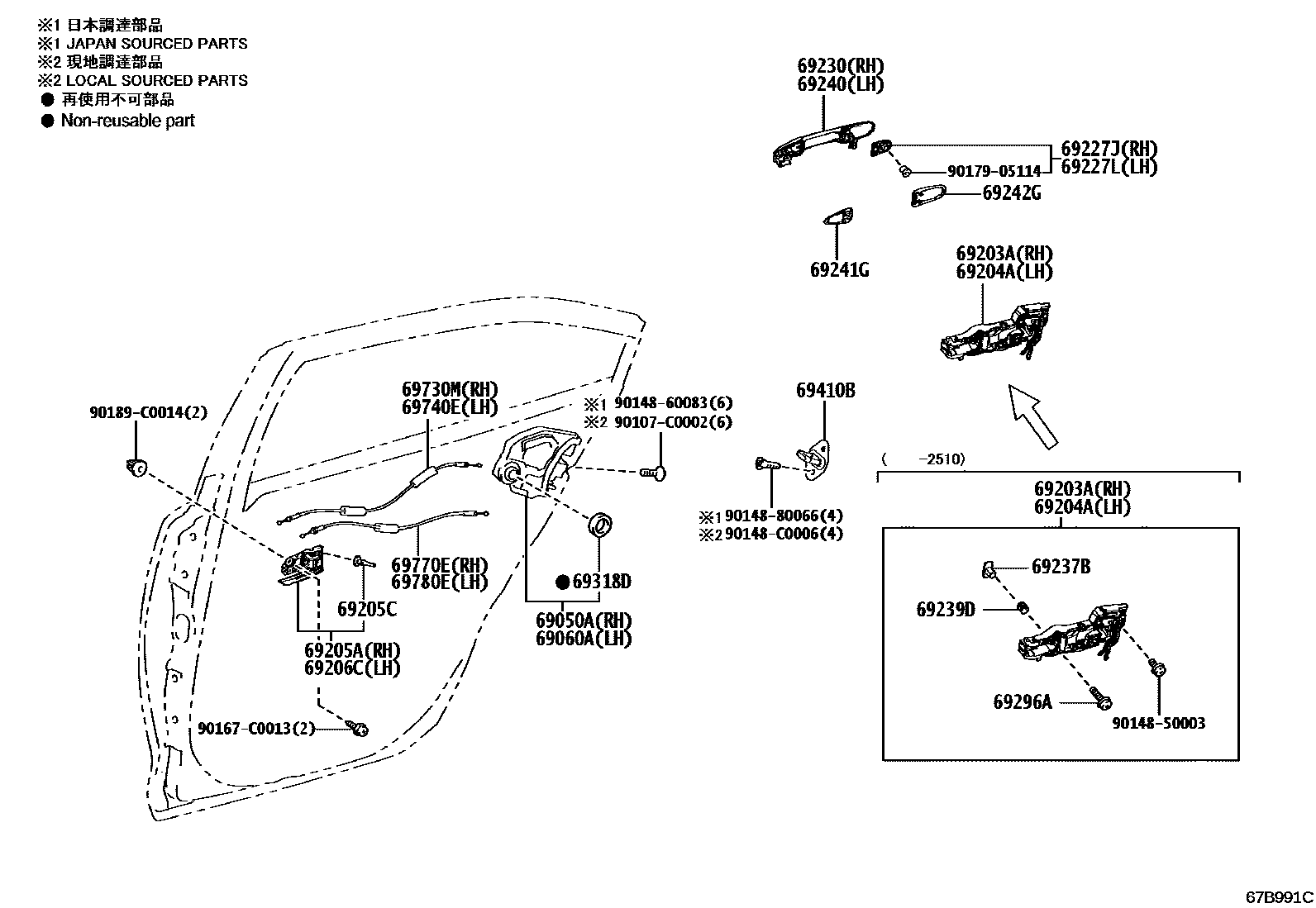

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69050-02490 · 69050-02570 |
| 69060A | Left rear door lock assembly with motor | 69060-02490 · 69060-02570 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0A050 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0A050 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69227J | Right rear door outer handle cover | 69227-07030 |
| 69227L | Left rear door outer handle cover | 69227-07030 |
| 69237B | Rear door handle nut | 69237-06030 |
| 69239D | Rear door handle bushing | 69239-07030 |
| 69241G | Rear door front exterior handle pad | 69241-07020 |
| 69242G | Rear door rear outer handle pad | 69242-07020 |
| 69296A | Car door inner handle screws | 90148-C0013 |
| 69318D | door lock harness seal | 69318-02040 · 69318-47010 |
| 69410B | Rear door lock plate assembly | 69410-0D020 |
| 69730M | Right rear door lock remote control cable (for opening lever) | 69730-0A050 |
| 69740E | Left rear door lock remote control cable (for opening lever) | 69730-0A050 |
| 69770E | Right rear door inner locking cable (for locking/unlocking handle) | 69770-0A050 |
| 69780E | Left rear door inner lock cable (for locking/unlocking handle) | 69770-0A050 |
