Toyota COROLLA 底板和底板装饰罩 — Figure 6404

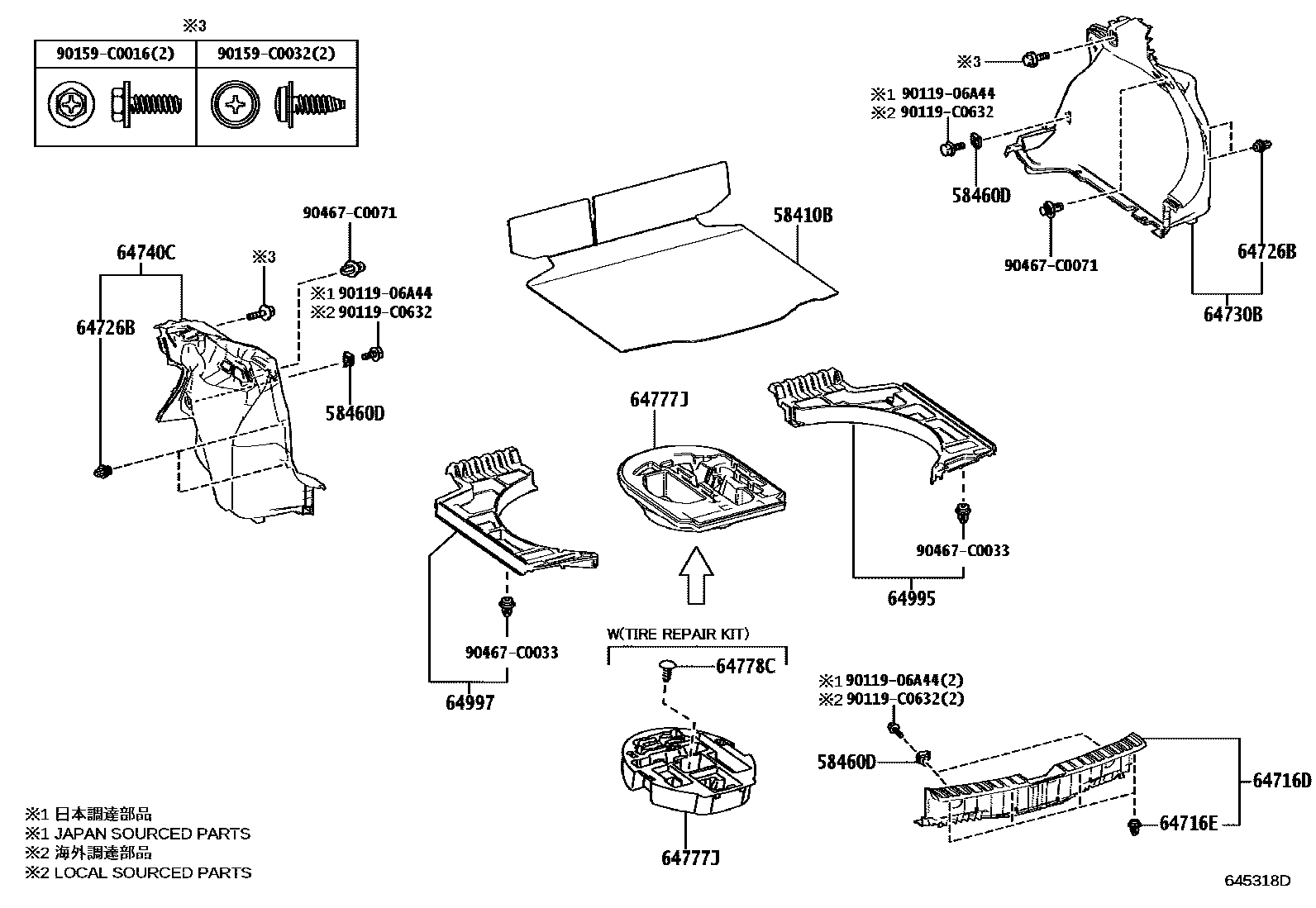

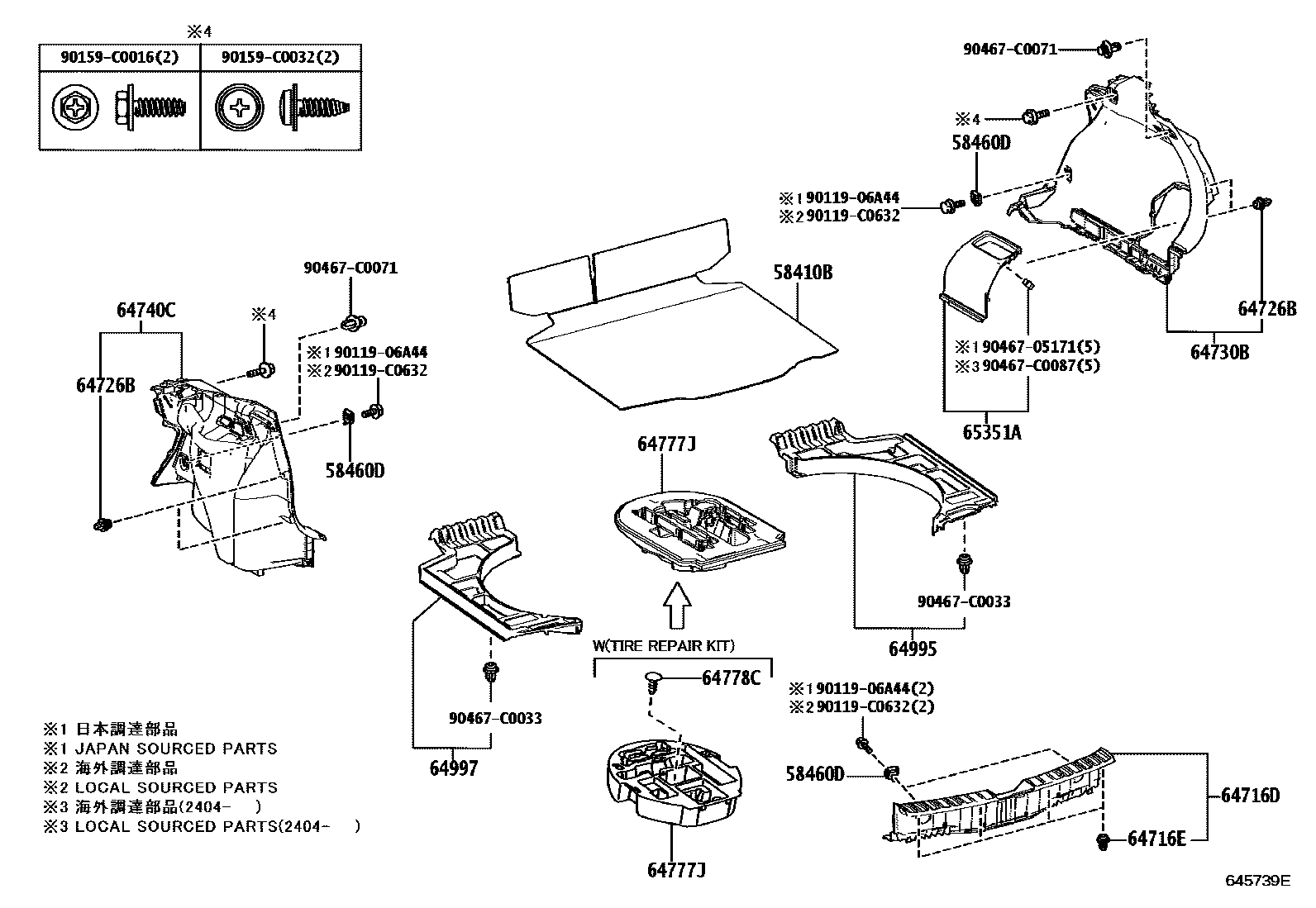

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 64716E | Clip (for rear floor decorative cover) | 90467-C0036 |
| 64726B | Rear floor panel decorative parts clip | 90467-C0036 |
| 64777J | Spare tire cushion | 64777-0A080 · 64777-0A081 · 64777-0A170 |
| 64778C | Spare tire cover protection device | 64778-52160 |
