Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 2 PNC and OE references.

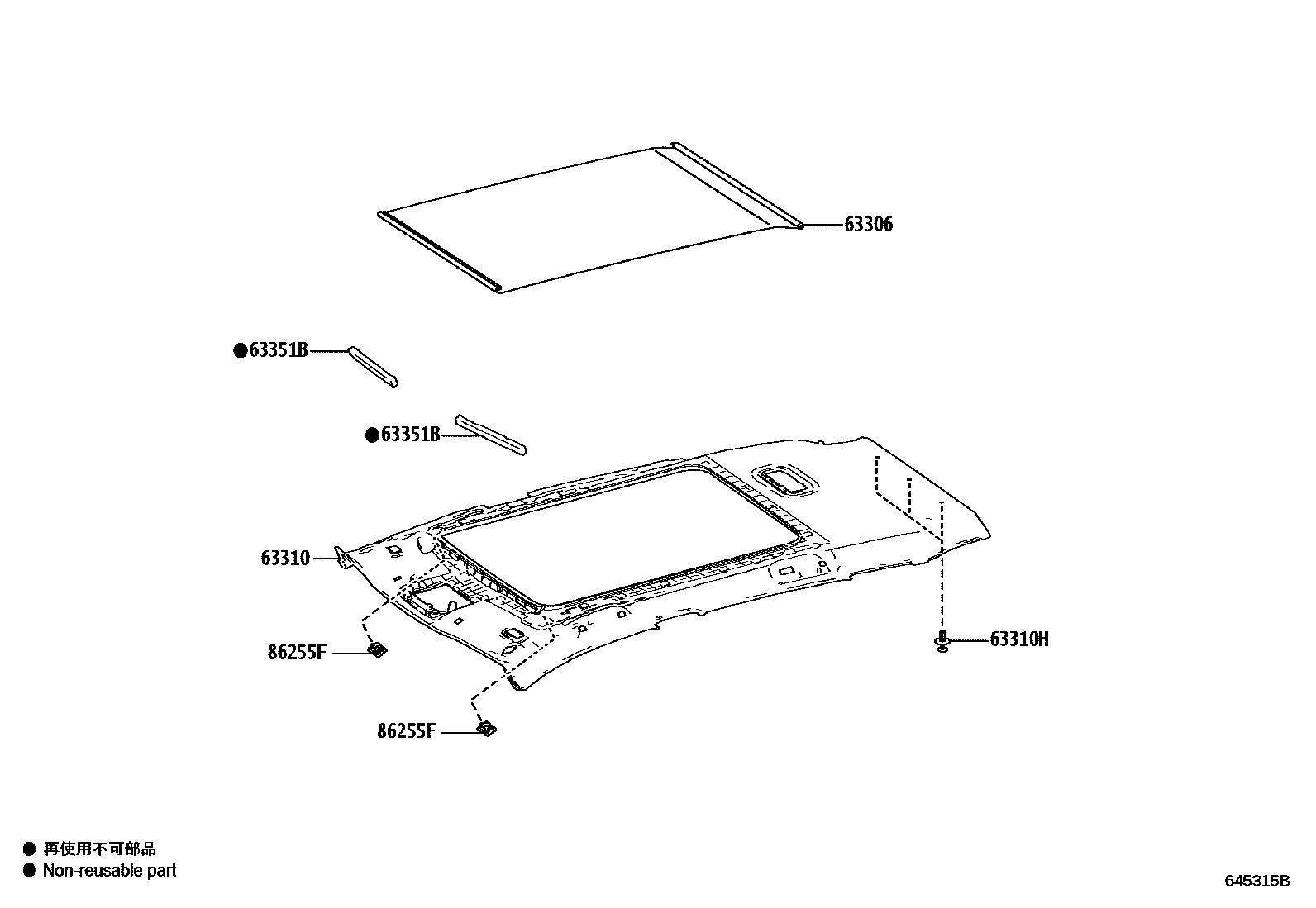

Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 645315B
车顶内衬和消声垫 — 645315B (202201 – 999999)

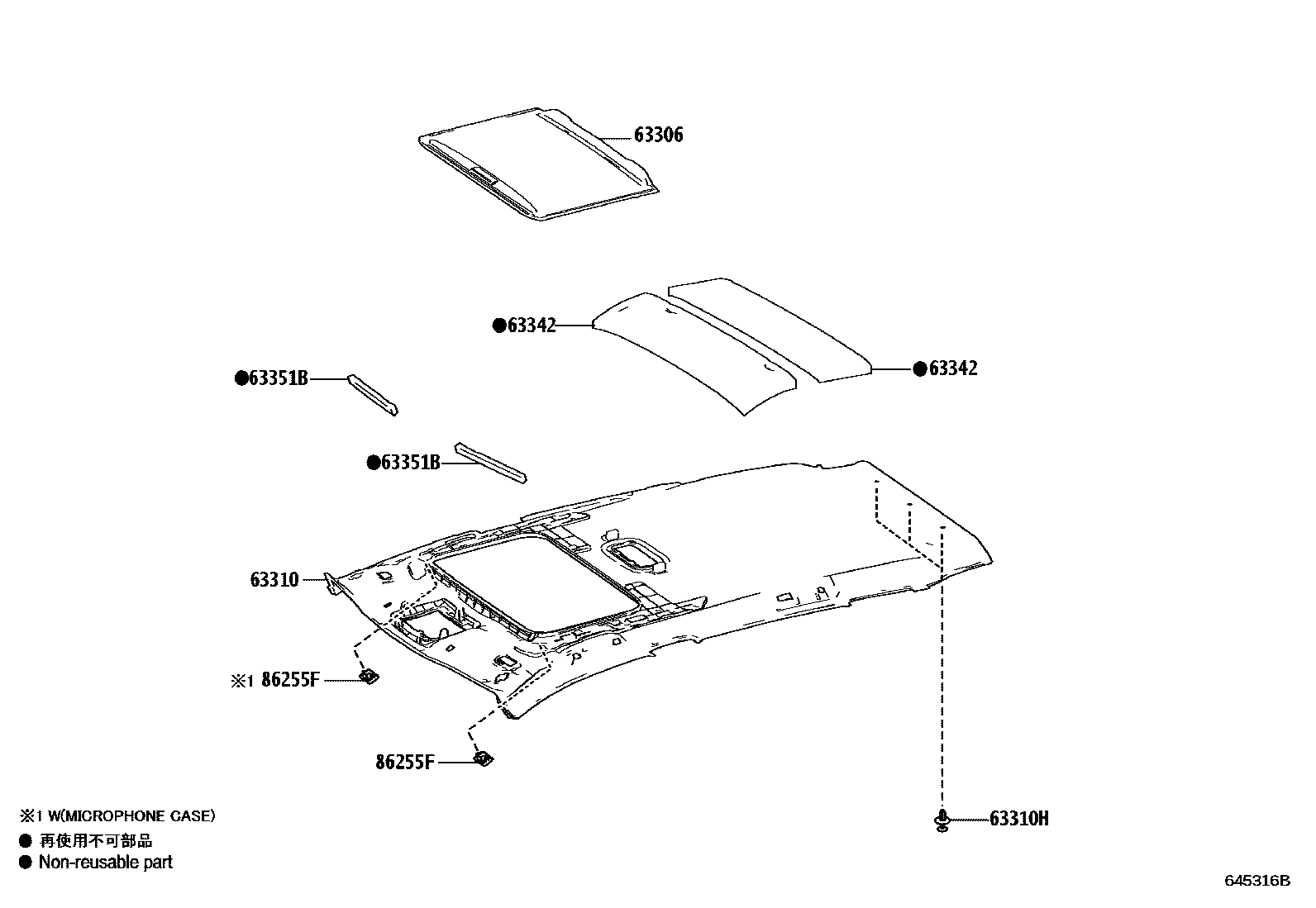

Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 645316B
车顶内衬和消声垫 — 645316B (202201 – 999999)
Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 645317B
车顶内衬和消声垫 — 645317B (202201 – 999999)

PNC and OE references

PNCPart nameOE numbers
63342No. 2 roof muffler pad63342-0A150
63351Broof lining pads63351-0A020
