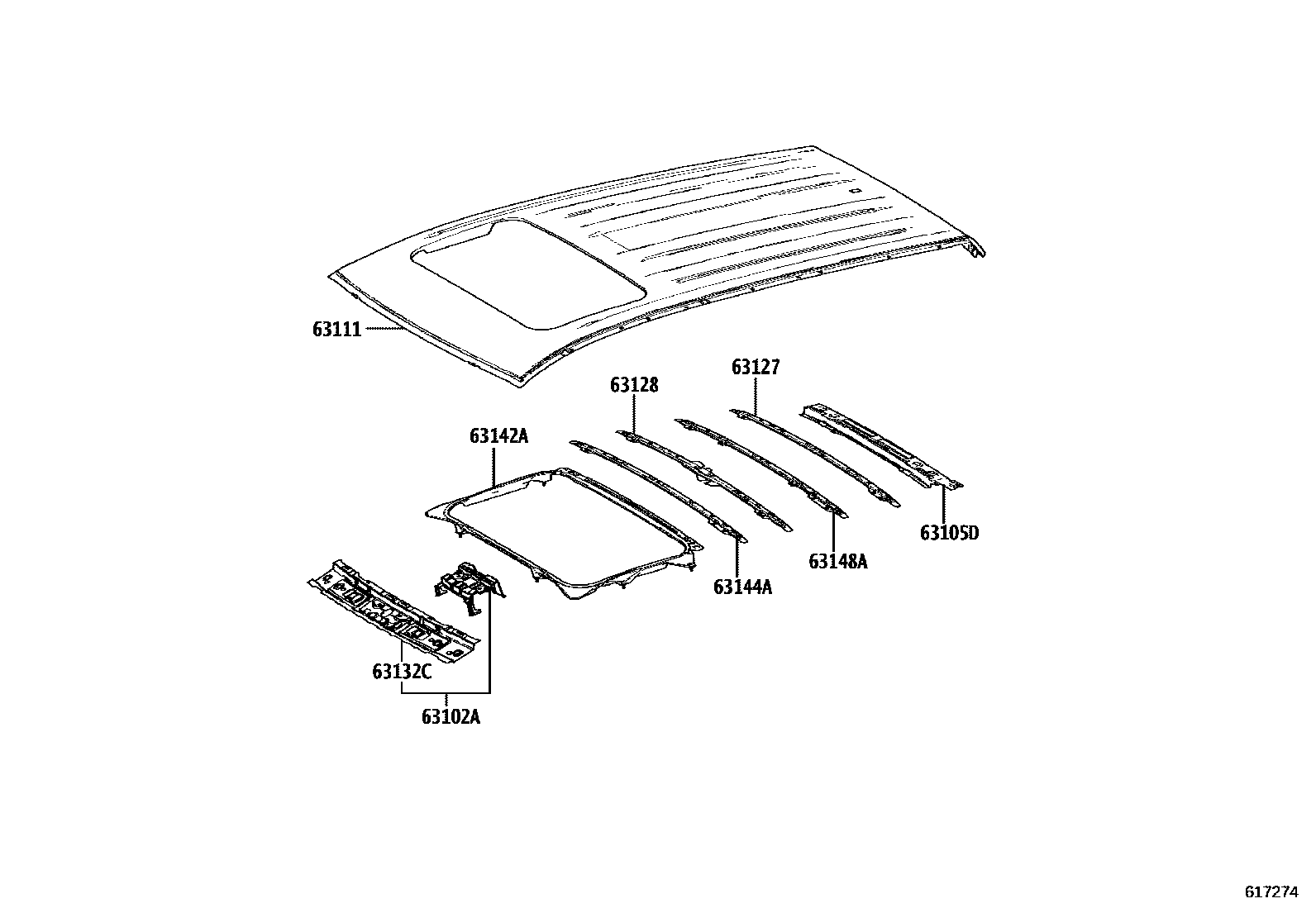

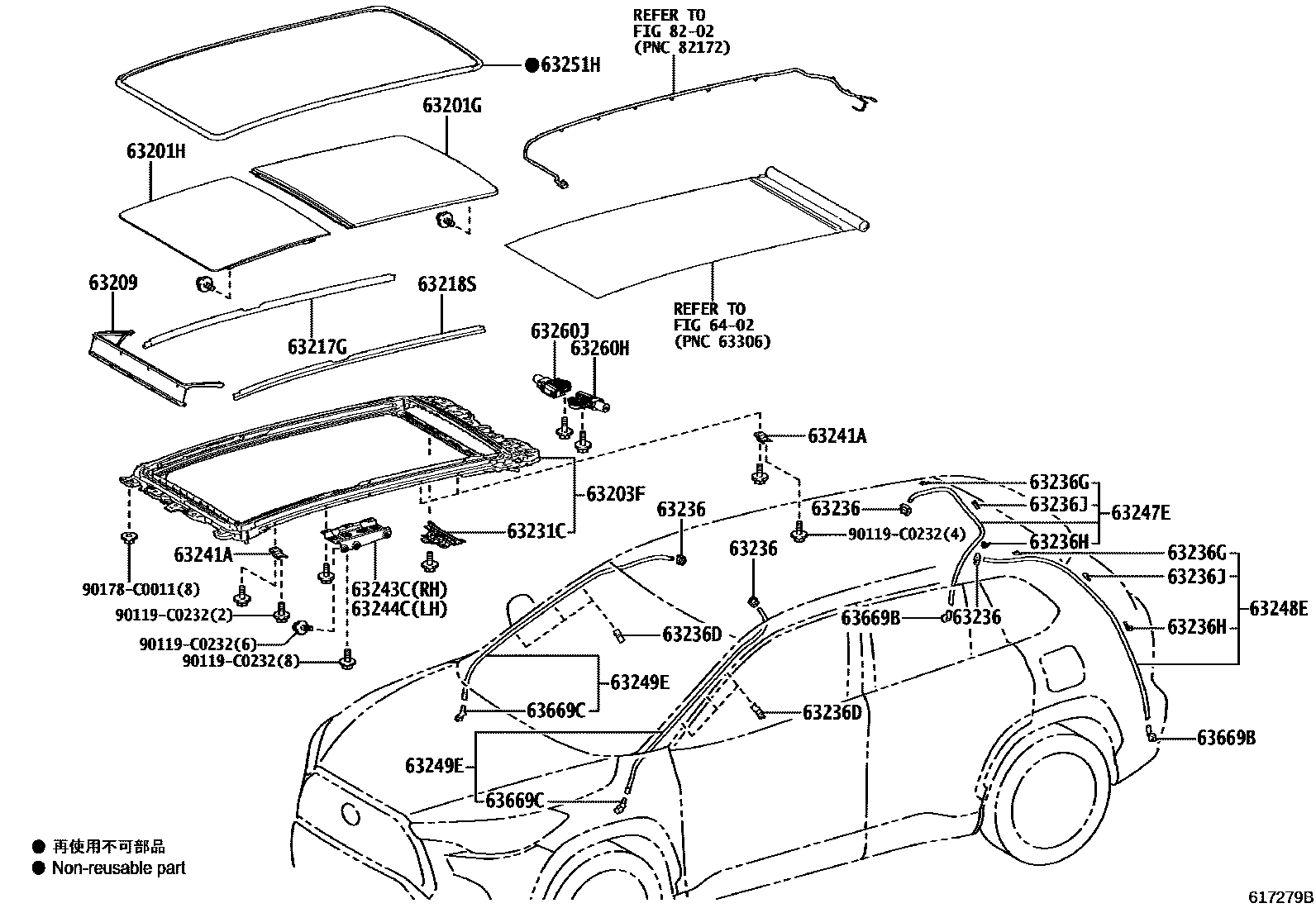

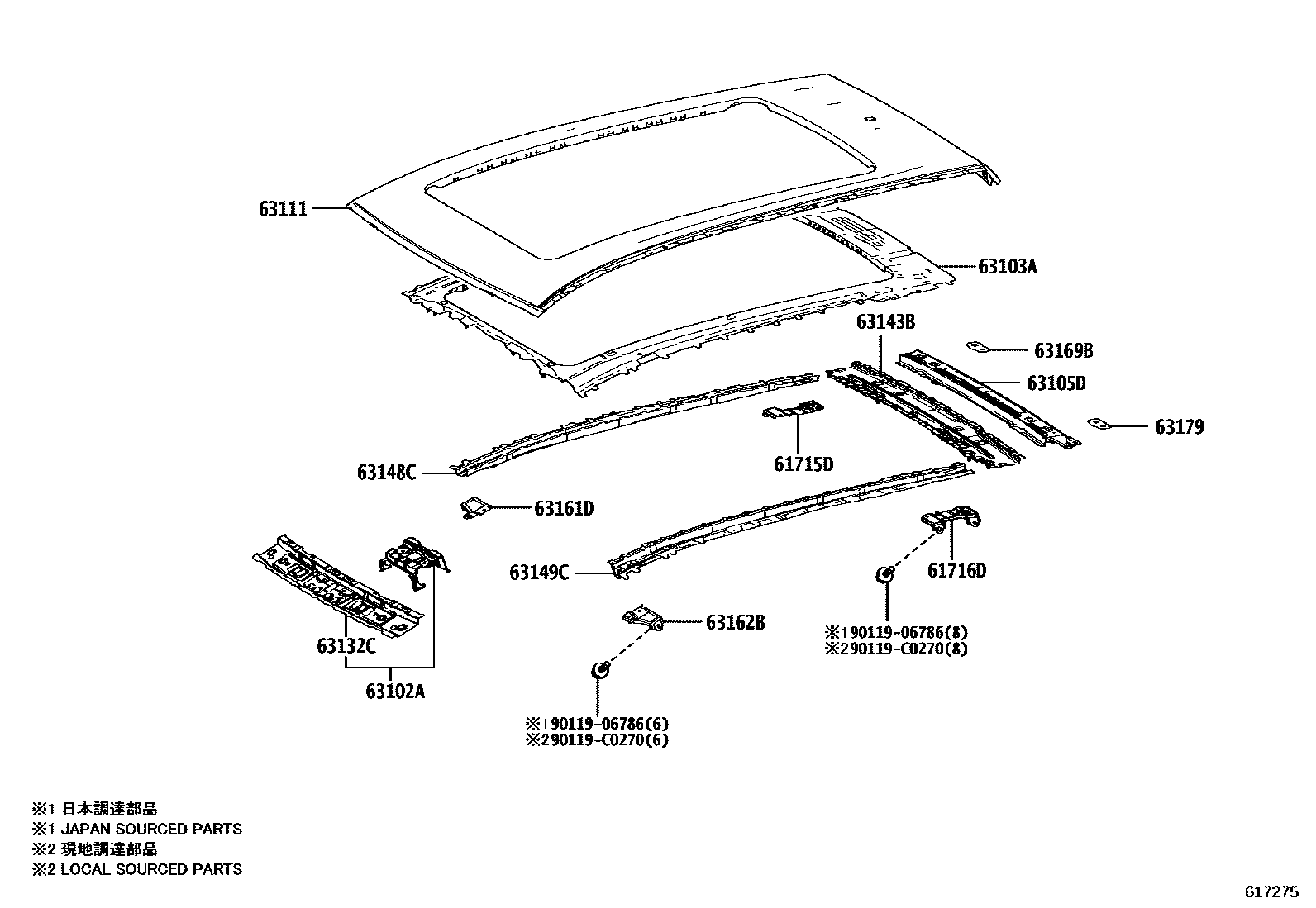

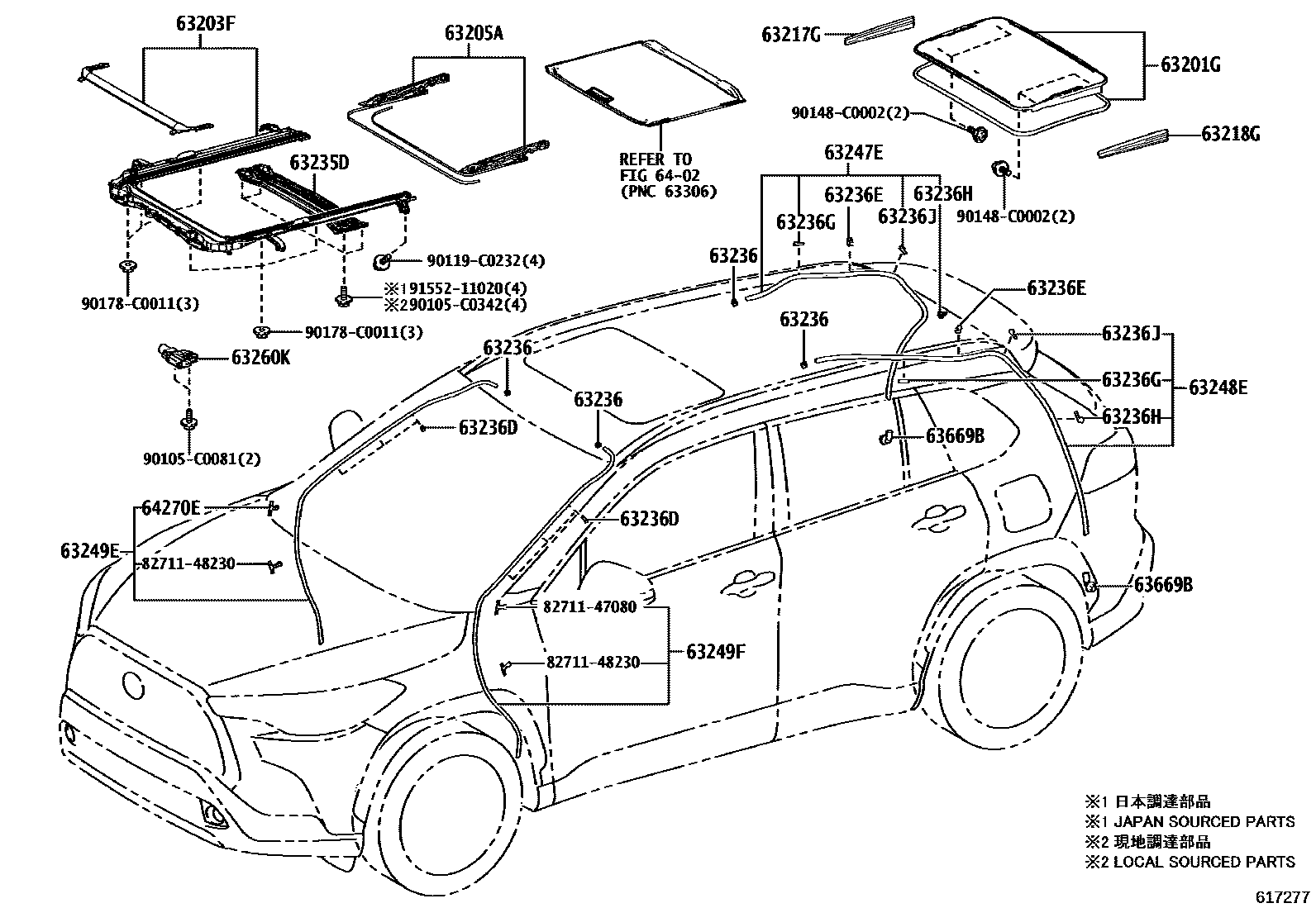

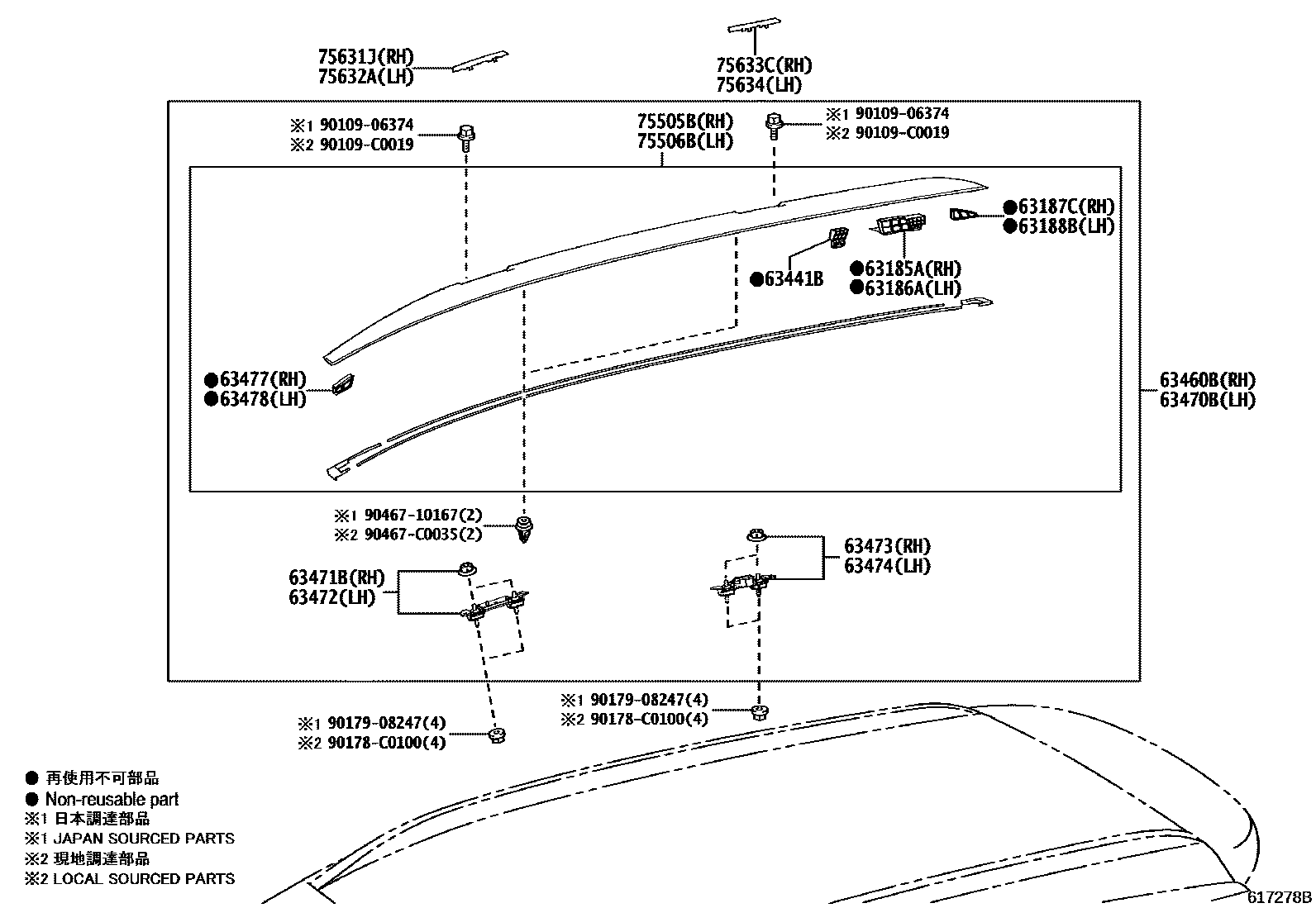

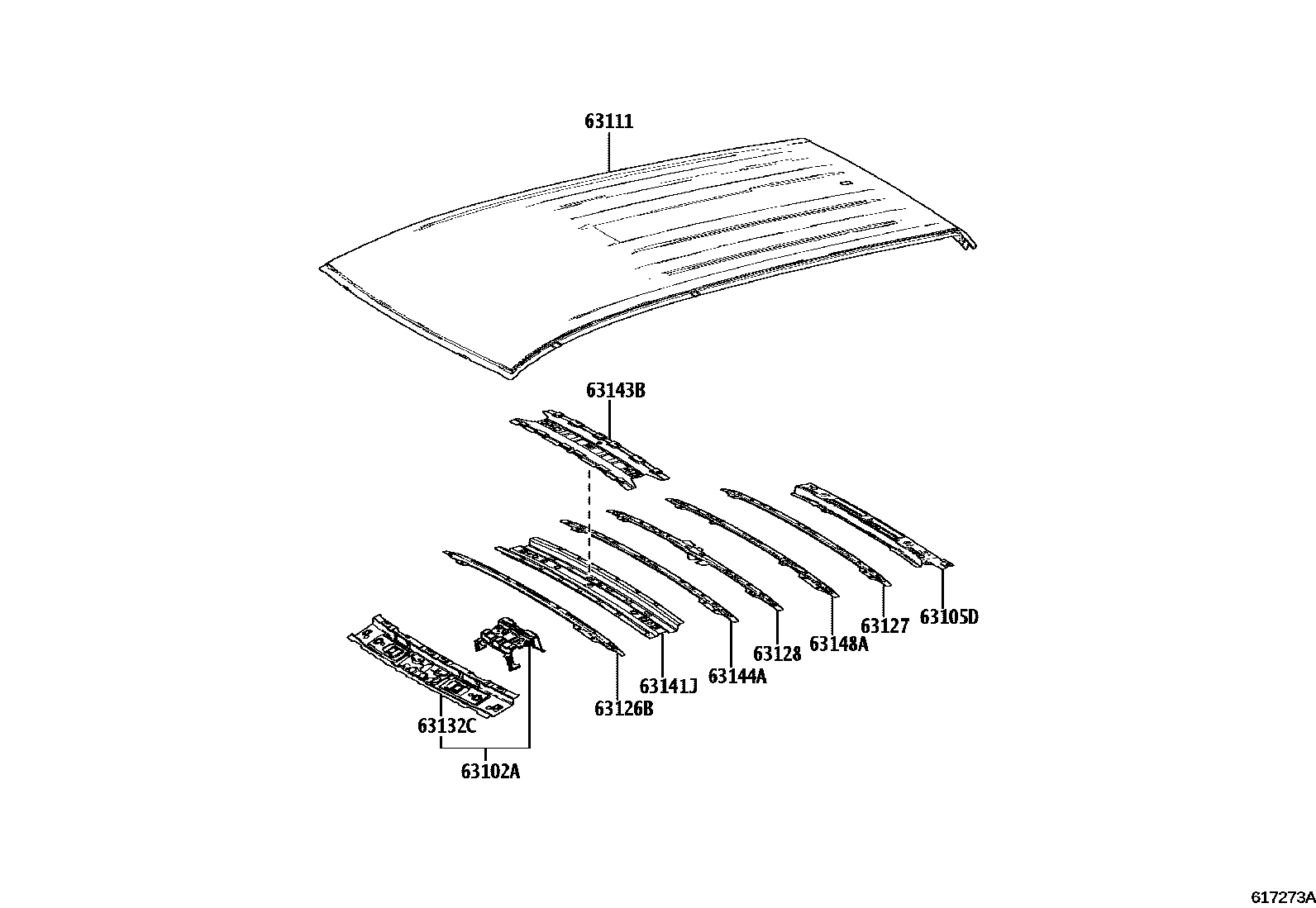

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 6 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61715D | Right front roof inner extension | 61715-0A010 |
| 61716D | Left front roof inner extension | 61716-0A010 |
| 63102A | Windshield roof sub-assembly | 63102-0A090 · 63102-0A100 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-0A050 |
| 63105D | Rear window upper frame sub-assembly | 63105-0A030 |
| 63111 | roof panel | 63111-0A020 · 63111-0A030 · 63111-0A040 · 63111-0A180 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-0A020 |
| 63127 | No. 5 roof panel reinforcement | 63127-0A020 |
| 63128 | No. 6 roof panel reinforcement | 63128-0A020 |
| 63132C | Windshield inner roof panel | 63132-0A040 |
| 63141J | Roof panel reinforcement | 63141-0A030 |
| 63142A | No. 2 roof panel reinforcement | 63142-0A030 |
| 63143B | No. 3 roof panel reinforcement | 63143-0A020 · 63143-0A030 |
| 63144A | No. 4 roof panel reinforcement | 63144-0A020 |
| 63148A | No. 7 roof panel reinforcement | 63148-0A020 |
| 63148C | Right roof panel reinforcement | 63148-0A030 |
| 63149C | Left roof panel reinforcement | 63149-0A010 |
| 63161D | No. 1 roof panel | 63161-0A010 |
| 63162B | No. 2 roof panel | 63162-0A010 |
| 63169B | Right roof panel reinforcement panel | 63169-F4040 |
| 63179 | Left roof panel reinforcement panel | 63179-F4040 |
| 63185A | Right front roof rack bracket | 63185-0A060 |
| 63186A | Left front roof rack bracket | 63186-0A060 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-0A060 |
| 63188B | Left rear roof rack No. 1 bracket | 63188-0A060 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-0A050 · 63201-0A070 |
| 63201H | Sliding sunroof panel sub-assembly | 63201-0A060 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-0A050 · 63203-0A080 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-02110 |
| 63209 | Roof deflector sub-assembly | 63209-0A040 |
| 63217G | Right sliding sunroof trim | 63217-07020 · 63217-0A010 |
| 63218G | Sliding sunroof trim, left | 63217-07020 |
| 63218S | Sliding sunroof trim, left | 63218-0A010 |
| 63231C | Interior light bracket | 63231-0A010 |
| 63235D | central sliding skylight frame | 63235-02090 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-02060 · 63236-33030 |
| 63236D | Sliding skylight drain hose clamp | 63236-02040 |
| 63236E | Sliding skylight drain hose clamp | 63236-42010 |
| 63236G | Sliding skylight drain hose clamp | 82711-12A80 · 82711-3A640 |
| 63236H | Sliding skylight drain hose clamp | 82711-60610 |
| 63236J | Sliding skylight drain hose clamp | 86147-30020 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-0A050 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-0A010 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63244-0A010 |
| 63247E | Right rear sliding sunroof drain hose | 63247-0A080 · 63247-0A140 |
| 63248E | Left rear sliding sunroof drain hose | 63247-0A120 · 63247-0A150 |
| 63249E | Sliding skylight drain hose | 63249-0A090 · 63249-0A130 |
| 63249F | Sliding skylight drain hose | 63249-0A100 |
| 63251H | Sliding skylight seal | 63251-0A070 |
| 63260H | Sliding sunroof driving gear assembly | 63260-0A020 · 63260-0A110 |
| 63260J | Sliding sunroof driving gear assembly | 63260-0A030 · 63260-0A120 |
| 63260K | Sliding sunroof driving gear assembly | 63260-0A080 · 63260-0A100 |
| 63441B | No. 1 roof rack bracket plate | 63441-0A060 |
| 63460B | Roof right luggage rack assembly | 62403-0A050 |
| 63470B | Roof left luggage rack assembly | 62404-0A050 |
| 63471B | Right front roof rack support | 63471-0A050 |
| 63472 | Left front roof rack support | 63472-0A050 |
| 63473 | Right rear roof rack support | 63473-0A050 |
| 63474 | Left rear roof rack support leg | 63474-0A050 |
| 63477 | Right center roof rack bracket | 63477-0A080 |
| 63478 | Left center roof rack bracket | 63478-0A080 |
| 63669B | Sliding skylight drain seal | 63669-06050 · 63669-50010 |
| 63669C | Sliding skylight drain seal | 63669-0A010 |
| 64270E | clip | 82711-47080 |
| 75505B | Right front roof side trim sub-assembly | 75505-0A050 |
| 75506B | Left front roof side trim sub-assembly | 75506-0A050 |
| 75631J | No. 1 roof right side trim panel cover | 75631-0A050 |
| 75632A | No. 1 roof left trim panel cover | 75632-0A050 |
| 75633C | No. 2 roof right trim panel cover | 75633-0A050 |
| 75634 | No. 2 roof left trim panel cover | 75634-0A050 |
