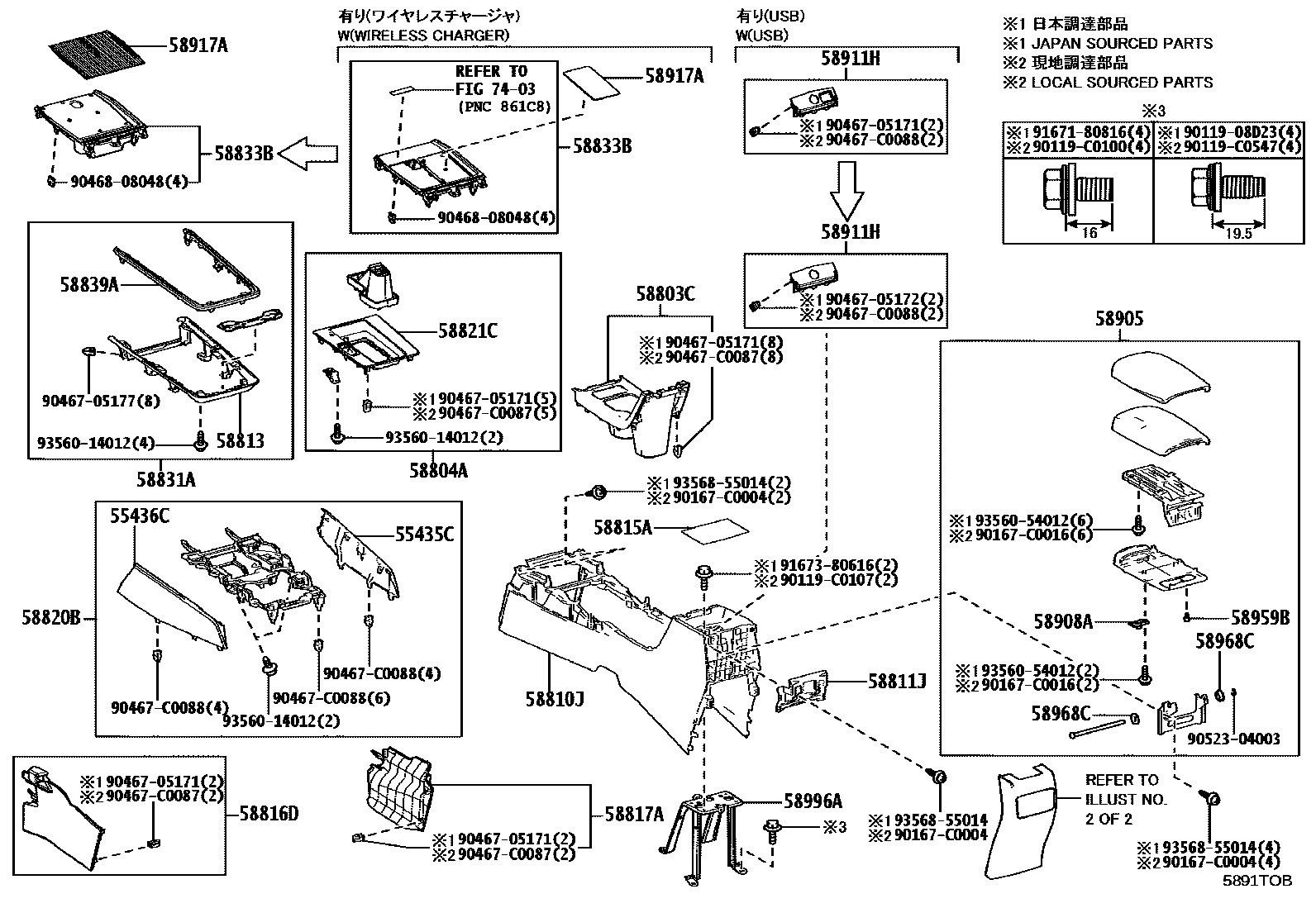

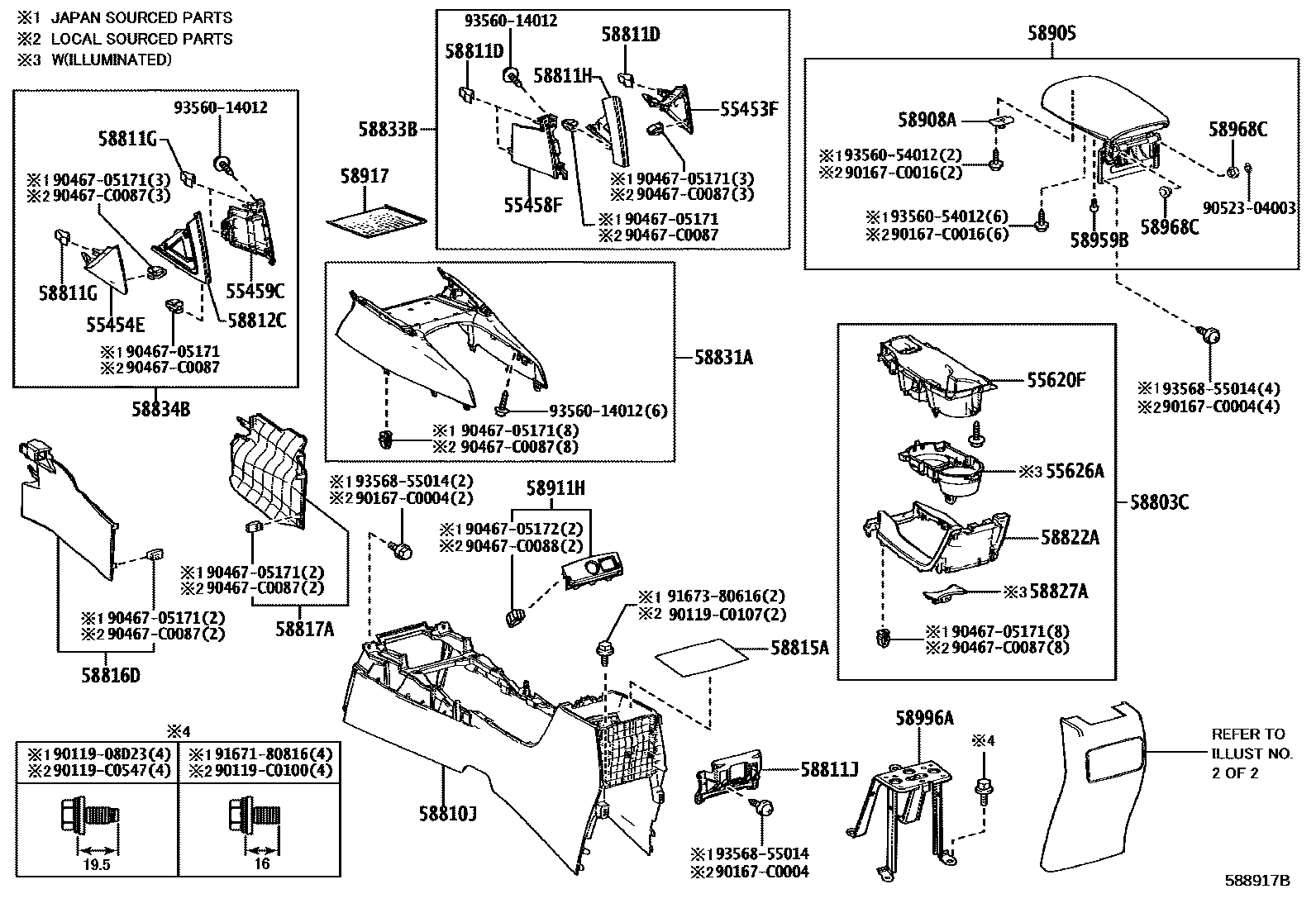

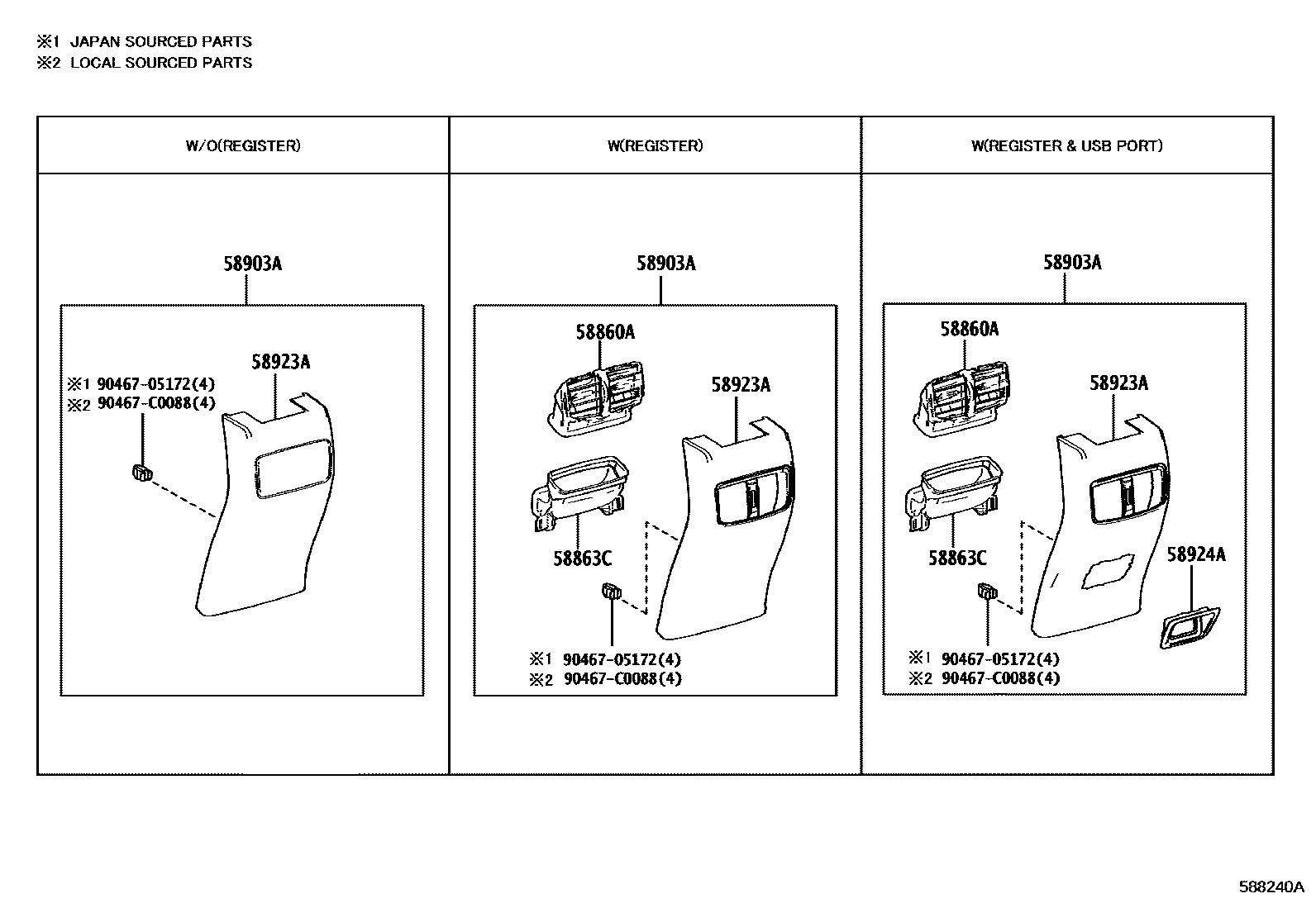

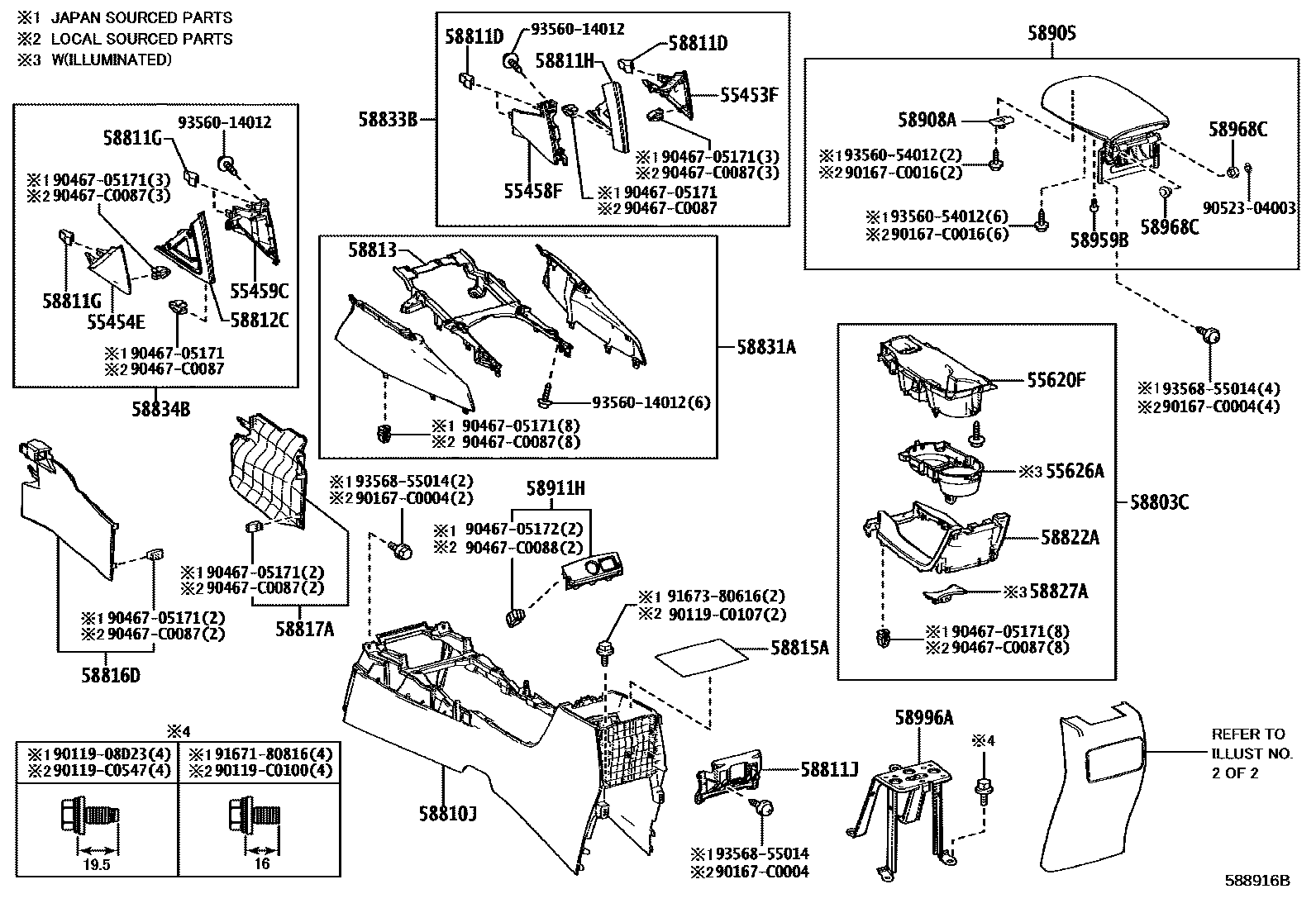

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55453F | Dashboard lower right pad | 55453-0A050 · 55453-0A100 |
| 55454E | Dashboard lower left pad | 55454-0A110 · 55454-0A130 |
| 55458F | Instrument panel lower right cover | 55458-0A050 · 55458-0A090 |
| 55459C | Instrument panel lower left cover | 55459-0A050 · 55459-0A090 |
| 55620F | Armrest box cup holder assembly | 55620-0A130 · 55620-0A140 |
| 55626A | Instrument panel bottom bracket partition fastener | 55626-0A050 |
| 58803C | Armrest box cup holder sub-assembly | 58803-0A130 · 58803-0A140 · 58803-0A150 |
| 58811J | Armrest box panel | 58811-0A080 |
| 58813 | Upper armrest box | 58813-0A180 |
| 58815A | Armrest box felt pad | 58815-02510 |
| 58821C | Armrest box upper panel | 58821-0A050 · 58821-0A070 |
| 58822A | Rear armrest box upper panel | 58822-0A090 · 58822-0A130 |
| 58827A | Armrest box groove decorative parts | 58827-0A020 |
| 58831A | Front armrest box upper panel decorative parts | 58831-0A180 · 58831-0A210 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58833-0A140 · 58833-0A160 |
| 58839A | Armrest box hole cover | 58839-0A020 · 58839-0A050 |
| 58860A | Armrest box air regulator assembly | 58860-0A050 |
| 58863C | Armrest box No. 3 air duct | 58863-0A050 |
| 58908A | Armrest box lid lock assembly | 58908-YK010 |
| 58917 | Armrest box bottom pad No. 2 | 58917-0A060 |
| 58917A | Rear armrest box cover | 58917-0A090 · 58917-0A100 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58968C | Armrest box lid stopper gasket | 58968-33010 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0A060 |
