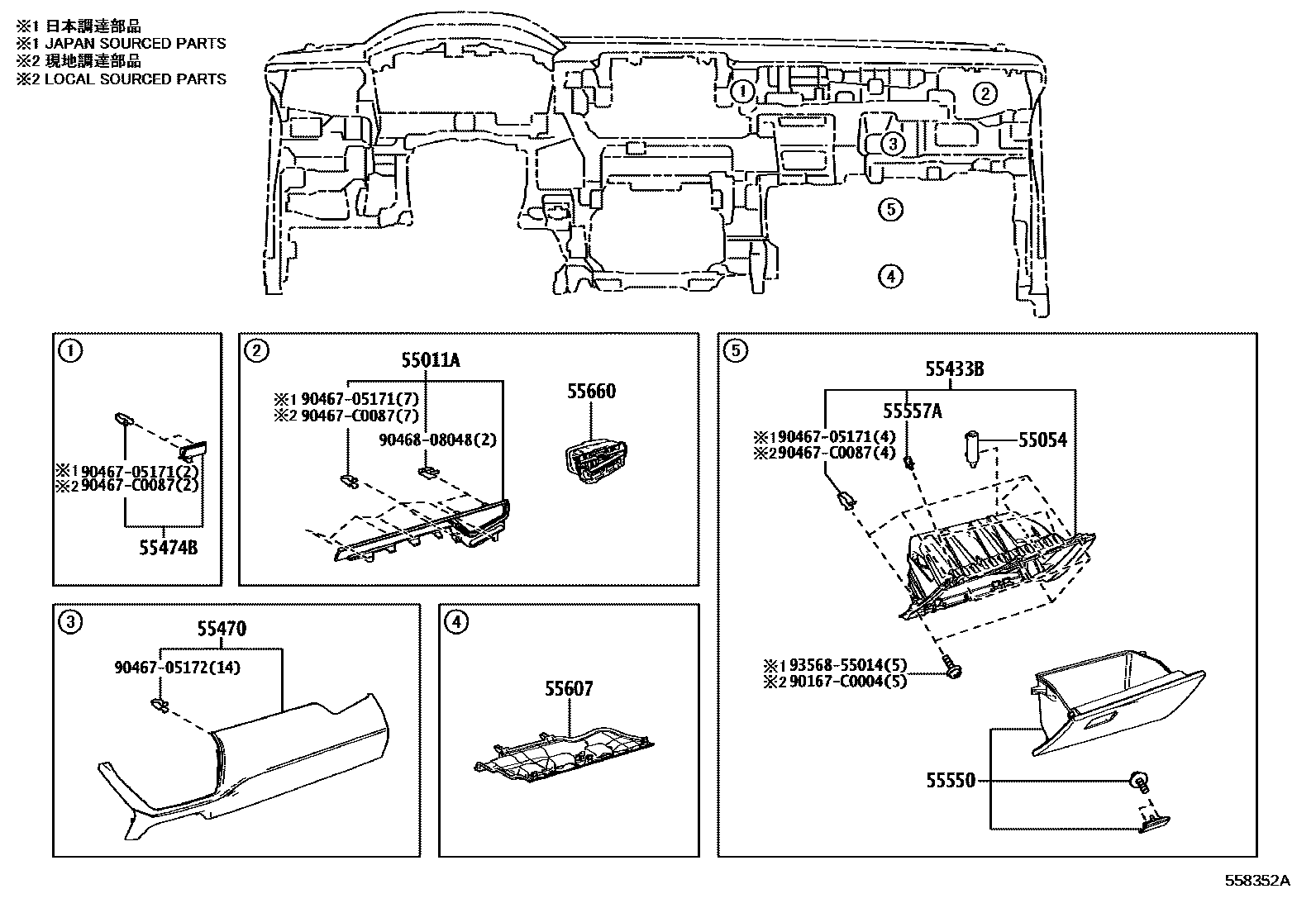

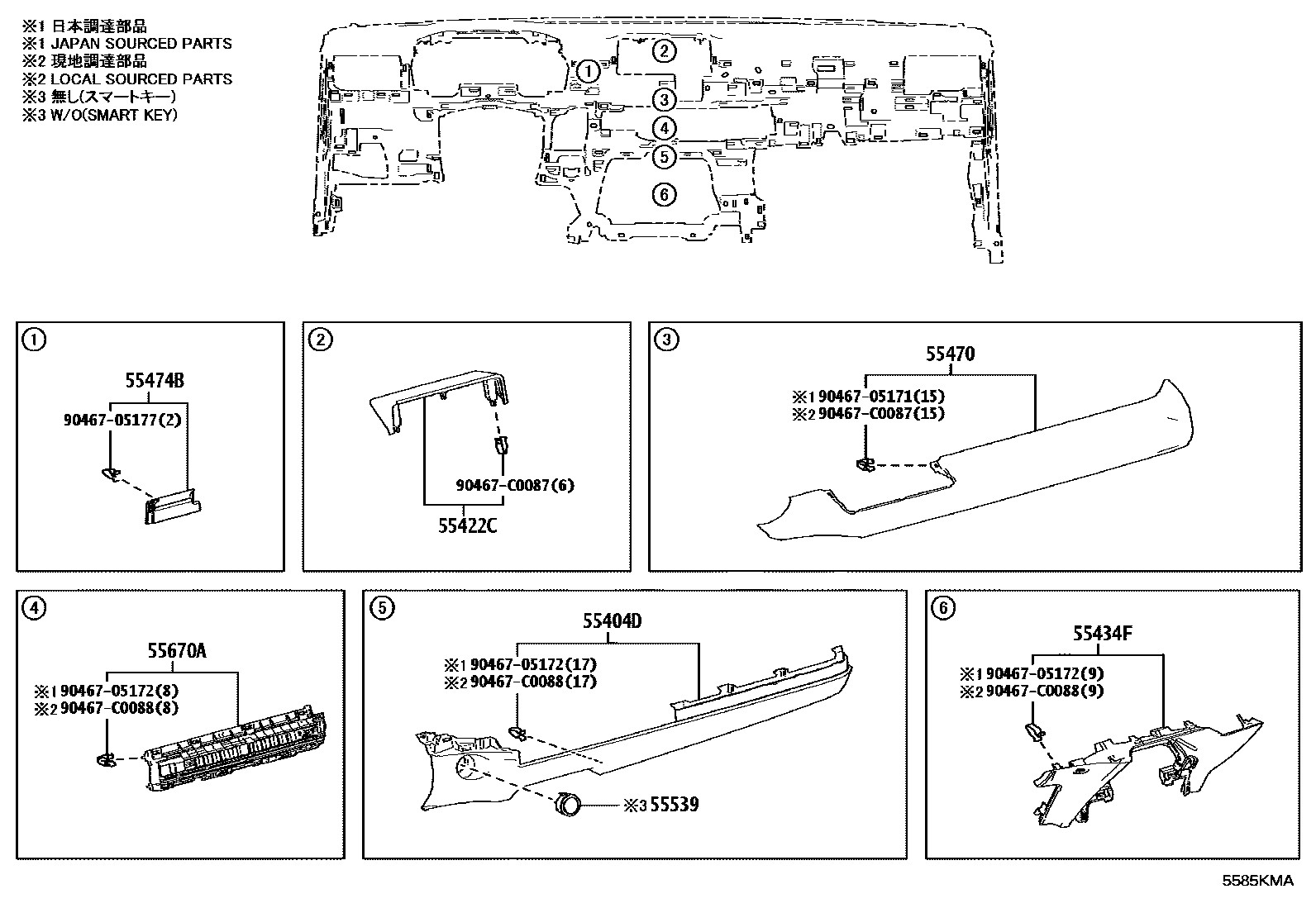

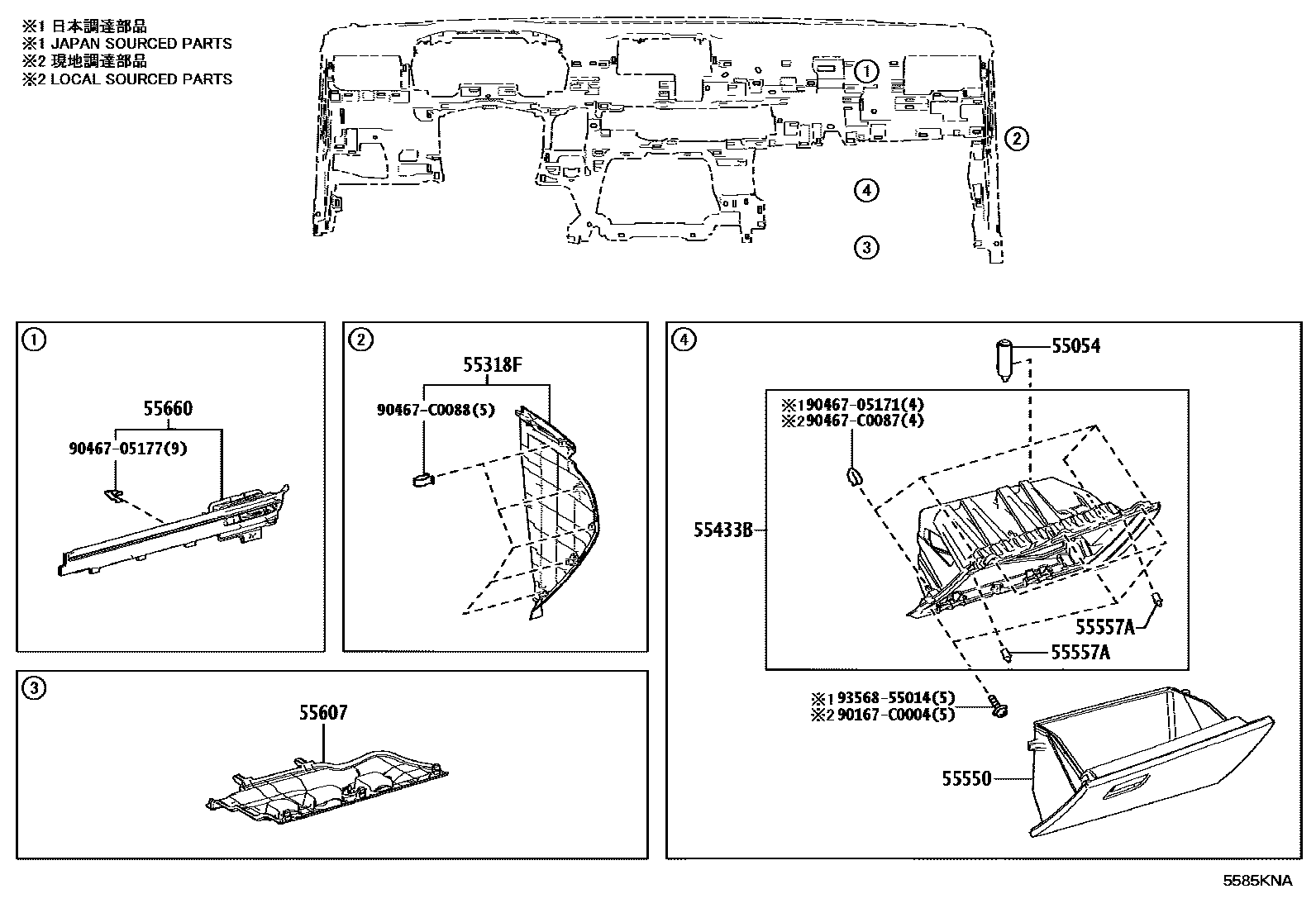

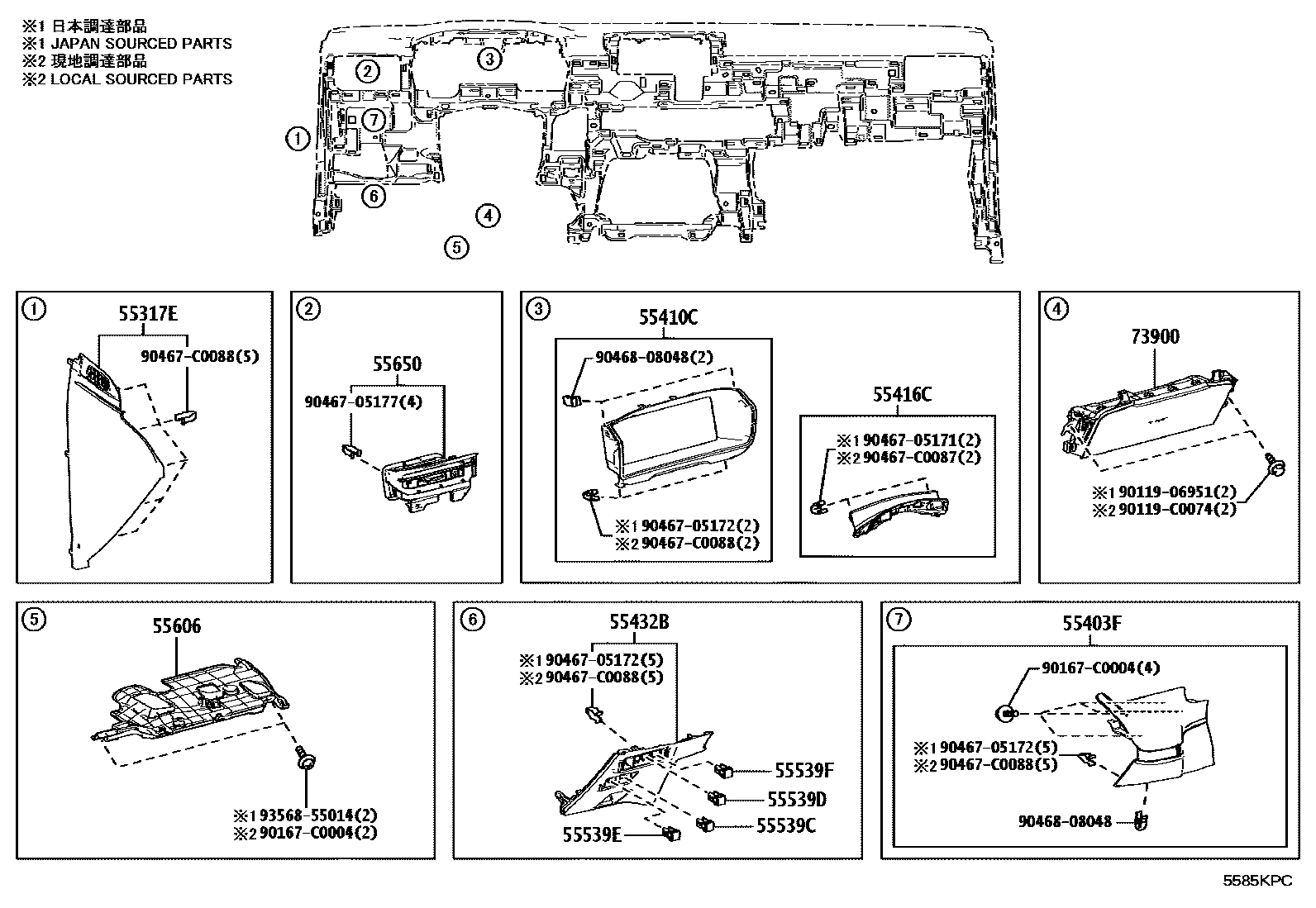

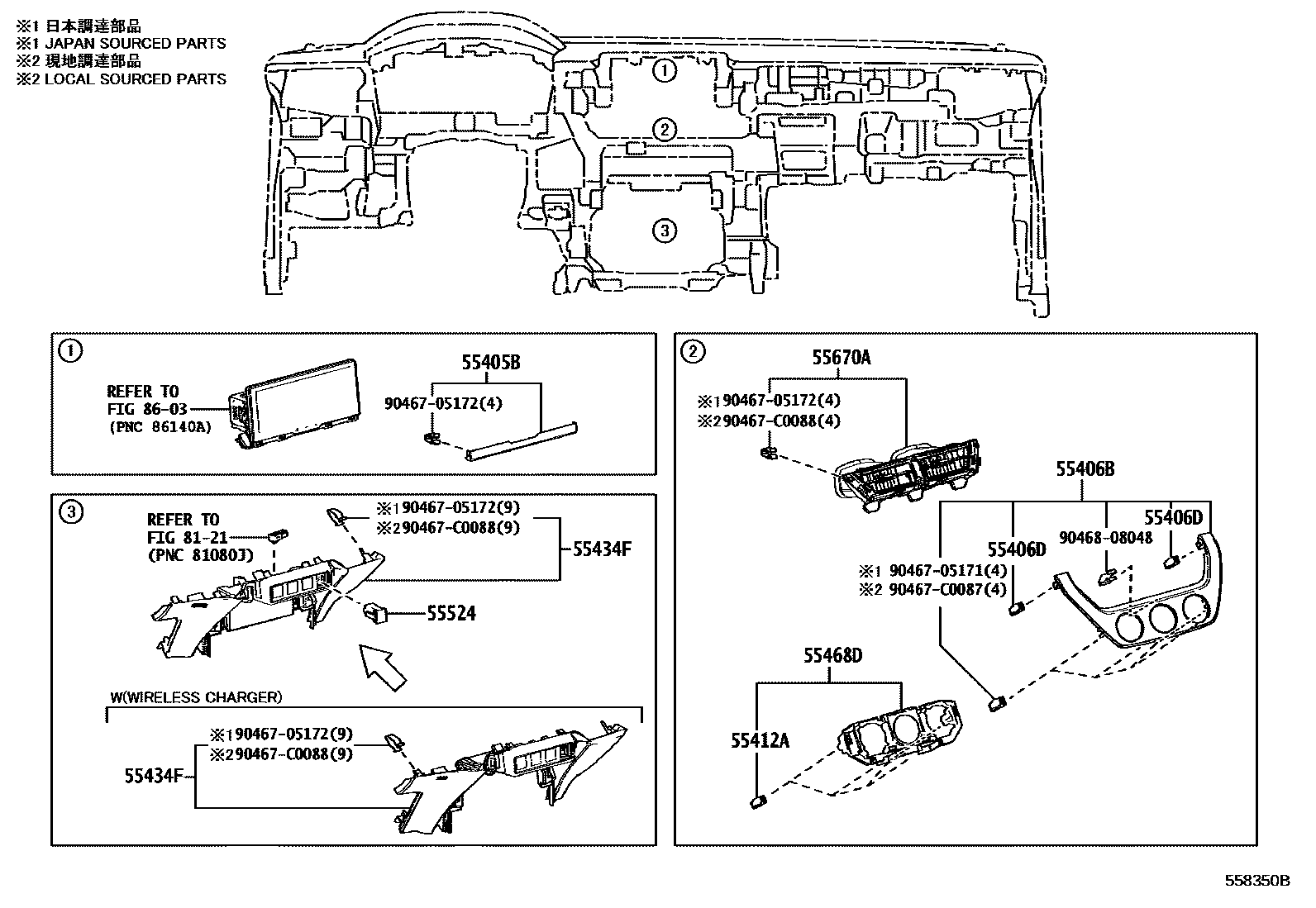

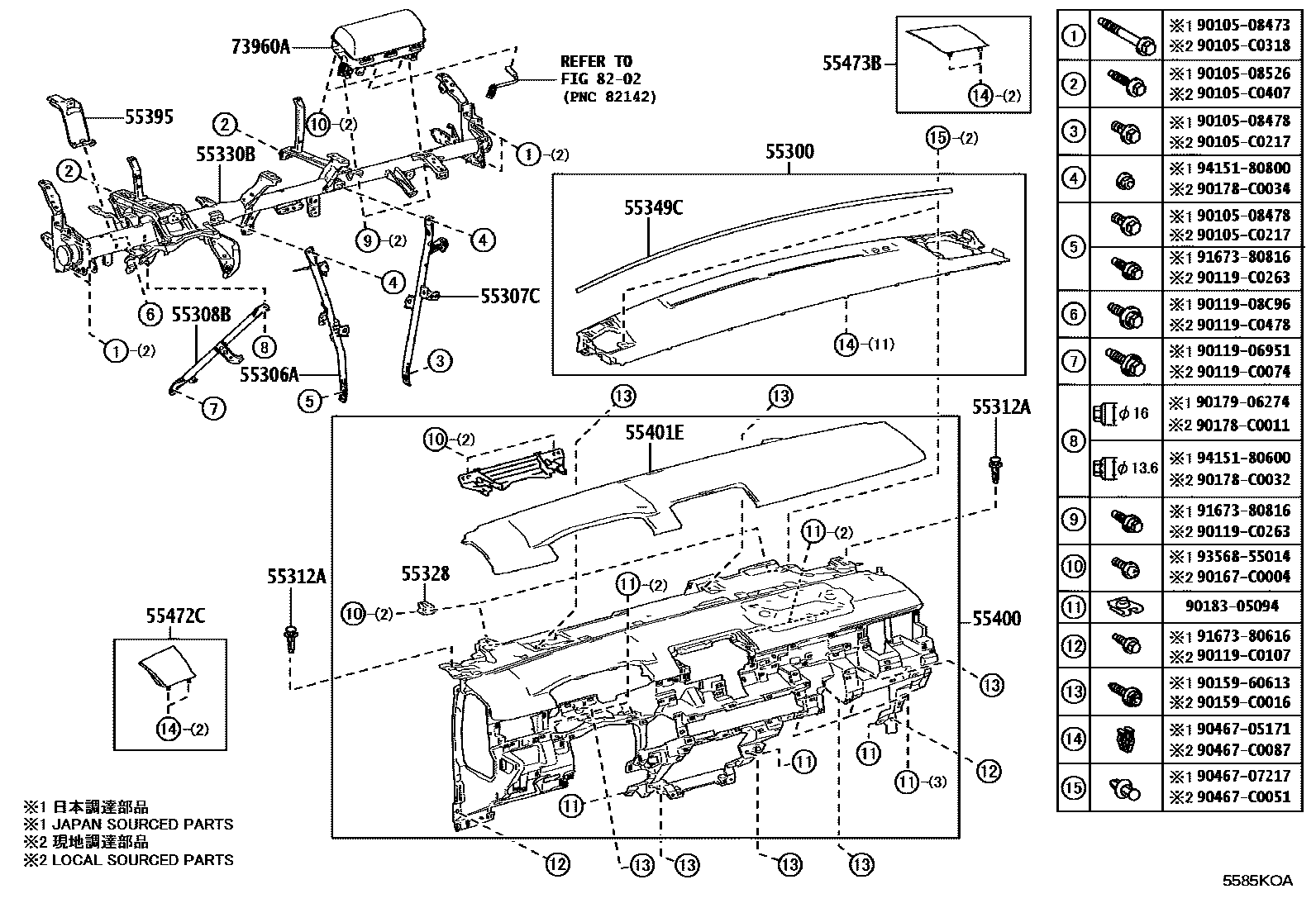

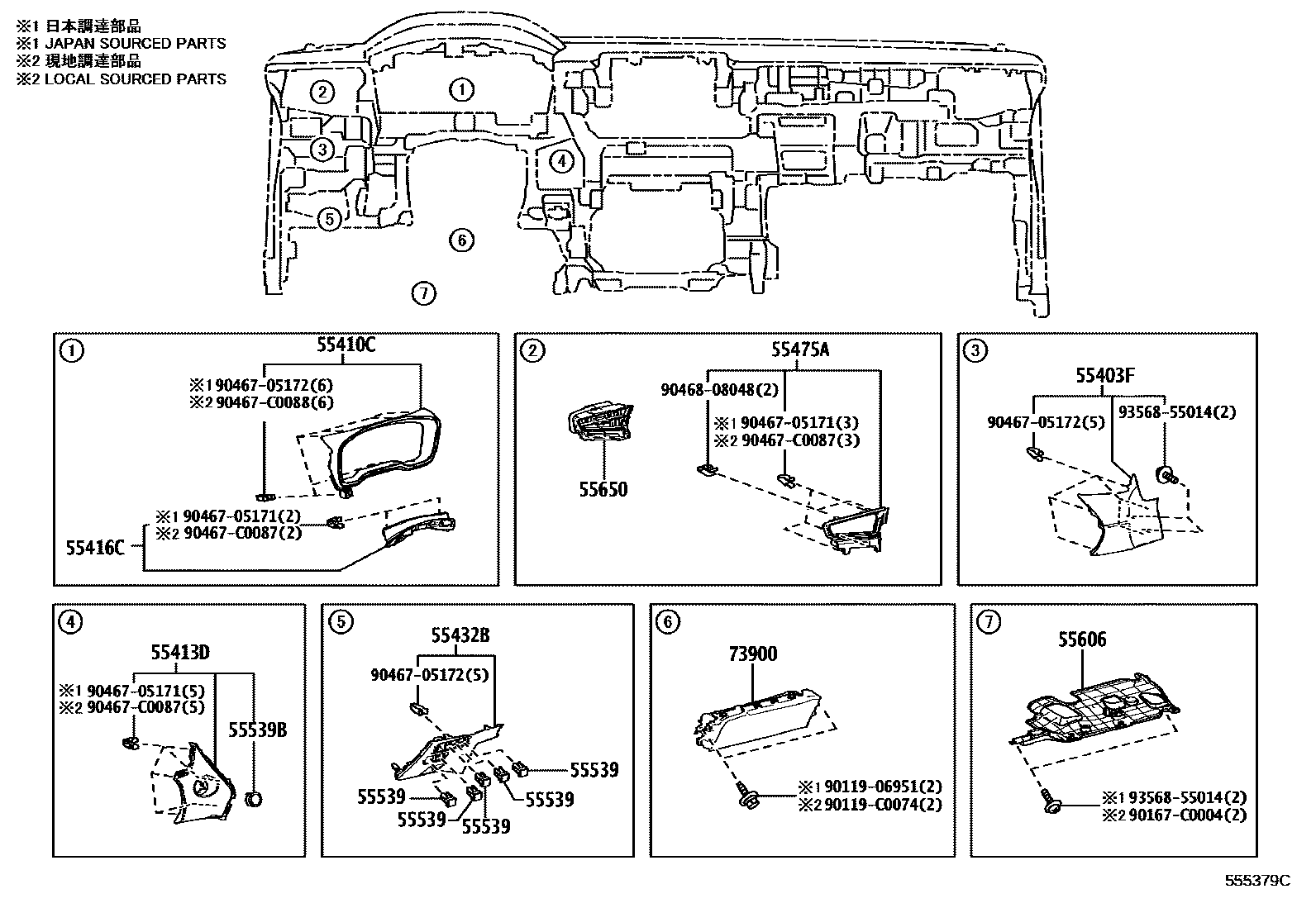

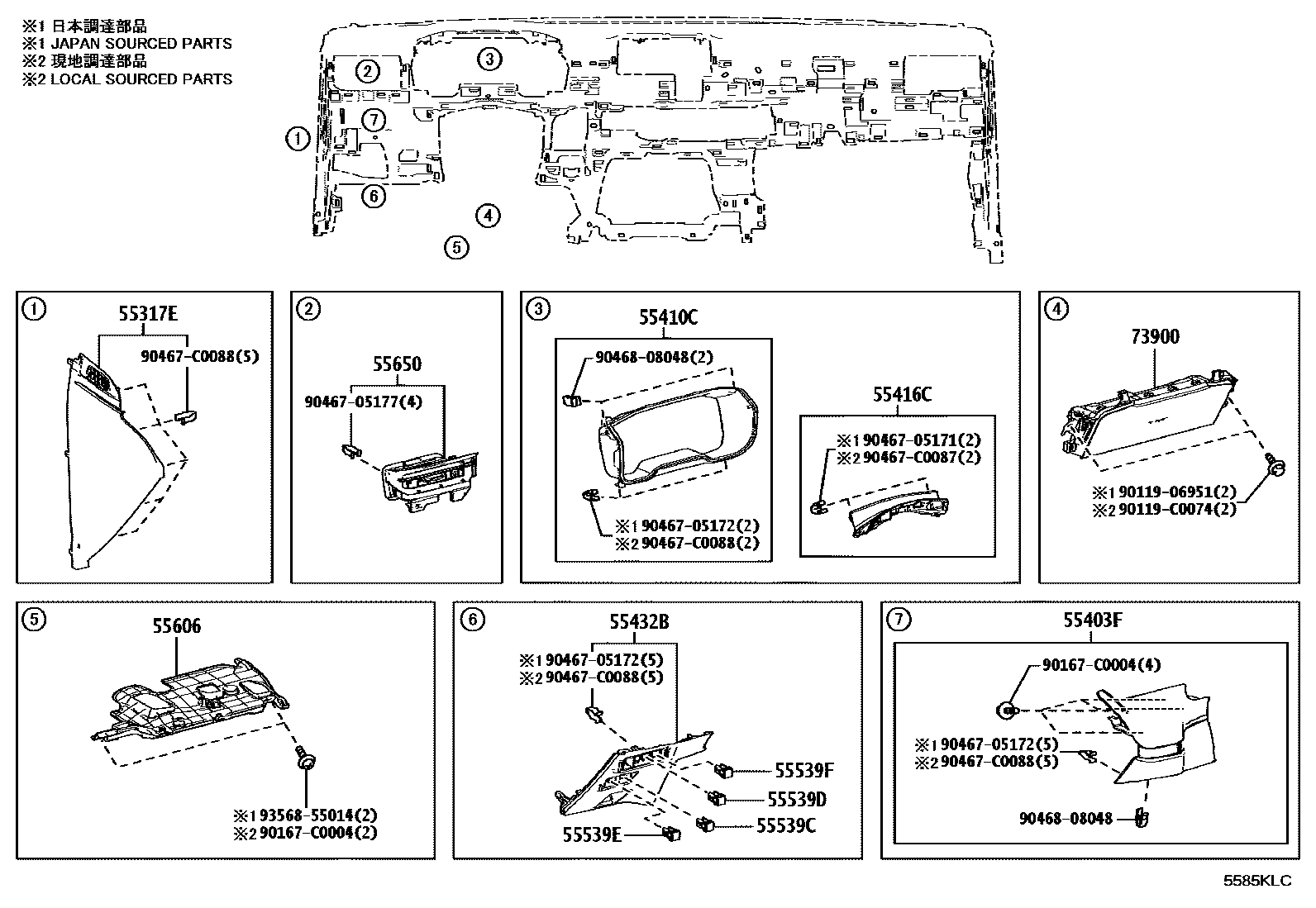

Toyota COROLLA 仪表板和手套箱 — Figure 5501

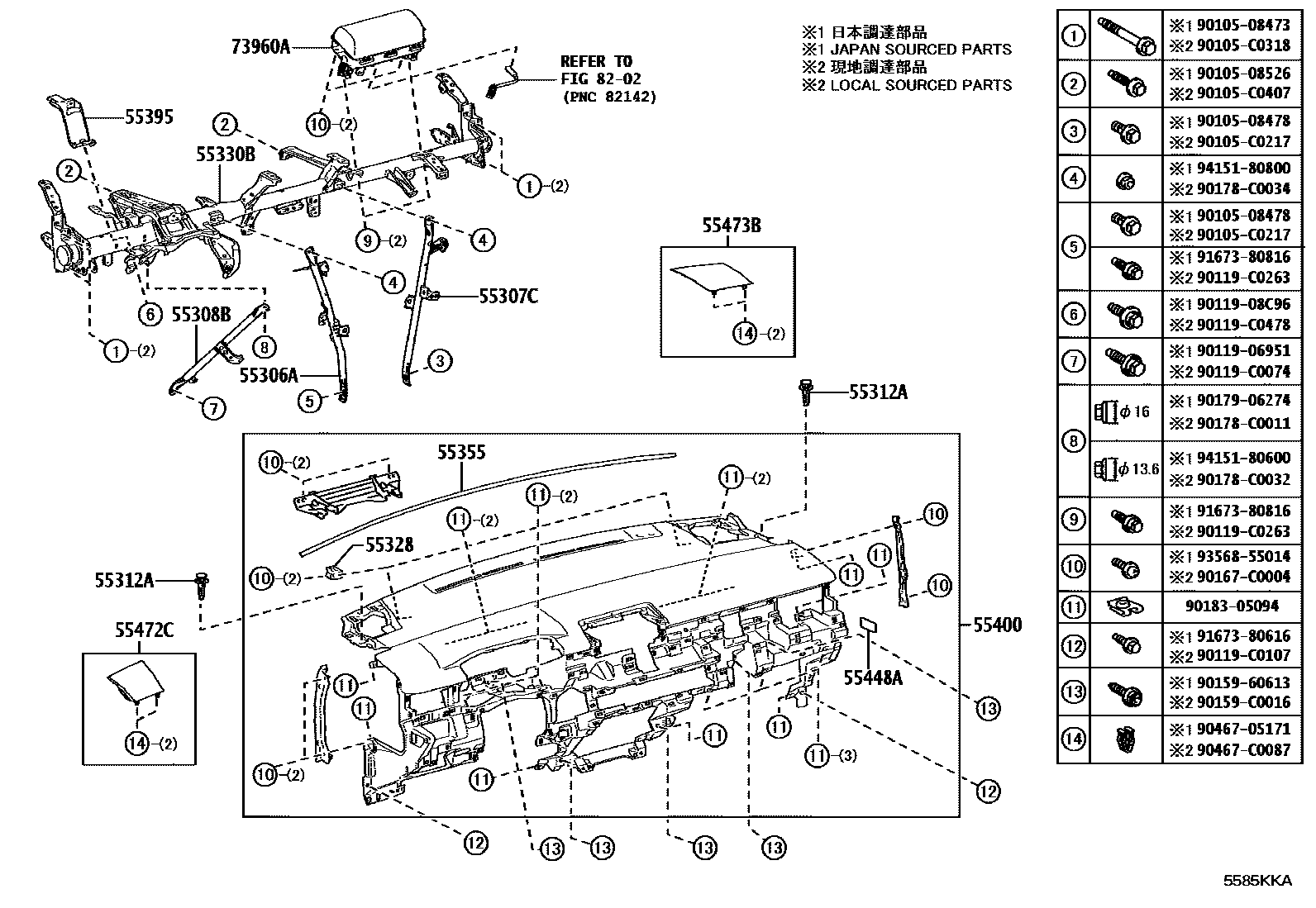

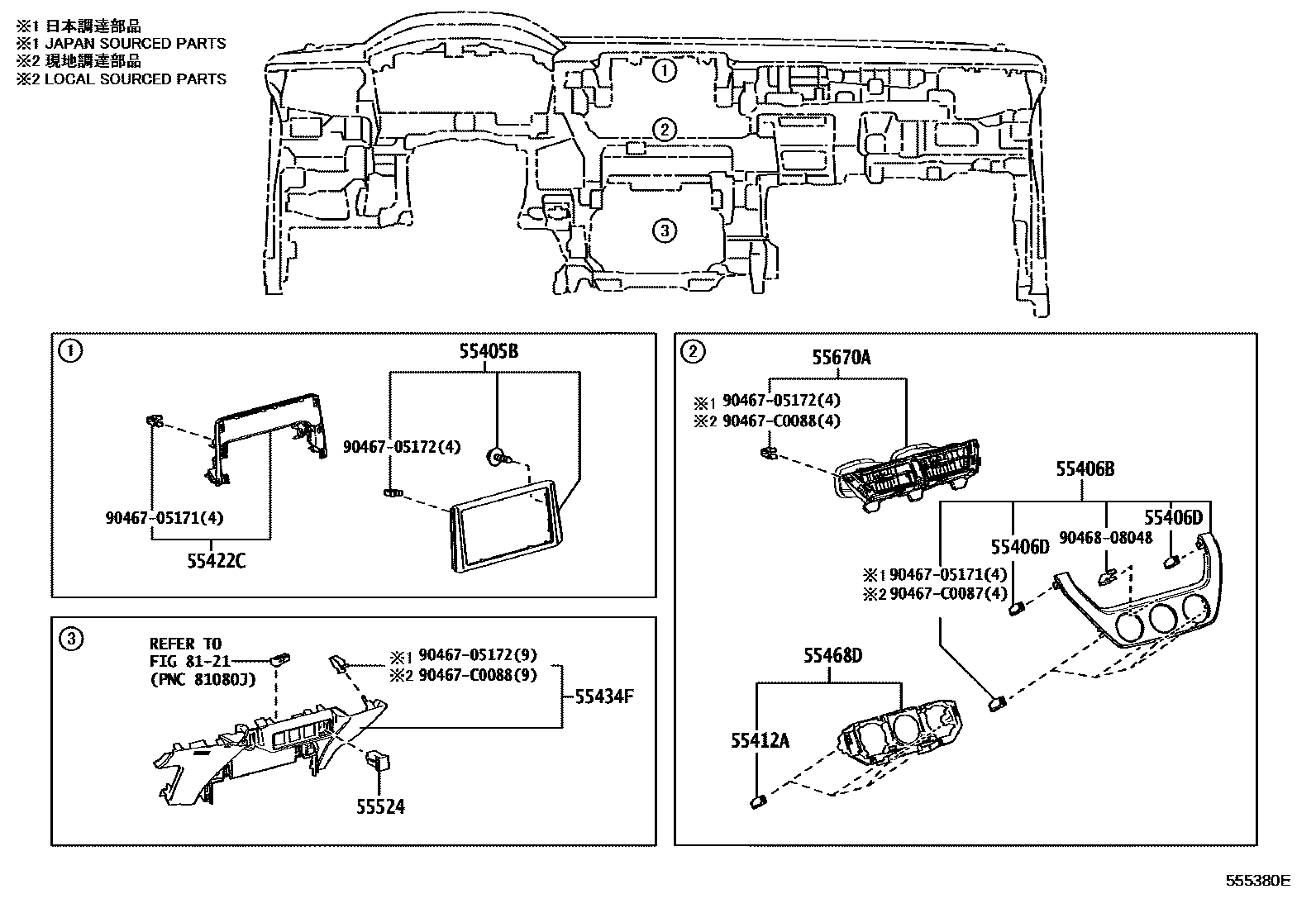

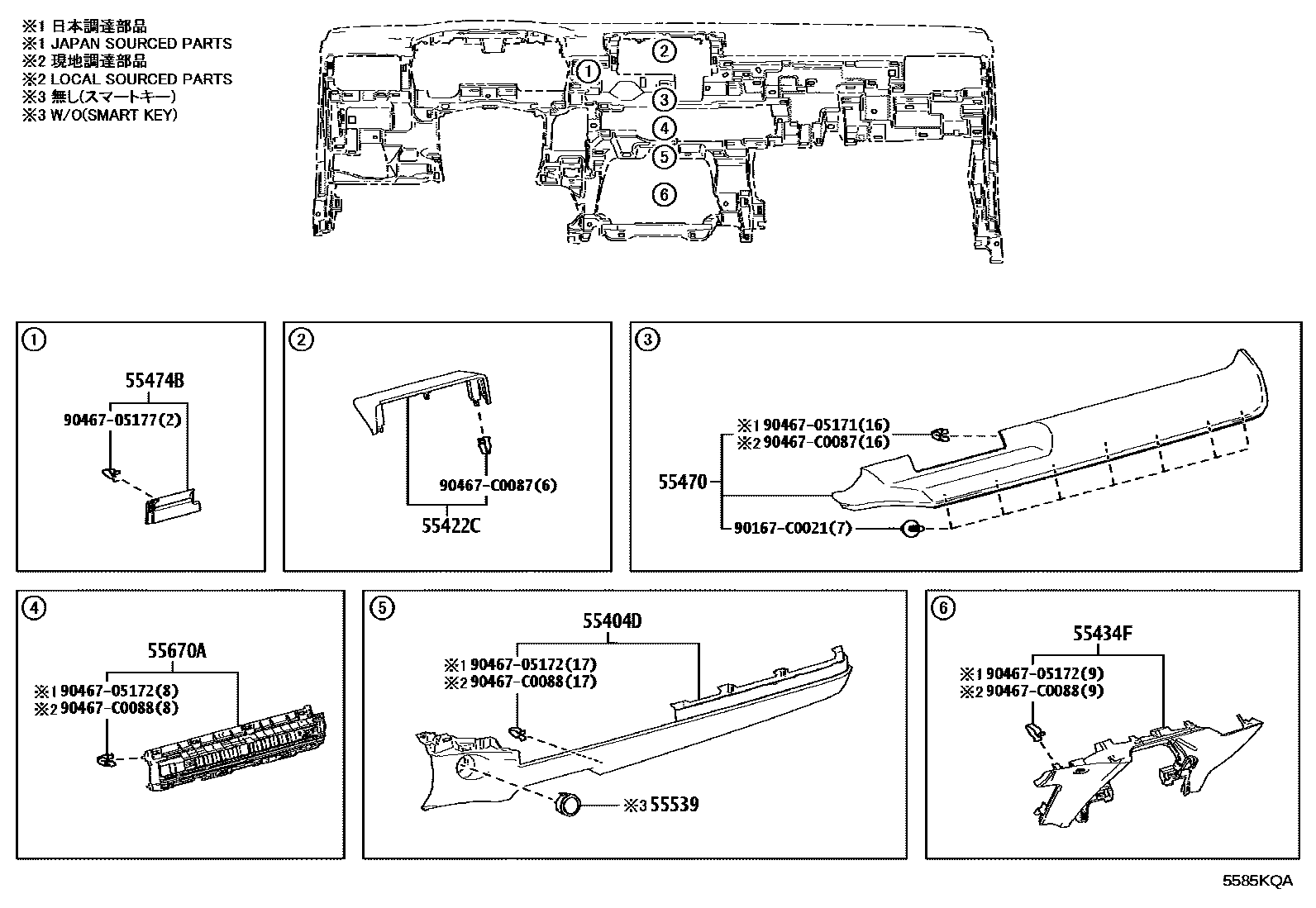

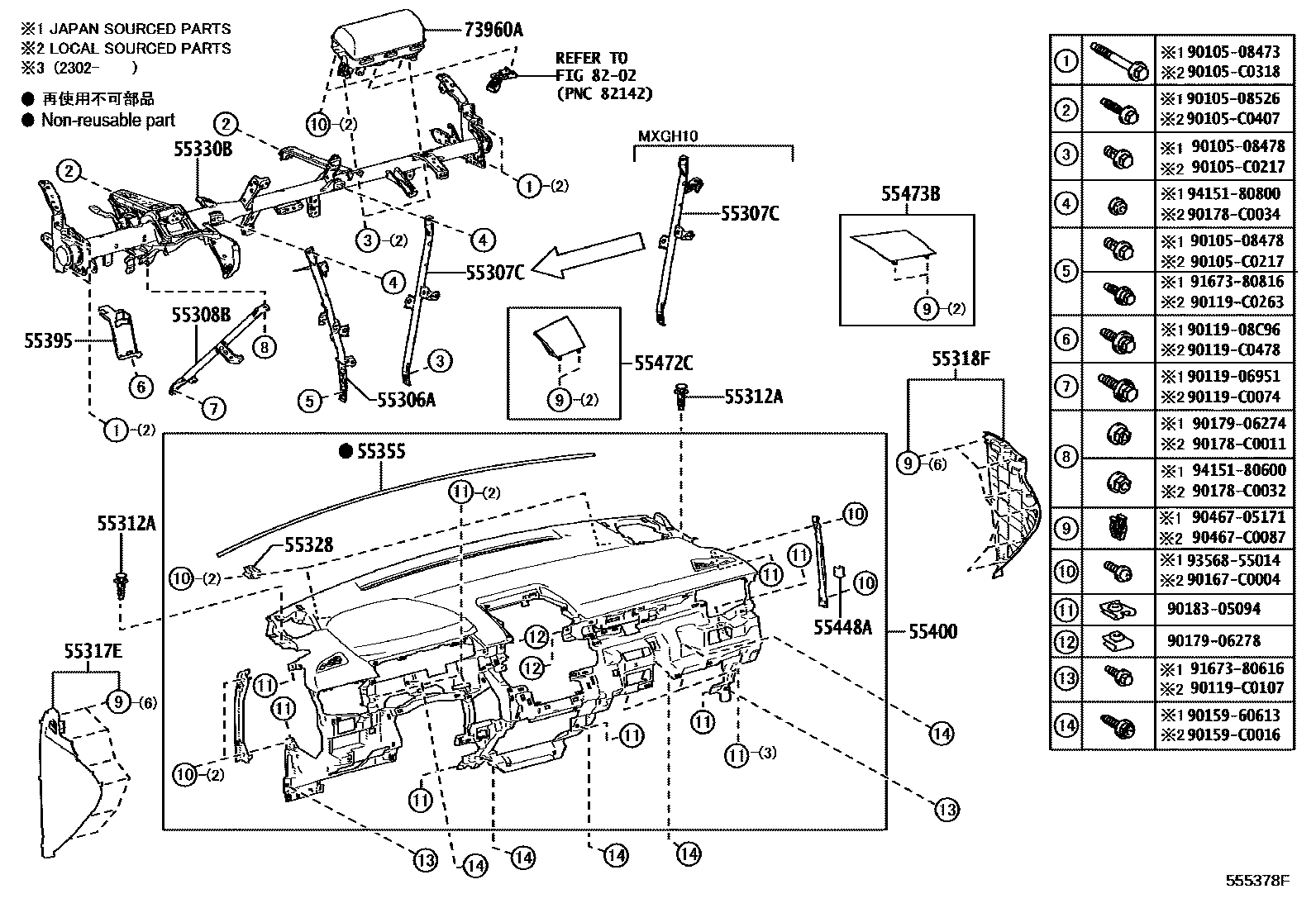

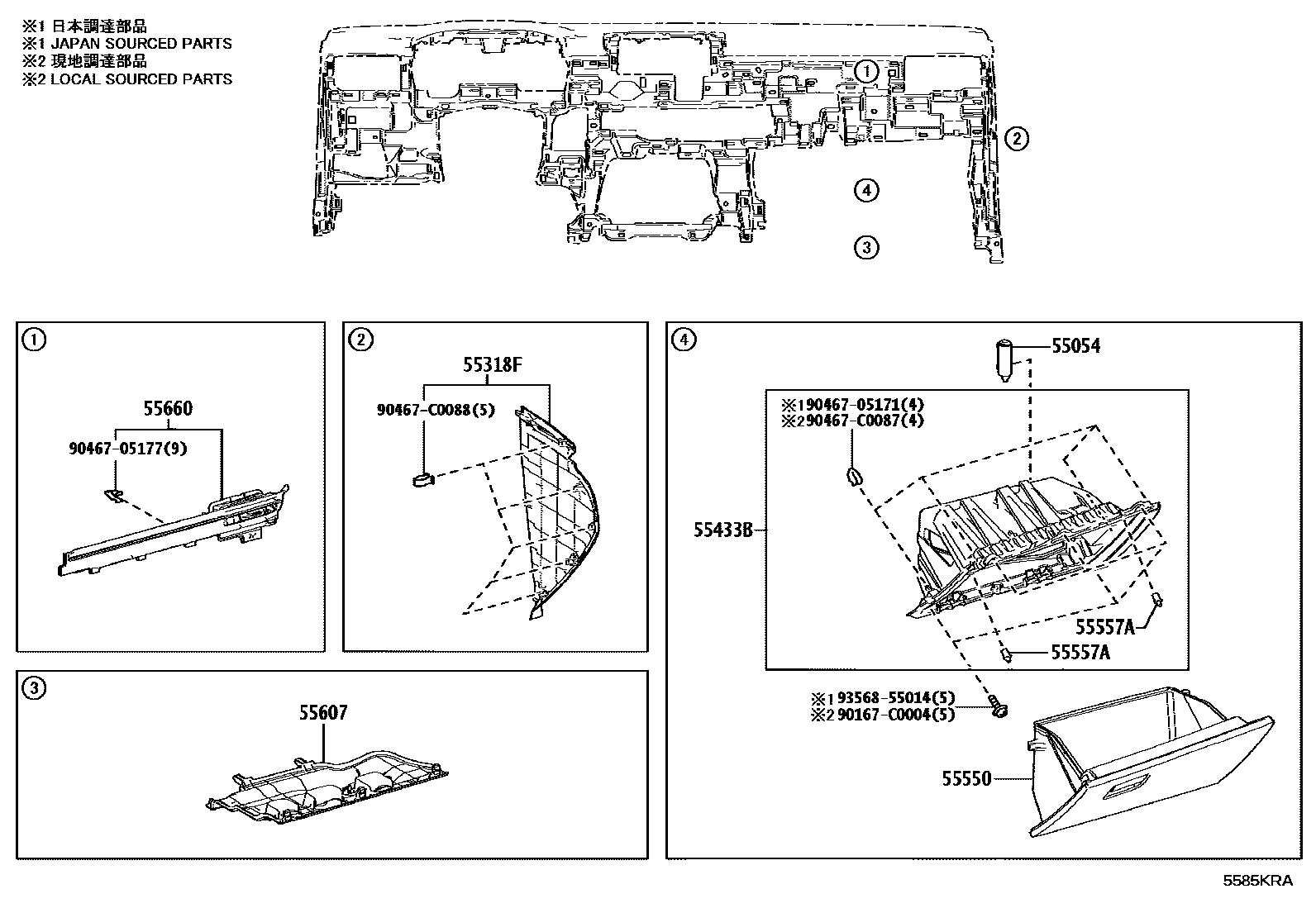

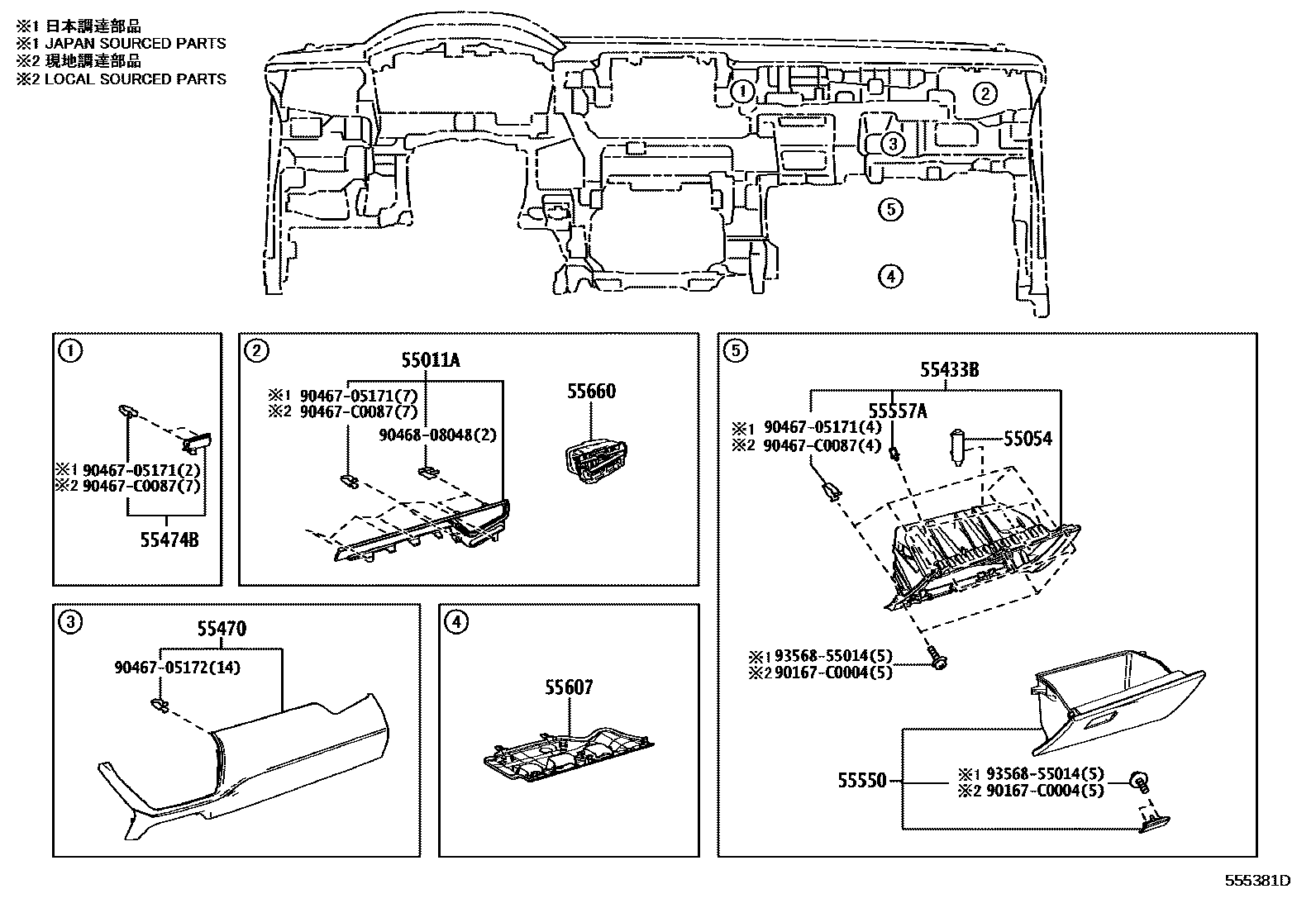

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 14 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-02050 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0A070 · 55306-0A130 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-0A090 · 55307-0A130 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-0A070 |
| 55312A | Dashboard clip | 52161-02040 · 52161-16010 |
| 55328 | Instrument panel pin 1 | 55328-07080 · 55328-12430 |
| 55330B | Instrument panel reinforcement assembly | 55330-0A090 · 55330-0A280 · 55330-0A290 |
| 55349C | Dashboard cushion | 55349-0A060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55349-0A040 · 55355-F4020 |
| 55395 | Dashboard to pedal bracket | 55395-0A050 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02C80 · 55405-02G50 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-0A020 |
| 55410C | Instrument cluster decorative panel assembly | 55410-02A21 · 55410-0A210 · 55410-0A220 |
| 55416C | Instrument cluster decorative panel fixings | 55416-02600 |
| 55422C | Center instrument cluster upper decorative panel | 55422-02A00 · 55422-0A220 |
| 55448A | Instrument panel decorative cushion No. 1 | 55448-0A010 |
| 55468D | Dashboard safety mat central fixing | 55468-02460 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-0A050 |
| 55539 | Spare switch hole cover | 55539-07020 |
| 55539C | Spare switch hole cover | 55539-07020 |
| 55539D | Spare switch hole cover | 55539-07020 |
| 55539E | Spare switch hole cover | 55539-07020 |
| 55539F | Spare switch hole cover | 55539-07020 |
| 55557A | Glove box cover limit pad | 55557-02030 · 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0A060 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02170 · 55607-02410 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-02A60 · 55650-02A70 · 55650-0A040 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-02630 · 55660-02640 · 55660-0A040 |
| 55670A | Instrument panel central air register assembly | 55670-02A60 · 55670-0A020 · 55670-0A030 · 55670-0A070 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0A060 · 73960-0A140 |
