Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

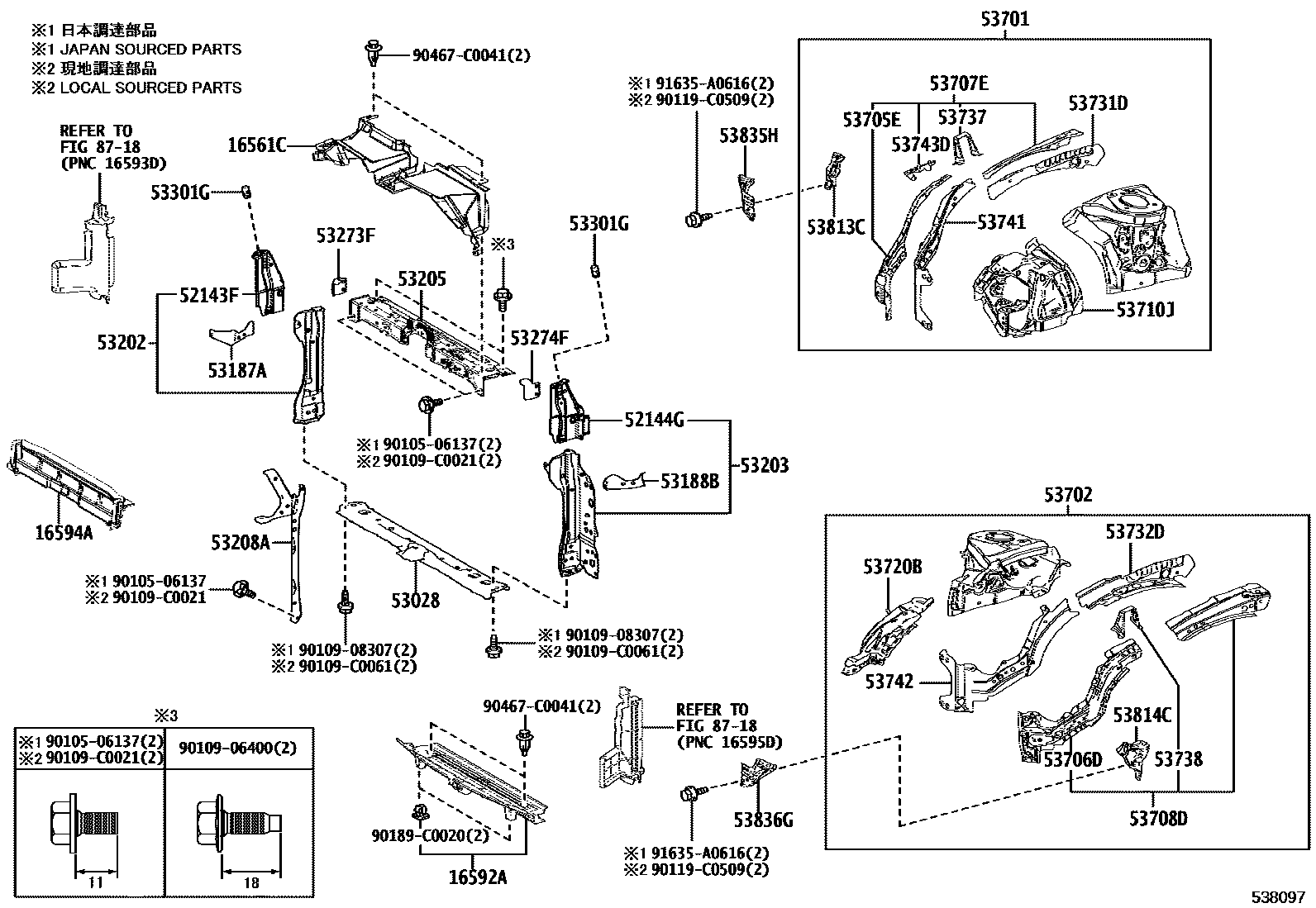

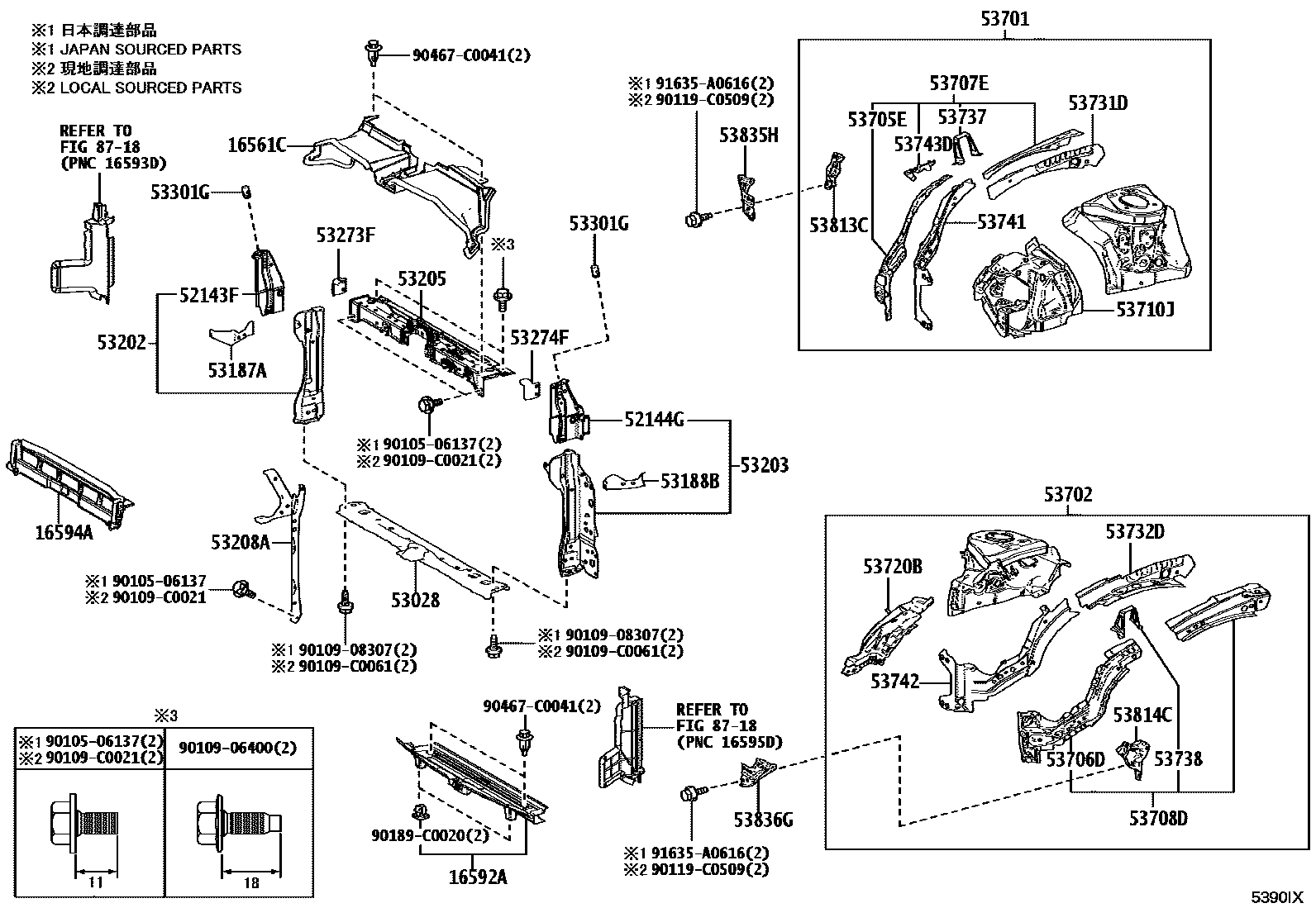

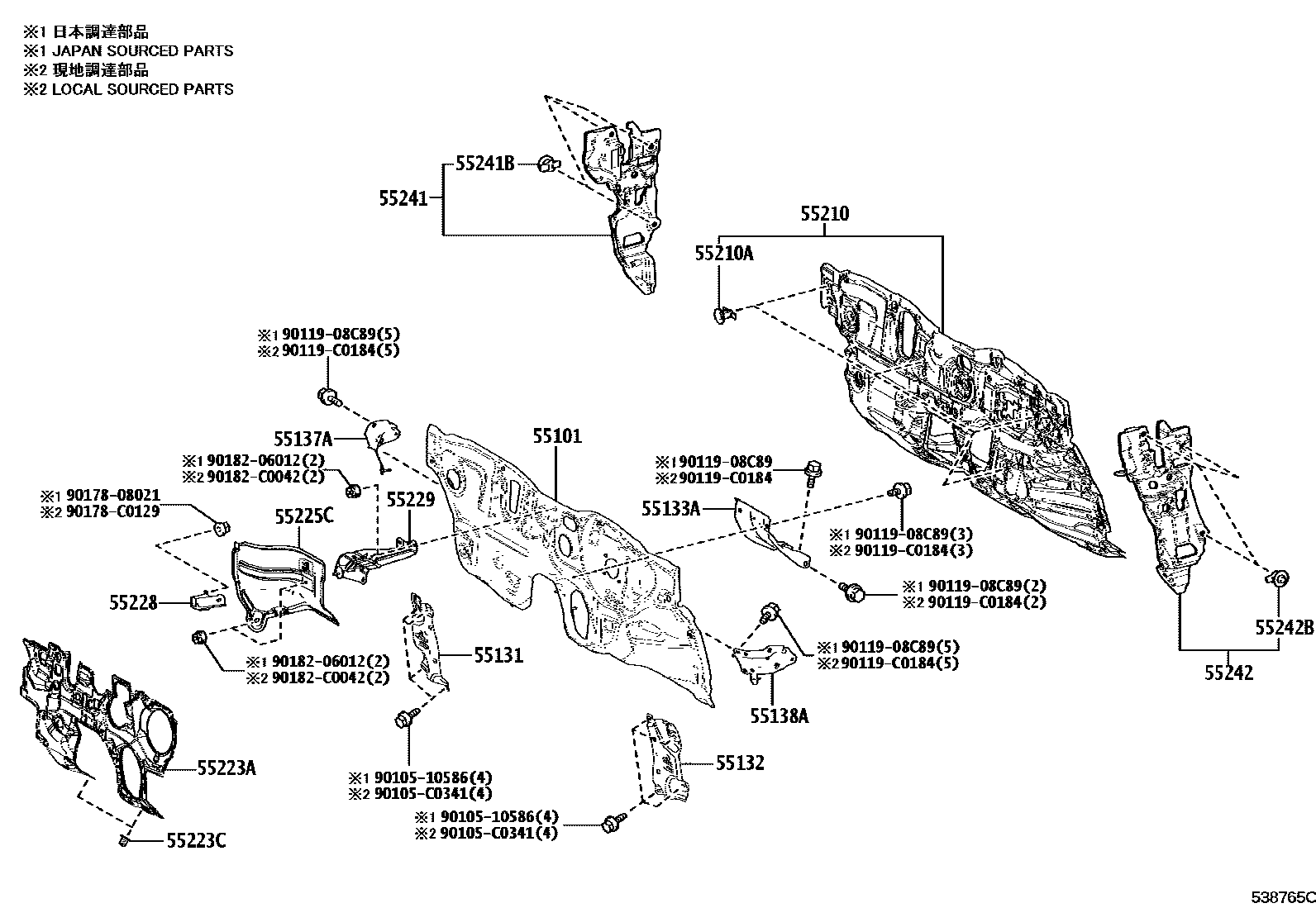

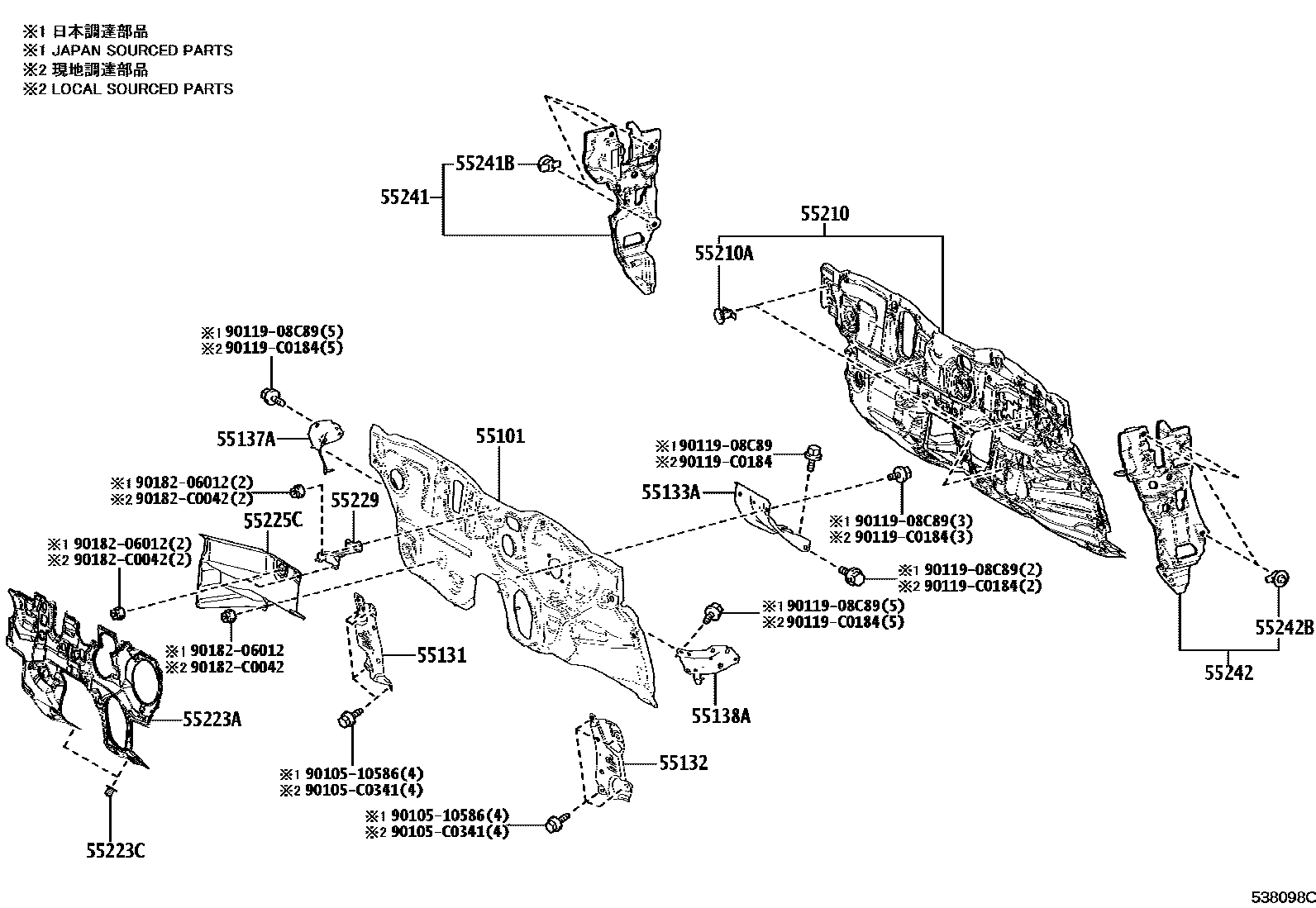

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 4 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16561C | Seal No. 1 (radiator to bracket) | 16561-F2050 · 16561-F2150 |
| 16592A | Radiator deflector No. 3 | 16592-F2100 |
| 16594A | Radiator deflector No. 2 | 16594-F2120 |
| 52143F | Front bumper right side bracket | 52143-0A020 |
| 52144G | Front bumper left bracket | 52144-0A020 |
| 53028 | Radiator lower bracket sub-assembly | 53028-F4030 · 53028-F4031 |
| 53187A | Radiator right side bracket stay | 53187-0A020 |
| 53188B | Radiator left bracket stay | 53188-0A020 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0A090 |
| 53203 | Radiator left bracket sub-assembly | 53203-0A090 |
| 53205 | Radiator upper bracket sub-assembly | 53205-0A070 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-0A030 |
| 53273F | Front bumper right fixed mounting bracket | 53273-0A020 |
| 53274F | Front bumper left fixed mounting bracket | 53274-0A020 |
| 53301G | engine cover cushion | 90541-15037 |
| 53701 | Right front fender fender sub-assembly | 53701-0A090 |
| 53702 | Left front fender fender sub-assembly | 53702-0A080 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-F4030 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-F4030 · 53706-F4031 |
| 53707E | Fender right fender sub-assembly | 53707-0A050 |
| 53708D | Fender left fender sub-assembly | 53708-0A050 |
| 53710J | Right front fender fender assembly | 53710-F4030 |
| 53720B | Left front fender fender assembly | 53720-F4030 |
| 53731D | Right front fender to cowl side upper beam | 53731-F4030 |
| 53732D | Left front fender to cowl side upper beam | 53732-F4030 |
| 53737 | Right front fender to front wall side sill | 53737-0A020 |
| 53738 | Left front fender to front wall side sill | 53738-0A020 |
| 53741 | Right front fender fender air deflector | 53741-F4030 |
| 53742 | Left front fender fender air deflector | 53742-F4030 |
| 53743D | Right front fender fender front extension reinforcement | 53743-0A030 |
| 53813C | Right front fender extension | 53813-F4030 |
| 53814C | Left front fender extension | 53814-F4030 |
| 53835H | Right front fender to extension stay | 53835-0A020 |
| 53836G | Left front fender to extension stay | 53836-0A020 |
| 55101 | Front apron sub-assembly | 55101-F4060 |
| 55131 | Front apron reinforcement | 55131-0A060 · 55131-F4040 |
| 55132 | No. 2 cowl panel reinforcement | 55132-0A060 · 55132-F4040 |
| 55133A | Right reinforcement (front wall to floor) | 55133-F4030 |
| 55137A | Right side bracket (front wall to frame) | 55137-02250 |
| 55138A | Left side bracket (front wall to frame) | 55138-02250 |
| 55210 | Front wall insulation pad assembly | 55210-0A030 · 55210-0A190 |
| 55210A | clip | 90467-11122 · 90467-C0094 |
| 55223A | Front wall outer heat insulation pad | 55223-F4040 |
| 55223C | clip | 90467-06197 · 90467-C0080 |
| 55225C | Front wall insulation pad | 55225-F4030 · 55225-F4050 |
| 55228 | PLAQUE, ISOLANTE TABLEAU DE BORD, NO.5 | 55228-0A020 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-F4020 · 55229-F4040 |
| 55241 | Front panel No. 1 right side silencer | 55241-02130 |
| 55241B | Front panel side muffler clip | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-02120 |
| 55242B | Front panel side muffler clip | 90467-13079 |
