Toyota COROLLA 发动机盖锁和铰链 — Figure 5303

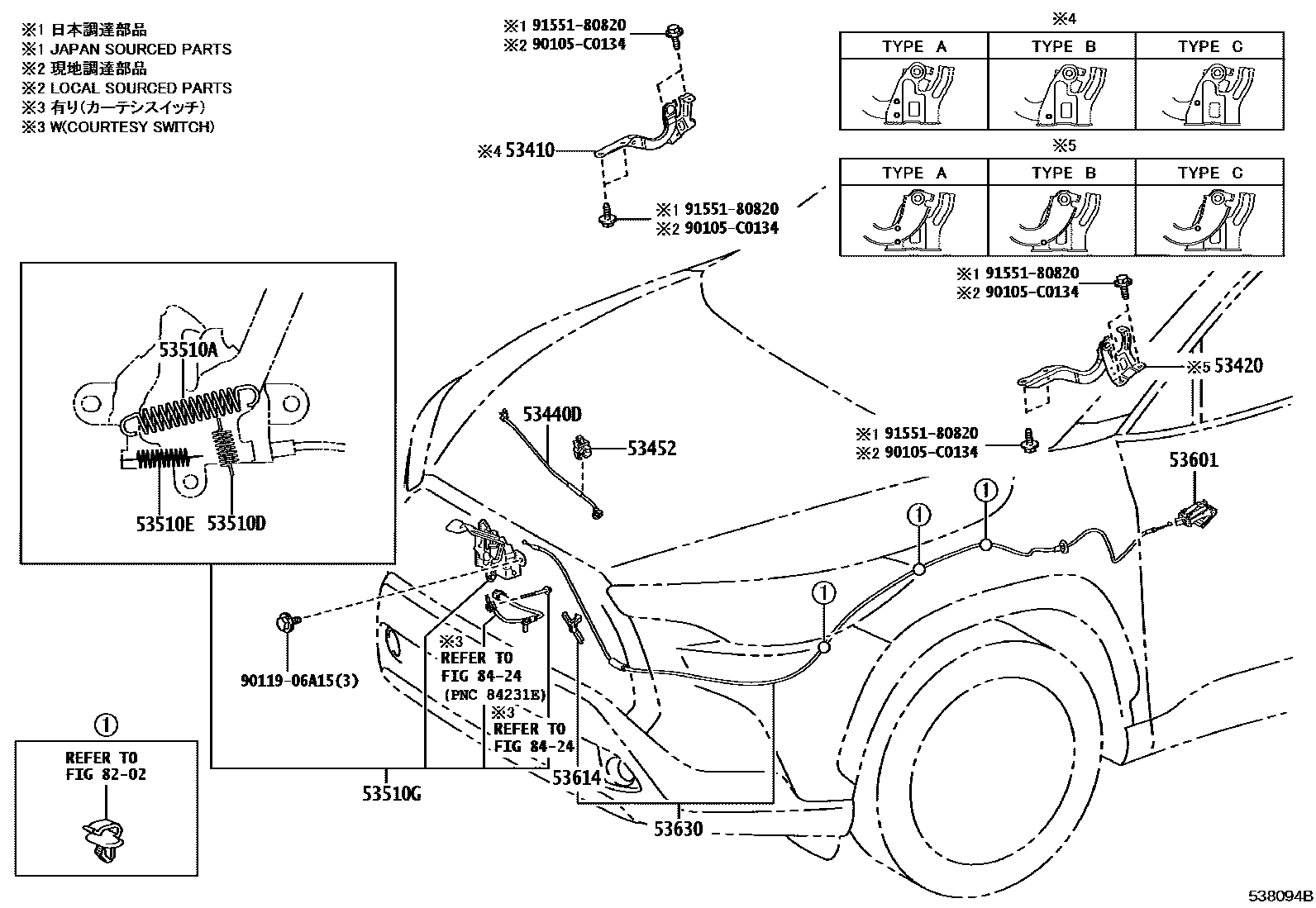

Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0A150 · 53410-0A160 · 53410-0A170 |
| 53420 | Engine cover left hinge assembly | 53420-0A150 · 53420-0A160 · 53420-0A170 |
| 53440D | Engine cover support rod assembly | 53440-0A050 · 53440-0A051 |
| 53452 | Engine cover stay rod fixing | 53452-0A020 · 53452-15020 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-18067 |
| 53510G | Engine cover with door control light switch lock assembly | 53510-0A080 · 53510-0A180 |
| 53614 | Engine hood lock control cable clip | 53614-16020 |
| 53630 | Engine hood lock control cable assembly | 53630-0A080 |
