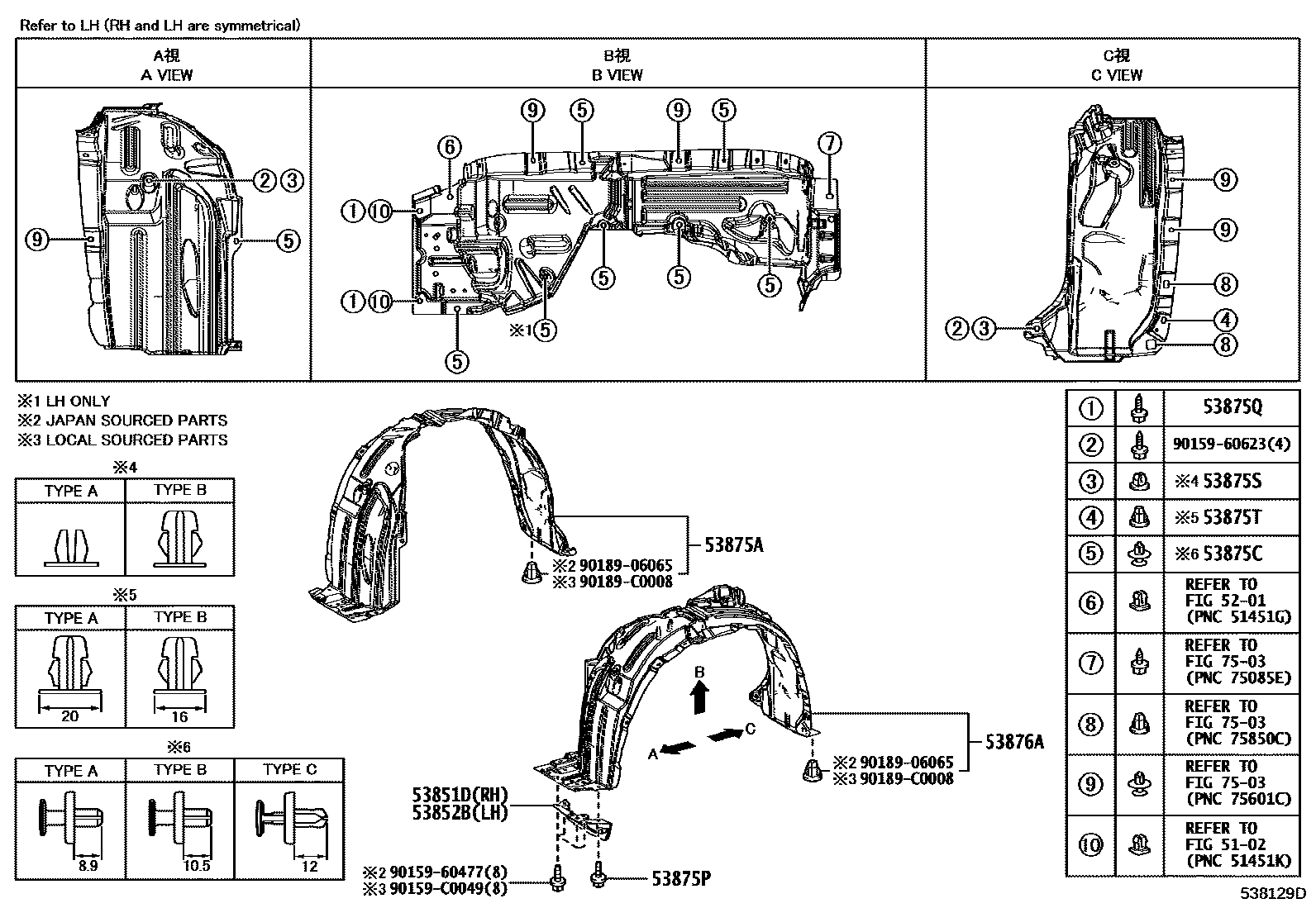

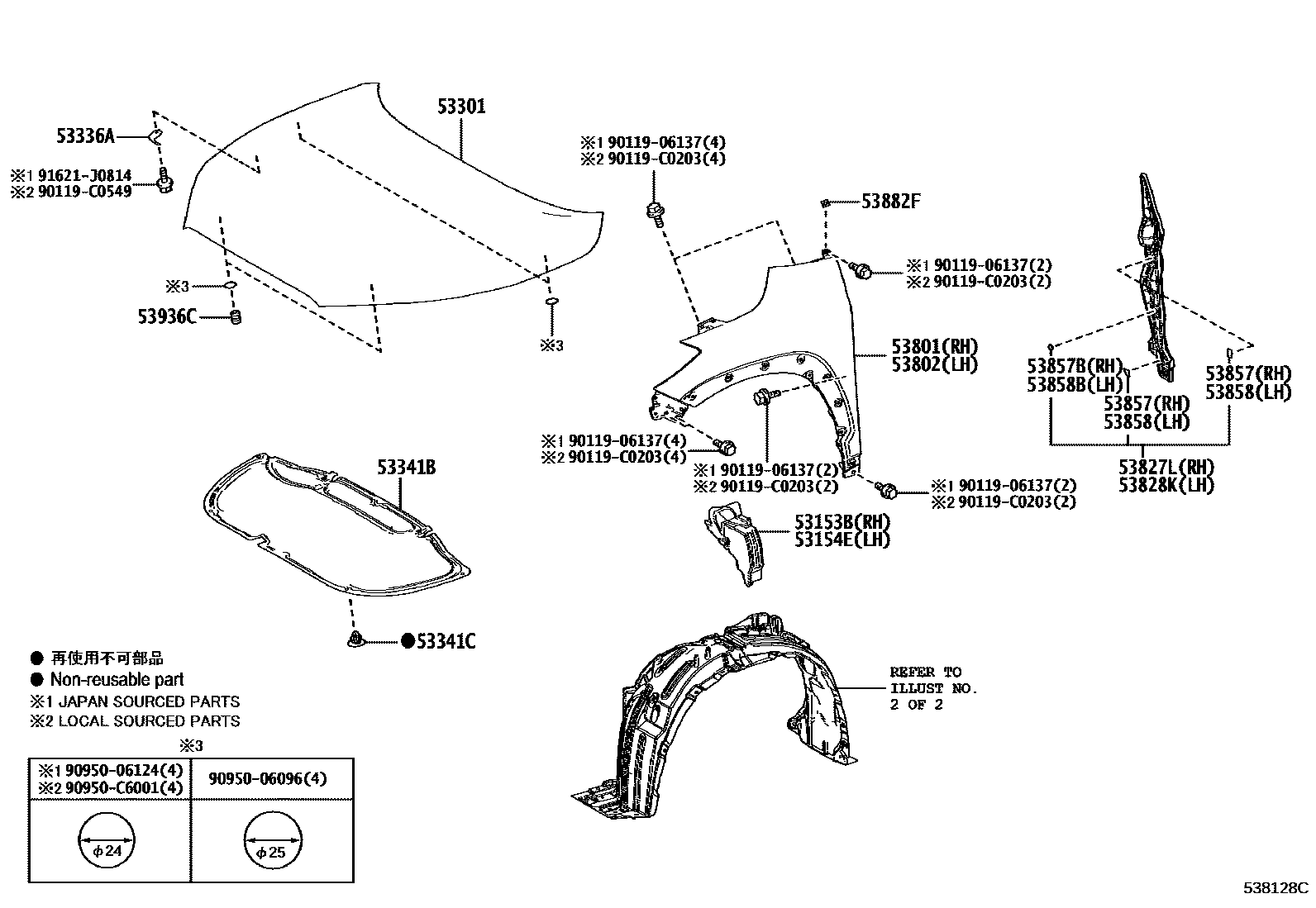

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-0A050 |
| 53154E | No. 2 front side deflector | 53154-0A050 |
| 53301 | Engine cover sub-assembly | 53301-0A070 |
| 53336A | Engine cover strut bracket | 53336-02030 |
| 53341B | engine cover gasket | 53341-0A050 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-C0025 |
| 53801 | Right front fender sub-assembly | 53801-0A030 |
| 53802 | Left front fender sub-assembly | 53802-0A030 |
| 53827L | Right front fender side panel protector | 53827-0A050 |
| 53828K | Left front fender side panel protector | 53828-0A050 |
| 53851D | Right front fender outer panel pad | 53851-0A140 |
| 53852B | Left front fender exterior panel pad | 53852-0A050 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-0R010 · 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-0R010 · 53857-47011 |
| 53875A | Right front fender lining | 53875-0A130 · 53875-0A131 |
| 53875C | Front fender lining clip | 90467-07214 · 90467-07215 · 90467-07220 · 90467-C0041 · 90467-C0043 |
| 53875P | Screw No. 1 | 90159-60477 · 90159-C0049 |
| 53875Q | No. 2 screw | 90159-60477 · 90159-C0049 |
| 53875S | Gasket No. 1 | 90189-06006 · 90189-06145 · 90189-C0010 · 90189-C0013 |
| 53875T | Gasket No. 2 | 90189-06065 · 90189-06145 · 90189-C0010 |
| 53876A | Left front fender lining | 53876-0A140 · 53876-0A141 |
| 53882F | front fender seal | 53882-0D020 · 53882-33060 |
| 53936C | Cushion pad | 90541-09145 · 90541-C0011 |
